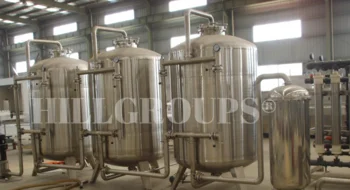

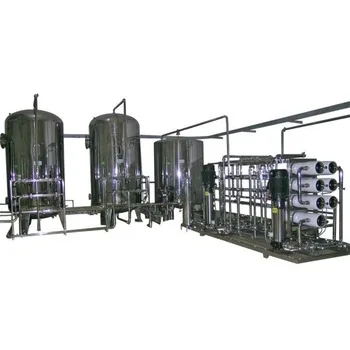

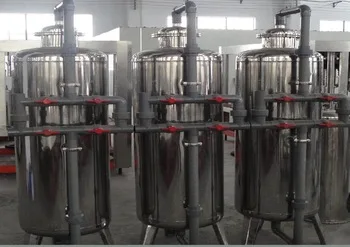

complete bottled drinking water production plant purified drinking water ro machine/ ro water plant/ ro water plant treatment

 Produce water flow meter: 5000L/H-30.000L/H (Water temperature: 25℃)
Raw water source: Bore whole, river, well, mountain spring, lake, etc
Filter media: Quartz sand filter, active carbon filter, security filter( PP filter)
RO Membrane: Filmtec Dow, Hydranautics

Working Flow Chart:
1. Raw water pump-- provide the pressure to silica sand filter/active carbon filter

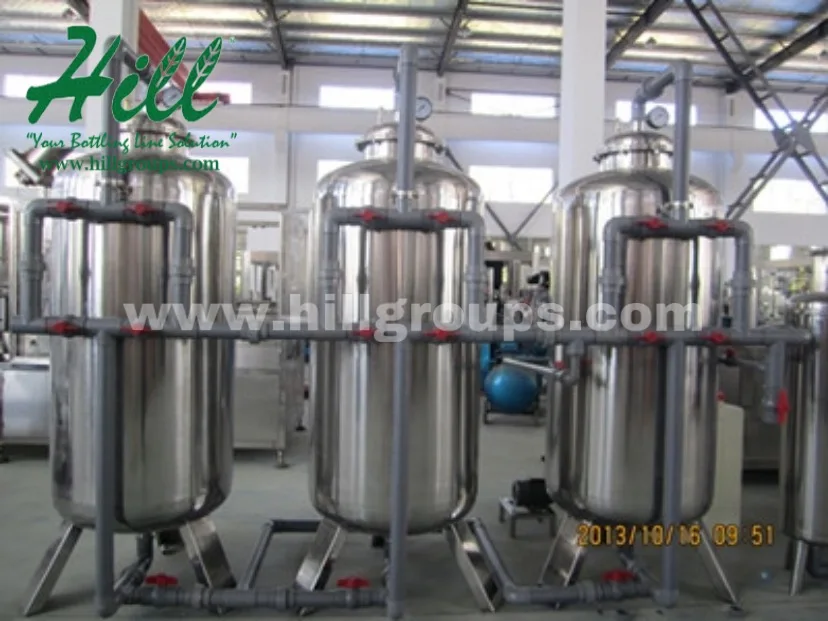

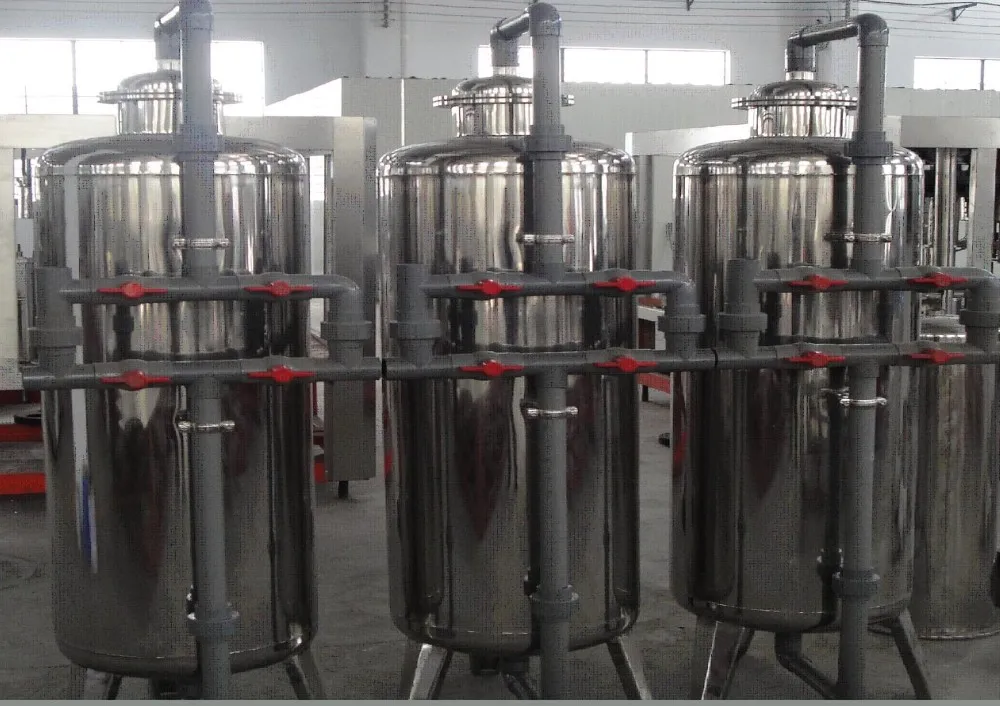

2. Silica Sand filter-- get rid of turbidity, suspended matter, organic matter, collod and so on
3. Active Carbon filter--Remove the color, free chloride, organic matter, harmful matter and so on
4, Softener--reduce the hardness of water

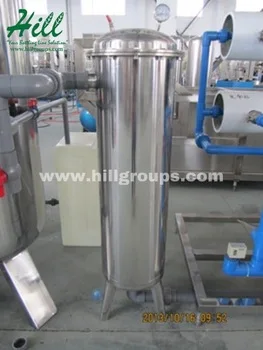

4. Micron filter--prevent any deposition of large Particles, most of the bacteria, and viruses into the RO membrane, The accuracy is 5um, for holding back any large particulates such as large iron, dust, suspended matter, impurity.
5. High-pressure pump-- Provide the high pressure to RO membrane(at least 2.0 Mpa).
6. RO system--RO system is the main part of the pure water treatment plant. The RO membrane's desalt rate can reach as high as 99%, it is capable of removing over 99% of ions, bacteria, particles and 98% of organic.

Best Quality 5Ton/H Water Treatment System:
The capacity can be from 250-5000L/h, as your requirement, RO, the water after finished can be drunk directly.

Main Features:
Best Quality 5Ton/H Water Treatment System

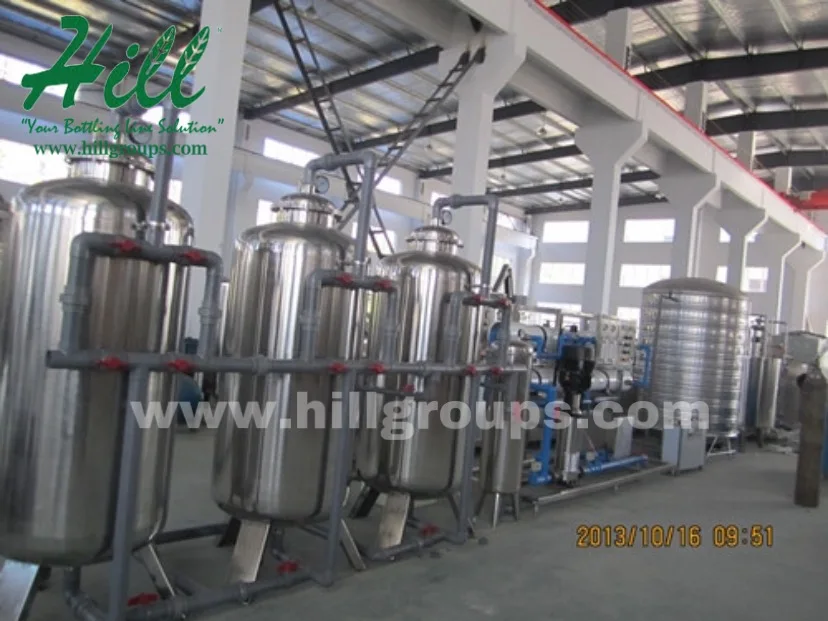

1/ Water treatment system includes silica and filter, active carbon filter, sodium ion exchanger, Ozone generator and UV Sterilizer, RO machine (If mineral water, use hollow fiber filter). All these machines made by stainless steel food stage.
2/ This water treatment plants are used to treat the water from a lake, spring, groundwater and so on.
3/ After treatment, the water can be drunk.
4/ The treated water can be used in drinking water filling line, pure water filling line and mineral water filling line.It is the ideal equipment to filter and disinfect water.
5/ This water treatment plant manufactured by our factory is of high quality and low price. It is easy to operate and maintain.

High quality

Hill Machinery provides all the service where our customer needs. However, we believe that trust and gaining customer satisfaction is the first point of our success.

High quality

Hill Machinery provides all the service where our customer needs. However, we believe that trust and gaining customer satisfaction is the first point of our success.

High quality

Hill Machinery provides all the service where our customer needs. However, we believe that trust and gaining customer satisfaction is the first point of our success.

Warehouse

Our Warehouse

We have the capability to produce all kinds of large and medium beverage machines, including the automatic washing, filling and sealing assembly line for the purified water, spring water, fruit juice drink, lactic acid drink, carbonated drink, wine, pulped drink, ketchup, chili sauce and etc.

The company always takes the lead in technology, distinctive development, and excellent service. Based on many years of research and production experience, we can provide the turn-key project to the customers.

Branches:
1. Malaysia (Factory).
2. China (Factory).
3. Indonesia.
4. Thailand.

Team

Our Team

A Photo of the exhibition which was held in Jakarta-Indonesia with our expert team we are participating in many different countries introducing our machines and gain friendship with our new customers globally starting from Malaysia, Indonesia, Thailand, China, Philippines, Vietnam, Cambodia, Singapore, also traveling and participating in Africa Middle East, Australia...etc

Delivery Details: 20-30 days after ordering the machines.

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 20-40days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

•\tMode Of Payment – Cash Or Cheque Payable To "HILL MACHINERY SDN BHD"
•\tAssuring you of our best services and attention at all times.
TERMS & CONDITIONS FOR SIGNIFICANT INDUSTRIAL PURCHASES

Terms of Price: FOB Not Included With The Machines Price.
Terms of payment: 30% down payment, the 70% balance be paid before shipment
Delivery time: within 60 working days after receiving the payment.
Guarantee time: 1 year since the customer accepts the goods
Packing: the machine will be packed in standard export wooden case.
After-sale service:
1. Engineers available to service machinery overseas.
2. The buyer needs to pay for supplier's engineer(s) visa fee, round tickets, meals, accommodation, medical fee, also include supplier's engineer(s) salary 80.00usd/day/per
