JQX HF115F/012 1HS3 5 pin 12 volt Relay
- Category: >>>
- Supplier: Xiamen Universal Electronic Co. Ltd.
Share on (62016024358):
Product Overview
Description
JQX-HF115F/012-1HS3 5 pin 12 volt Relay

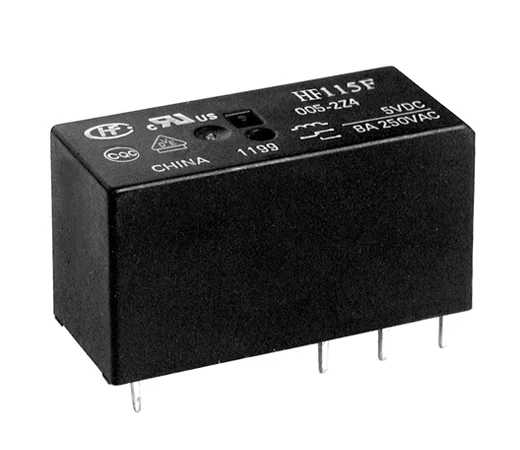

12 volt relay Picture
HIGH POWER LATCHING RELAY 12 volt relay
12 volt relay Features
| MINIATURE HIGH POWER RELAY |
| Relay Type:HF115F 12 volt relay |
| · Low height: 15.7 mm · 16A switching capability · 5kV dielectric strength (between coil and contacts) · Creepage distance: 10mm · Meeting VDE 0700, 0631 reinforce insulation · Product in accordance to IEC 60335-1 available · Sockets available · Plastic sealed and flux proofed types available · UL insulation system: Class F available · Environmental friendly product (RoHS compliant) · Outline Dimensions: (29.0 x 12.7 x 15.7) mm |
| | |
| Contact Arrangement: | 1A,2A,1C,2C,1B,2B |
| Contact Resistance: | See ordering info. |
| Contact Rating: | 1A,1B,1C:16A 250VAC 12A 250VAC 2A,2B,2C:8A 250VAC |
| Max. switching Voltage: | 440VAC / 300VDC |
| Max. Switching Power: | 1H,1D,1Z:3000VA/4000VA 2H,2D,2Z:2000VA |
| Mechanical Endurance: | 1×107OPS |
| Electrical Endurance: | 1×105OPS |
| | |
| Insulation Resistance: | 1000MΩ |
| Dielectric Strength: | 5000VAC |
| Operate Time (max): | 15ms |
| Release Time (max): | 8ms |
| Ambient Temperature: | -40℃ ~ 85℃ |
| Terminal Type: | THT |
| | |
| Nominal Voltage: | (5~110)VDC |
| Coil Power: | 0.4W |
| |
12 volt relay Packing & Delivery
Packing Details : Standard Packing, * 12 volt relay
Delivery Details : 3-30 days after order of * 12 volt relay
Q: Are you trading company or manufacturer ? * 12 volt relay
A: We are factory & trading company.
Q: How long is your delivery time? * 12 volt relay
A: Generally it is about 10-25 days to produce.
Q: Do you provide samples ? is it free or extra ? * 12 volt relay
A: Yes, we could offer the sample for free charge.
Q: What is your terms of payment ? * 12 volt relay
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 30% T/T in advance ,balance before delivery.
