The structure is more reasonable and reliable, the scope of application is wide, and the type change is quick, suitable for small batch and multi-variety quick change
Fully automatic measurement and weight removal, simple training can be on duty operation
Manual loading and unloading, sound and light prompt for qualified judgment, one person can operate two machines at the same time
Failure alarm prompt, easy maintenance; photoelectric safety protection, automatic alarm and shutdown when failure occurs
It can be equipped with a separate automatic assembly line or a fully automatic rotor production line
According to the characteristics of the rotor, there are multiple deduplication methods such as RVT
The main electrical components adopt brand components, and the equipment performance is stable and reliable
Soft support high-precision measurement system, high accuracy of measurement data and good repeatability
Fully independent intellectual property rights, special products can support highly customized solutions
More details:
Item
Technical data
Equipment name

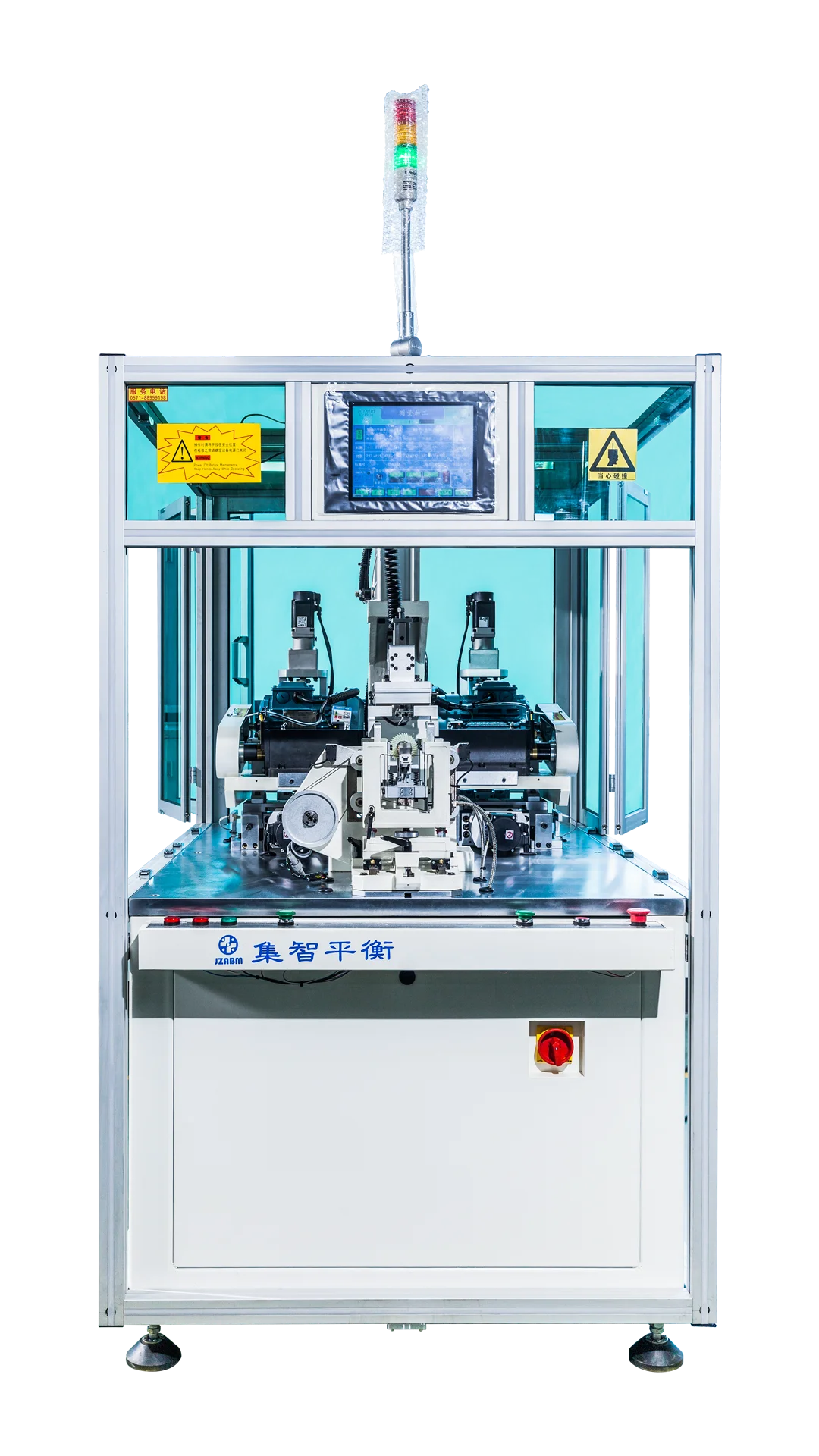

Generation II Two station Automatic balancing machine (including Jizhi balancing machine controlling software V3.0)
Model No.
.
BDXSR-2WIII-AX
Main components
Cylinder: SMC
Servo motor: Mitsubishi
Sensor: KEYENCE, OMRON, Kerui
Touch screen : KEYENCE 10.4'
Control PLC: KEYENCE KV-3000
Stepper motor: Oriental motor

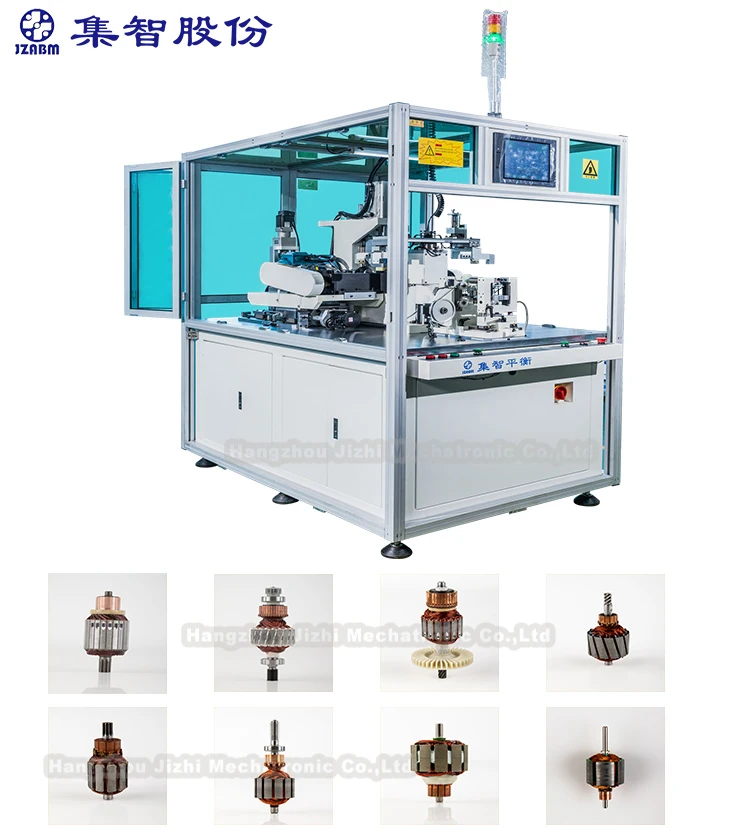

Rotor range
Stack of rotor:20-60mm
Diameter of rotor: Φ25-60mm
Balancing speed
1500-2100rpm
Milling method
R cutter or V cutter
Power
AC380V
Pneumatic
0.4~0.6Mpa
Allowable initial unbalance
Cycle time
12s (cut one more stack in one plane increase 3s)
Residual unbalance eccentricity
Better than G6.3
Dimension
1100 x 1600 x 1800 mm
Certifications
Packaging & Shipping
Business partner
Company Information
Jizhi was founded in June 2004, focusing on the research and development, production of balancing technology and related products since its establishment. After years of R & D innovation and technology accumulation, Jizhi has mastered core technologies in the field of balancing and is able to provided comprehensive solutions. At present, Jizhi products cover the application fields of home appliances, automobile industry, aviation, shipbuilding, high-speed rail, and military industry, and the market share of leading products has ranked first in the country. In 2016, Jizhi successfully landed on the GEM of the Shenzhen Stock Exchange (stock code 300553). After listing, the company's business expanded smoothly into the field of automatic production lines and intelligent manufacturing.
