Raffia Tape Stretching Extrusion Line
Raffia Tape Stretching Extrusion Line

Raffia Tape Stretching Extrusion Line

Share on (62016111734):


Price:RUB 8,374,173.92

Quantity:


Product Overview

Description

Product Description

Product Application of PP/HDPE Raffia Tape Stretching Machine

Raffia Tape Stretching Plant
Raffia fiber is one of the popular ingredients considered for making packaging components. Investing in raffia tape stretching plant would remain a profitable and affordable option. Raffia tape stretching machine is equipped with latest technology of fabricated components which suits best to produce packaging products including fertilizer bags, raffia tape stretch line for safe and moisture free packing of cement, rice, chemicals, fertilizers, etc. This machine can also make raffia fabric tapes to make ropes and yarns.

Main Features of PP/HDPE Raffia Tape Stretching Machine

1) Easy to maintain

2) Compact size

3) Long service life

Detailed Images

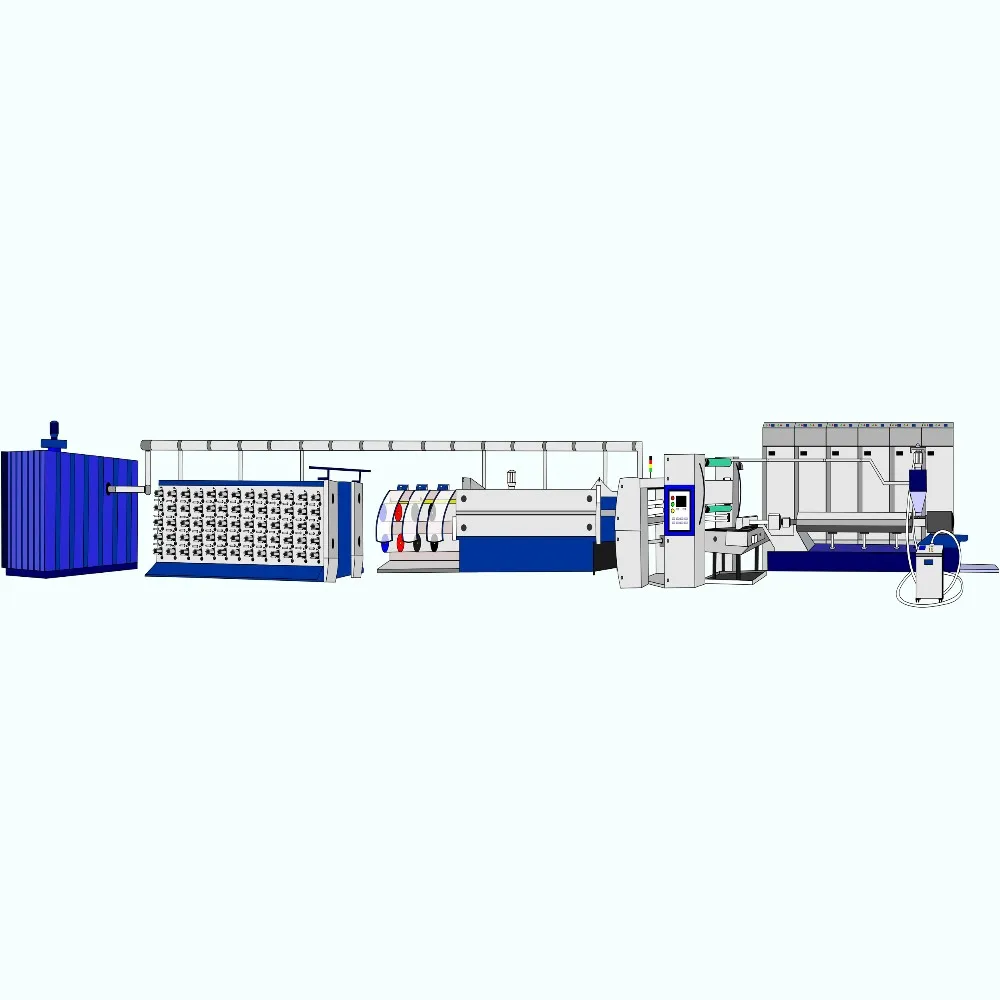

Raffia Tape Stretching Machine

Name: PP/HDPE Raffia Tape Stretching Machine

Brand: Ocean International

Original: India


We deliver all Four Aces to Our Customer for their Guaranteed Win:
• Minimum Maintenance Cost
• Minimum Energy Consumption per KG
• Minimum Investment per KG Output Capacity
• Minimum Running Cost per KG


Raffia Tape Stretching Machine

Material: PP/HDPE
Brand: Ocean International
Original: India


Product Details:
• Next Generation Tape Stretching Lines from Fume for Manufacturing of PP/HDPE flat tapes, fibrillated tapes and serrated tapes for many applications like.


• Woven/Knitted sacks/bags, Tarpaulins, FIBC (Jumbo Bags), Wrapping Fabrics, Ropes, Sewing threads.,


Raffia Tape Stretching Machine

Machine Weight : 15 to 25 ( Ton )
Brand: Ocean International
Original: India


Extruder
• The screw and barrel are manufactured from SCM-1 alloy steel, nitrogen treated and precision ground.


• Gears inside the gearbox are precision ground for noise-free cooling the oil of the gearbox.


• Built with auto loader and patent design material force feeding unit.


• Choice of AC or DC motor drive.


• Low energy consumption.

Raffia Tape Stretching Machine

Product Capacity: 150 to 450 ( kg/hr )
Brand: Ocean International
Original: India


Stretching Unit
• Two stages hot air circulation system ensures raffia tape proper stretched.

• Air flow volume is adjustable.


Packing & Delivery
PP/HDPE Blown Film Machine
Size
83 (L) * 13 (W) * 18 (D)
Weight
1.2 T



Application
Application : Raffia Tape Stretching Plant

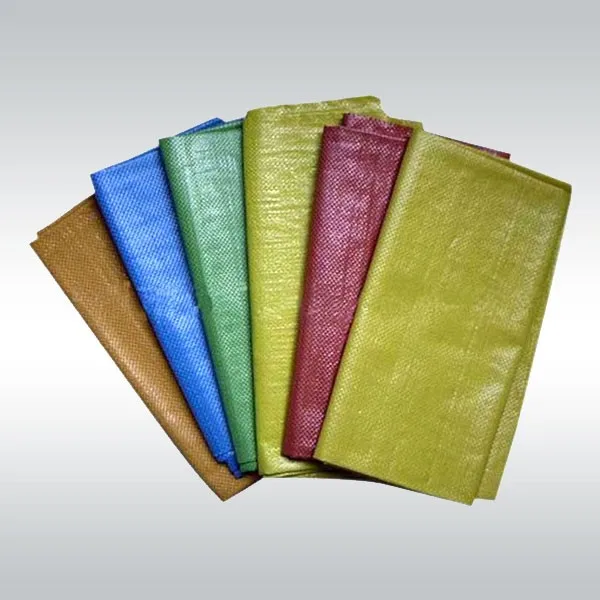

• Fertilizer Bag

• Chemicals Bag

• Cement Bag

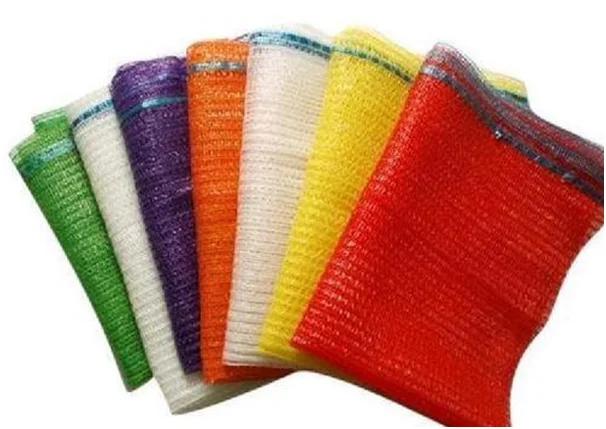

• Packaging of Onions, Potatoes, Garlic, Groundnuts,

• Rice Bag

• Sugar Bag

• Flour Food Bag

• Fruits & Vegetables Etc.

• Tarpaulin For Monsoon Sheds

• Paper, Textile Bag

• Bird Feed / Dog Feed / Cat Feed / Horse Feed / Bird Seeds

• General Purpose Packing
Packaging
Main Drive
45 ( kw ) to 150 ( kw )
Die Width
800 ( mm ) to 1500 ( mm )



Features
Features : Raffia Tape Stretching Plant

- Granulate Hopper with Hopper Loader.

- Energy Saving Extruder with Barrier Screw with 32:1 L/D with Bimetallic Screw Option.

- Melt Gear Pump.

- Continuous or Standard Screen Changers.

- Coat Hanger T Die with increased cross section with serrated or plain lip.

- Quenching Tank with parallel Quenching or film for fast cooling.

- Take Off Unit with increased height and five point suction system for better drying of film Online Gauging System.

- Cross adjustable rotary slitters or standard slitters.

- Holding Unit.

- Sturdy Design Edge Trim Grinder.

- Energy efficient Hot Air Oven with Two Separate Phase Angle.

- Control Voltage PIDS with +_ 1o C accuracy having 4 to 6 meters length.

- Combined stretching and annealing unit with hot and cool Gadgets Fibrillates

- Energy Efficient vacuum type tape extraction unit.

- Magnetic or inverter drive cheese winders for energy saving.

- Precise tension control and higher line speeds

- AC frequency drive control system for complete plant for energy saving and maintenance free installation.

- Temperature control system with SSR system for Energy Saving.

- Online energy meter for monitoring energy consumption.

- per kg for complete tapeline with winders.

- PCC panel.

- PLC system for precise plant operation.

- Lower energy consumption

- Independent complete technical support.

Related Products

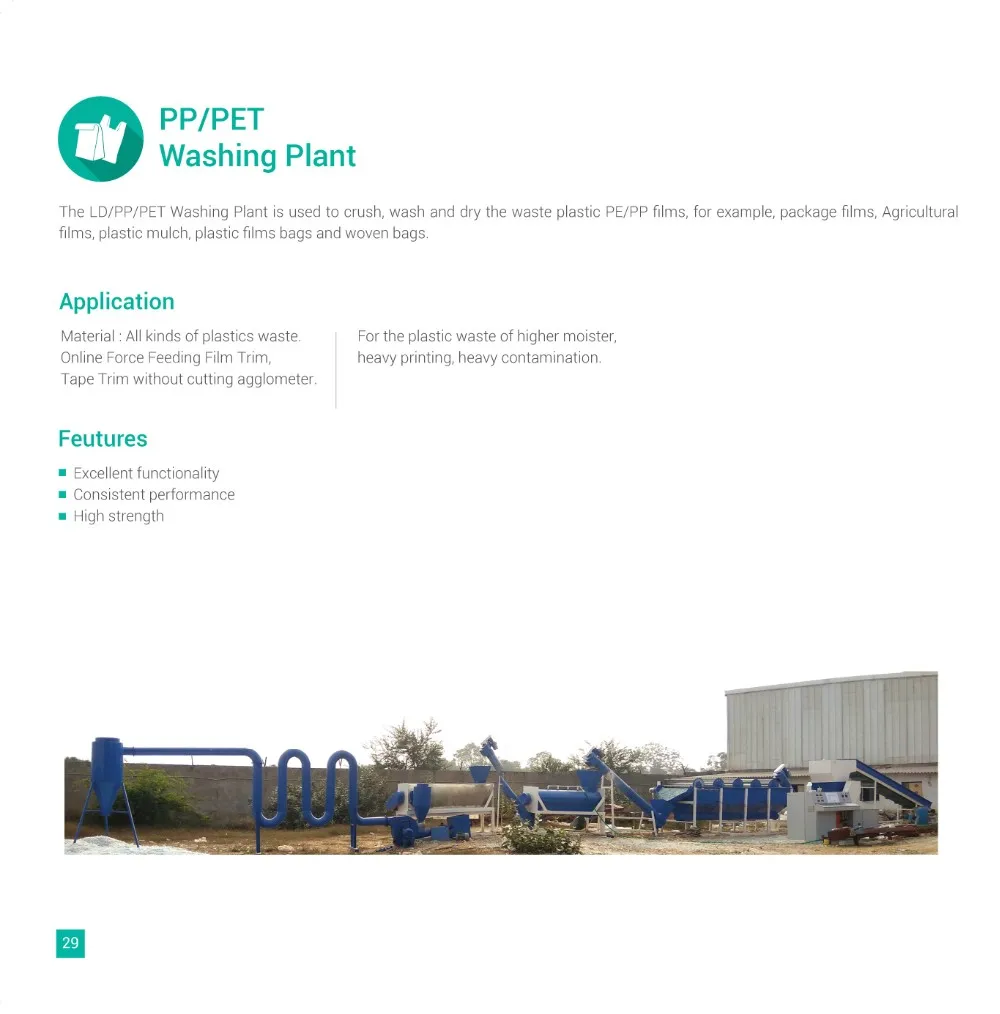

PP/PET Waste Washing Line

91.8% Response Rate

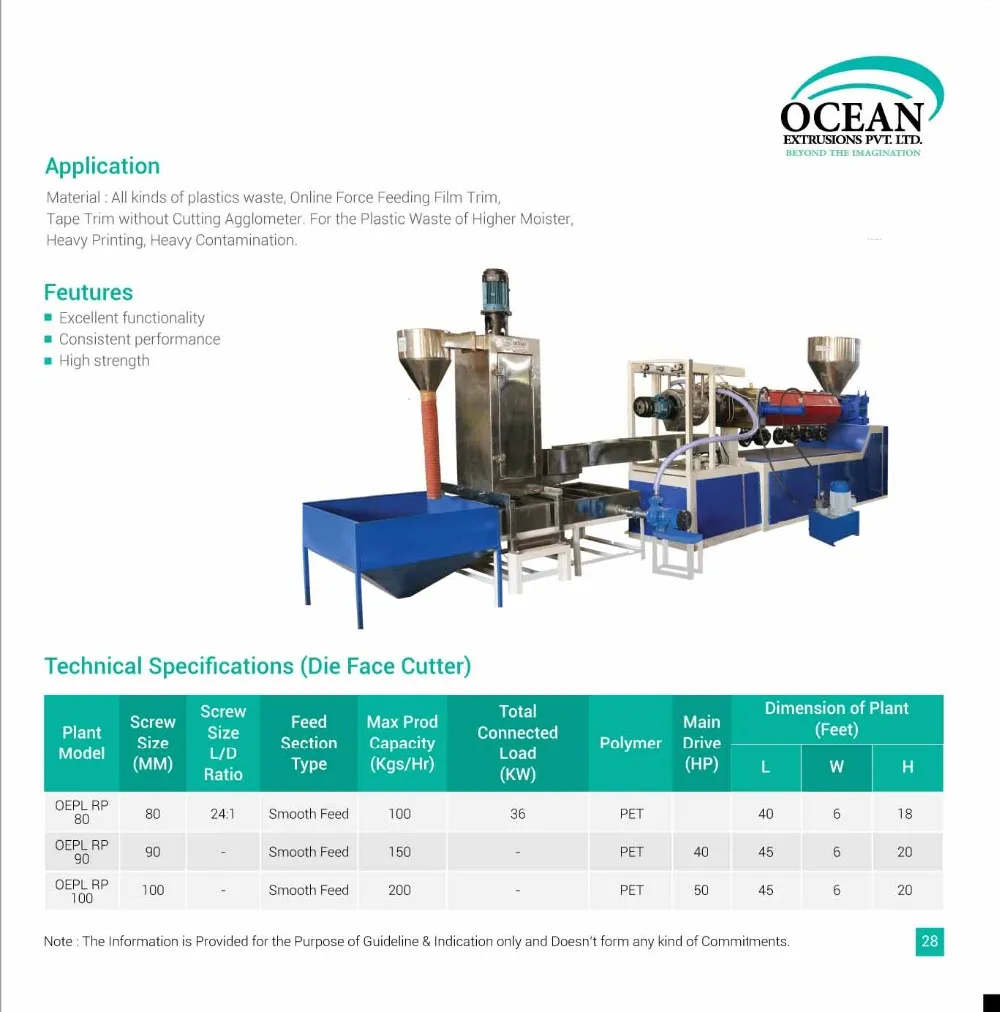

Plastic Recycling Machine
