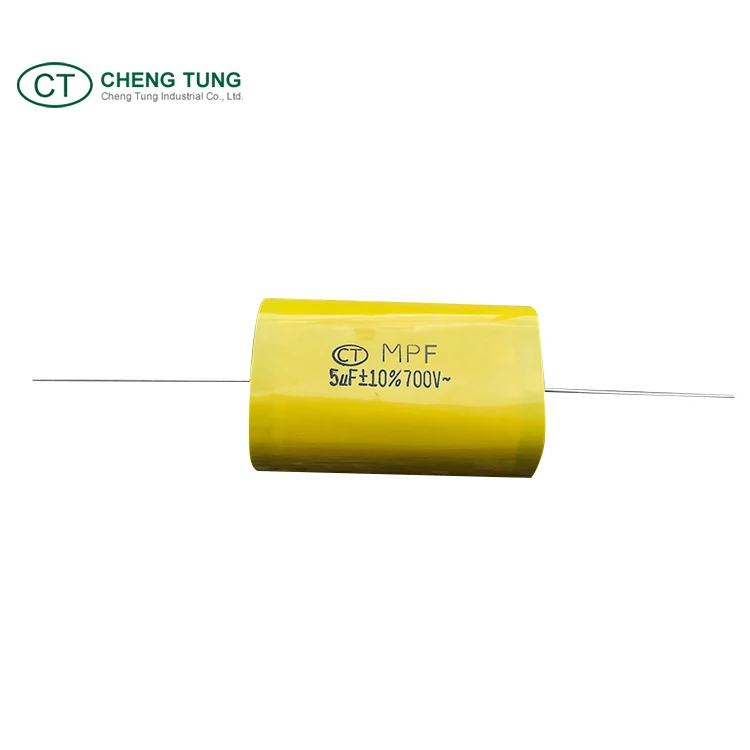

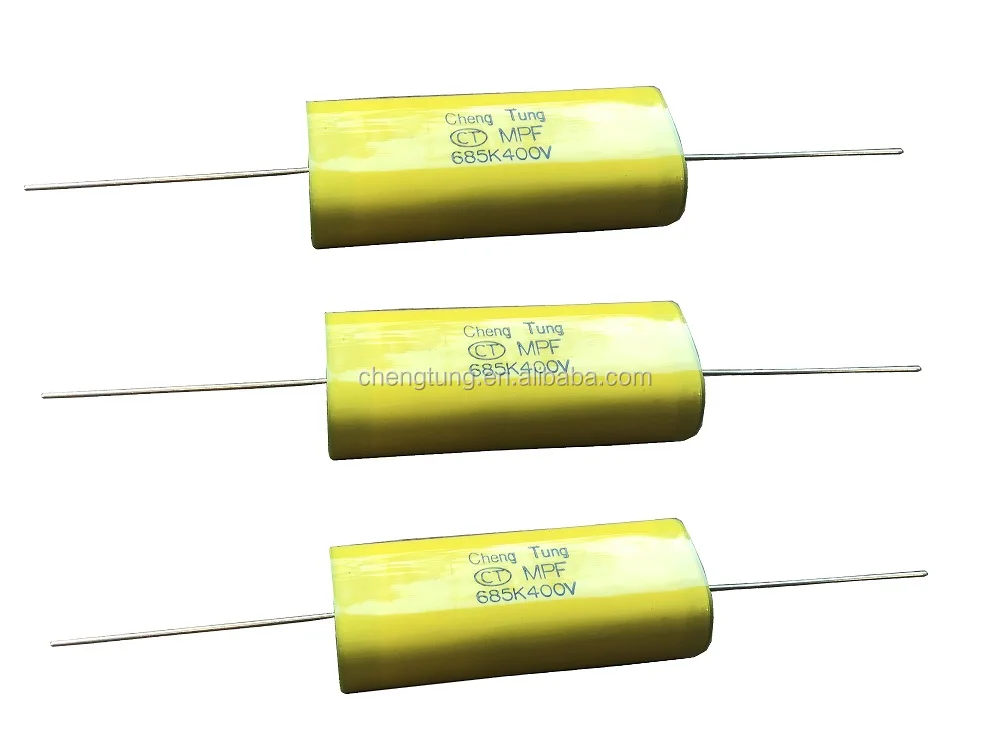

CBB20 Axial Leads Film Capacitors for audio Frequency

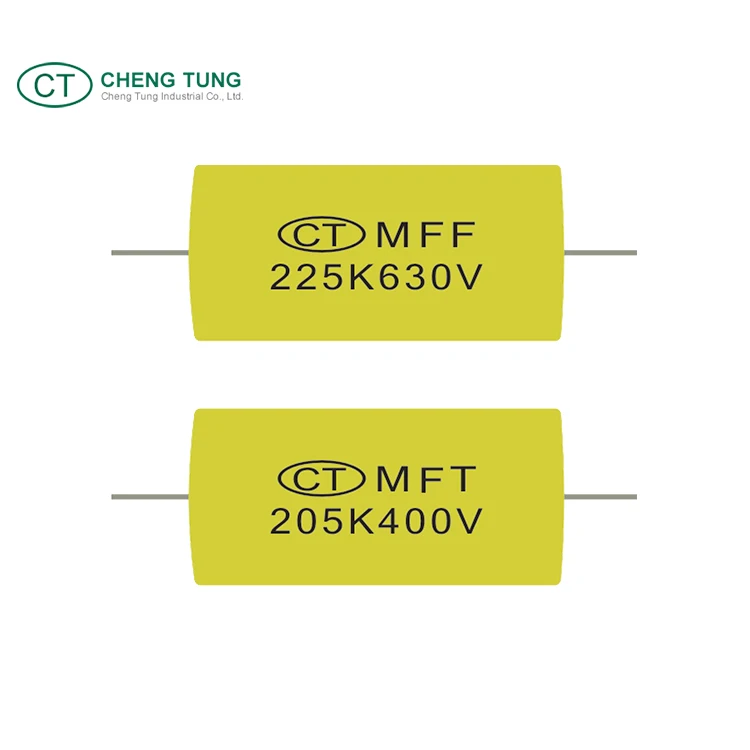

TYPE: MPT/MFT (Tubular)

FEATURES

 APPLICATIONS

•


  Low dissipation factor





•


  Self-healing property





•


  Negative temperature coefficient




• For high frequency , pulse application

SPECIFICATIONS

  Dielectric

Polypropylene film

Polyester film

  Electrodes

  Vacuum evaporated metal

  Coating

  Wrapped in flame retardant tape and epoxy resin end seal.

  Leads

  Axial leads of tinned wire

  Climatic Catalogue

  40 / 100 / 21

  Capacitance versus Rated Voltage (U_R)

  250 ~ 2000VDC  0.1 uF ~ 35uF

  Capacitance Tolerance

   J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

<=0.1% at 1KHz and 20℃(MPT/MPF)

  <=1.0% at 1KHz and 20℃(MFT/MFF)

  Voltage Proof

T-T WV x 1.6  1min

T-C 2000V.DC 1min

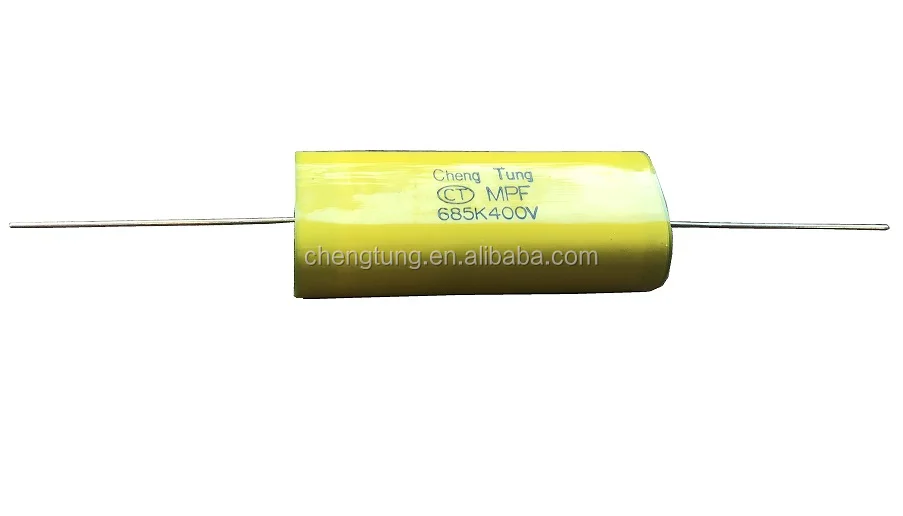

TYPE: MPF/MFF (Flat Oval)

FEATURES

 APPLICATIONS

•


  Low dissipation factor





•


  Self-healing property





•


  Negative temperature coefficient




• For high frequency , pulse application

SPECIFICATIONS

  Dielectric

Polypropylene film

Polyester film

  Electrodes

  Vacuum evaporated metal

  Coating

  Wrapped in flame retardant tape and epoxy resin end seal.

  Leads

  Axial leads of tinned wire

  Climatic Catalogue

  40 / 100 / 21

  Capacitance versus Rated Voltage (U_R)

  250 ~ 2000VDC  0.1 uF ~ 35uF

  Capacitance Tolerance

   J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

<=0.1% at 1KHz and 20℃(MPT/MPF)

  <=1.0% at 1KHz and 20℃(MFT/MFF)

  Voltage Proof

T-T WV x 1.6  1min

T-C 2000V.DC 1min

  Insulation Resistance

C<=0.33uF  IR>=30,000MΩ

C>0.33uF  IR>=10,000MΩ / uF
