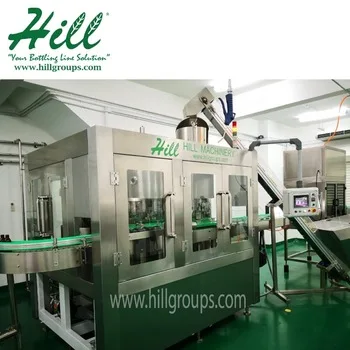

full line water filling machine for Plastic Bottle 3in1 Filling machine/ water filling machine/ 3in1 water filling machine

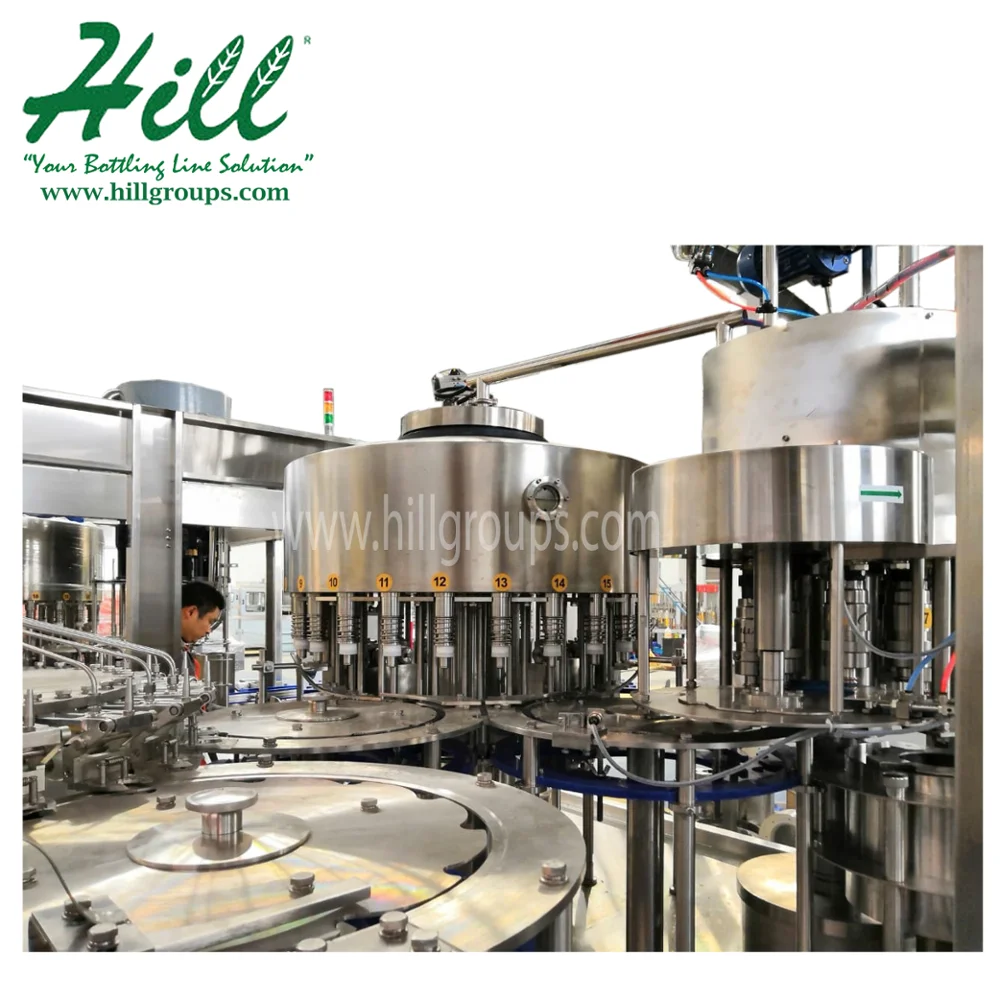

HILL-24-24-8 three-in-one machine for Carbonated PET bottle integrates the functions of rinsing, filling and capping together. Based on advanced technology overseas and designed according to the filling processing demands of mineral water, pure water, etc.

Working process:

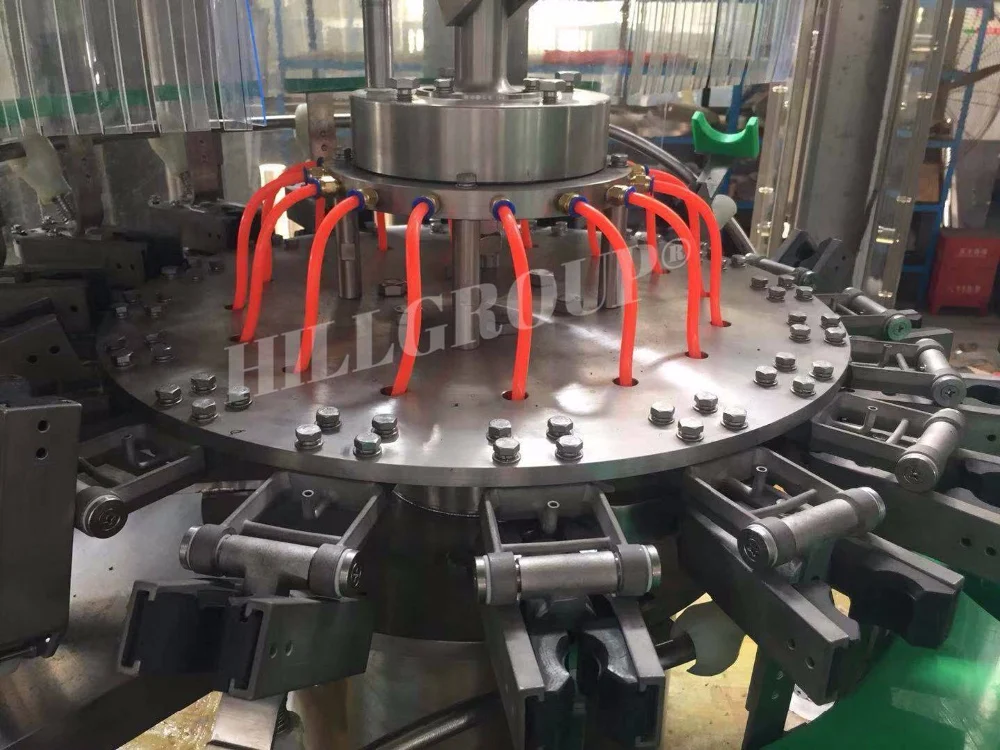

Bottles are fed from air conveyor into three-in-one rinsing machine via star-wheel. Bottle clamp installed on the rotary wheel of the rinsing machine will grip bottle mouth and make a 180º turn along a guide track to face the bottle mouth downward.
In a designated section of the rinsing machine rinsing, water will jet out from special nozzles to flush bottle inside wall. After rinsing and dripping, bottles gripped by bottle clamp will make another 180º turn along a guide track to resume bottle mouth facing up. Cleaned bottles are moved out of the rinsing machine by bottle carrier mechanism to raise them to engage with filling valves.

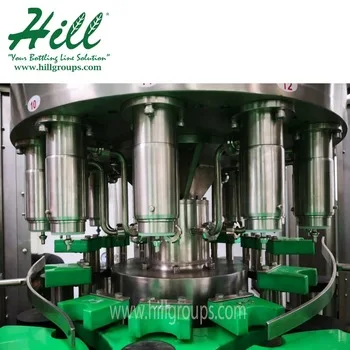

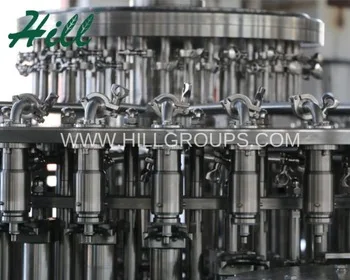

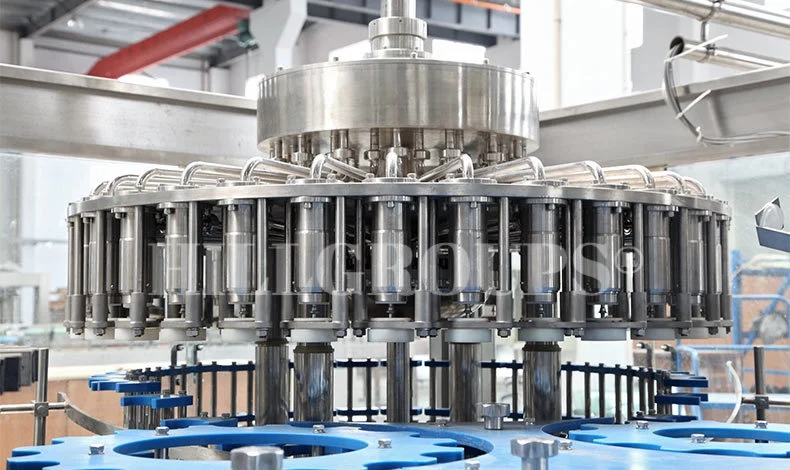

A filling is completed by gravity. The material filled into the bottle through a filling valve. The bottle goes down and leaves the valve to capping machine via neck handling star-wheel.

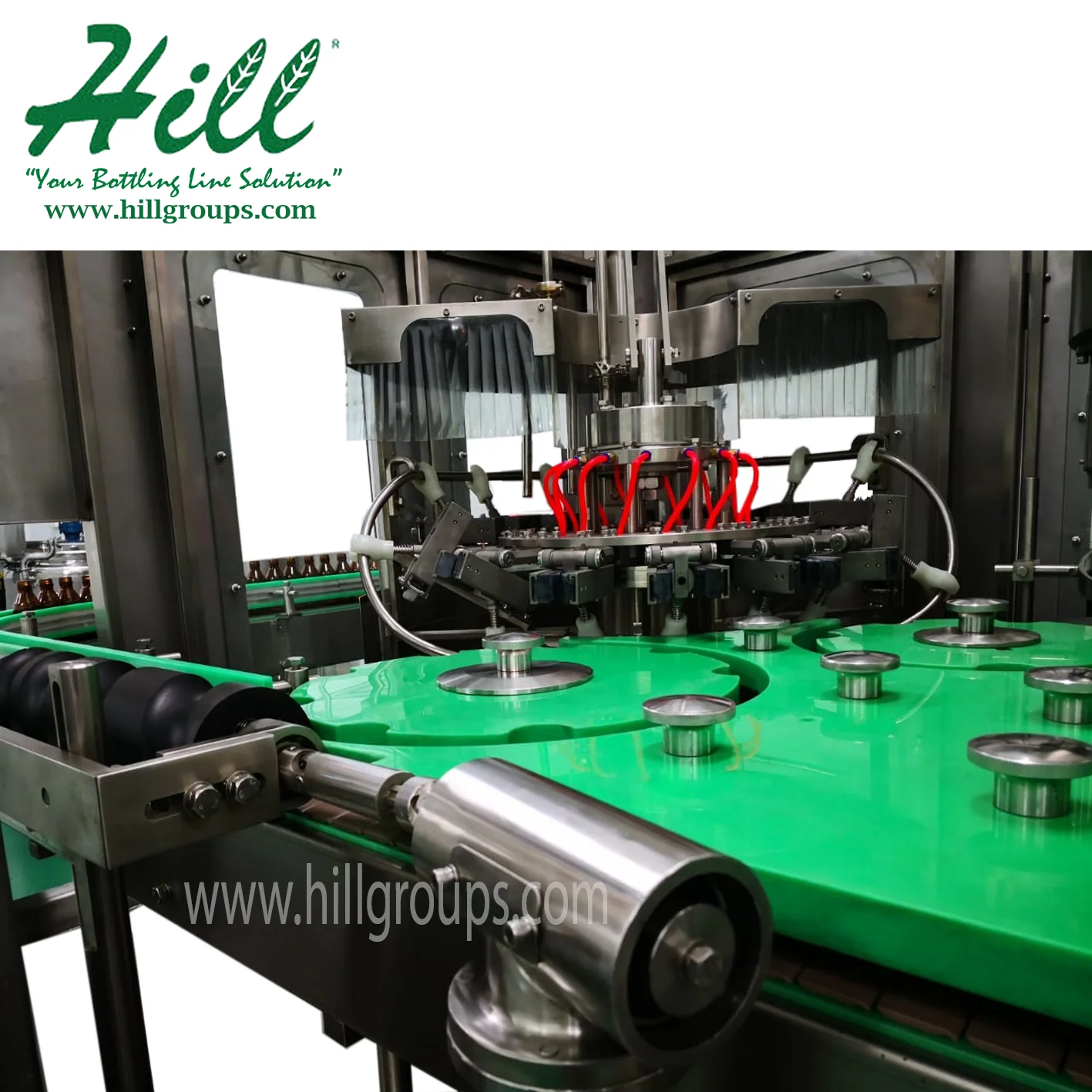

Anti-rotation blades on capping heads will seize the neck of a bottle to prevent it from rotation and hold it in up-right. The twist-on capping head will make revolving and rotating movement along with the machine to finish the complete capping process of cap picking, placing, twisting and disengaging under the control of a cam.

Main features:

1. This machine has a compact structure, perfect control system, easy to operate and highly automated.
2. Only by changing the star-wheel, the arch board can realize fill bottle shape change
3. The parts contact with the product is made of quality SUS, anti-corrosive, and easy to clean.
4. Rapid flow, highly filling precision, nicety liquid level without any liquid loss to satisfy the filling process demand.
5. The capping head adopts constant torque magnetic device to guarantee capping quality and impact cap.
6. This machine has a high efficient cap arranging system, perfect cap feeding with self-control and self-protection device.
7. The machine adopts perfect overload protective device can ensure the operator and machine safety
8. The control system has many functions, such as control producing speed, cap shortage detection, bottle block automatic stop and production counting, etc.
9. The main electric and air-driven components are world-famous brand products.
10. All control is advanced touch-screen operation and realizes people-computer dialogue operation.

Product Name	Automatic Water Drink Filling Machine for 24248
Material	stainless steel
Color	nickel white
Capacity	13000-15000 bottles for 500ml&330ml
Bottle range	Diameter:50~110mm; Height:186~310mm
Total weight	6000kg
Power of main motor	4kw
Dimension	3600x2700x2700 (L*W*H)

Products Show

Our Service

High quality

Hill Machinery provides all the service where our customer needs. However, we believe that trust and gaining customer satisfaction is the first point of our success.

High quality

Hill Machinery provides all the service where our customer needs. However, we believe that trust and gaining customer satisfaction is the first point of our success.

High quality

Hill Machinery provides all the service where our customer needs. However, we believe that trust and gaining customer satisfaction is the first point of our success.

Our Company

Factory

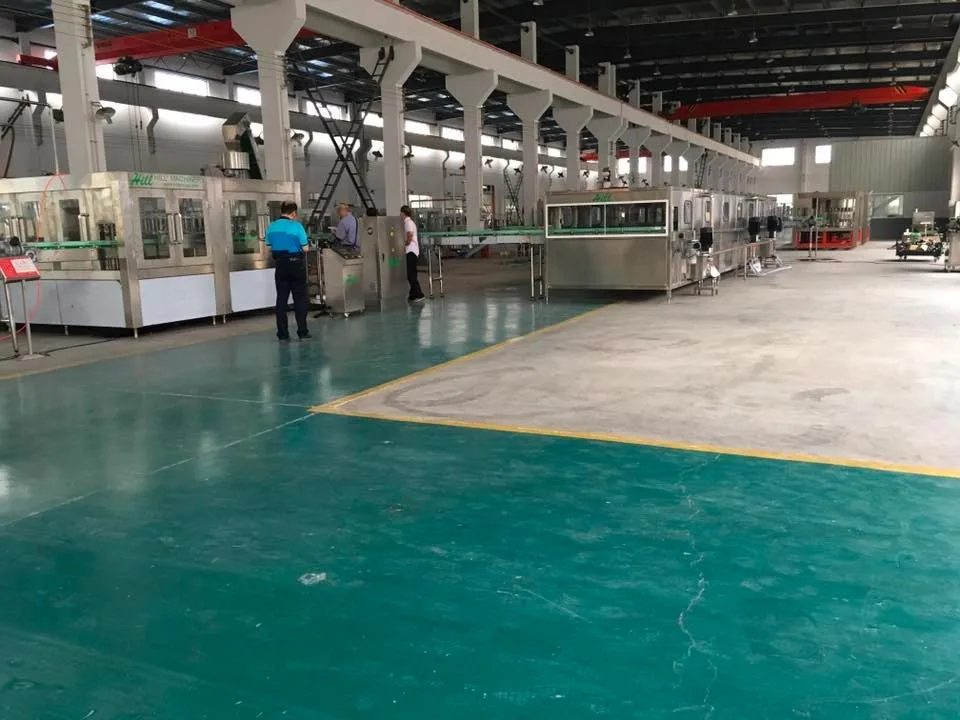

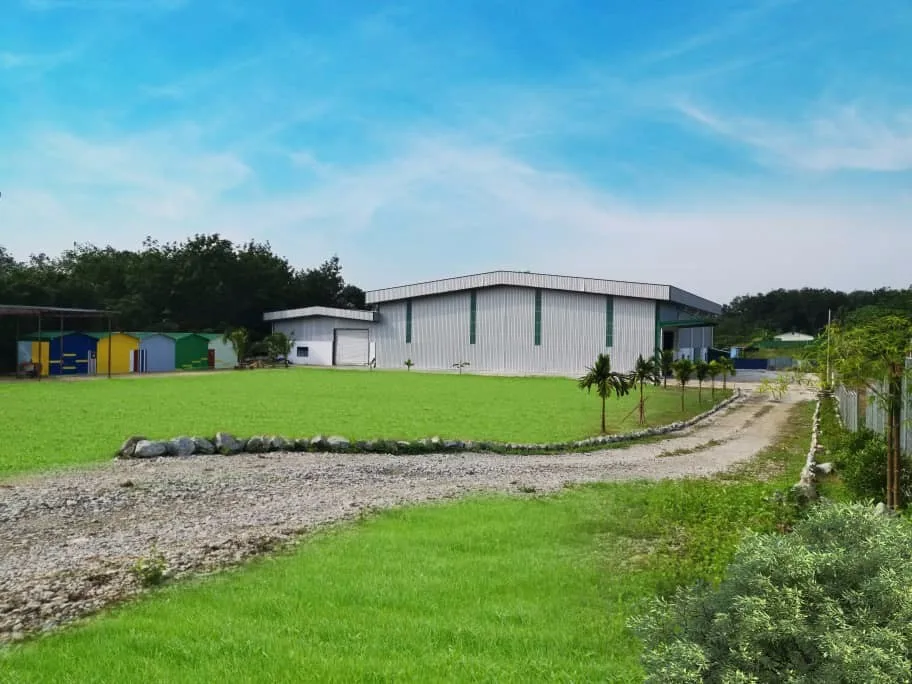

Our Factory
Hill Machinery has been manufacturing and serving various types of industrial beverage machines for more than 10 years and has since become one of the leading manufacturer and supplier of industrial beverage filling system. Part of our commitment is to maintain the highest level of customer satisfaction by providing high quality in terms of products and services. We are the manufacturer of our products and our brand Hill provides full coverage for Industrial beverage filling systems, including Injection Machine, Filling Machine, Labelling and Packaging Machine.

Branches:
1. Malaysia (Factory).
2. China (Factory).
3. Indonesia.
4. Thailand.

Exhiption

Our Exhibition
A Photo of the exhibition which was held in Philippine. We are participating in many different countries introducing our machines and gain friendship with our new customers globally starting from Malaysia, Indonesia, Thailand, China, Philippines, Vietnam, Cambodia, Singapore, also traveling and participating in Africa, Middle East, Australia, Europe, US....etc

Warehouse

Our Warehouse
We have the capability to produce all kinds of large and medium beverage machines, including the automatic washing, filling and sealing assembly line for the purified water, spring water, fruit juice drink, lactic acid drink, carbonated drink, wine, pulped drink, ketchup, chili sauce and etc.

Team

Our team in Malaysia, China, Indonesia, and Thailand
We have quite a number of expert teams in sales, development, engineering, and design around South East Asia and globally.
Hill Machinery team are ready to provide you all the service that you need to help you improving the quality of your production and achieving goals to reach the top of success.

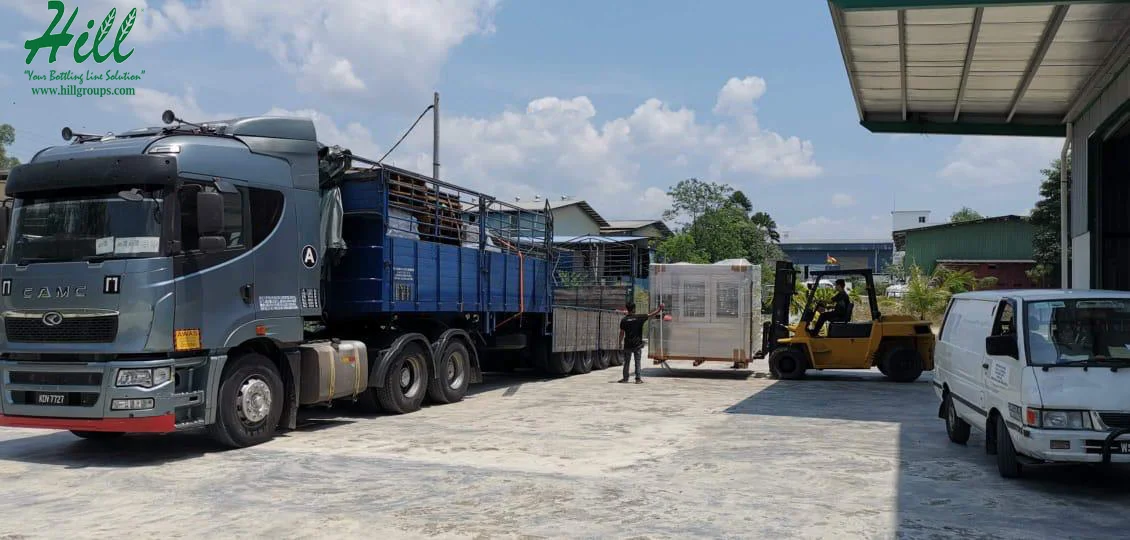

Packing & Delivery

Packaging Details: We are keen to gain customer satisfaction as we provide a high quality of our product.

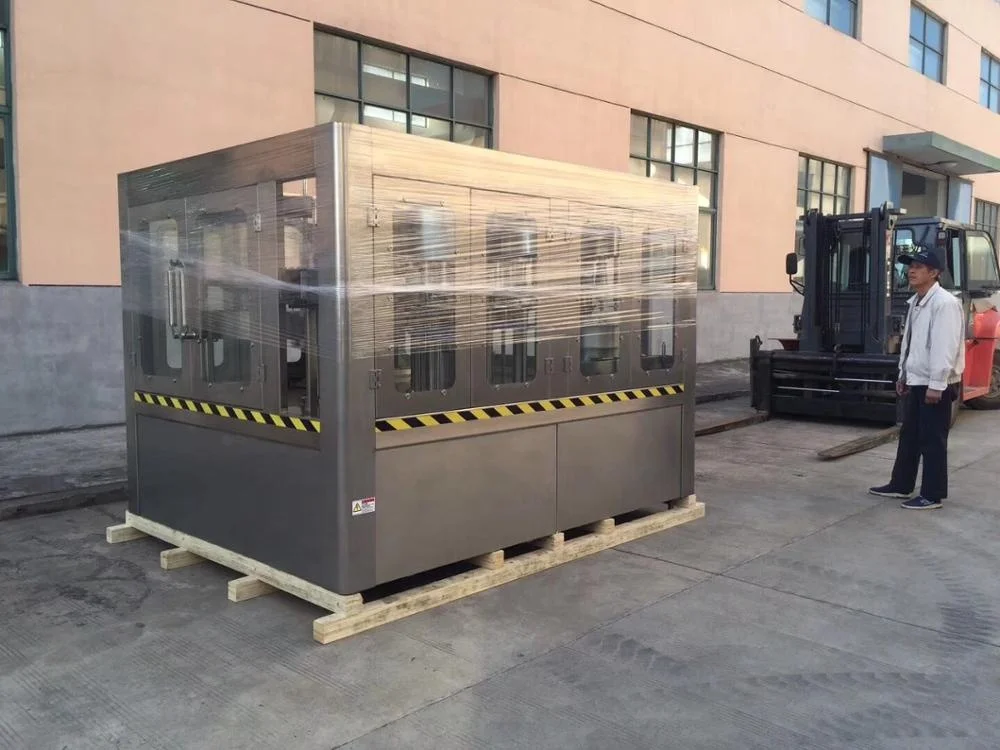

First, wrap the machines by plastic to ensure it's totally protected from dust, water ...etc
Second, Provide strong wood materials to keep the machines safe and away from any hit or shakes.
Delivery Details: 40-60 days after ordering the machines.

First, wrap the machines by plastic to ensure it's totally protected from dust, water ...etc

Second, Provide strong wood materials to keep the machines safe and away from any hit or shakes.

Provide strong wood materials to keep the machines safe and away from any hit or shakes.

send the machines to our clients on time without any delay in shipment as we insure to be delivered with high quality shipment technique

Professional way of shipment and insurance are giving to protect the shipment terms and condition.

We are keen to gain customer satisfaction as we provide a high quality of our product.

Our Factory Outlook

Customer Photo

Our Customer's

After installing the machines in our customer's field,
where we can guarantee that our machines are processing in a professional way which mack us unique among the others.
Our Malaysian filling machine is the trusted and renowned Malaysian brand of filling machines and with us, you are in safe hands as we look the most how to make our customers happy and satisfied with our machines in term of providing high quality and modern turnkey projects.

We believe that service after-sales is very important and this is the strong point of us as we are the manufacturers of our filling machines plant.

Our Customer's

After installing the machines in our customer's field,
where we can guarantee that our machines are processing in a professional way which mack us unique among the others.
Our Malaysian filling machine is the trusted and renowned Malaysian brand of filling machines and with us, you are in safe hands as we look the most how to make our customers happy and satisfied with our machines in term of providing high quality and modern turnkey projects.

We believe that service after-sales is very important and this is the strong point of us as we are the manufacturers of our filling machines plant.

Our Customer's

After installing the machines in our customer's field,
where we can guarantee that our machines are processing in a professional way which mack us unique among the others.
Our Malaysian filling machine is the trusted and renowned Malaysian brand of filling machines and with us, you are in safe hands as we look the most how to make our customers happy and satisfied with our machines in term of providing high quality and modern turnkey projects.

We believe that service after-sales is very important and this is the strong point of us as we are the manufacturers of our filling machines plant.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

• Mode of Payment – Cash or Cheque Payable To "HILL MACHINERY SDN BHD"
• Assuring you of our best services and attention at all times.

TERMS & CONDITIONS FOR SIGNIFICANT INDUSTRIAL PURCHASES
Terms of Price: FOB.
Terms of payment: 30% down payment, the 70% balance be paid before shipment
Delivery time: within 60 working days after receiving the payment.
Guarantee time: 1 year since the customer accepts the goods
Packing: the machine will be packed in standard export wooden case.

After-sale service:
1. Engineers available to service machinery overseas.
2. The buyer needs to pay for supplier's engineer(s) visa fee, round tickets, meals, accommodation, medical fee, also include supplier's engineer(s) salary 80.00usd/day/per
Valid Date: 3 months
