T DRONES cost effective hexacopter drone with 1 hour flight time for drone cargo delivery

Product Overview

Description

Product Description:

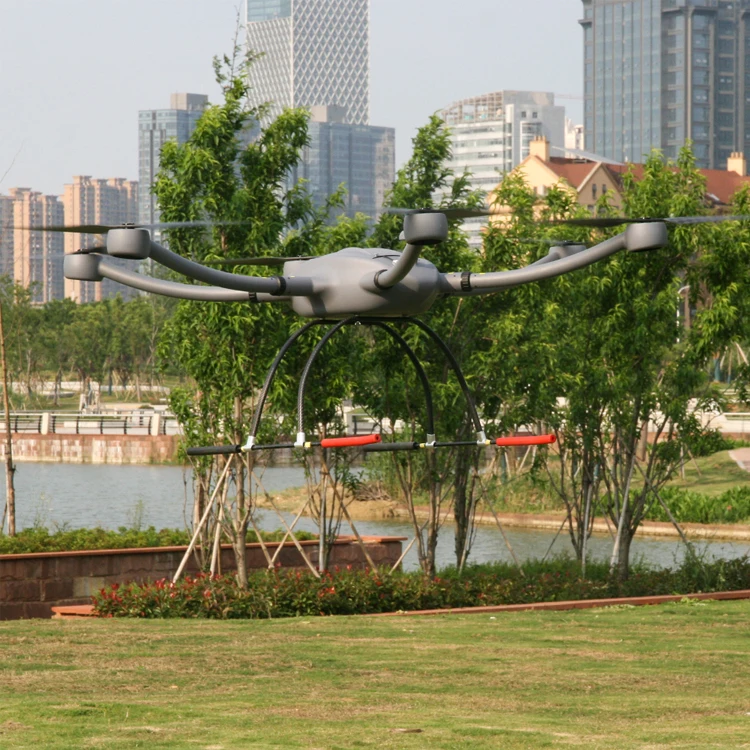

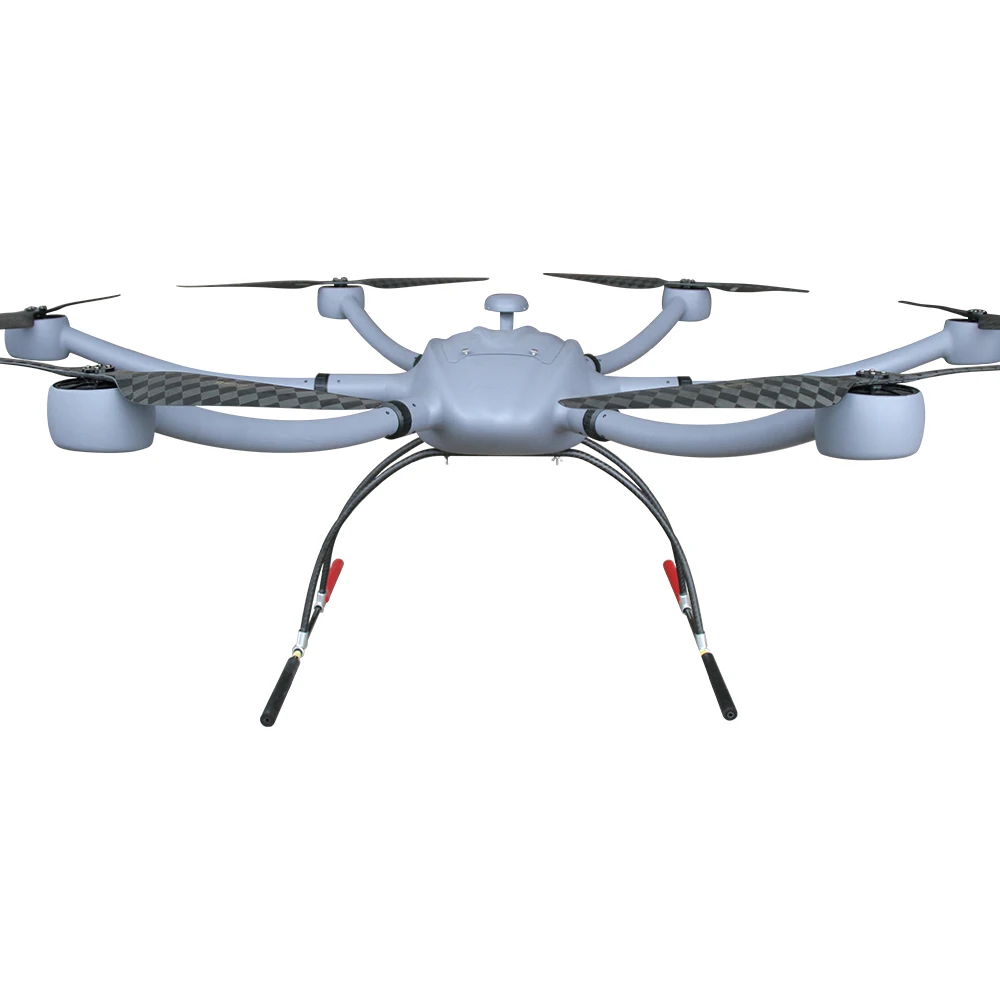

T-DRONES 5kg payload hexacopter drone with 40-52 minutes of flight time for drone cargo delivery.

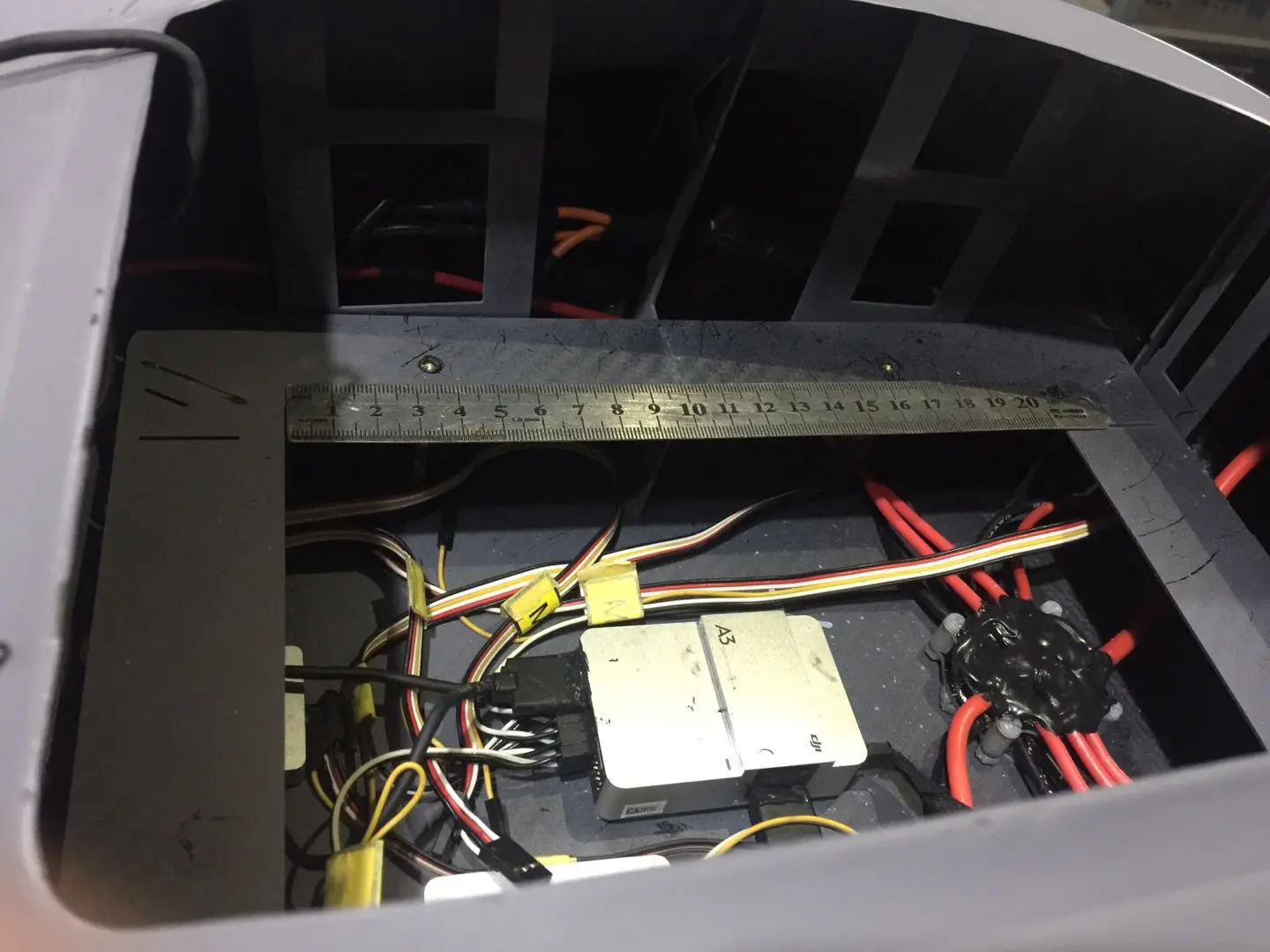

Abundant inner space for the flight controller and battery. The power distribution board already mounted within the carbon frame. Everything is CNC cut for a perfect fit and easy assembly.

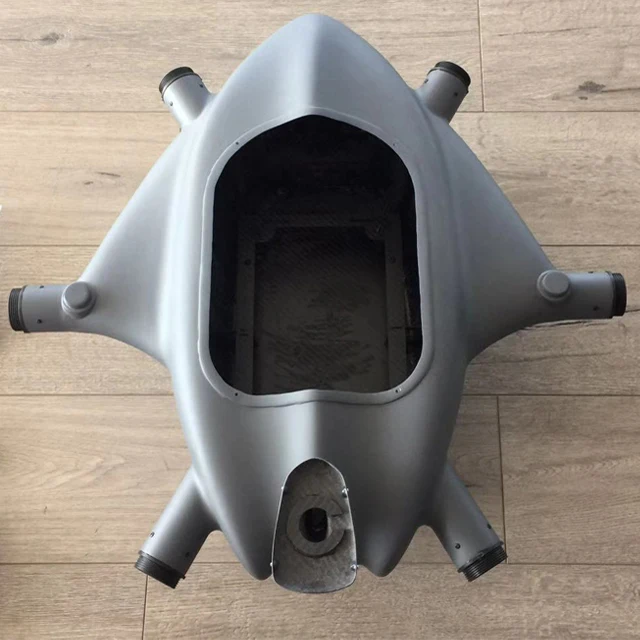

The lightweight yet sturdy whole carbon-fiber structure with the detachable arm for portable and easy assembly.



 This hexacopter frame is provided with a T-MOTOR propulsion system helping highly improve the safety and stable flight experience.



Your purchase includes:(5 kg payload Drone frame flight platform)

1x M1500 drone frame

6 x T-Motor U8 Lite brushless motor

6 x T-Motor FLAME 60A HV ESC

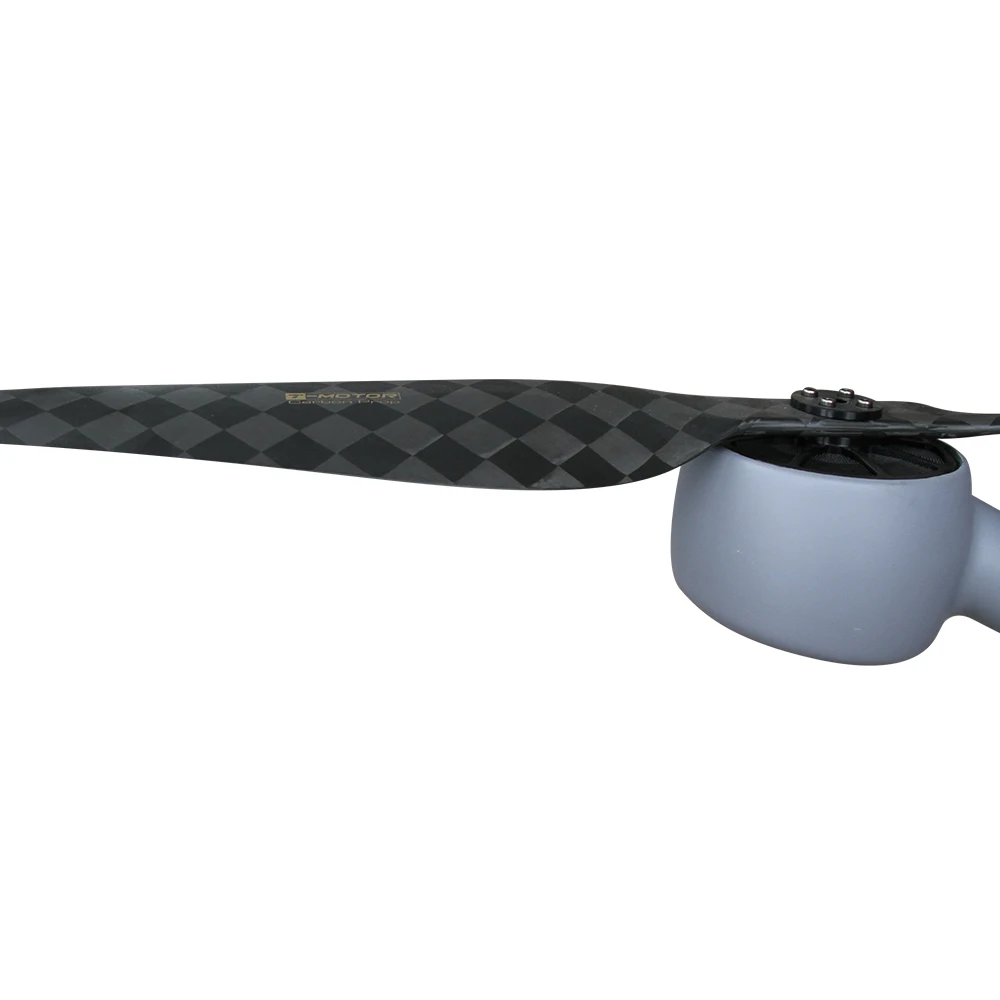

3 x T-Motor 28" carbon fiber propeller CW/CCW

 ( The above-listed T-Motor power system just for payload 5kg, if needed bigger payload up to 10 kg also can be designed)



Specification

Wheelbase	1500 mm
Flying weight	18 kg (with payload)
Payload	5 kg
Flight time	5kg payload ≥ 60
Flying range	10 km
Flying height	100~1000m(general) 6500m altitude(Maximum Lift Limitation)
Waterproof	200mm/24h
Wind resistance	Force 6
Battery	TATU 12S 39AH  (SUGGESTED, not provided from us)
Flight controller	A3 /A3 pro PIX  MicroPilot (suggested, not provided from us)





Any questions, please contact us



Bonnie



WhatsApp / Mobile :+86-17770057309



Skype: sale15_21



FAQ:

Q1. How can we know the product quality?
A1: We suggest you order a sample. Also, you can send us an email if you cannot get enough information on the product page.



Q2. Is it the final price on the price list?
A2: No, there still have some negotiated rooms. It depends on the order you placed, the more you place, the competitive price you will get.



Q3. Can you offer OEM/ODM service?
A3: YES. The OEM/ODM is welcomed.



Q4. How can I send an inquiry?
A4: When you find something you are interested in, you can click “chat now”, or you can leave your information to us.



Q5. Does the drone frame involve everything for ready-to-flying?
A5: No. It is only including one set frame + brushless motor+ESC+Propeller.  This is just a long flying drone with stable power output for safety needs. Various types of applications like photography /mapping survey/police etc.



Q6. Do you provide samples?

A6:  Of course, we do with the charge.



Our Service:

Design Service
We can provide customized service. If you have any needs for your new product or wish to make further improvements, we are here to offer our support.

Product Sampling
One of the biggest worries when purchasing from a Chinese supplier, especially for the first time. Our samples procedure takes away your worry.

Quality Control
We have experienced and strict QC team to control the quality. To guarantee high-quality products sent to our customers.

Delivery
We can arrange sea shipment, air shipment, express shipment for you. Or you can also appoint your own forwarder, we deliver goods to your forwarder and help them to arrange shipment for you.

Payment terms
We can accept different payment methods: T/T, Paypal, Alipay. It's negotiable.
