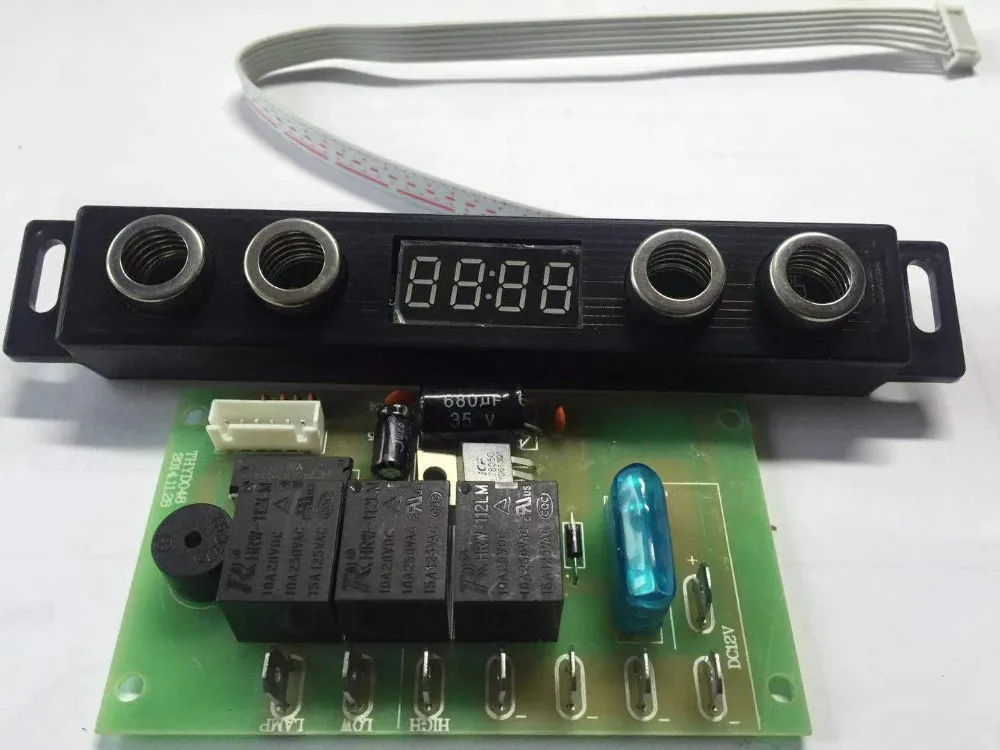

Note: This switch control is designed for 12V DC use Instruction Manual
1.Connect the power,with a buzzer sounded means the switch is live.

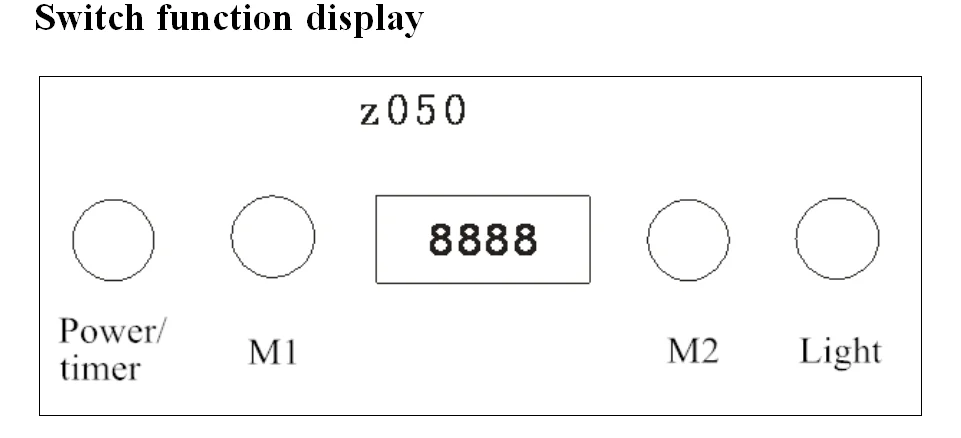

2.Lighting: Press one time to switch on and press again to switch off, its independent with other keys.
3.M1&M2: Press the power button,the power indicator light is on , display time 12:00, press M1, The motor and fans 1working and press again to stop it,press M2, The motor and fans 2 working and press again to stop it. The M1 and M2 are working independent, so it can work same time or just one of them work according to your request.
4.Timer: When the M1 or M2 are in the working(at least one of motor in the working), press the power button/Timer once, the fan will stop working after 5 minutes automatically, Press again,the motor will stop working at once.
Light function is not controlled by the the timer button.
5, Time setting: when the time in standby mode (none of the motor is in working) , press the power button for 3 seconds to enter the time adjustment, M1, M2 to SET time .
