Точный цифровой манометр

 Description

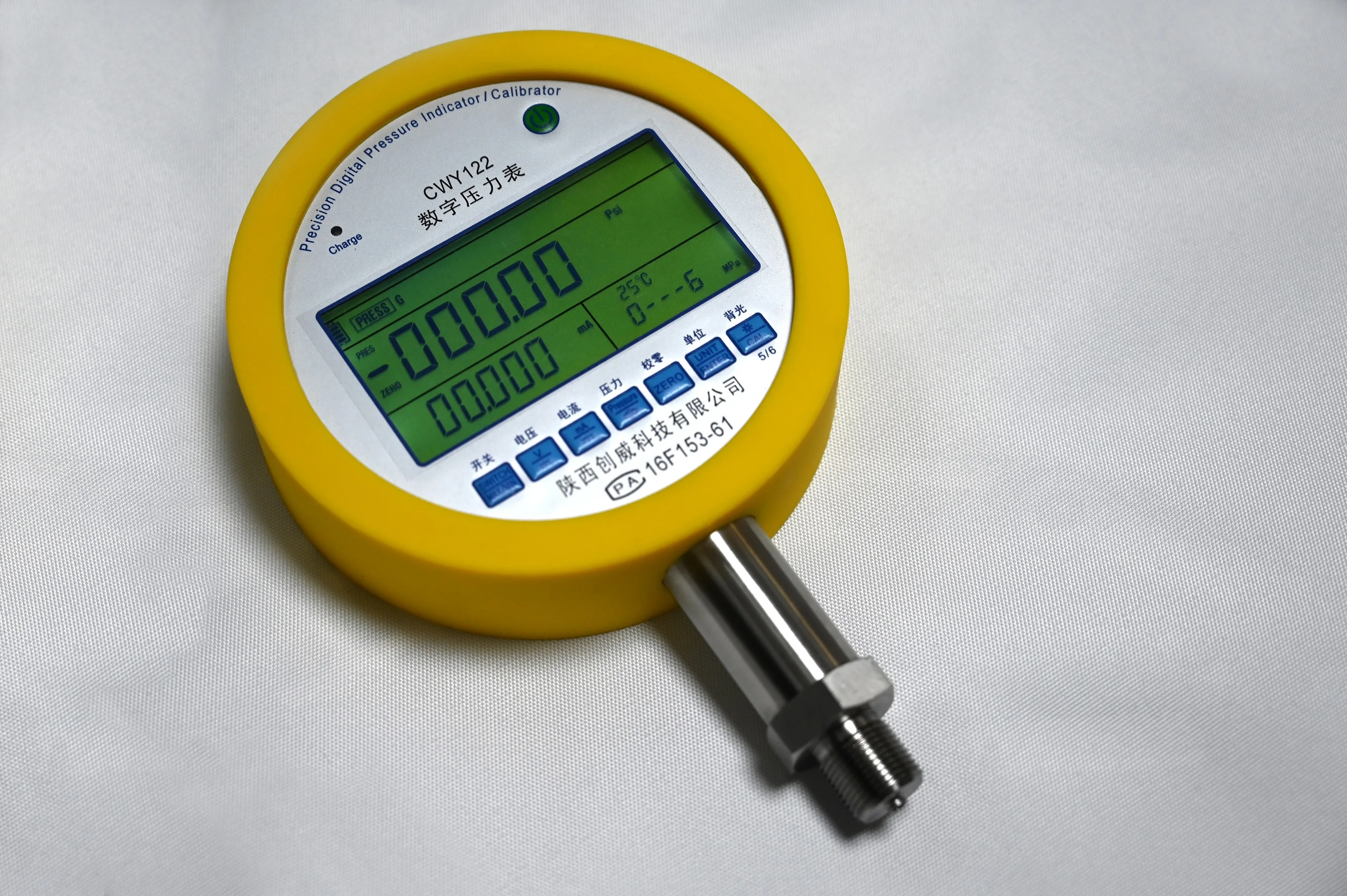

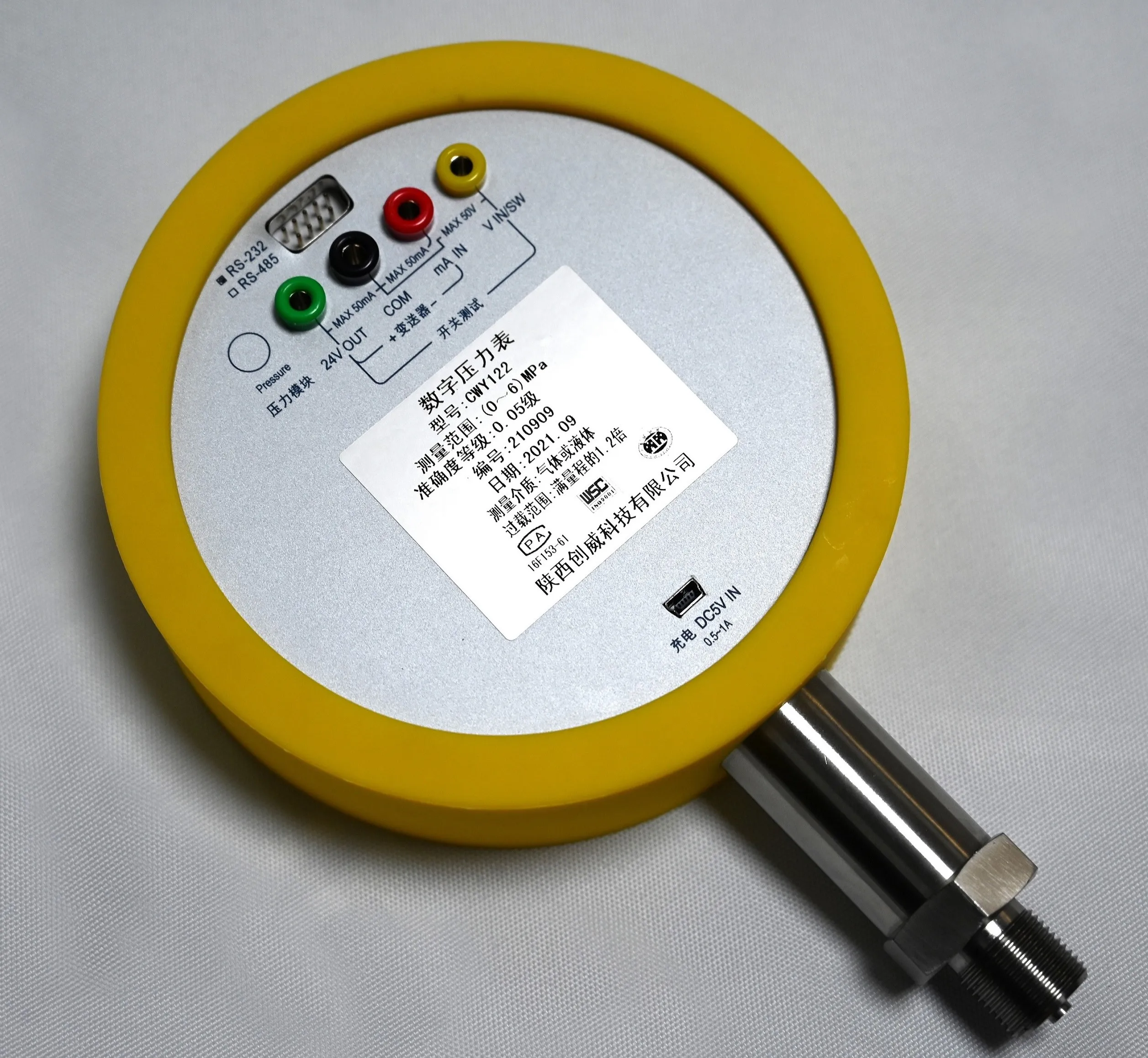

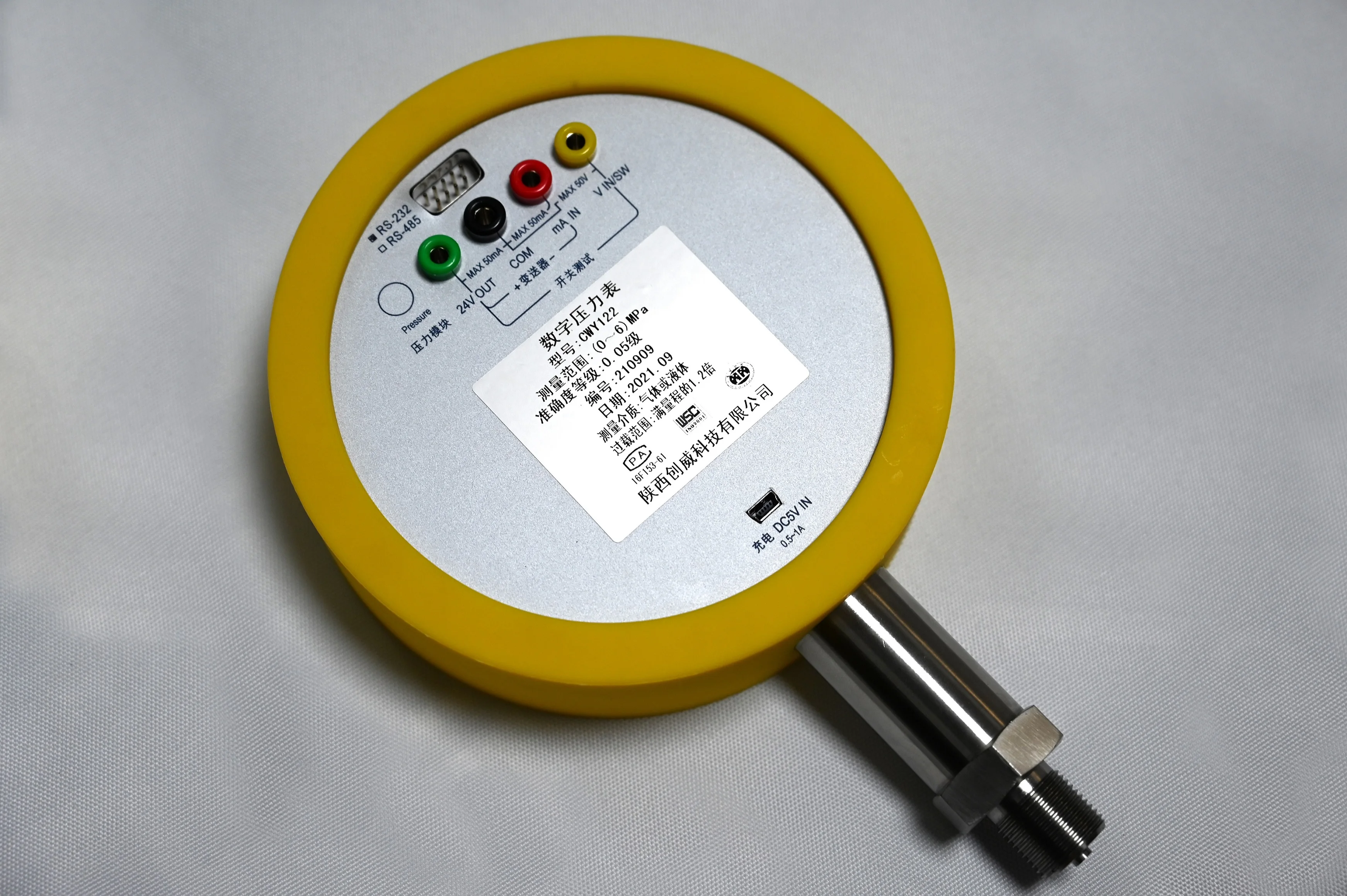

The model CWY122 digital pressure gauge is energy-saving, adopts international advanced measuring circuit, precise and reliable temperature compensation.  It is also upgrading product of traditional pointer type pressure gauges.

Applications
l     Calibrate general pressure gauges, precision pressure gauges, other pressure gauges;
II   Precisely measure pressure value, analyze pressure changes, control pressure.

III   Use in laboratory and directly use on site.


Features
♦ 5 digits display,  with backlight.
♦ Temperature compensation; aging, and MAX/MIN values can be saved automatically.
♦ High stability: low temperature drift, low time drift, strong anti-interference ability.
♦ 11 pressure units: mmH2O, psi, kPa, MPa, mbar, bar etc.

Specification:
Measuring range: -100kPa~100MPa (or user defined)
Accuracy: 0.1%F.S, 0.05%F.S
Sampling rate: The measuring rate can be user-defined to match the type of measurement required.
If rate is 1 operation per second, the battery life is 2,000 hours;
If rate is 1 operation per 10 seconds, the battery life is 8,000 hours;
If rate is 8 operations per second, the battery life is 500 hours.
 Connection: M20*1.5

Ambient conditions:

 Quality

    Warranty:  1 years

 Pressure  measuring&calibrating products manufacture and OEM service;

 Pressure solutions consulting

1. Are you a manufacturer of calibration instrument or trading company?

We are high-tech enterprise in Shaanxi province, founded in July, 2006.
It is mainly engaged in developing, manufacturing and selling the measuring and calibration equipment, such as dead weight tester, pressure gauges, calibrators sensors and transmitters.

2. What is the payment term?

We accept payment of 100%TT in advance or LC.

3. Will you be providing any calibration certificates along with the equipment?

We provide company calibration certificate
If you need calibration certificates from the 3rd party such as NIM, please inform.

 Shaanxi Creat Wit Technology Co., Ltd. (CW) is high-tech enterprise in Shaanxi province, China, founded in July, 2006.

It is mainly engaged in developing, manufacturing and selling the thermal industries calibration equipment, such as dead weight tester, temperature measurement and other calibration instruments.
