EBLOCK AAC BLOCK/ALC PANEL high quality low price quick installation and what is more (whatsapp Riva 0084962586749)

The Ingredients:
Fly-Ash:A lot has been said about this raw material in this Project Profile itself. But this Raw material is freely available in Thermal Power plants. There are no taxes on this item whatsoever. Transportation charges are only to be attended by the entrepreneur.
Sand (65-70%): the core raw material of AAC product; the main resource of silica-aluminum components; correspond with JC409-91; the clay should less than 4%
Lime(12-20%):one of the main raw materials of fly ash AAC; the main effect is to provide efficient calcium oxide with cooperation of cement making calcium oxide react with SiO2,Al2O3 in hot water then to produce calcium silicate hydrate. Therefore, lime is also the main resource of strength. Effective calcium oxide of lime should not less than 65%, over 80% is perfect and should accord with JC/T621-1996.

Cement(8-10%): This Project aims to utilize OPC cement as main binder material. It will give faster strength to the bricks, besides giving improved consistent quality. It also ensures a better cost effectiveness for the same. Using OPC will be a standardized practice. The other prime advantages of using OPC (compared to other binders) is it's easy availability locally through nationwide Retail Network of Cement Companies.
Gypsum(1-2%):Gypsum is the foaming regulator in AAC which dispels quicklime and postpones slurry's densification.CaSO4 should be more than 70%.
Aluminum Podwer(0.074%):it is the forming agent type and recommendation for supply depend on raw materials and mix formula

Detailed Images

What are the advantages of ALC Concrete Wall Panels compared with traditional brick building materials?
a.Cost effective - lightweight panels allow for reduced structural components and smaller lifting equipment.
b. Excellent thermal resistance performance.
c. Acoustic performance - effective sound transmission barrier between external and internal environments of the building.
d. Excellent fire rating properties.
e. No wet trades - less mess and a cleaner, safer work area.
f. Less wastage - significantly reduced waste as panels can be custom-made to length requirements.
g. Fewer waste bins and fewer crane movements.
h. Design flexibility - panels can be easily cut and routed to suit design requirements.
i. Panel lengths up to 6 meters.
j. Strong, secure and durable with corrosion-protected steel-reinforced panel

Packing & Delivery

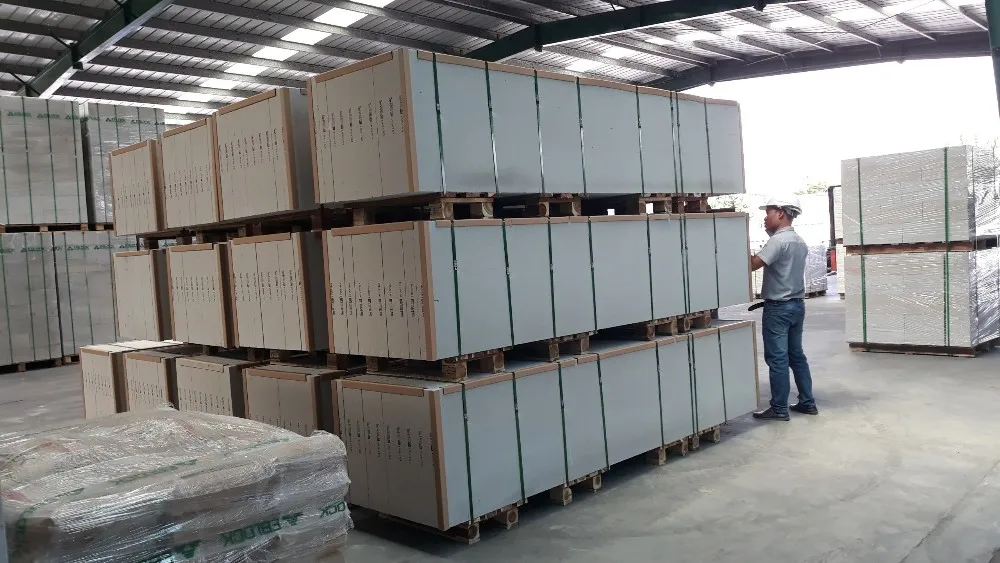

In order to ensure the quality and integrity of each single block deliverd to the site, we use pallet packaging to protect our products against adverse weather conditions and transport vibration.

Standard pallet dimension: (L x W x H)
1200 mm X 1000 mm X 1800 mm

Our Company

About Eblock

Eblock is the Asian biggest Vietnam-based AAC manufacturer with Top modern factory in ASEAN (2 lines) equipped with state-of-the-art machinery and technology, that boast a total capacity to more than 400.000m3 per annum.

Export daily to more than 20 countries: Singapore, Malaysia, Taiwan, Australia, New Zealand...

Provide a complete full solution for Wall System including Blocks, Panels, Mortar, Plaster, Skim coat and other accessories.

Production Progress

Material dealing process:Put the fly ash or sand into the ball mill to mill via the conveyor belt, after milling, put the slurry into the slurry storage tank by slurry pump.

Batching, mixing and pouring process:The lime, cement will convey by conveyor to the dry powder measure scale to scale separately. The slurry convey by slurry pump then to the automatic scale;the power and slurry put into the mixer,pouring into the mould.

Curing process:After slurry pouring into the mould, put the mould box into the curing room with 50~70℃. After 2-3 hours curing,the blocks become solid

Cutting process:Using reversal crane carry the mould and block to demould on cutting cart. The cutting cart will take the block to level cutting machine,vertical cutting ,two sides cutting,and remove the top waste material.

Autoclaved:Finished cutting using semi-product crane carry to the front of autoclave grouped,hoisting machine or dragger will drag steam trolley into autoclave to steam,it need 10-12 hours.

Finished block dealing:Finished product out of autoclave,with separting machine to separate layer by layer.

Package:Using finished block carry hanger clamp the finished product to package line on wooden pallets,after package, then by forklift transport the finished products to piled yard according to specifications to stack.

Contact

Thanks and best regards
Hoàng Thị Thu Thủy (Tracy) | Export Account Executive |

NEW ERA BLOCK TILE JSC ( E-BLOCK JSC)
Add: 60 Dang Dung, Tan Dinh Ward, District 1, HCMC. Vietnam
Tel: + 84. 28. 3526 7177 ext. 110
Fax: + 84. 28. 3526 7178
Cell: + 84. 934433389
Email: thuy.htt(at)e-block.com.vn

Related Products

Service

From basic products of AAC blocks, we have developed successfully a lot of Light Wall Solutions and we supply entirely all components that make a complete wall system including Blocks, Panels, Water-Resistant Block, Lintel, Mortars, Coasting Plasters, Skimcoats, etc.

We make various thickness and lengths of the panels as customers special request.
Samples can be provieded.
We also provide with installation training in Vietnam or at oversea job sites
