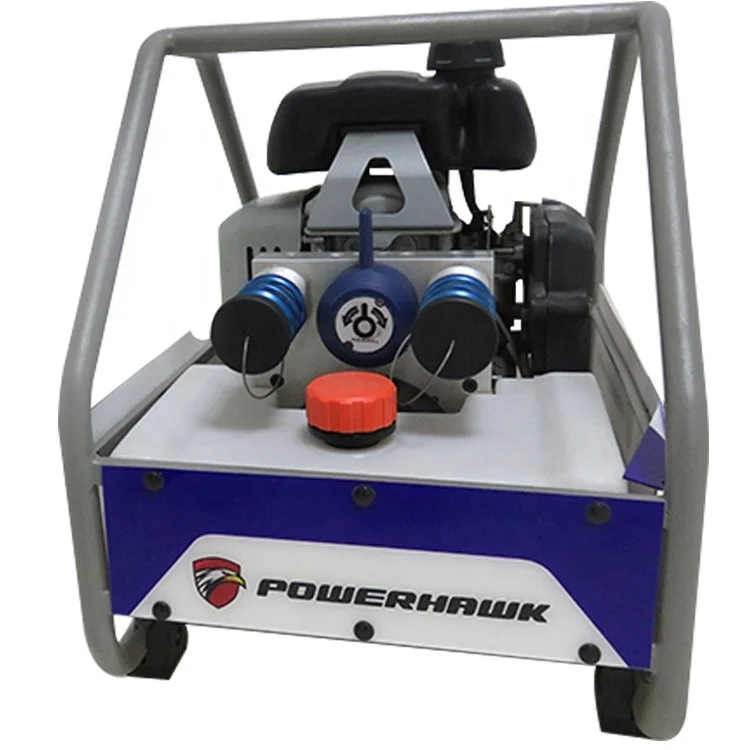

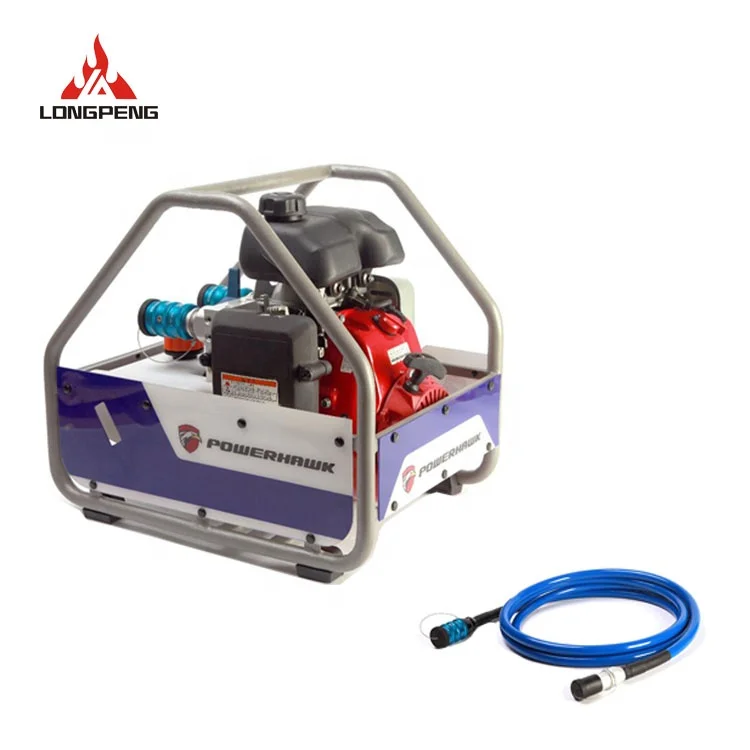

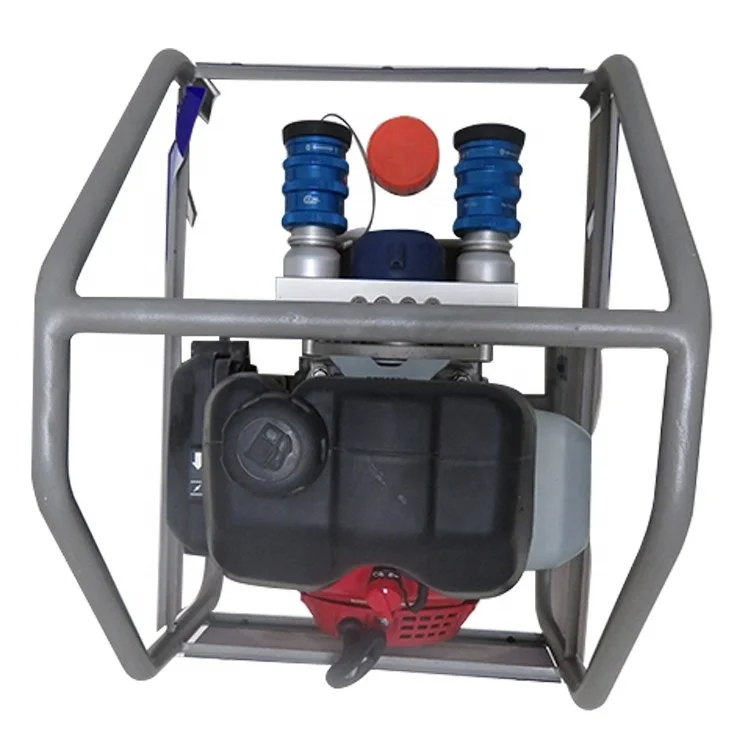

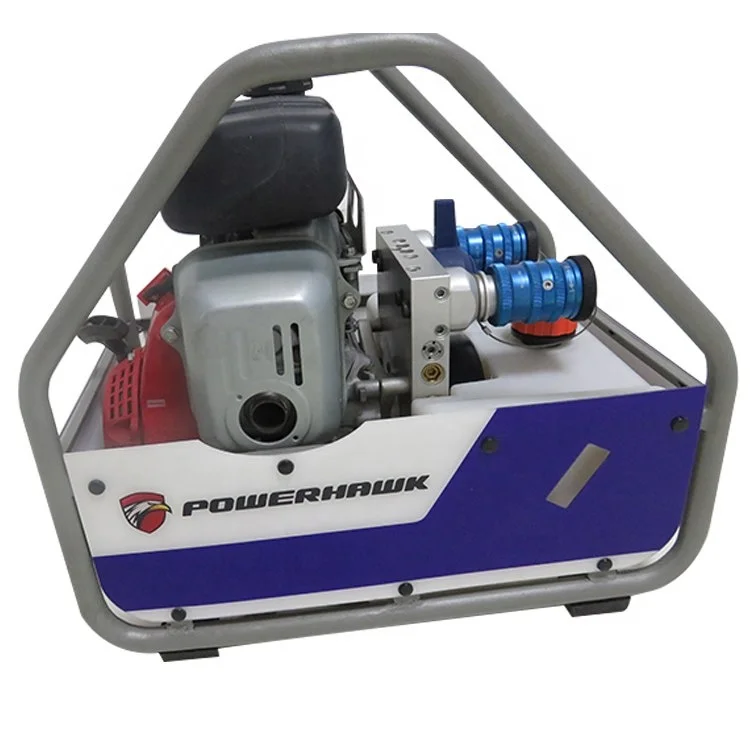

As a hydraulic power source, the motorized pump is mainly used with professional rescue tools; it is compact, maneuverable, lightweight, and beautiful in appearance. The tubing can be quickly connected to the tool and the engine cooling conditions are good.
The main technical parameters
Product model
P630SG
Rated working pressure
70 MPa
Connection / Operation Tool
Connect 2 tools / operate 2 tools
Engine power
2.2 kW /3000 (r/min)
Double flow function
Turbo double flow function
Low pressure output flow / high pressure output flow
2*3.0 L/min. -- 2*0.6 L/min
Double flow mode low pressure flow / high pressure flow
1*5.8 L/min. -- 1*1.35 L/min
Available flow
2.2-3.0 L
Hydraulic tank volume
3 L
Weight
23 kg
Dimensions (length * width * height)
500 * 370 * 450 mm
High pressure hose specifications Standard preparation
Two sets of 5m × 2 hose
Product introduction of two wheel cutting machine
Main Features
Wide range of use
With high and low pressure two-stage pressure output, automatic conversion, speed up emergency time
Can connect two sets of tools at the same time in large accident rescue and simultaneously power two sets of tools
Use aviation hydraulic oil to work at -30 ° C ~ 55 ° C ambient temperature
Long-term use
No need to prepare time to keep the connection status and the tool moving at the same time
Low noise

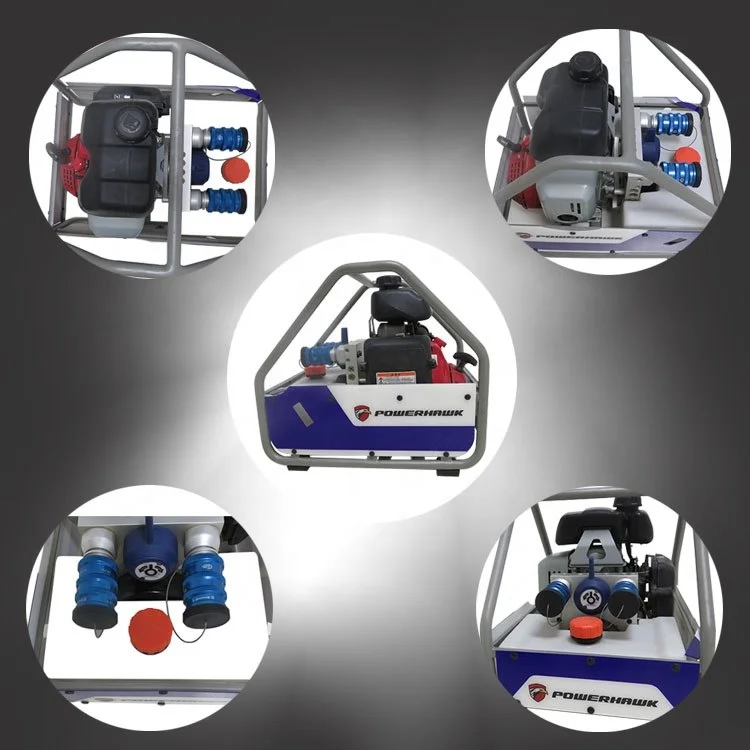

Detailed Images
Related Products
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Certifications
Our Service
Packing & Delivery
Packaging
Size
340 (L) * 440 (W) * 450 (H)
Weight
27kg
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
