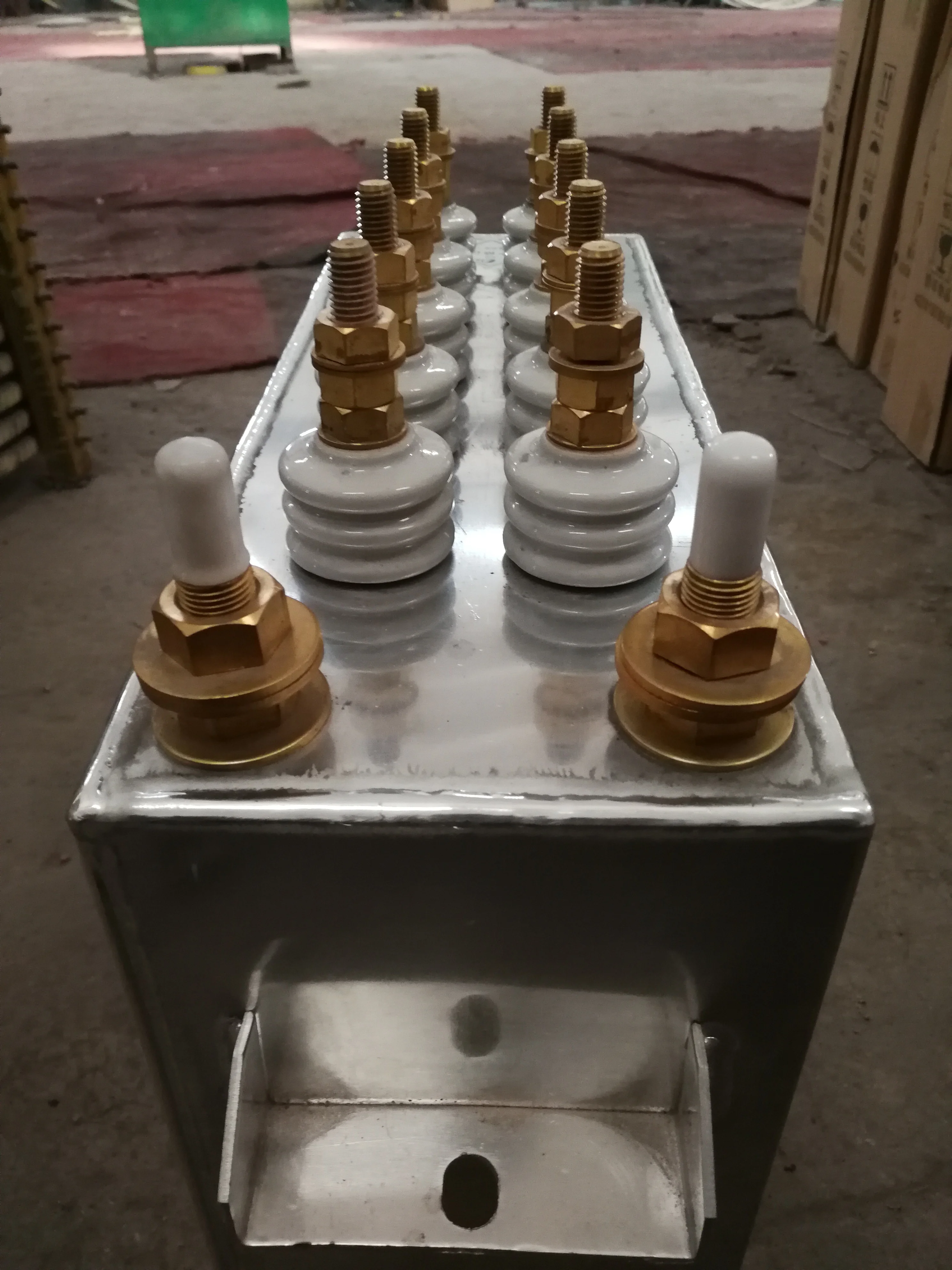

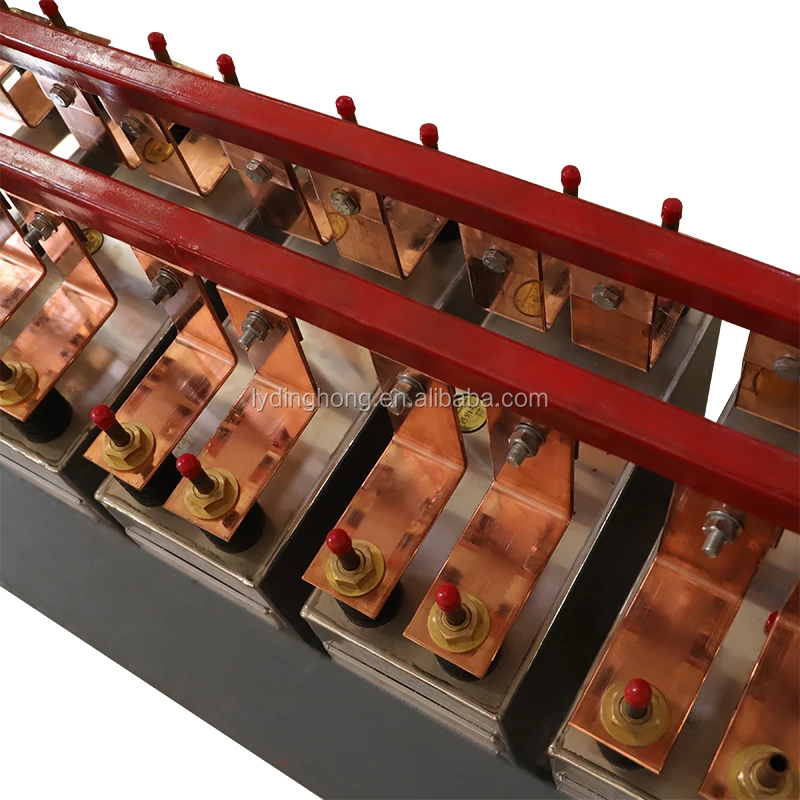

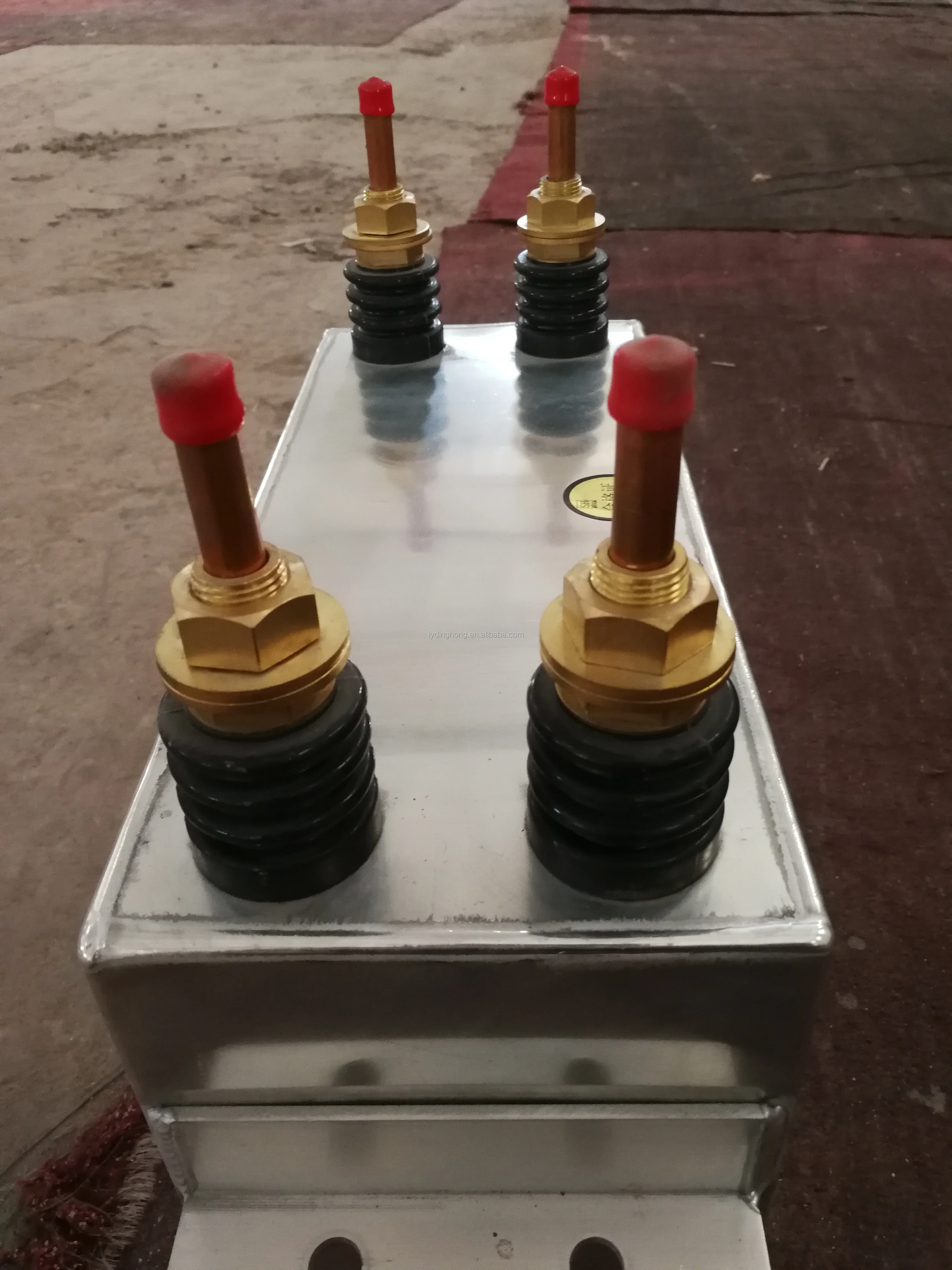

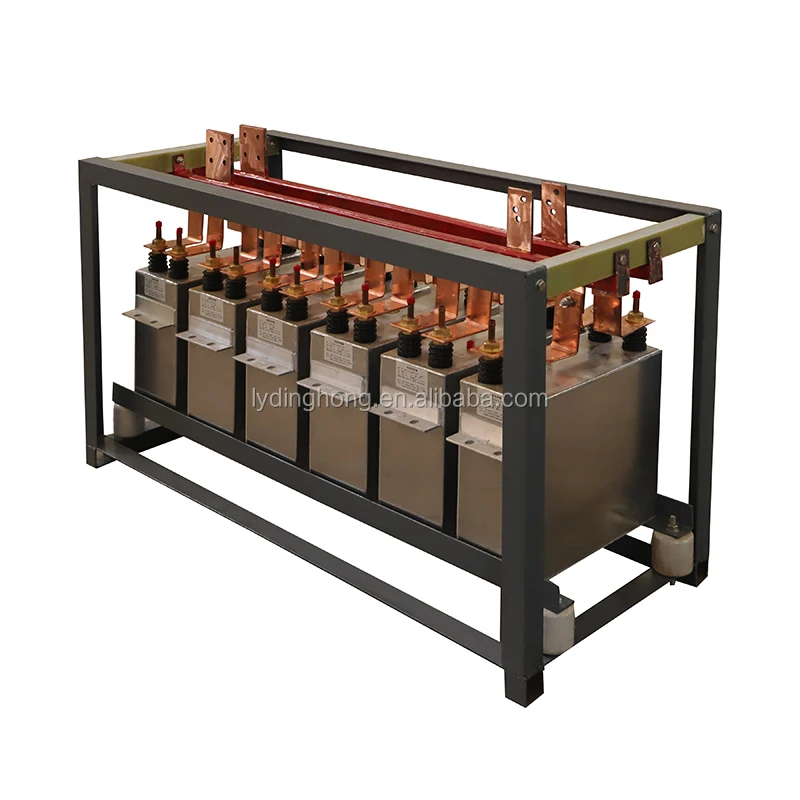

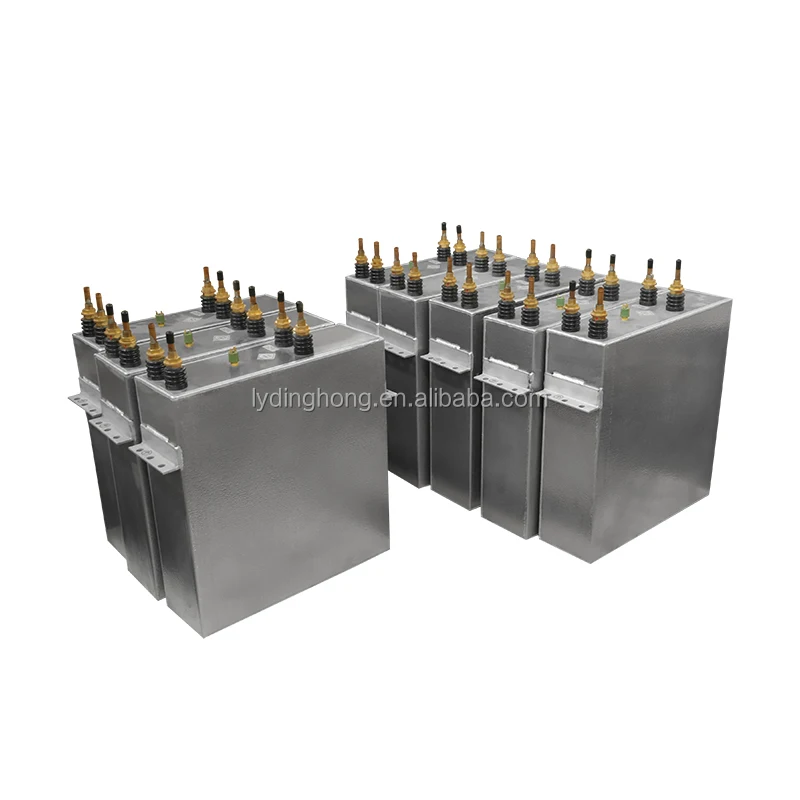

2000 kvar Water cooled power capacitors designed for use on induction furnaces and heaters RFM0.75 2000 1S

                                    Introduction

RFM-S series capacitors are mainly used in medium frequency induction heating electrical systems to improve power factor or improve loop characteristics. The electric heating capacitor is mainly composed of a core and a box shell and is filled with a high-quality impregnating agent, and the core is welded with a cooling water pipe for cooling the water supply container. Product performance in line with GB/T3984.1-2004/IEC60110-1:1998 “Power Capacitor for Induction Heating Devices”

                           Product use conditions

1. The altitude of the installation and operation area should not exceed 1000 meters;

2. The installation site is free of severe mechanical vibrations, no harmful gases and vapors, and conductive or explosive dust;

3. The inlet water temperature of the cooling water should not exceed +30℃. For capacitors below 1000kvar, the water flow rate should not be lower than 4L/min, and the water flow rate of capacitors of 1000kvar and above should not be lower than 6L/min;

4. It should be able to run for 4 hours every 24h at a rated frequency of 1.1UN. The continuous current should not exceed 1.35IN.

Luoyang Dinghong Electric Technology Co.,Ltd. Located in Luoyang city ,China. We are specialized in designing and manufacturing all kinds of induction furnace and Diathermy furnace for more than 30 years.
Our factory own the highest technology in domestic induction fields. Cooperating with domestic famous institute, our factory keep designing new and energy saving induction furnaces for our customers.
