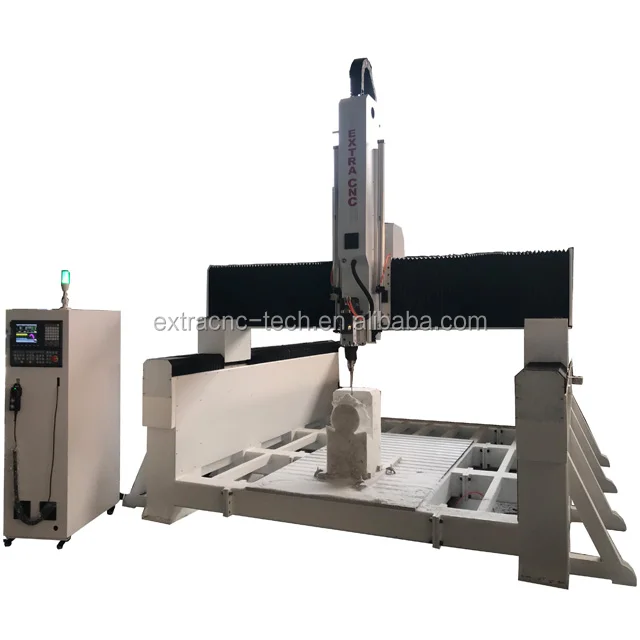

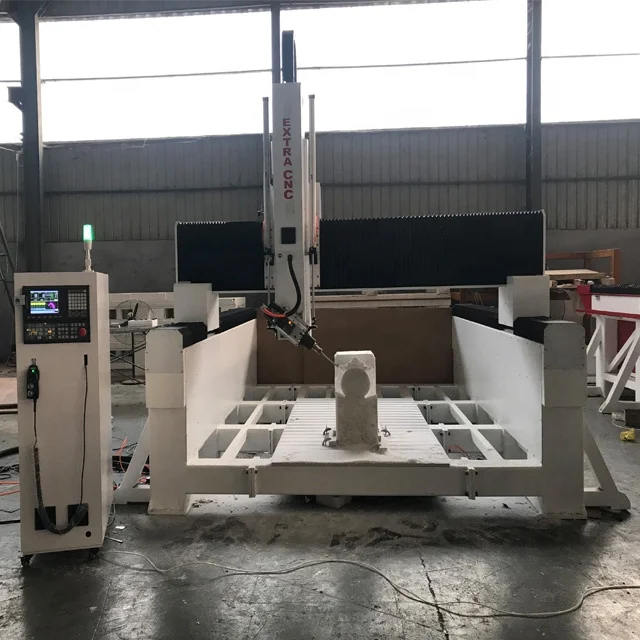

Hot Sale Cheap Wood Carving CNC Router 4 Axis / 3D CNC 1325 Router Cylinder Boring And Milling Machine With Rotary
Features of 4 axis CNC Machine:

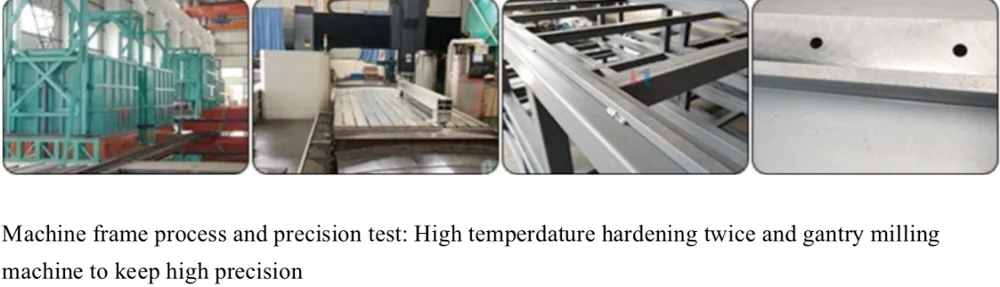

1.Whole machine is welded with Heavy duty seamless steel structure, which is high temperature annealing and vibrating stress relief, so the lathe body is stabilized and will not be deformed forever.
2.High precision guide rail and rack transmission improve working accuracy.
3.Japan Yaskawa servo motor, high torque and speed.
4.Original Italy Imported spindle, high torque and high precision.
5.Auto tool change, save time and improve the efficiency.
6.Syntec 4axis control system,true 4axis linkage.
Parameters of 4 axis CNC Machine:
Number | Description | parameter |
1 | Model | ET-2030 |
2 | working area | 2000x3000x1000mm |
3 | Tool magazine | Linear type auto tool changer with 8 tools storage |
4 | Table Surface | Vacuum and T-slot working table, 6 zones |
5 | Structure | Industrial class square tube strong structure, heavy duty 8-10mm |
6 | X, Y Structure | Rack and Pinion Drive, Taiwan HIWIN #25 Linear Square Rail |
7 | Z Structure | Taiwan HIWIN #25 Linear Square Rail and TBI Ball Screw |

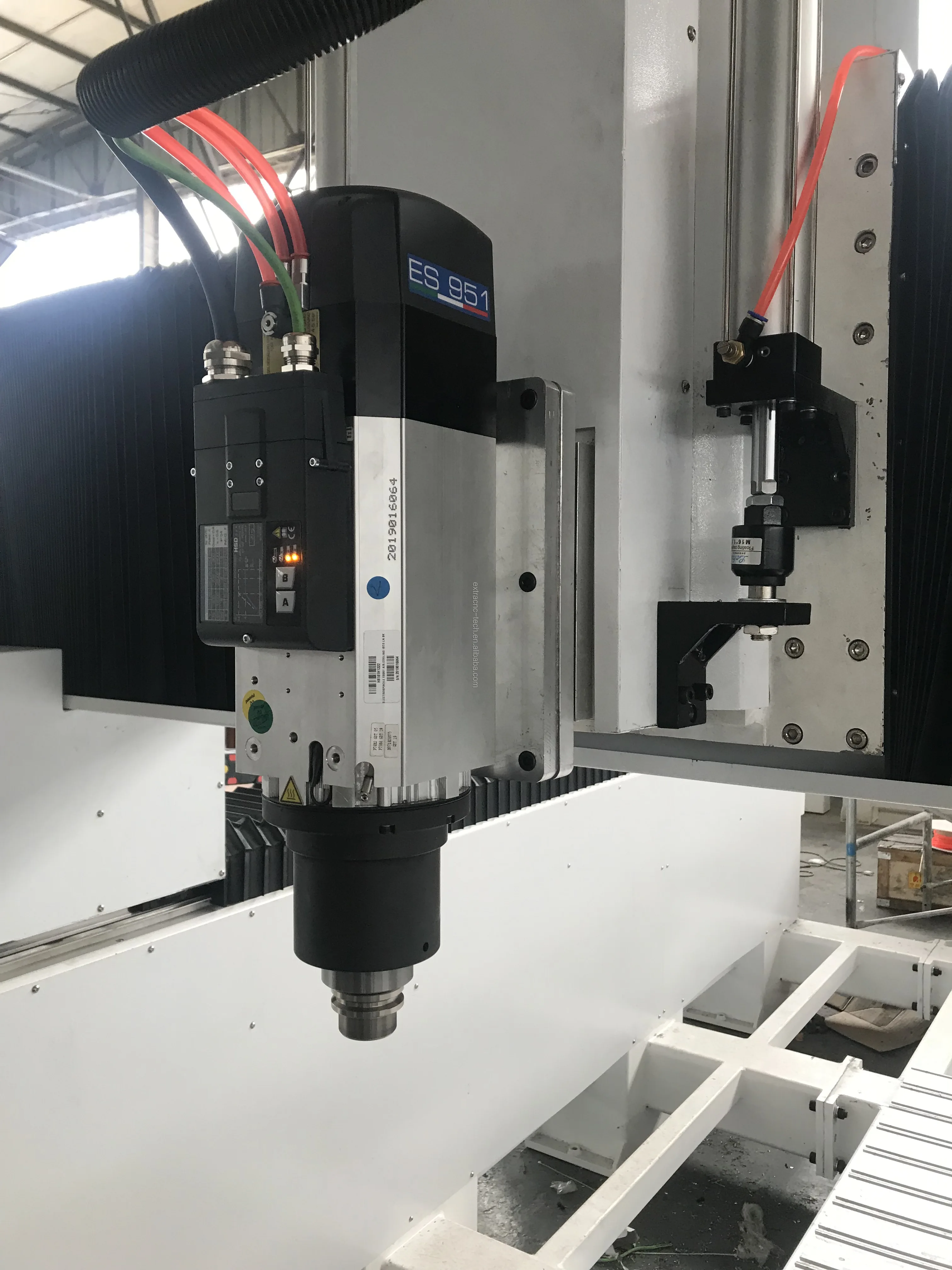

8 | Spindle | Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90° |
9 | Spindle Speed | 0-24000RPM |
10 | Drive Motors | 850W Japan YASKAWA servo motors and drivers |
11 | Inverter | 11kw Taiwan DELTA inverter |
12 | Working Voltage | 380v, 3phase, 60HZ (Option: AC220V/50/60Hz,3PH) |
13 | Command Language | G Code |

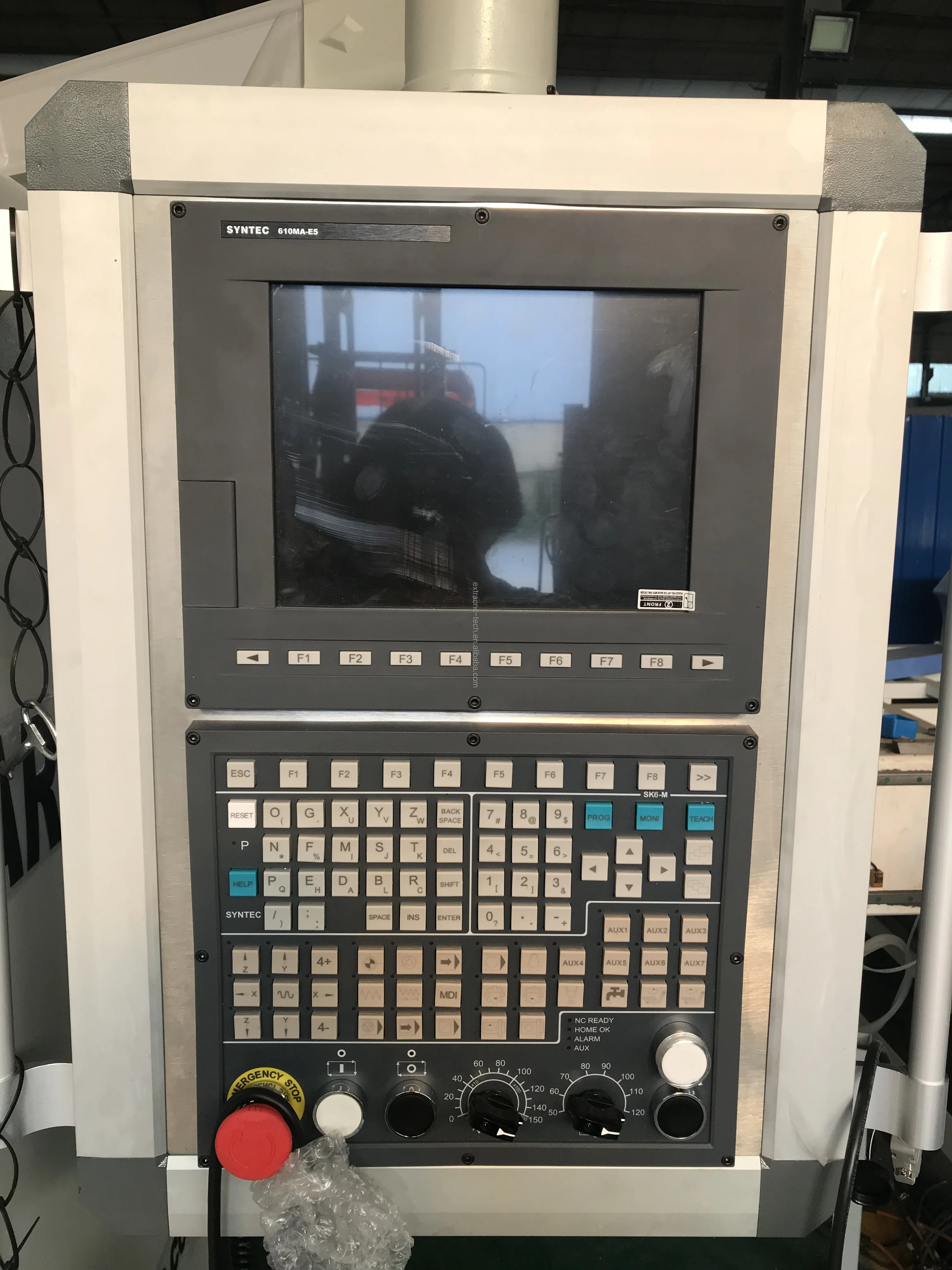

14 | Operating System | Taiwan SYNTEC 4 axis control System with handle |
15 | Operating system | USB |
16 | Reducer | Japan Shimpo reducer |
17 | Vacuum pump | 4KW German becker pump |
18 | Software | POWERMILL (OPTION) |
19 | Lubrication system | Automatic lubrication system |
20 | Tool sensor | Automatic tool sensor calibration |
21 | Running | Temperature:0 -45 centigrade |
22 | Packing size | 3800*2300*3200mm |
23 | Net weight | 3000KG |
24 | Gross weight | 3500KG |
Assembly parts of 4 axis CNC machine:
Application of 4 axis CNC machine
Applicable Industries
1. Wood funiture industry
1.Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry
Signage; Logo; Badges; Display board; Meeting sign board; Billboard
Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3. Die industry
A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other non-metallic mold.
4. Artwork and Decoration
wood crafts; gift box; jewelry box
5. Others
Relief sculpture and 3D engraving and Cylindrical object

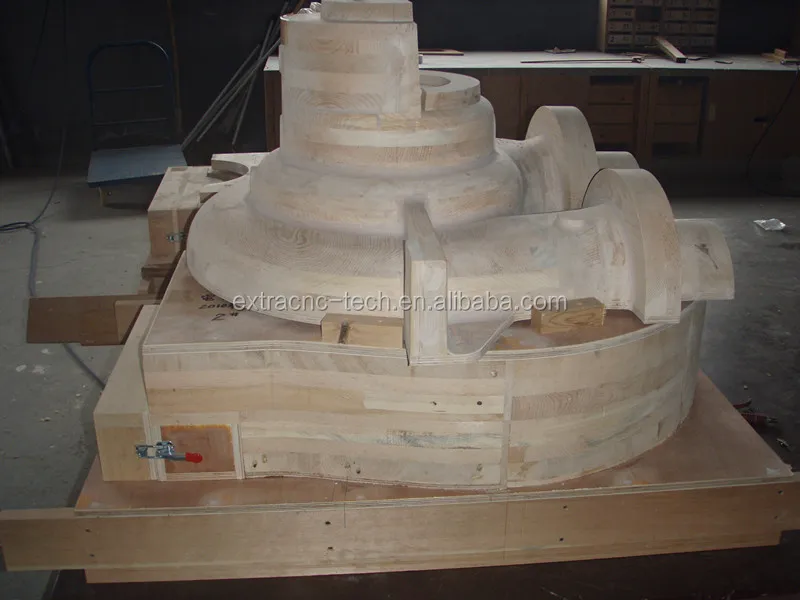

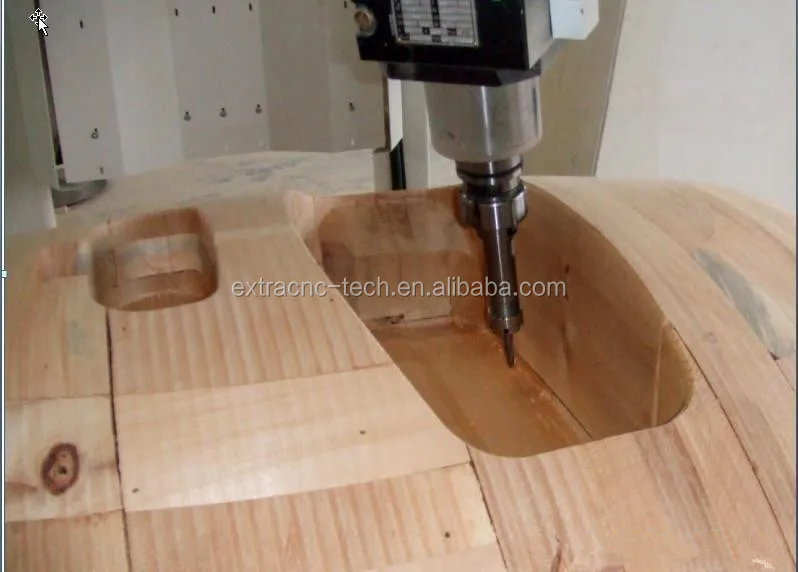

Samples of 4 axis CNC machine

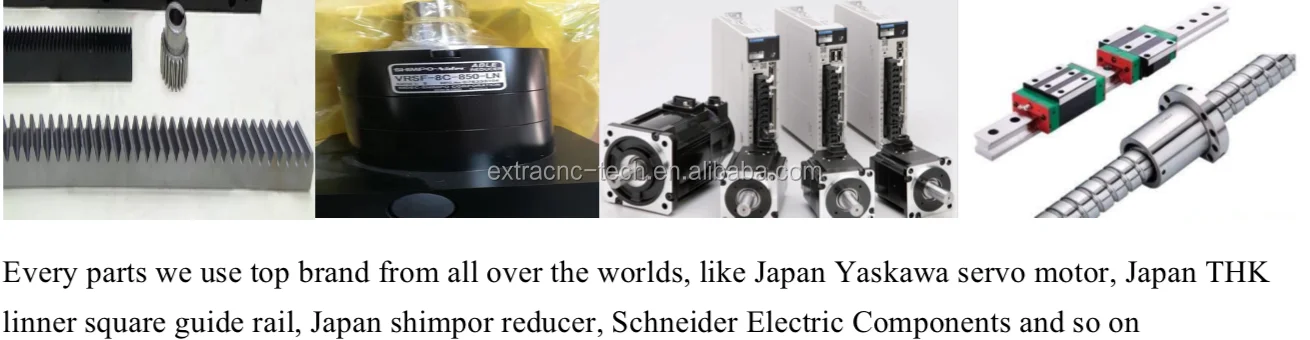

Our parts of 4 axis CNC machine

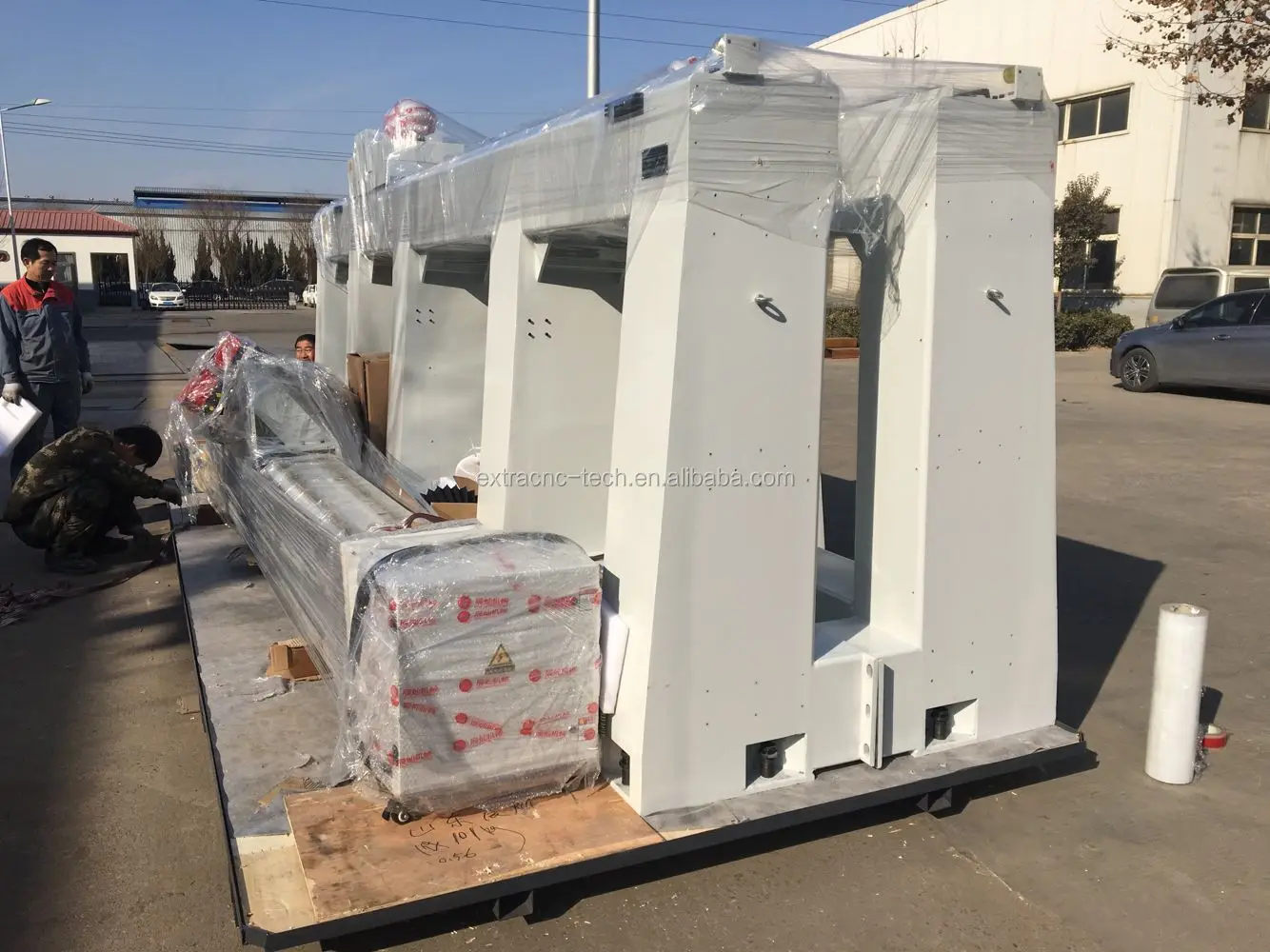

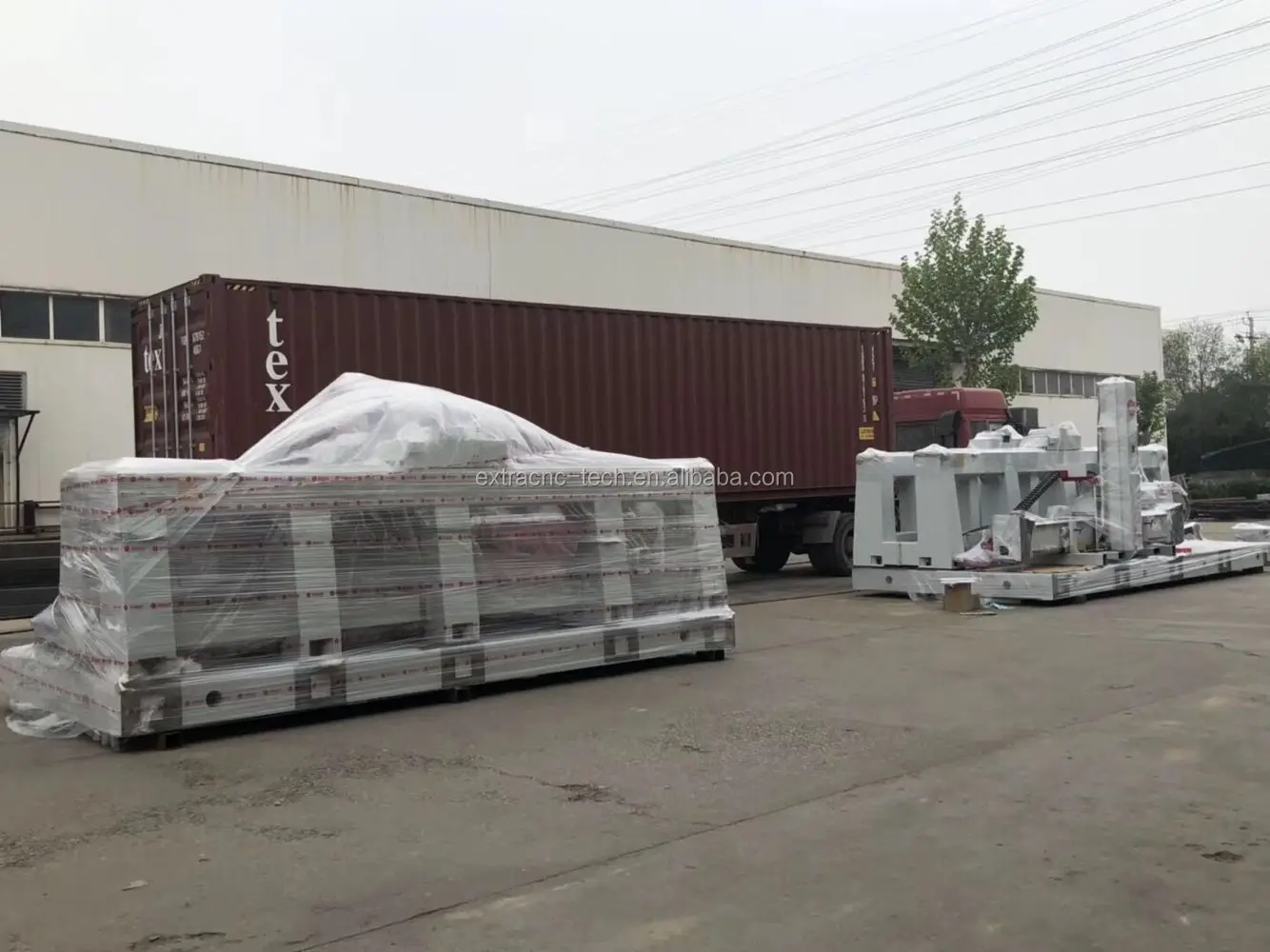

Package and Delivery:

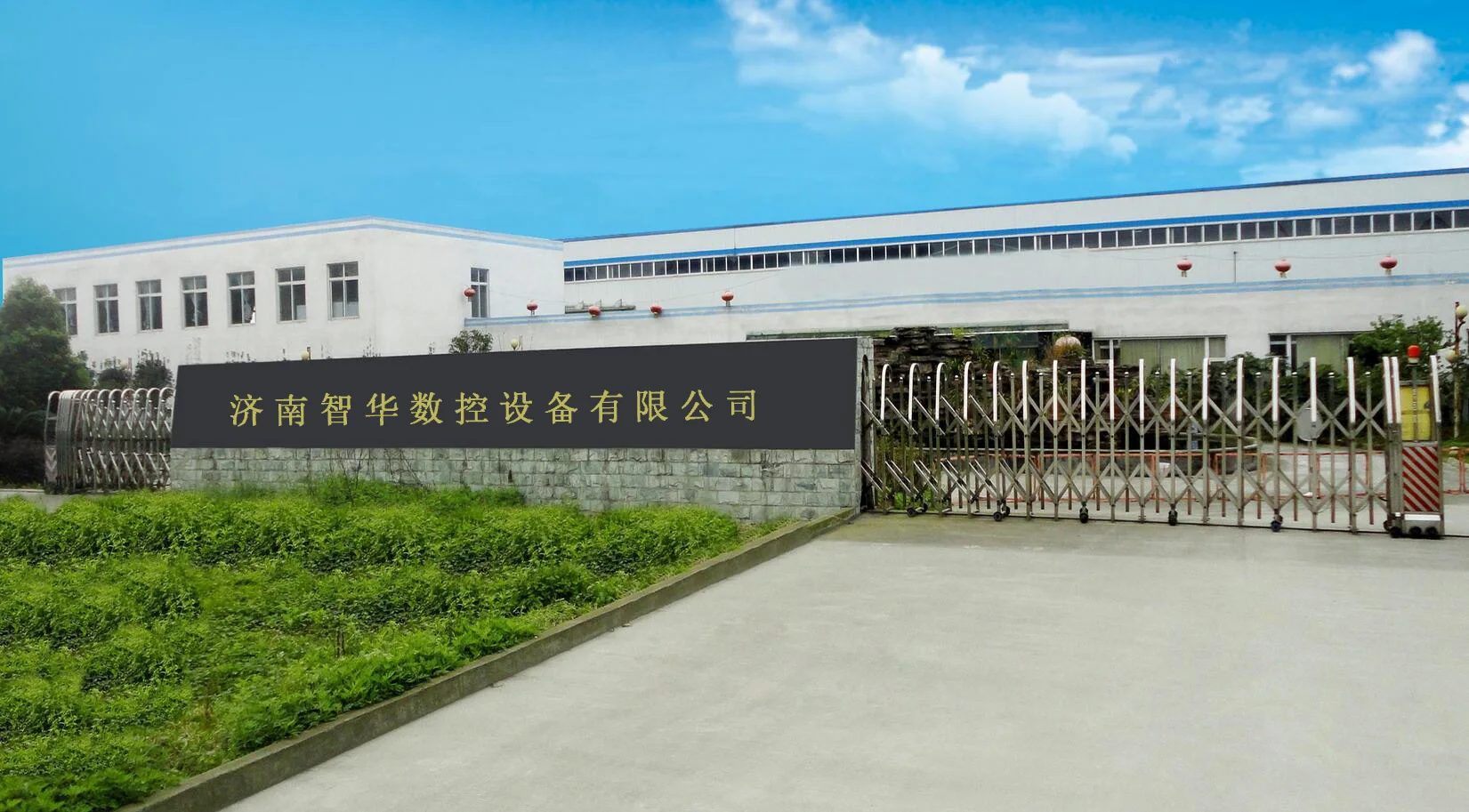

Company details:
EXTRACNC
is established in May 2008 ,owns more than 400 square meters of researching and office space, more than 32000 square meters factory.Products are sold to USA, Canada, Australia, Europe, South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than 30 manufactures.
Our Products includes All kind of
1.CNC Router
2.CNC Plasma cutter
3.Laser marking machine(Fiber/CO2/UV/Green light) and laser-welding machine .
4.Fiber cutting machine
5.CO2 laser and CNC parts so on.
We can also customized non-standard assist equipment as your detailed work requirements.
FAQ of 4 axis CNC machine
Question 1: I want to buy this machine,what suggestion can you give?
Answer: Please tell me:what material do you process? What's the size of your material?(Better show me your product picture)
Question 2: What's the delivery cost and time?
Answer: Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
