Small Rice Mill Machine for Rice Milling/Automatic Rice Milling Machine

Product Overview

Description

Small Rice Mill Machine for Rice Milling/Automatic Rice Milling Machine

Product Description
Rice mill machine is the process that helps in removal of hulls and bran`s from paddy grain to produce polished rice. It is the most ideal paddy-processing machine for grain distribution station, and farm as well as self-employees.

Structure

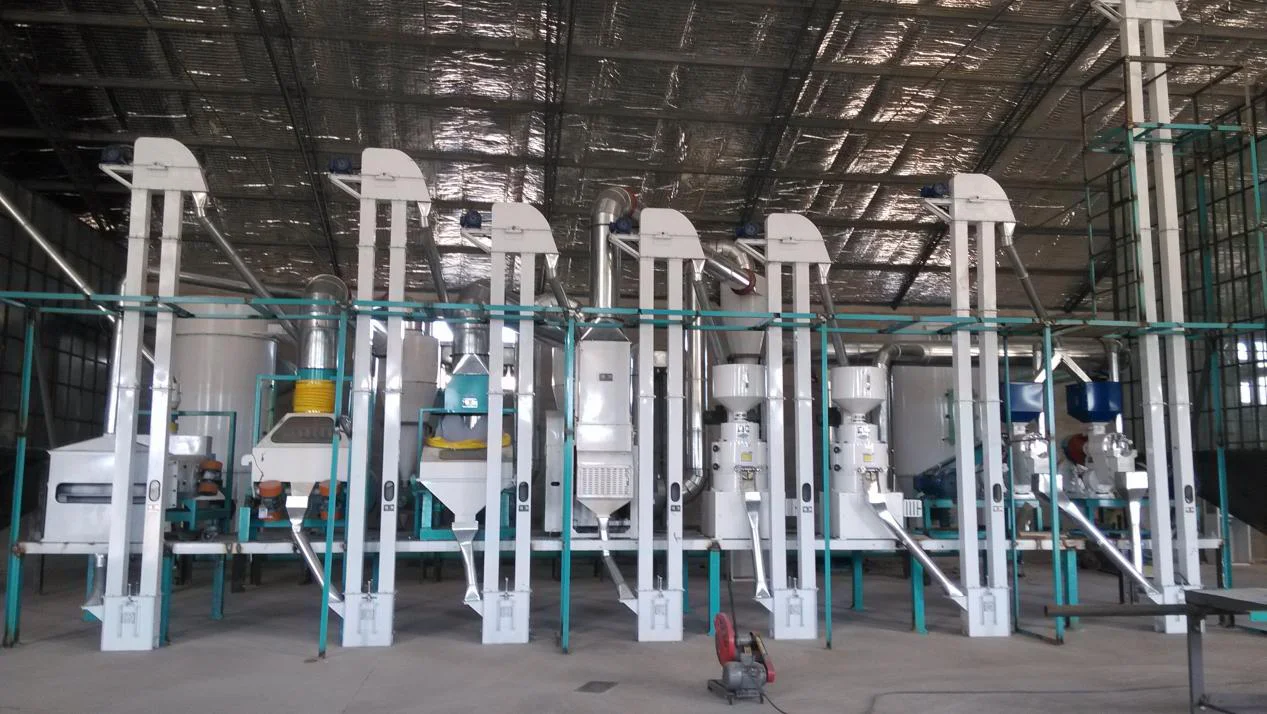

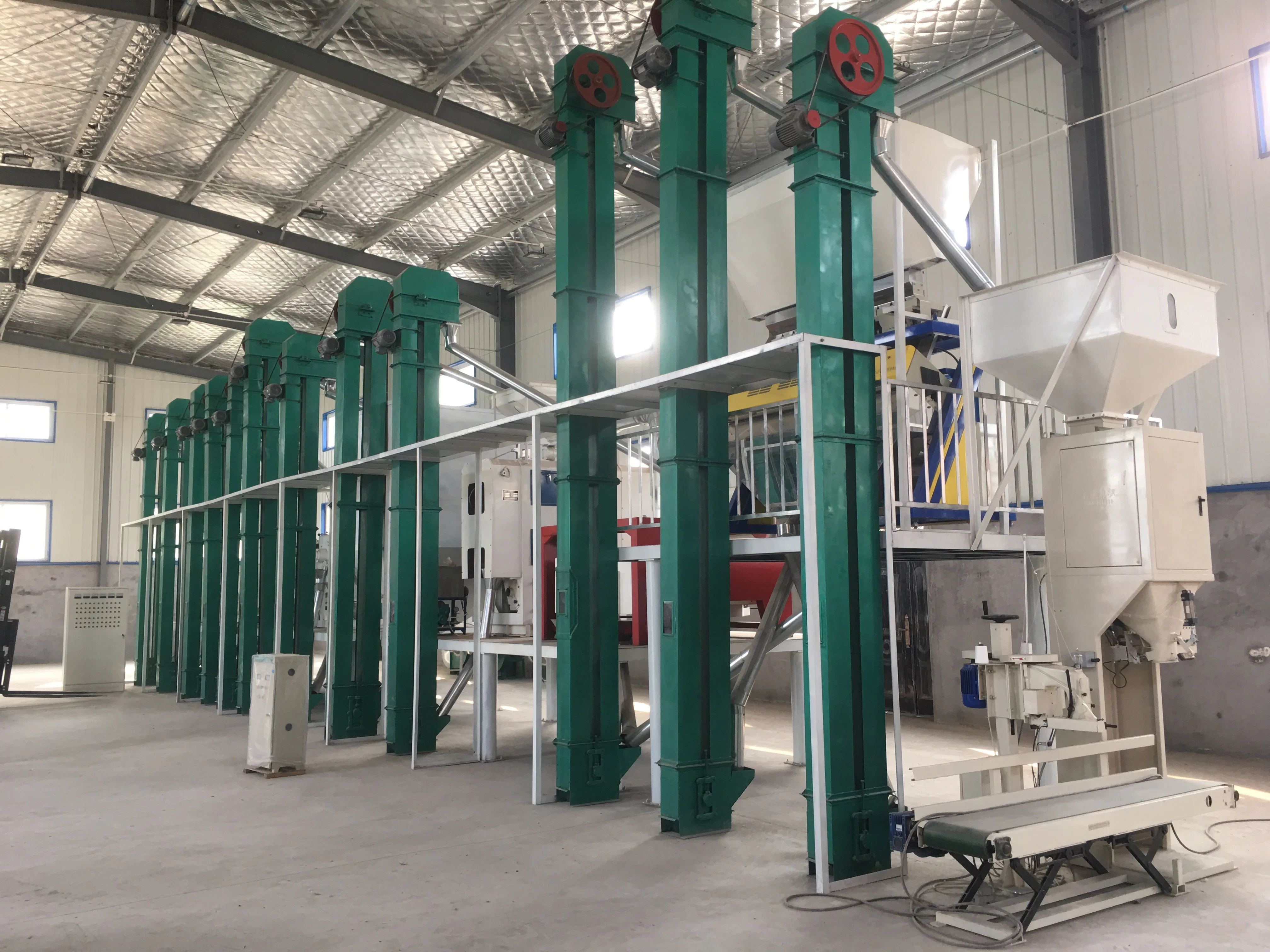

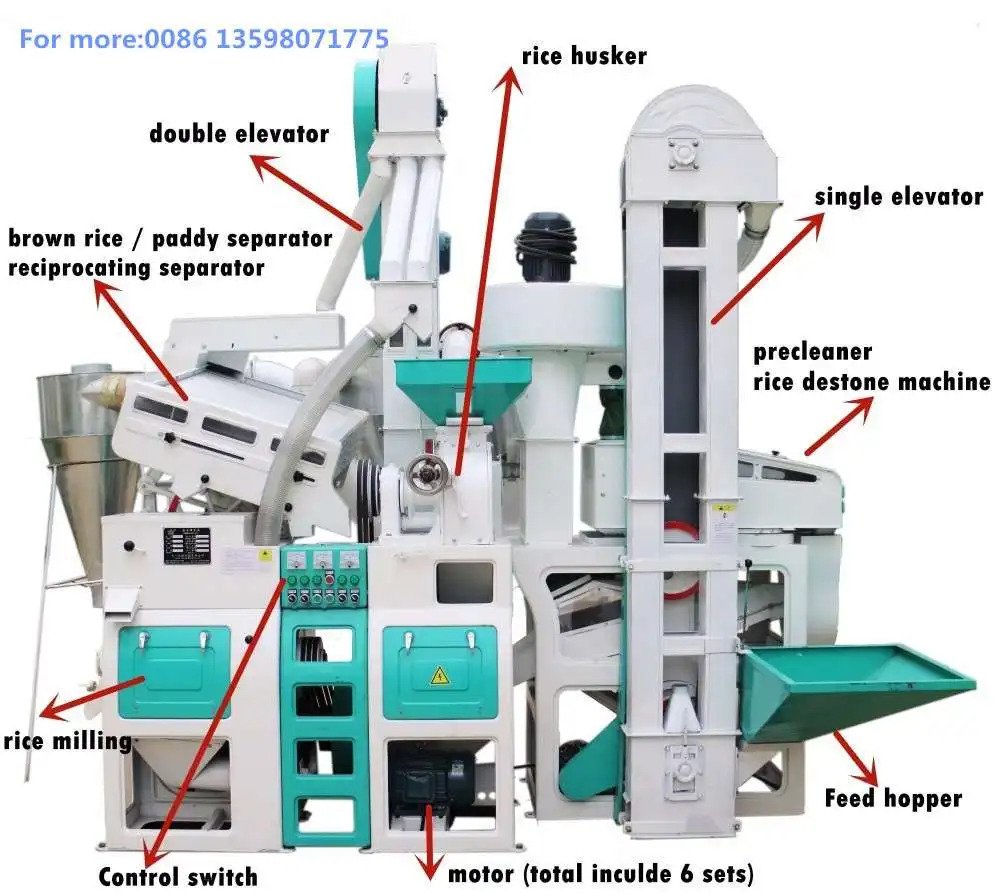

This kind of machine was one COMBINED TYPE. One set rice mill machine include:2 sets Elevators,1 set De-stoner machine with Blower,1 set Paddy hulling machine,1 set Paddy Seperator and 1 set Rice Polishing machine. Also have pipe and Cyclone for the Rice Husk and Rice Bran. Also have Distribution Box to control these parts.
Working principle
The rice milling unit is a kind of comprehensive equipment for rice processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber-roller for hulling. Winnowing and air blowing to husk. The machine may complete all the processing works from cleaning grain, rice husking in hulling to rice husking in succession. As to husk, chaff, blighted grain as well ad polished rice, they are all pushed out of machine separately. This machine is comprehensive expression for all the good qualities of varied kinds of rice-processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally.
Advantages

1. Our machine Wide application: ideal machine for pressing various rice, such as long-shaped rice, polished round-grained rice, sticky rice, thaliland jasmine rice, basmati rice, etc; also can pressing millet

2. High rice yield: the rice output is 85% - 91% higher than common rice mill

3. Low residual: the broken rice only about 5%

4. Little land occupancy: only 6-8m2 is enough
Specification

Name	power(kw)		output(t/h)
	Single machine	total	Single machine	total
TF32A Centrifugal suction fan	3.3	23.8	1.2-1.5	0.8-1
TQLQ50a Suction Stoning Machine			1.2-1.5
Single Elevating Conveyor			1-1.5
Rubber-Roller Husker	4.75		1-1.2
Double Elevating Conveyor			1-1.5
Gravity Paddy Separator	0.75		1-1.2
Jet-air Emery Roll Rice Mill	15		0.8-1

Rice mill machine Main Technical specifications:

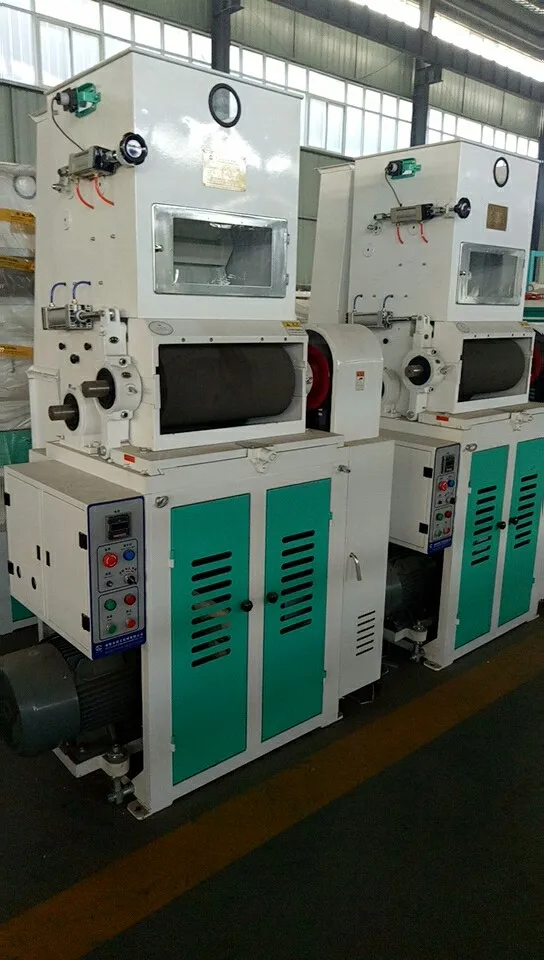

1.Rice huller Rubber roller Φ254×254(mm)(diameter*length)

2.R.P.M of fast roller: 1200 r/min

3.R.P.M of slow roller: 890 r/min

4.R.P.M of husk blower: 1680 r/min

Rice polisher:

1.Iron cylinder: Φ138×340mm(outer diameter of protrudes*length)

2.Screw conveyor: Φ138*150mm(outer diameter*length)

3.Hexagonal screen: Φ148*335mm(diameter of inscribed circle*length)

4.Mesh of hexagonal screen: 0.95*15mm(width*length)

5.R.P.M of main shaft of rice polisher1000 r/min

6.R.P.M of high pressure blower: 3400 r/min

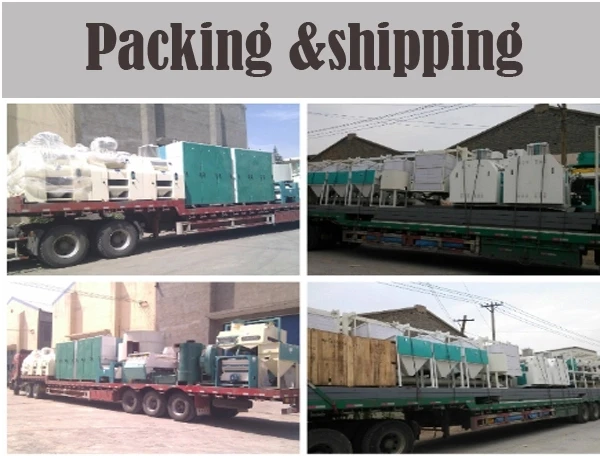

Packing and shiping

Customer Visiting
