He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line
He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line
He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line
He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line
He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line
He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line
He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line

He bei High Quality Tungsten Carbide Corrugated Roll corrugated roller for single facer and 357layers production line

Share on (62017027995):


Price:$5,500.00

Quantity:


Product Overview

Description





We are manufacturing factory for corrugating roll and corrugated machines, with over 22 years experience.

(1)all the raw materials we use are environmentally friendly.

(2) Skilled workers care about every detail in the process of processing production and packaging.

(3) The quality control department shall be responsible for the quality of each process.



Products Description

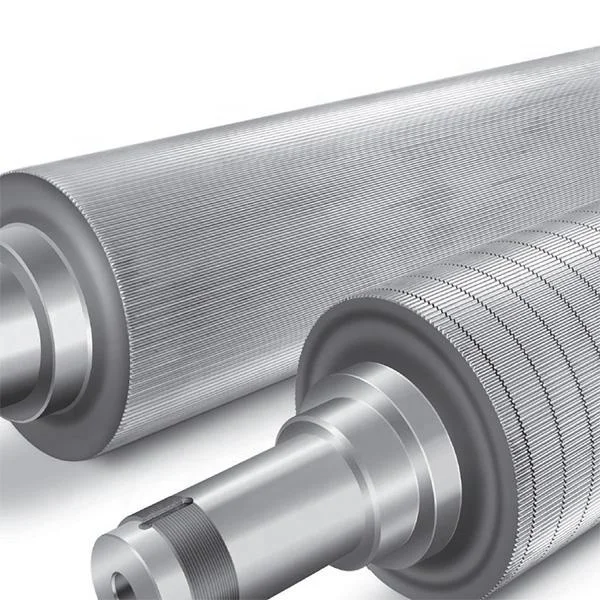

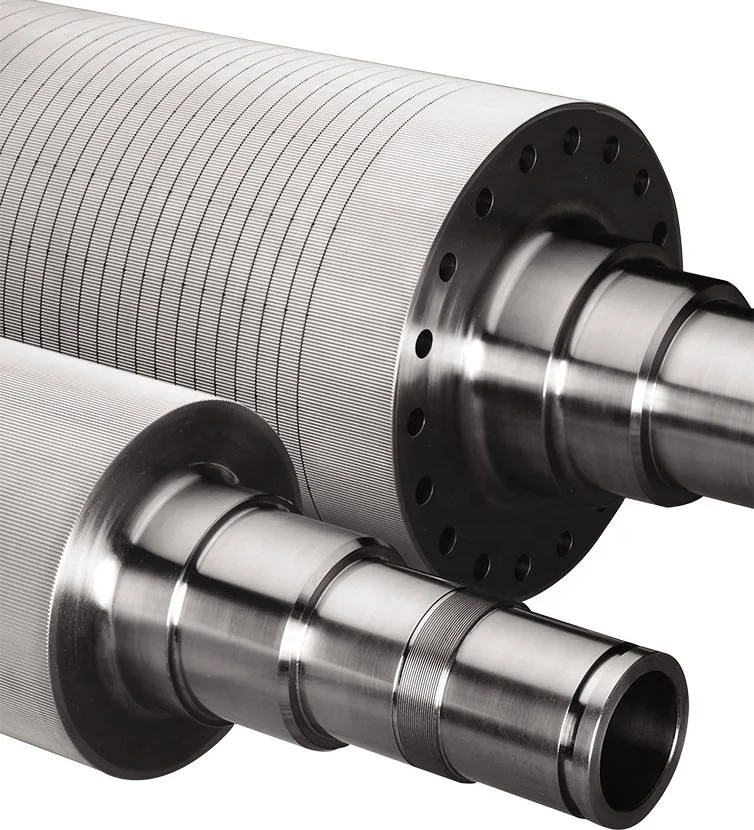

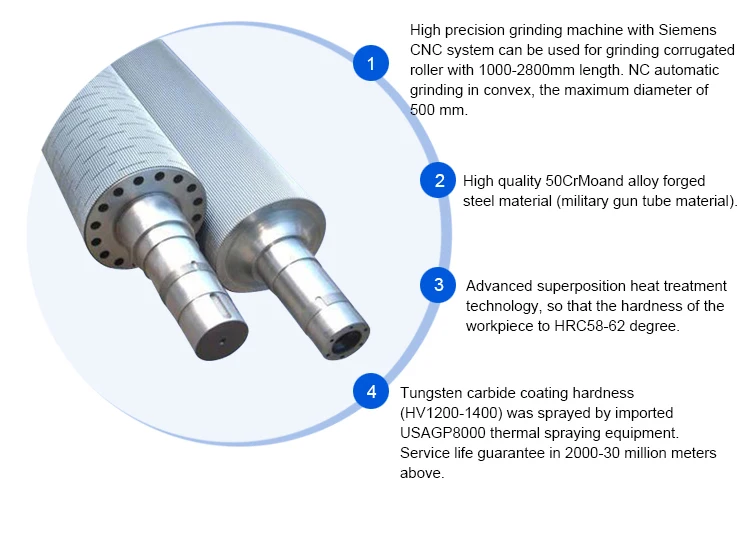

The diameter of corrugated roller is Φ280mm,Φ320mm,Φ360mm,Φ380mm,Φ405mm,Φ430mm,Φ450mm,Φ500mm. It is made from alloy steel 48CrMoor tungsten carbide. The roller with heat treatment is polished, plated with chrome, the hardness of its surface reaches above SH75.




1.The corrugated roll is made of high quality alloy steel. The technology comes from war industry.


2..Adopt high precision computer control professional grinding machine.

3.It is treated by special corrugated roll surface treated technology. The hardness is very high.

4. High-speed corrugated roll with big diameter. The maximum working speed is 300m/min.

5. Gear type: UV,V. Flute type: A, B, C, BC, D, E, F optional.

6. Fingerless suction and inner suction are optional.

7. We are engaging in design ,repair, manufacture all kinds of corrugating roll.



Type of corrugafion
A
C
BC
BC2
B
D
DE
E
F
Shape of corrugafion
UV
UV
UV
UV
UV
UV
UV
UV
UV
Quantity of corrugafion
34±2
38±2
40±2
44±2
48±2
50±2
66±6
75±3
96±4
124±10
Hight of corrugafion
4.6-4.9
3.6-3.9
3.0-3.4
2.8-3.2
2.6-2.9
1.9-2.1
1.5-1.9
1.1-1.8
0.7-0.8
Rate of corrugafion
1.51-1.59
1.44-1.51
1.42-1.49
1.40-1.45
1.36-1.42
1.40-1.41
1.35-1.4
1.29-1.39
1.22-1.26







I. Intermediate Frequency Corrugated Roll

1. Tooth shape: UV, V, alike V type

2.Tooth height: 0.9-5.5mm

3. Process length: Max. roller length 2800mm

4. Process diameter: Φ 100mm~Φ 500mm

5. Material: made in China, 42CrMo~50CrMo

6. Hardness: ≥ HRC55°





II. Laser Corrugated Roll
1.Surface hardness: above HRC60°
2.Character of laser quenching: For the same material, the metallographic structure is more refined. And it is more durable than the traditional quenching process.
3.It won't enlarge the surface crack. It is the best process to repair the old roller.
4.The depth distribution of the quenching layer is that the top of the tooth is thick and the side of the tooth is thin. It can effectively solve the problem that the main wearing part of the roller is the top of the tooth.




III. Tungsten Carbide
1.Surface hardness: above HRC70°

2.The flute height is not easily wearing.
So, you needn't change the rollers frequently.
It uses the specially designed flute type.

3.It can save the consumption of the corrugated paper.

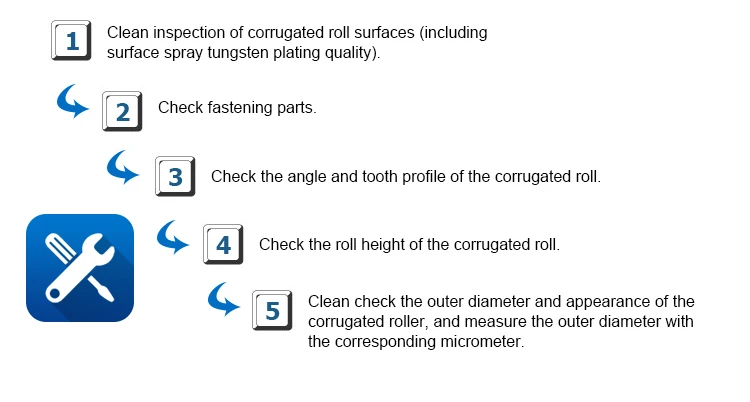

Our services




Related Products

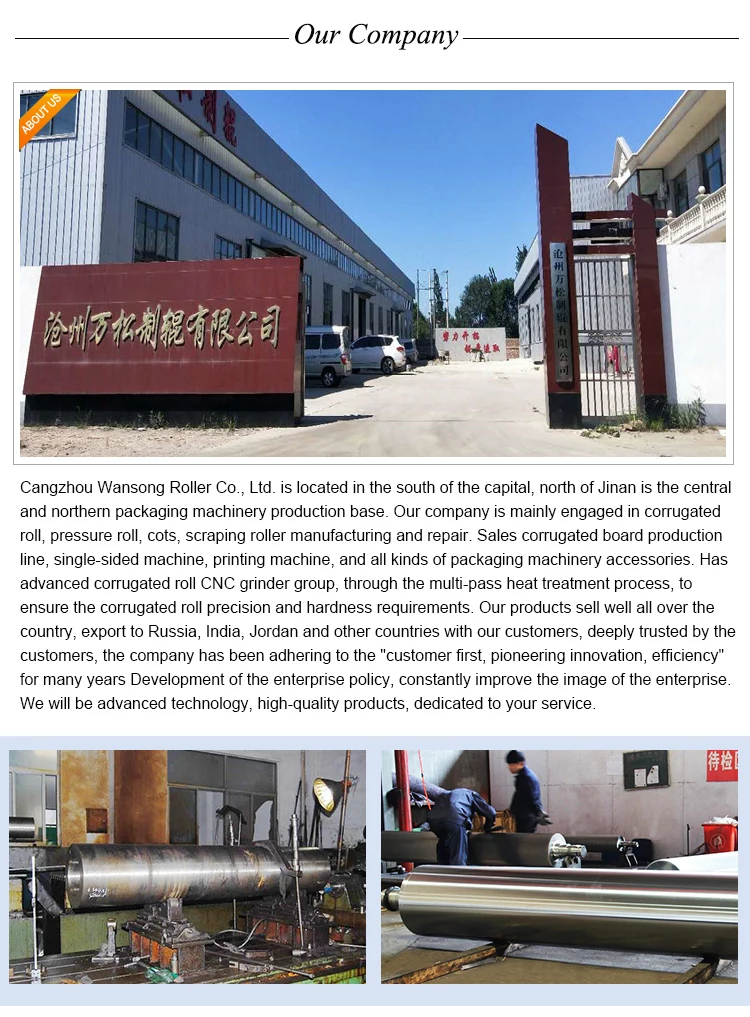

Company Profile






Packing & Delivery




FAQ


1.Are you manufacturer?
Yes.We are manufacturing factory for corrugating roll and corrugated machines, with over 22 years experience.

2. What is the delivery time of your machines?
Normally, the delivery time of our machines is about 20 days, and customized machines will be delivered in consultation with our customers.

3. May I visit your factory?
Welcome you come to our factory anytime.

4. What's your minimum order and can you send me a sample?
Our minimum quantity is 1 set, because our products are mechanical equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more details, we will be happy to provide you with more information such as specifications, videos, etc.

5. What’s the size and speed?
We produce corrugated machine and corrugating roll with paper web size from 1400mm to 2800mm.
Machine designed speed from 150m/min to 350m/min.

6.What kind of corrugating roll do you offer?

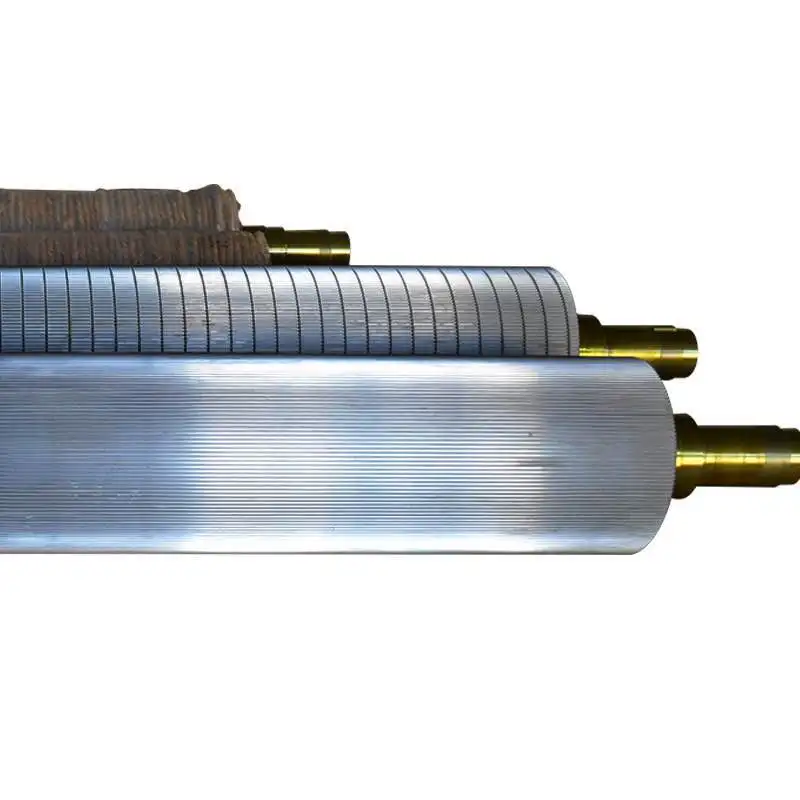

A: We offer: 1.New Tungsten Carbide Corrugating Roll(TC); 2.Periphery Heating Corrugating Roll;
3.Refurbished Corrugating Roll; 4.Alloy chrome plated corrugated roll

If you encounter any other problems, please feel free to contact us.
