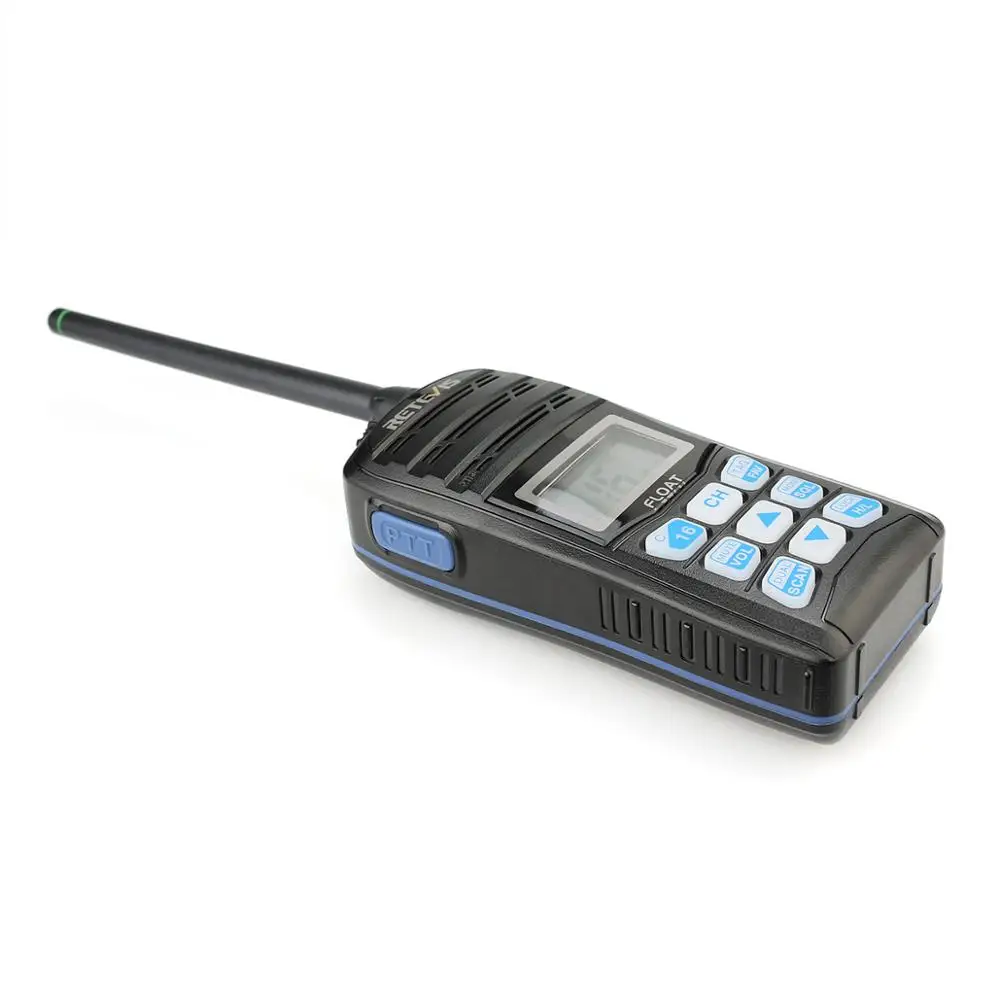

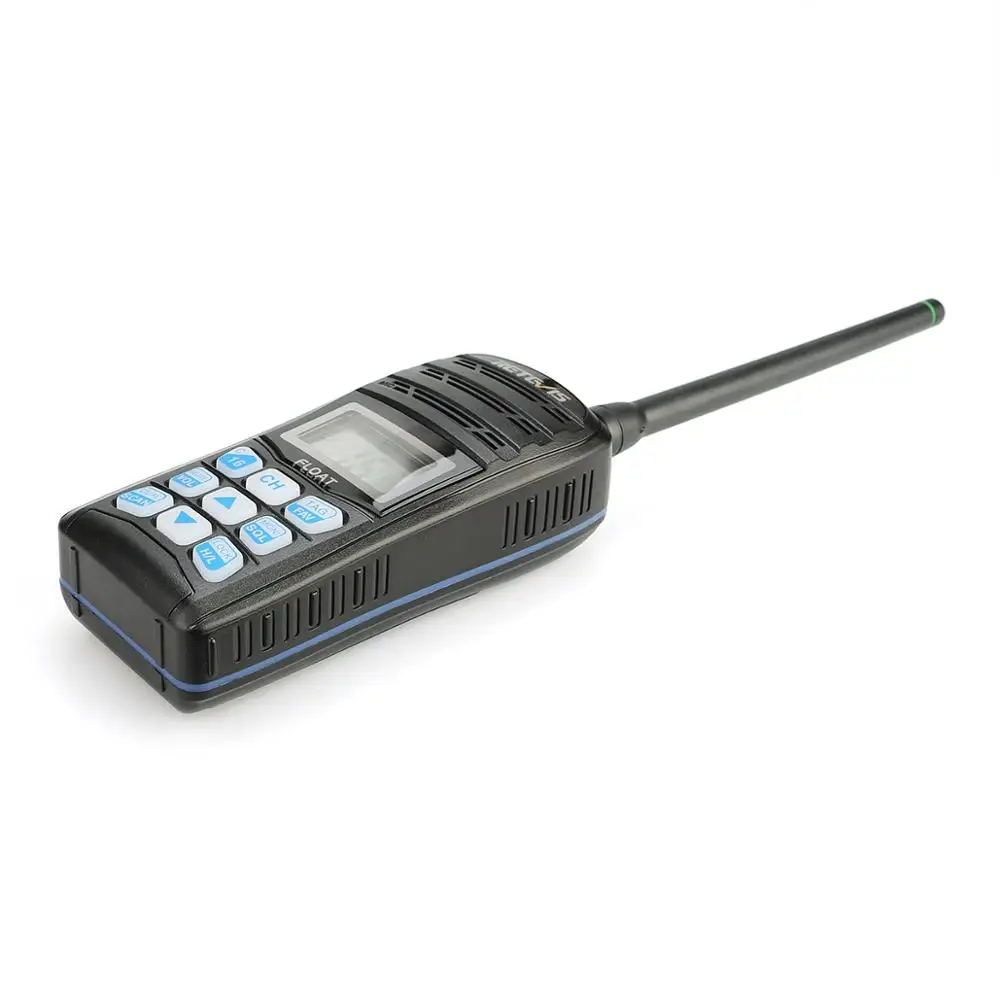

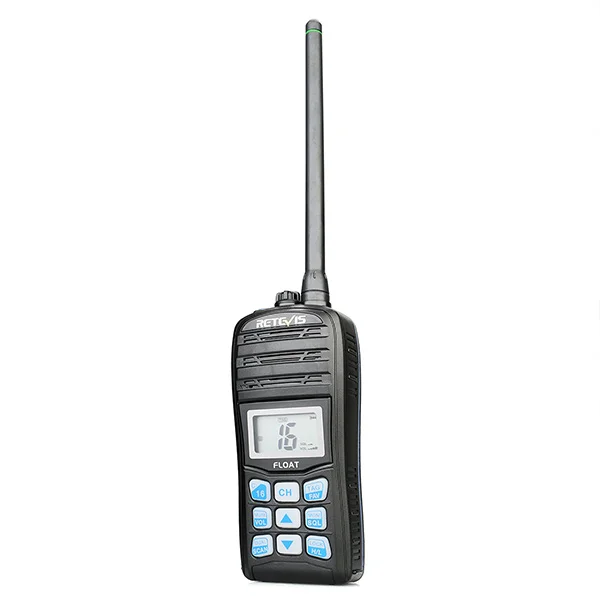

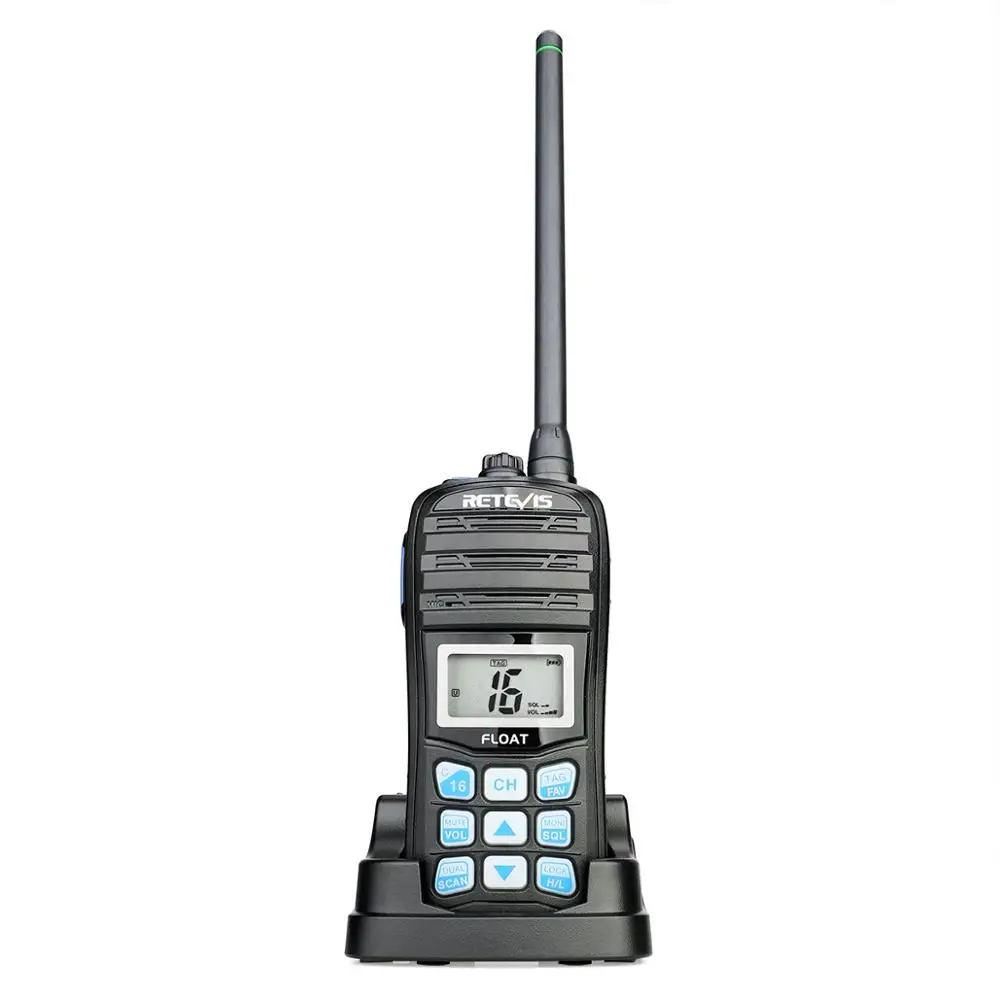

USA Canadian International Marine Floats on Water NOAA Weather Alert IP67 Waterproof Handheld VHF Marine Two Way Radio RT55

Product Overview

Description







Hot Spot:

1. Water-resistant Protection: IP67

2. Floats on Water: the transceiver can be floated when fell into water

3. Vibration Water Draining Function

4. Dual-Watch/Tri-Watch

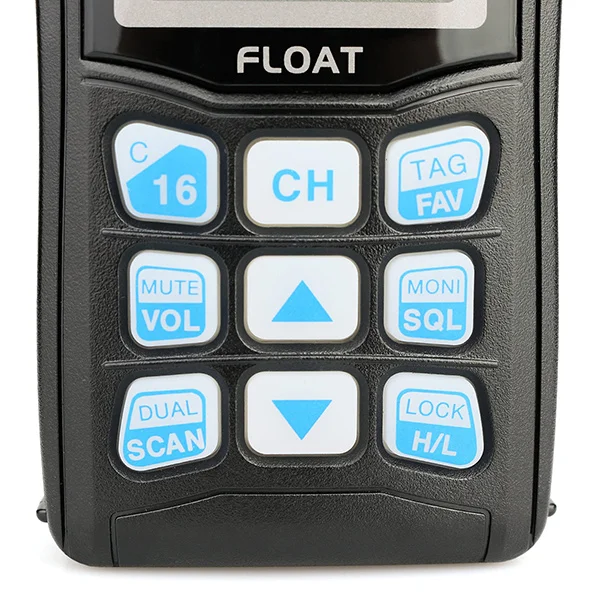

Main functions:

l Adjustable volume

l Adjustable Squelch

l Channel Group Selective

l Channel Selection: Channel 16/Call Channel/Weather Channels

l Call Channel Programming

l Monitor Function

l Volume Mute Function

l Automatic Backlight

l Lock Function

l Scan Function

l Power Save Function



General Specification:

Frequency Range	TX: 156.000-161.450MHz
	RX: 156.050-163.425MHz
Type of Emission	FM(16K0G3E)
Frequency Stability	±10PPM
Battery Pack	1200mAh Li-ion (DC7.4V)
Operating Temperature Range	-20℃~+55℃
Antenna Impedance	50

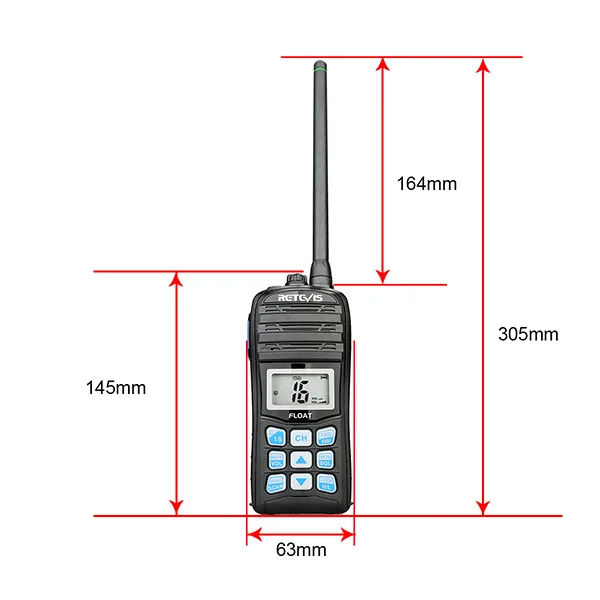

Dimensions (H x W x D)	140mm x 65mm x41mm
Weight	288g(With battery,antenna,belt clip)

Transmitter Specification:

Output Power	5W/1W
Maximum Frequency Deviation	±5kHz
Spurious Emission	0.25μW
Adjacent Channel Power	≥70dB
Audio Harmonic Distortion	≤10%
Current Drain	≤1.5A(High power) ≤0.9A(Low power) ≤0.35A(Max audio output)

Receiver:

Receiver Sensitivity	≤0.22μV
Squelch Sensitivity	≤0.22μV
HUM and Noise	≥40dB
Adjacent Channel Selectivity	≥70dB
Spurious Response	≥70dB
Intermodulation Rejection	≥68dB
Audio Output Power	≥0.5W(10%)

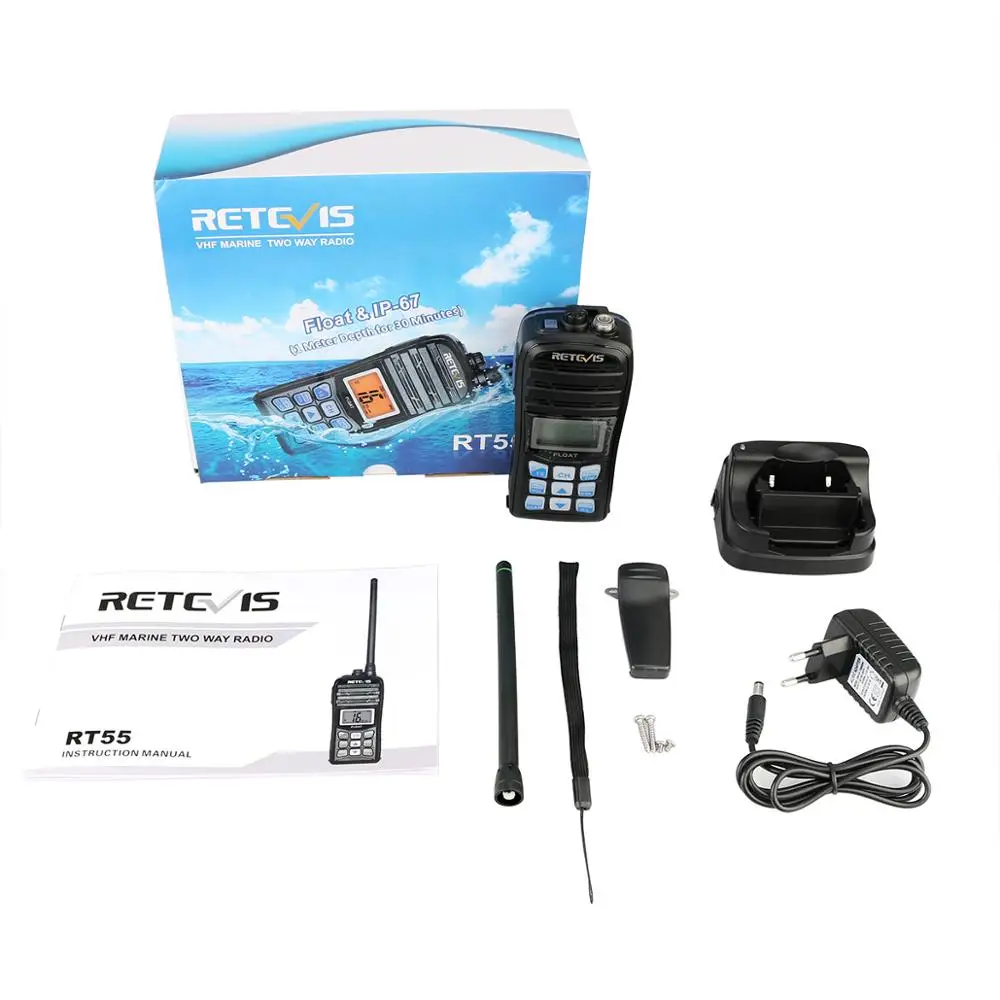

l1 x RT55 Marine two way radio

l1 x Antenna

l1 x Battery Pack

l1 x Power Adapter

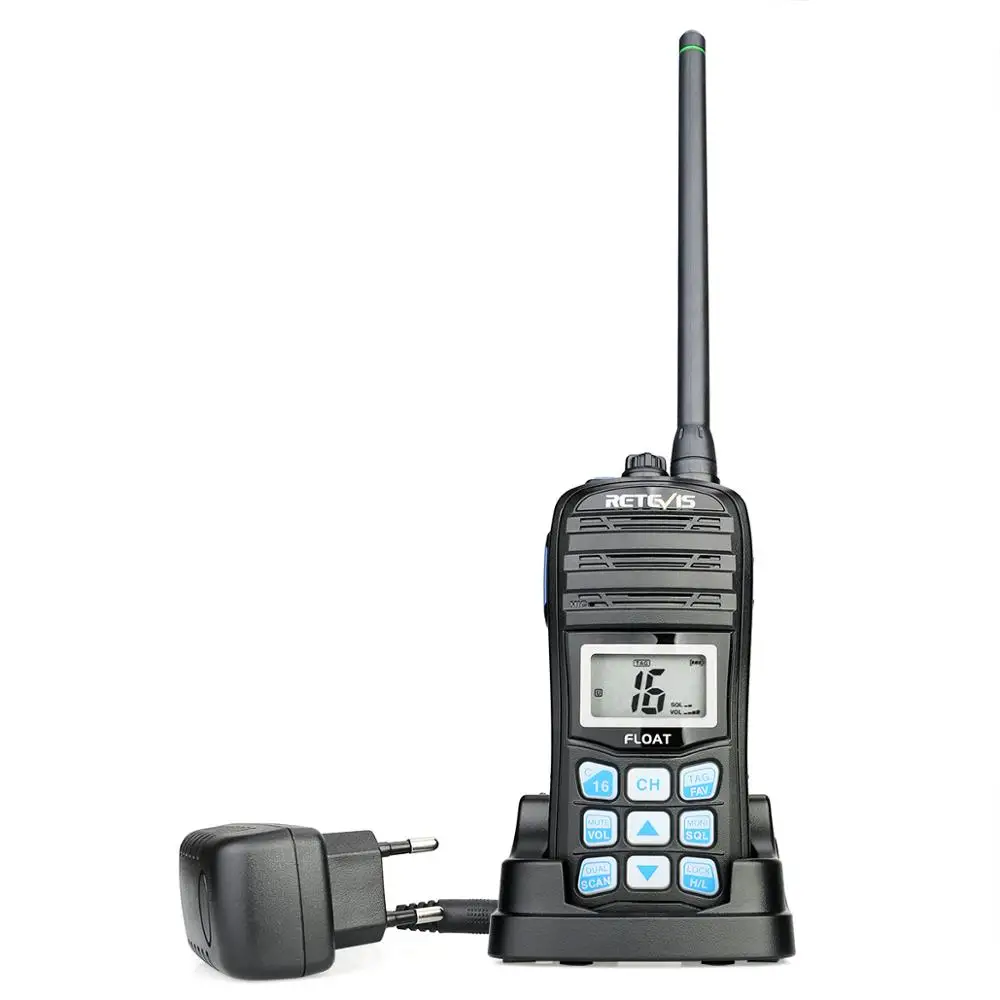

l1 x Charger

l1 x Belt Clip

l1 x Sling

l4 x Screw

l1 x User Manual
