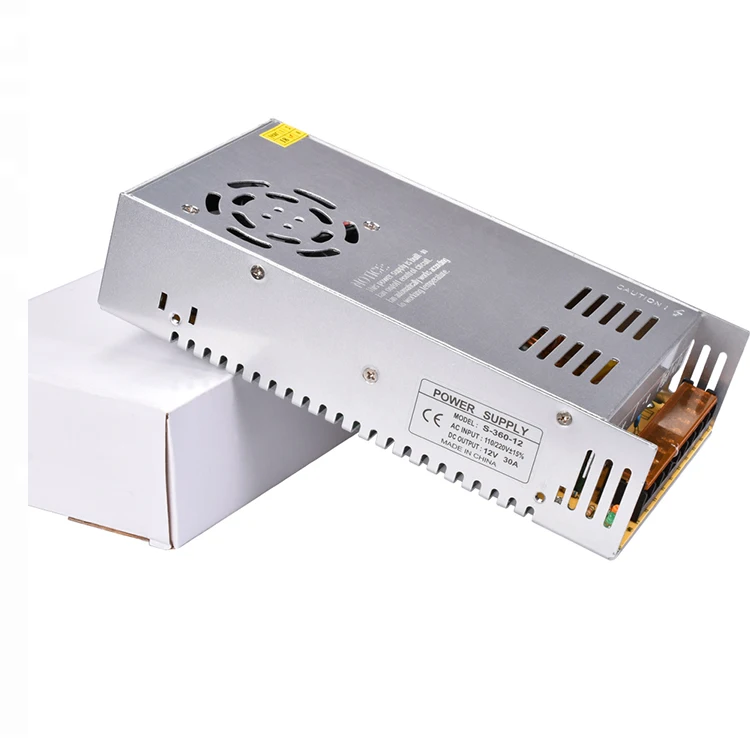

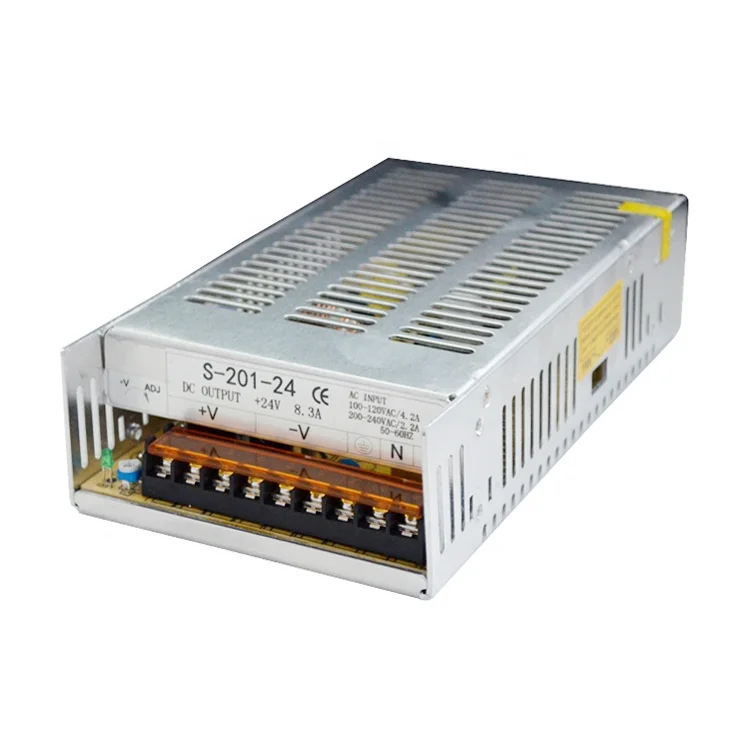

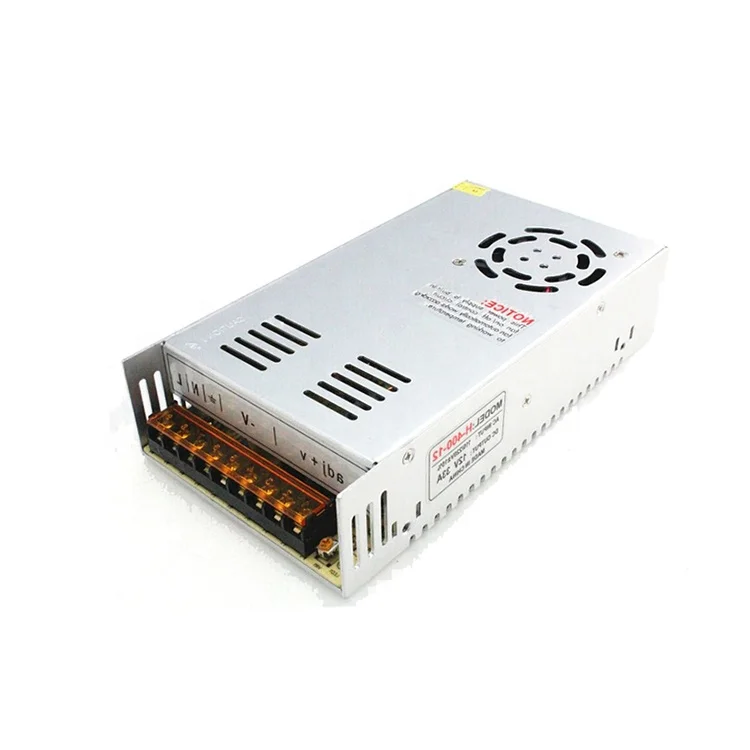

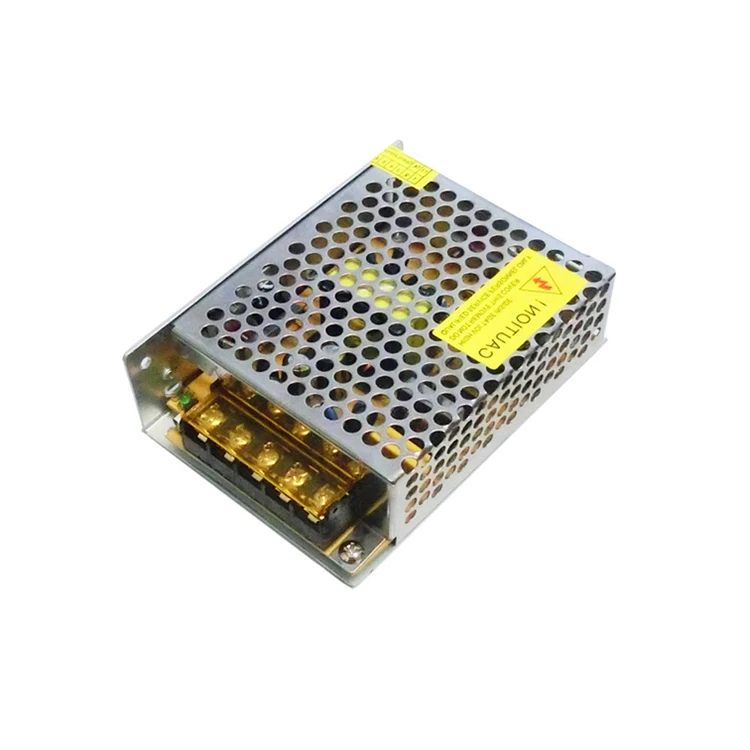

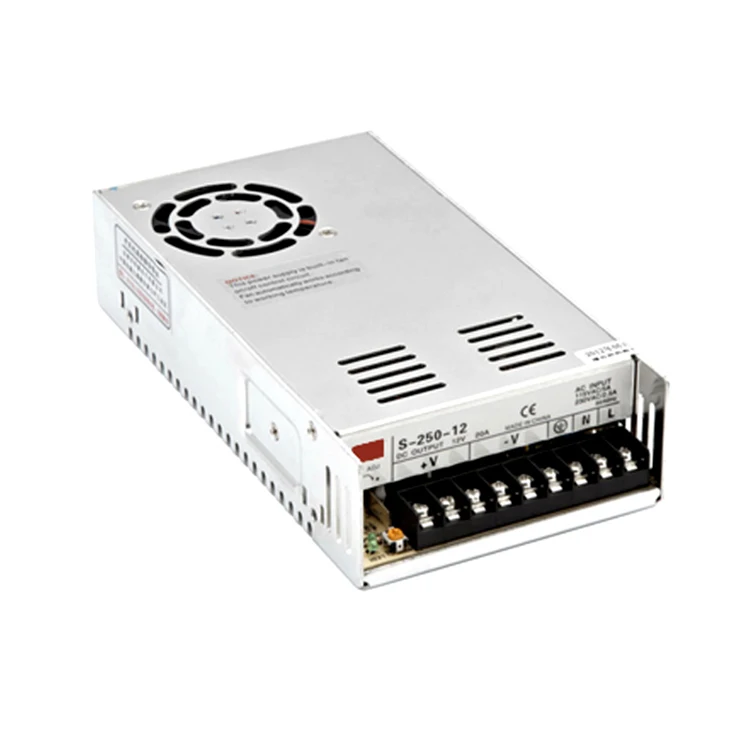

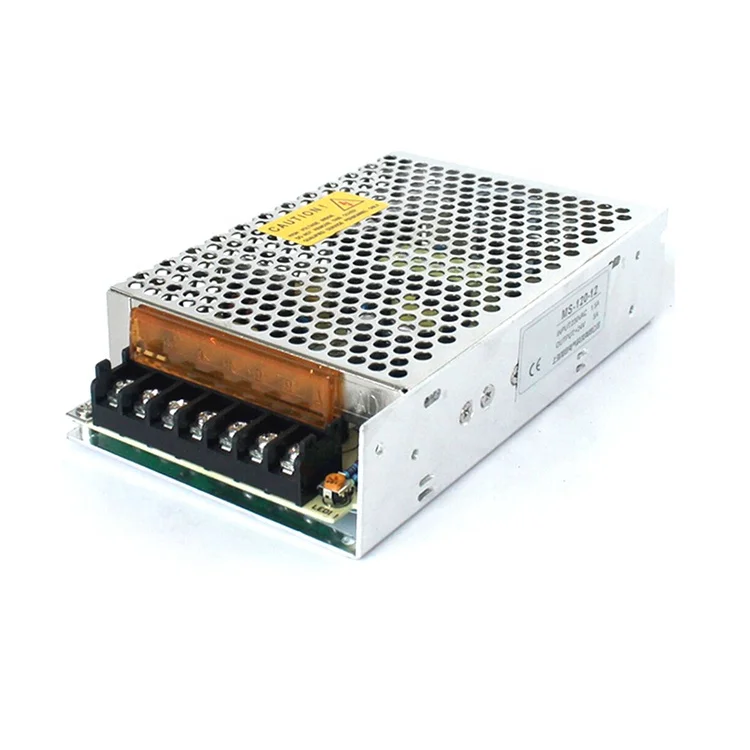

Factory Sale ac dc dve switching power supply

Product Overview

Description





put	DC Voltage	5V	12V	15V	24V
	Rated Current	10A	4.2A	3.4A	2.1A
	Current Range	0~10A	0~4.2A	0~4.3A	0~2.1A
	Rated Power	50W	50W	50W	50W
	Ripple & Noise (max.)	120mVp-p	120mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	4.75~5.5V	10.8~13.2V	13.5~16.5V	21.6~26.4V
	Voltage Tolerance	±2.0%	±1.0%	±1.0%	±1.0%
	Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%
	Load Regulation	±1.0%	±0.5%	±0.5%	±0.5%
	Setup,Rise time	300ms, 50ms/230VAC 800ms, 50ms/115VAC at full load
	Hold time	80ms/230VAC 12ms/115VAC at full load



nput	Voltage Range	85 ~ 264VAC         120 ~ 370VDC
	Frequency Range	47~63HZ
	Efficiency(Typ.)	73%	76%	77%	79%
	AC Current(Typ.)	2A/115VAC          1A/230VAC
	Inrush Current (Typ.)	COLD START 20A/115VAC          40A/230VAC
	Leakage Current	<3.5mA / 240VAC
Protection	Over Load	105 ~ 150% rated output power
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
	Over Voltage	5.75 ~ 6.75V	13.8 ~ 16.2V	17.25 ~ 20.25V	27.6 ~ 32.4V
		Protection type : Hiccup mode, recovers automatically after fault condition is removed
Environment	Working Temperature	-10 ~ +60°c (Refer to "Derating Curve" )
	Working Humidity	20~90% RH  Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C (0~50°C)
	Vibration	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Others	MTBF	316.2K hrs min.      MIL-HDBK-217F (25°c )
	Dimension	159*97*38mm (L*W*H)
	Packing	0.51Kg; 24pcs/13.1Kg/0.7CUFT
