Product Overview
Description

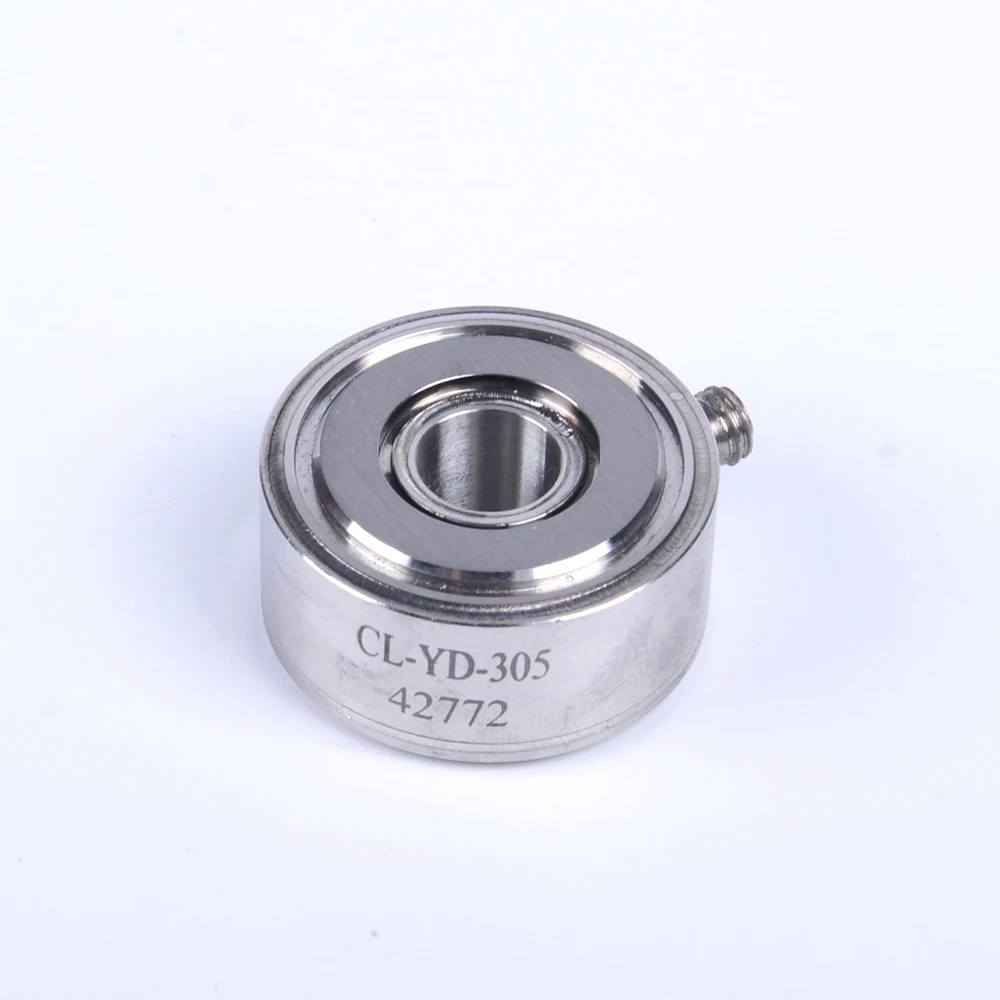

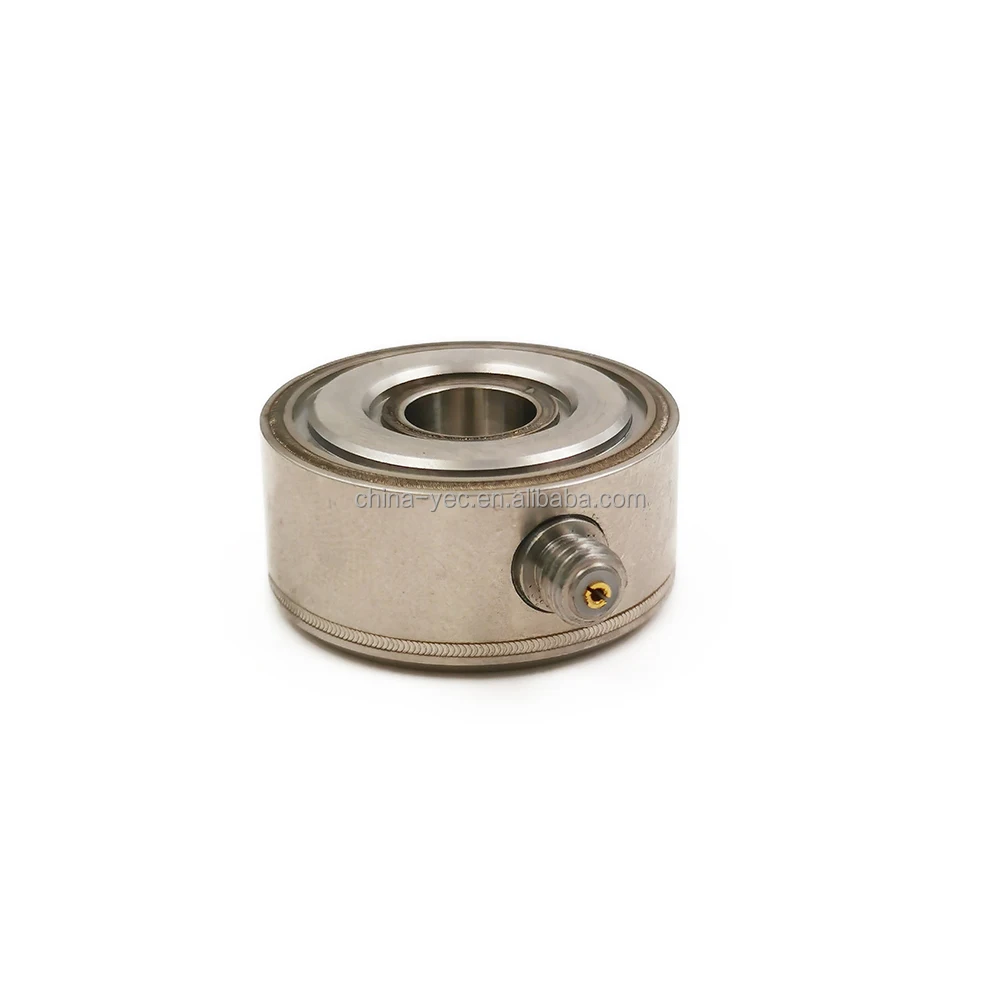

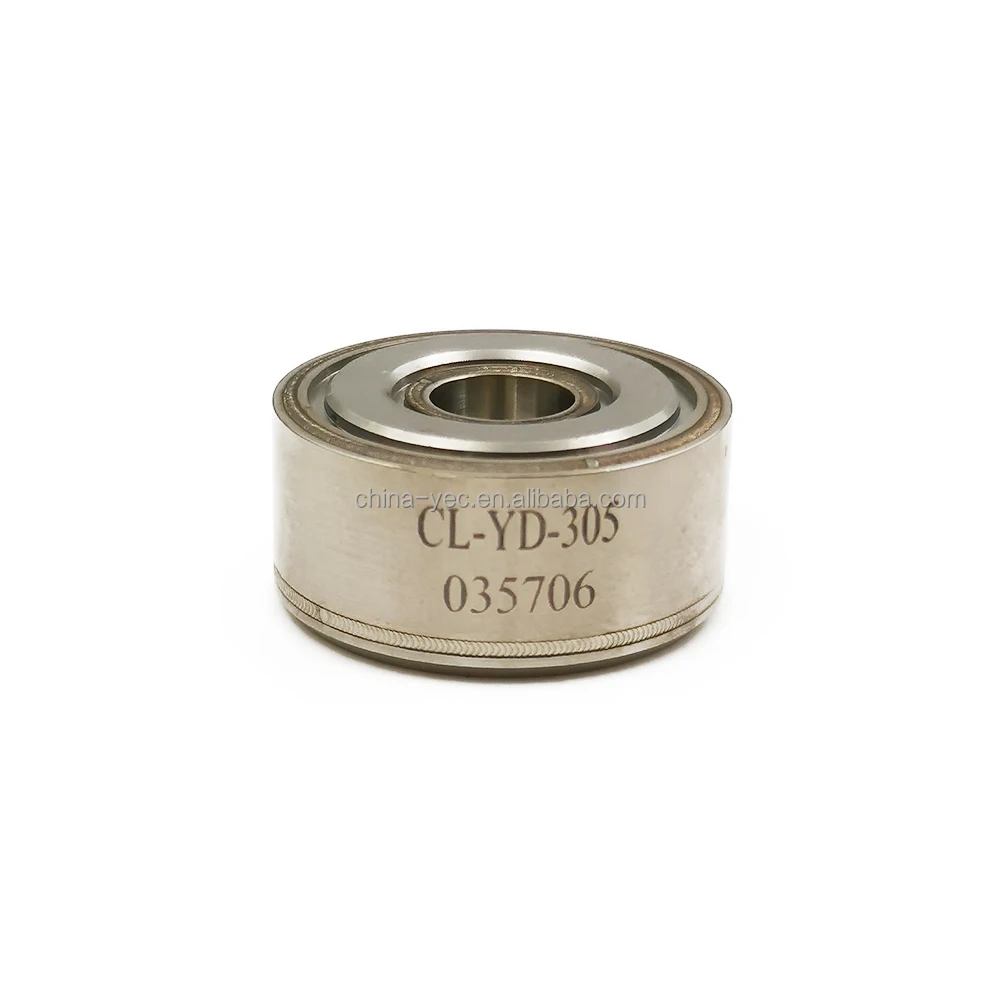

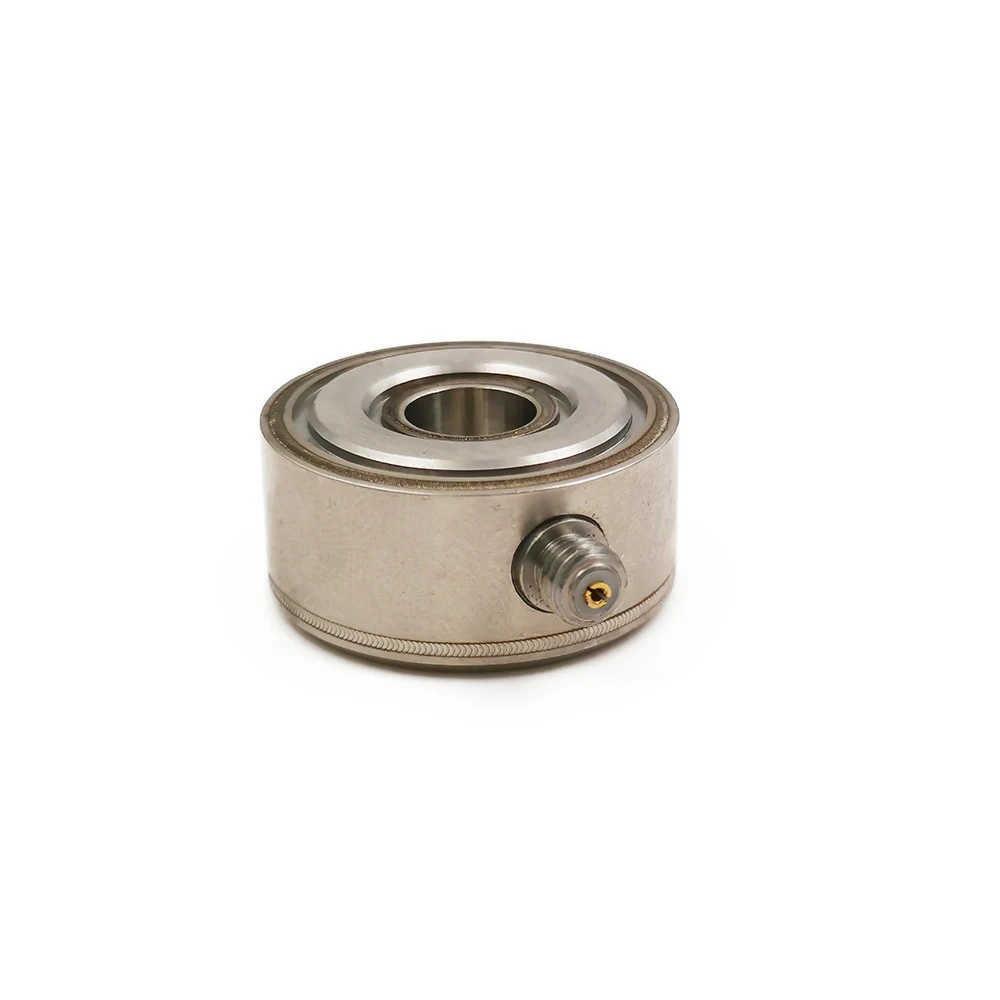

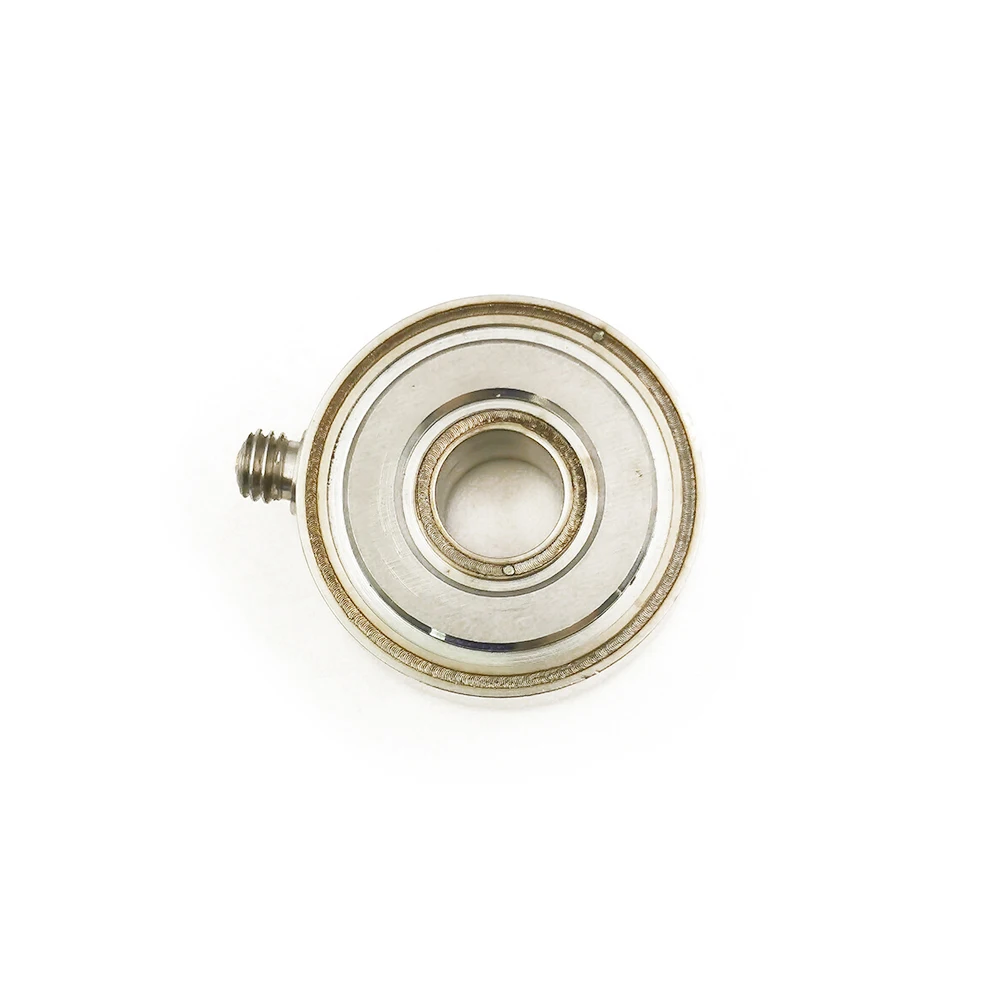

Piezoelectric Force Transducer
Features
Can measure μs level response dynamic force
Long duration of static calibration
High stiffness, suitable for mounting to machines and equipment but without affecting mechanical properties
Specifications
Model: CL-YD-305
Sensitivity(20±5℃) | ~4 pC/N |
Measurement Range | 0-60 kN |
Overload | 120 % |
Linearity | ≤1% F·S |
Hysteresis | <1% F·S |
Repeatability | <1% F·S |
Capacitance | 15 pF |
Insulation Resistance | >1013 Ω |
Resonant Frequency | 55 kHz |
Operating Temperature Range | -40~+150 ℃ |
Weight | 34 g |
Case Material | High Strength Stainless Steel |
Mounting | Through hole φ8.2 |
Sensing Element | Quartz |
Output | Side -L5 |
Accessories |
|
Certificate | Calibration parameter |
Protection cap | 1 |
2m,L5/ L5 STYV-1 | 1 |
Detailed Images

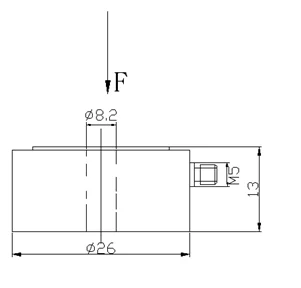

| Dimensions |  |

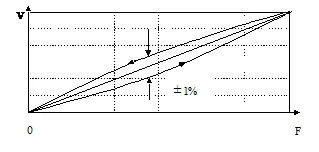

| Typical Static Error Curve |  |
