cylindrical Li ion cell battery bracket for 18650 1p 2p 3p battery holder connector DIY 18650 battery pack
- Category: >>>
- Supplier: Shenzhen Chanlin Electronic Co. Ltd.
Share on (62017121443):
Product Overview
Description

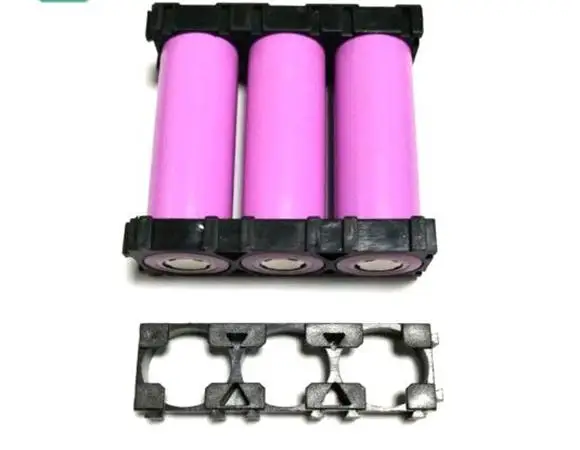

cylindrical battery bracket for 18650 1p 2p 3p battery holder connector DIY 18650 battery pack
Product Description
1. Material: ABS or ABS+PC or ABS+PC+PG
2. 2 types:
Square type:1P(1x1), 2P(1x2), 3P(1x3), 15P(3x5), 18P(3x6), 20P(4x5), 24P(4x6), 30P(5x6)

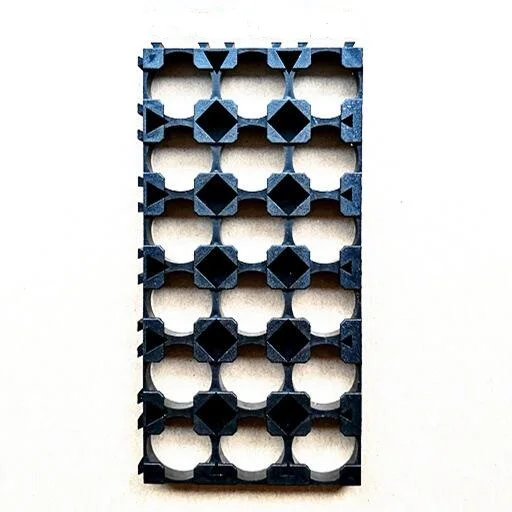

Diamond type: 4P(1x4), 5P(1x5), 6P(1x6), 10P(1x10), 20P(2x10)
3. Used for 18650, 26650, 32650, 32700 battery
4. Color: black
Note: these brackets can be combined into any shape and pack you need !
18650 battery spacer
| Shape | Model | Dimension (mm) | Diameter (mm) | Distance of two centers (mm) | |
| Square type | Can be connected together to your need | 1P | 21.7x21.7x9 | 18.3/18.5 | 20.25 |
| 2P(1x2) | 42x20.25x9 | 18.3/18.5 | 20.25 | ||
| 3P(1x3) | 62x20.25x9 | 18.3/18.5 | 20.25 | ||

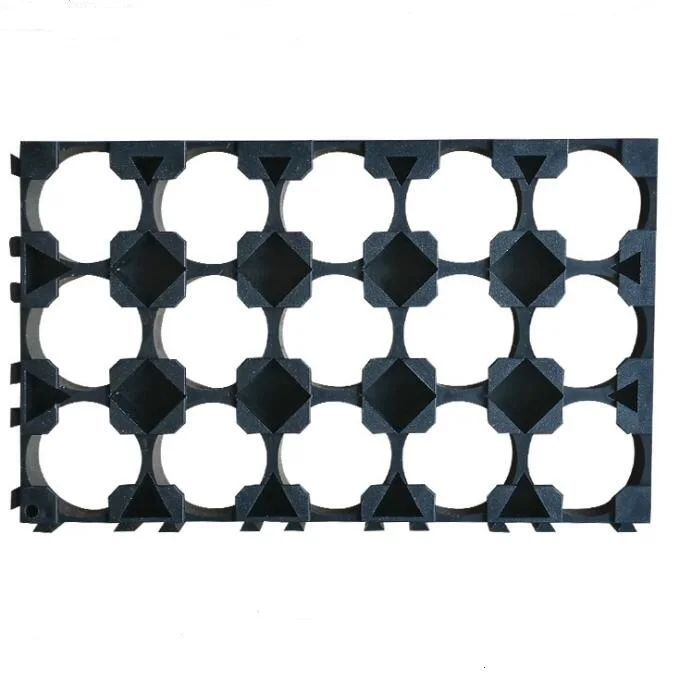

| 15P(3s5p or 5s3p) | 101.25x60.75x9 | 18.3/18.5 | 20.25 | ||
| 18P(3s6p or 6s3p) | 121.5x60.75x9 | 18.3/18.5 | 20.25 | ||
| 20P(4s5p or 5s4p) | 101.25x81x9 | 18.3/18.5 | 20.25 | ||
| 24P(4s6p or 6s4p) | 121 5x81x9 | 18.3/18.5 | 20.25 | ||

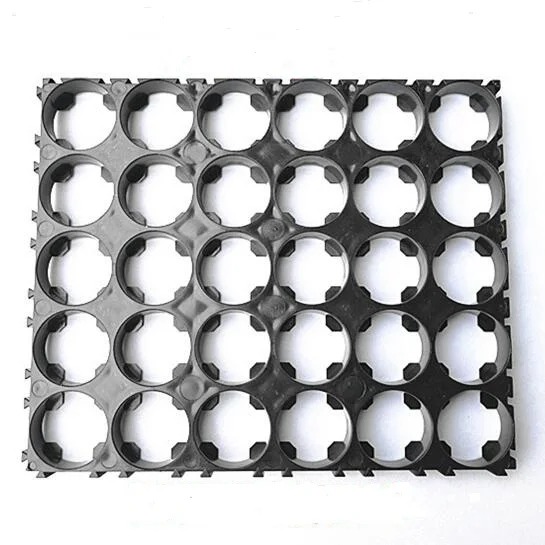

| 30P(5s6p or 6s5p) | 121.5x101.25x9 | 18.3/18.5 | 20.25 | ||
| 2P(1x2) | 40.5x20.7x9 | 18.3/18.5 | 19.5 | ||
| 3P(1x3) | 60x20.7x9 | 18.3/18.5 | 19.5 | ||
| Can not be connected together | 2x(1 to 15) | 18.3/18.5 | 19 | ||
| 3x(1 to 15) | 18.3/18.5 | 19 | |||
| 4x(1 to 15) | 18.3/18.5 | 19 | |||
| 5x(1 to 15) | 18.3/18.5 | 19 | |||
| 6x(1 to 15) | 18.3/18.5 | 19 | |||
| 7x(1 to 15) | 18.3/18.5 | 19 | |||
| Diamond type | 4P(1x4) | 18.5 | 18.5 | ||
| 5P(1x5) | 18.5 | 18.5 | |||
| 6P(1x6) | 18.5 | 18.5 | |||
| 10P(1x10) | 18.5 | 18.5 | |||
| 20P(2x10) | 180.34x64.6x16.5 | 18.5 | 18.5 | ||
26650 battery spacer (can be connected together)
| Model | Dimension (mm) | Diameter (mm) | Distance of two holes center (mm) |
| 2P | 55.2x27.6x9 | 26.2 | 27.6 |
| 3P | 82.8x27.6x9 | 26.2 | 27.6 |

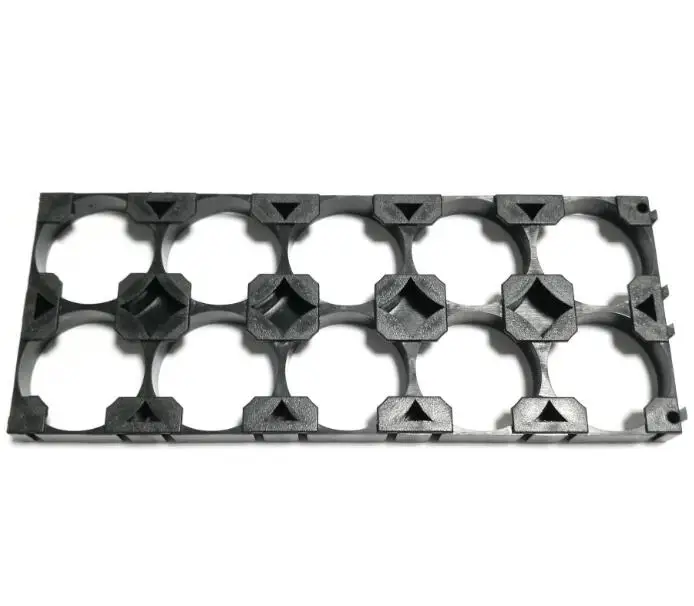

| 10P(2x5) | 138x55.2x9 | 26.2 | 27.6 |
32650 battery spacer (can be connected together)
| Model | Dimension (mm) | Diameter (mm) | Distance of two holes center (mm) |
| 2P | 70.5x36x9 | 32.5 | 34.5 |
| 3P | 105x36x9 | 32.5 | 34.5 |
