* Features positive stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90° * Anodised aluminium fence rail slides on fence body * Flip-over length stop for repeat accuracy * Indexing stop system is adjustable for total accuracy * Makes it easy to quickly cut a perfect mitre joint * Standard 3/4" x 3/8" (19 x 9.5mm), 320mm bar, removable locking washer

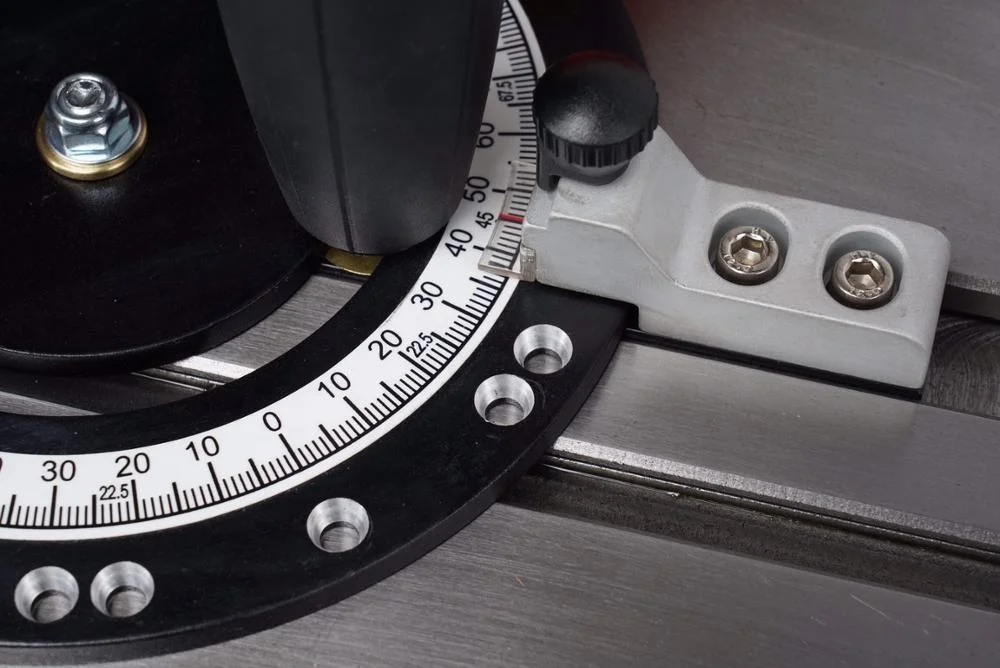

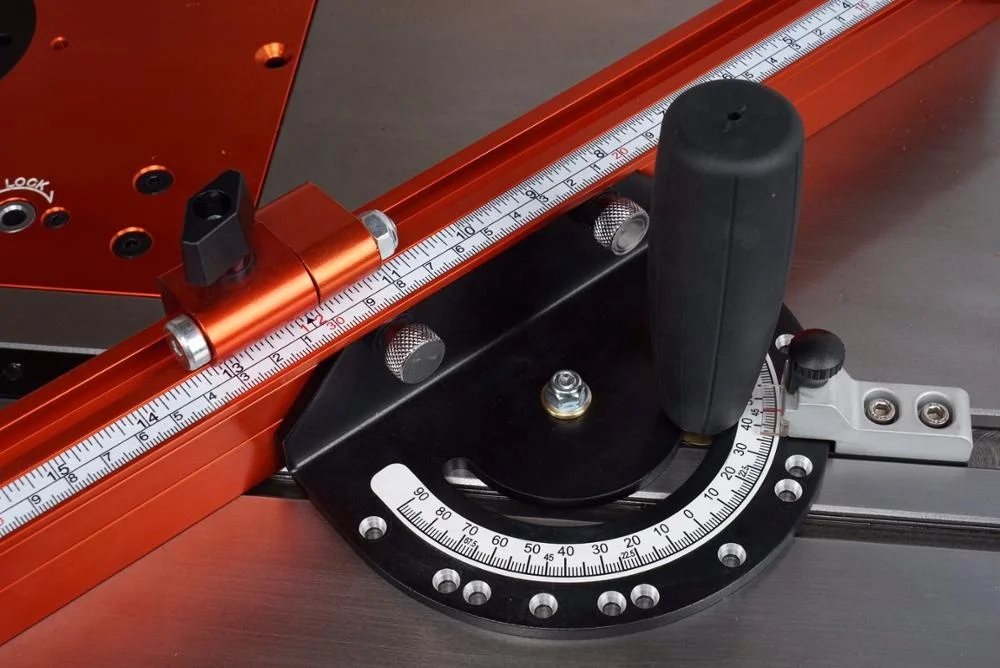

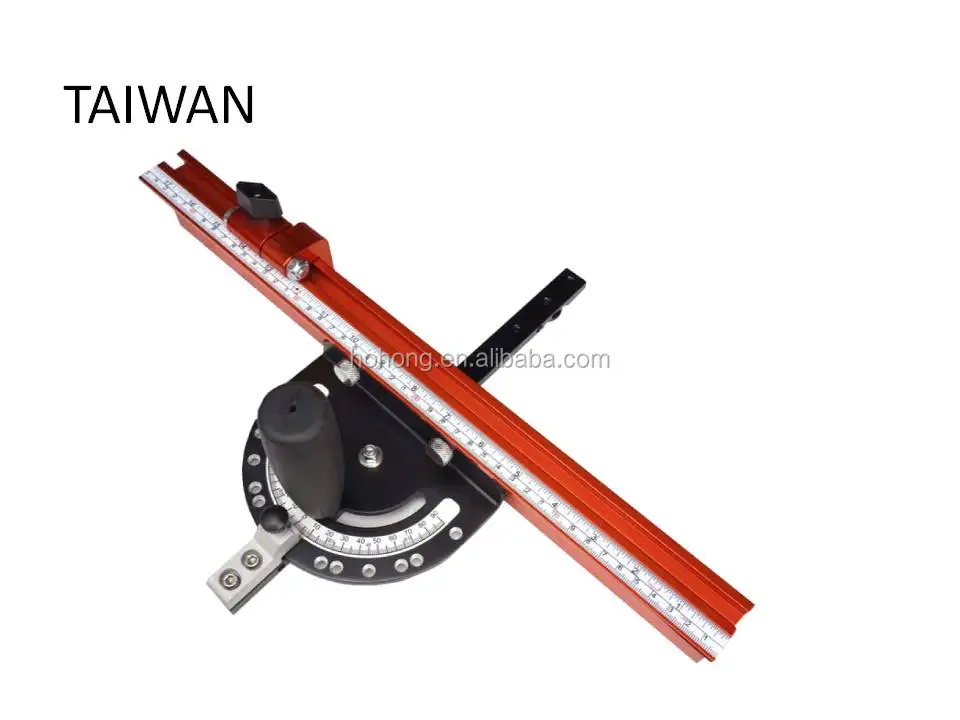

This mitre gauge system is made from 5mm steel plate and features positive stops at 0°, 22.5°, 30°, 45°, 60°, 67.5° and 90°. Simple to adjust with a spring loaded plunger stop and able to be set at any other angle between 0-90° as required. The other main feature is the anodised alloy fence, fitted with an adjustable flip-over length stop. This fence can be slid along the gauge body by releasing two thumb screws. The 320mm bar can be fitted to a standard 3/4" x 3/8" (19 x 9.5mm) table slot; the locking washer can be removed if required. This mitre gauge will improve accuracy when cross or mitre cutting on many machines or router tables.
