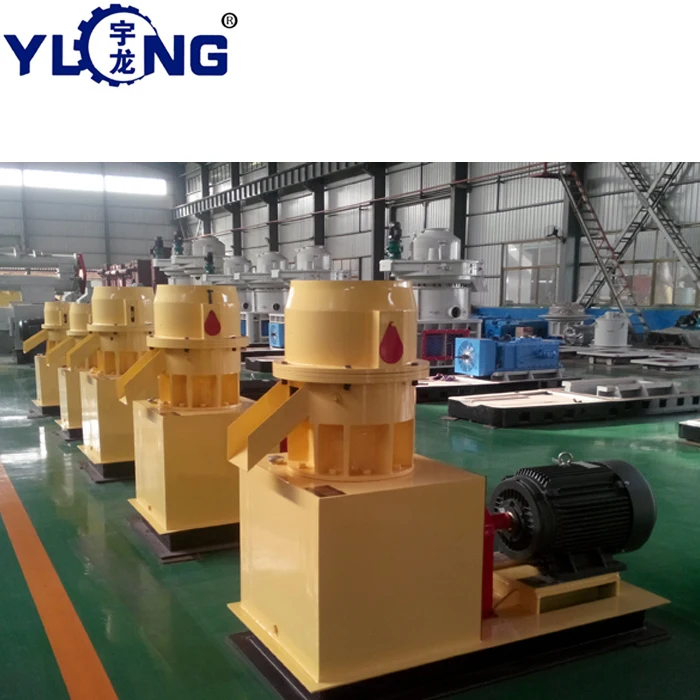

YULONG SKJ2 350 CE ISO9001 certificated flat die pellet machine
- Category: >>>
- Supplier: Shandong Yulong Machine Co. Ltd.
Share on (62017211097):
Product Overview
Description
Products Description
▶The SKJ2- series small pellet mill is one of our mainly products, it is also be called at flat die pellet mill, and the small machine operate easily, and suitablefor home use.It can be used for making fuel pellet, fertilizer pellet, and animal feed pellet.The output volume is high, energy consumption is low and the operation is convenient.
▶For pellet making, the size of input materials should smaller than the diameter of the pellets you want to get. The best moisture content of raw materials is 15%-20%, the moisture of finished pellets is about 11% -13%.
▶The SKJ2- series pellet machines can be both with motor and diesel engine can satisfy the different customers requirements.
▶The SKJ2- series pellet machines can be both with motor and diesel engine can satisfy the different customers requirements.
Model | Power(kw/hp) | Feed capacity(kg/h) | Fibe capacity(kg/h) | Fertilizer capacity(kg/h) |
SKJ2-200 | 11kw/22hp | 300-500 | 50-100 | - |
SKJ2-250 | 15kw/22hp | 400-700 | 100-300 | - |
SKJ2-280 | 22kw/32hp | 500-800 | 200-400 | - |
SKJ2-300A/B | 30/22kw/45hp | 600-1000 | 300-500 | 500-800 |
SKJ2-350 | 37+0.55+0.37 | 800-1200 | - | 800-1000 |
SKJ2-450 | 45+0.55+0.37 | 1000-1500 | - | 1000-1200 |

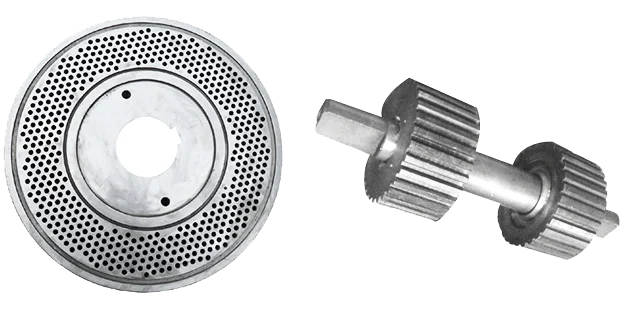

Mould & Roller assembly
▶Adopt the central screw pressure adjusting mechanism.the gaps between ring die and roller can be adjustable,which is suitable for different materials and guarantees the pressing effect.
▶The roller adopts large diameter and wide groove structure,which stong loading capacity and wear-resistant.

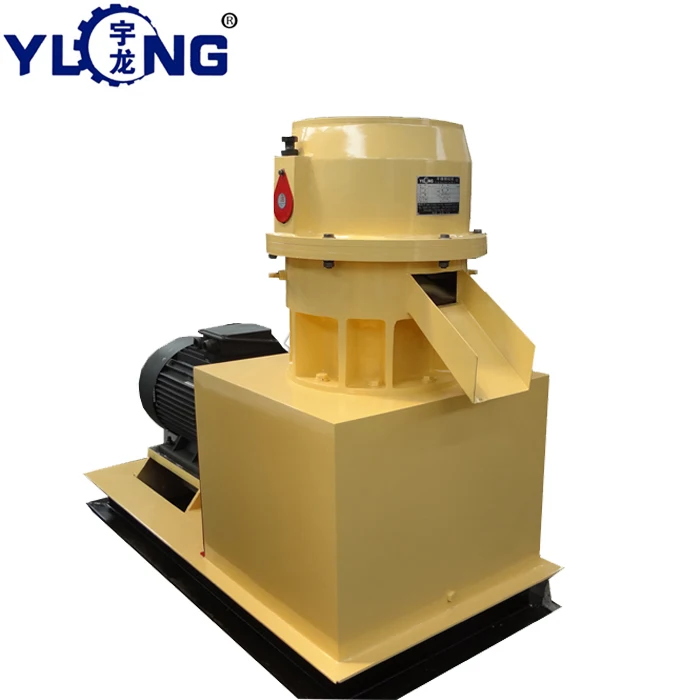

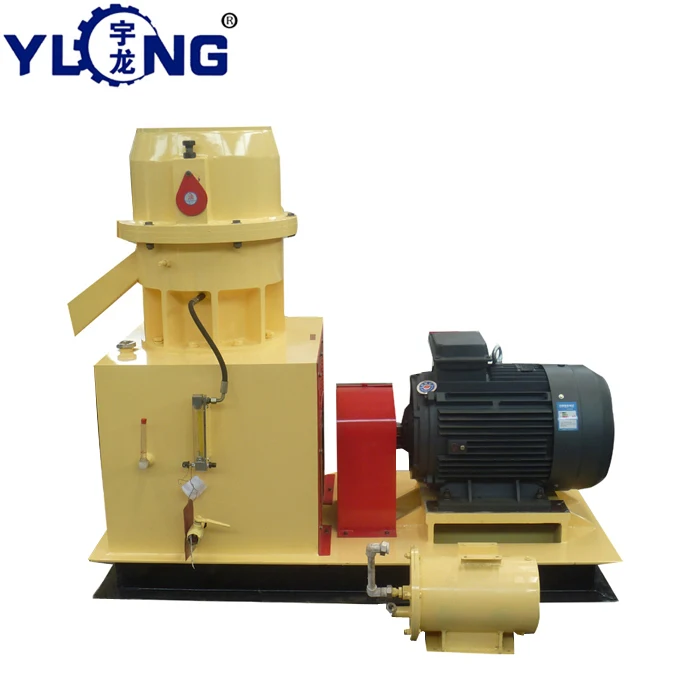

Motor Power SKJ2-200/250/280/300
Diesel Power SKJ2-200/250/280/300

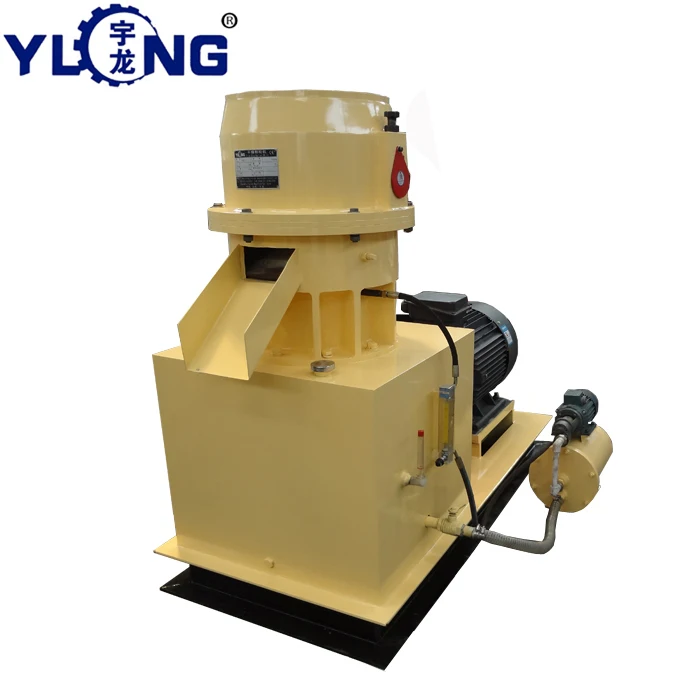

Motor Power SKJ2-350/450
SKJ3 Flat Die Pellet Mill
▶Our company has introduced into Germanic advanced pellet pressing technology, inventing the Taper-shape roller series flat-die pellet mills. they can make pellets (6-12mm), briquettes (15-30mm), which is mainly applicable to crude fiber granulation, such
as: sawdust (especially for soft wood sawdust), cotton stalk and all kinds of crop straw, home wastage, the worn out plastic and
the factory reject, the material of low ashesion rate and difficult to forming, they also can be applied to low temperature pelleting, such as: biological fertilizer, organic fertilizer,compound fertilizer. It is especially confirmed to the world market of renewable compression biomass energy demand. They are our patent products.
as: sawdust (especially for soft wood sawdust), cotton stalk and all kinds of crop straw, home wastage, the worn out plastic and
the factory reject, the material of low ashesion rate and difficult to forming, they also can be applied to low temperature pelleting, such as: biological fertilizer, organic fertilizer,compound fertilizer. It is especially confirmed to the world market of renewable compression biomass energy demand. They are our patent products.
Model | Power(kw) | Feed capacity(kg/h) | FIbe capacity(kg/h) | Fertilizer capacity(kg/h) |
SKJ3-350 | 37+5.5+0.37 | 700-1200 | 300-500 | 600-1200 |
SKJ3-450 | 55+5.5+0.37 | 1000-2000 | 500-800 | 800-1500 |
SKJ3-550 | 55/90+5.5+0.37 | 2000-3000 | 700-1200 | 2000-3000 |
SKJ3-350B | 30+0.55 | - | 400-800 | - |
SKJ3-450B | 45+0.55 | - | 700-1200 | - |
SKJ3-550B | 75+0.55 | - | 800-1500 | - |

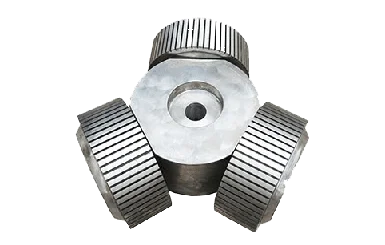

▶The rollers adopts Taper-shape to make both ends line-speed consistent to die-inner and die-outer, so it avoids dislocation
friction between rollers and dies, so the dies' lifetime is enlarged. This is significant difference between the similar
compression formation machines.
friction between rollers and dies, so the dies' lifetime is enlarged. This is significant difference between the similar
compression formation machines.

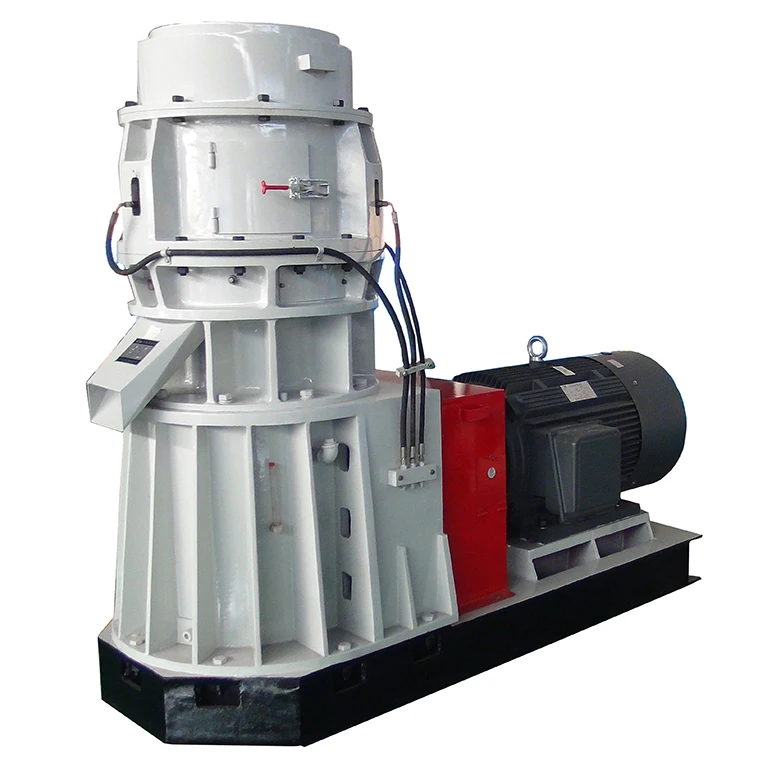

SKJ3-350/450/550
SKJ3-350B/450B/550B
Company introduction
Committed to be coming a leader in the biomass energy industry,creating maximum value for customers
Company Profile
Shandong YULONG Machine Co.,Ltd. is a integrated enterprise with product development, design,manufacturing, training,and trade.YULONG was founded in August 1998.
32 patents on its own R&D products
EU CE,SGS certification and son on
YULONG has modern R&D facilities and infor-mation equipment to facilitate business com-munication with customers around the world, and create good information conditions for the company's product exportation.
Exhibition
Indonesia Exhibition
Bulgaria Exhibition
Malaysia Exhibition
Guangzhou Exhibition
Changchun Exhibition
Beijing Exhibition
Spain Exhibition
Guangzhou Exhibition
Poland Exhibition
Customer Vist
FAQ
Q: General questions to design the production line for you?
A: 1. What is your raw materials? (to confirm mould pressure ratio of machines )
2. What is the moisture content of your raw material?
3. How many output capacity do you want per hour / month/ year?
Note: If the moisture is high, you need a dryer, becuase the suitable moisture content to enter pellet machine is 13-15%. And
please provide us above detailed information, then we would design the most suitable production line with reasonble offers.
2. Q: How long is your guarantee?
A: 12 months warranty but except quick waering parts.
3. Q: Will you send engineers to install the machines?
A: Of course. Our company has professional installation engineers team and specialized after-sale service team. When the machines
arrive your factory, we will send our installation engineers to your factory Our engineers will Guide you to install the machines
and training your workers how to operate the machines and maintain the machine.
4. Q: Voltage requirement ?
A: Our machines can use 380V, 220V, 240V, 415V, 480V, and 50Hz, 60Hz.
