Color coated steel is a new kind of type construction material which has been popular

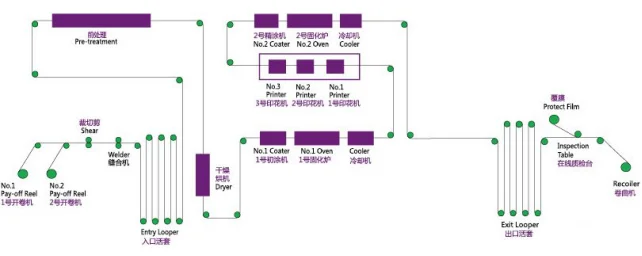

for nearly 30 years. It is finally made by chemical pretreatment, preliminary coating and
fine coating in the produce line. The quality of coating is more even stable and ideal than
single spraying or brushing on the surface of formed metal.
Due to prepainted galvanized steel coil its outstanding decorative performance, forming
nature and corrosion resistance and strong adhesion of painting, with it can maintain new
color for a long time characteristics. So color coated steel plate can achieve very considerable economic effects as replacing wood, making construction more efficient, energy-saving and pollition-preventing, it has became the ideal material for construction material.
Tolerance on Nominal Thickness for prepainted steel coil
Thickness (mm)
ASTM
½ ASTM
0.18 – 0.40
± 0.040
± 0.020
0.401 – 1.00
± 0.050
± 0.025
1.01 – 1.50
± 0.065
± 0.033
1.51 – 2.00
± 0.075
± 0.038
Note: Restricted gauge ranges and customized thickness tolerances can be offered on request.
Specifications of Prepainted Steel Coils

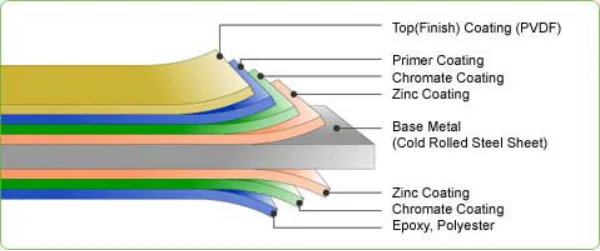

Color coated steel sheet generally refers to the product made by prepainted the surface
of paint(by roller) or bond organic thin film and baking, which can be made into final products
by deep processing. It has been called “prepainted steel plate” or “plastic steel plate” abroad.
Since the product is provided with beautiful color or pattern after it is produced, it also been
called “color coated steel sheet”. The name of “color coated steel sheet” is more popular in
China, which is called “color coated sheet” or “color sheet” for short.
Prepainted Steel Coil is available in thicknesses ranging from 0.12 mm to 2.00 mm and
in widths up to 1300 mm. Prepainted Steel Coil is also available in slit widths and sheets.
Product Name
Prepainted steel coil
Grade Group
DX51D, DX52D, DX53D, DX54D
Standard
AISI, ASTM, BS, DIN, GB, JIS
Material
ASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/
TS550GD/DX51D+Z Q195-q345
Grade
Full hard/CS-A, B, C/FS-A/B/DQ/ SS-33, 37, 40, 50 and 80
Grades as per ASTM/EN/JIS/SASO
Thickness
0.12-2.0mm
Width
600-1250mm
Coil ID
508/610mm
Painted Material
PE SMP HDP PVDF
Color
Choose From Ral Code or by Client's Requested
Coil Weight
1-8 Tons
Shape
Coil, strip, flat,sheet, plate, etc
Application

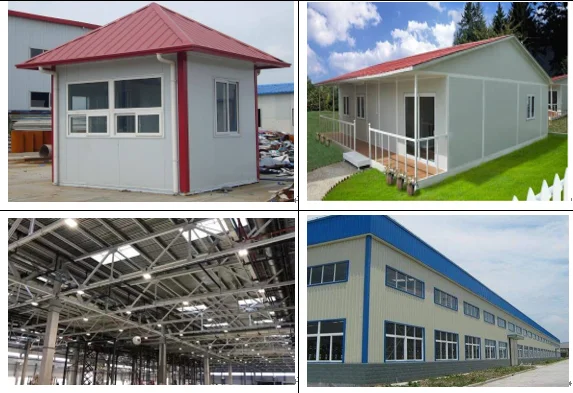

Building materials, steel structure, home construction, roofing sheets, etc.
Surface Treatment
Galvanized coated
Package
Standard sea worthy packing
Port
Any port in China
Delivery
7-15 working days
MOQ
1tons
Detailed Images

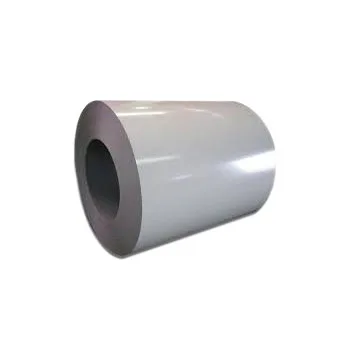

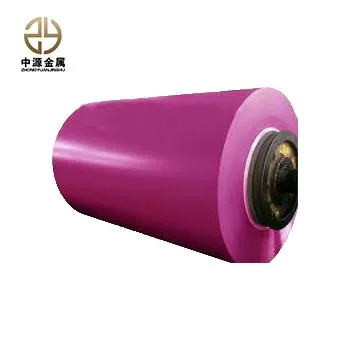

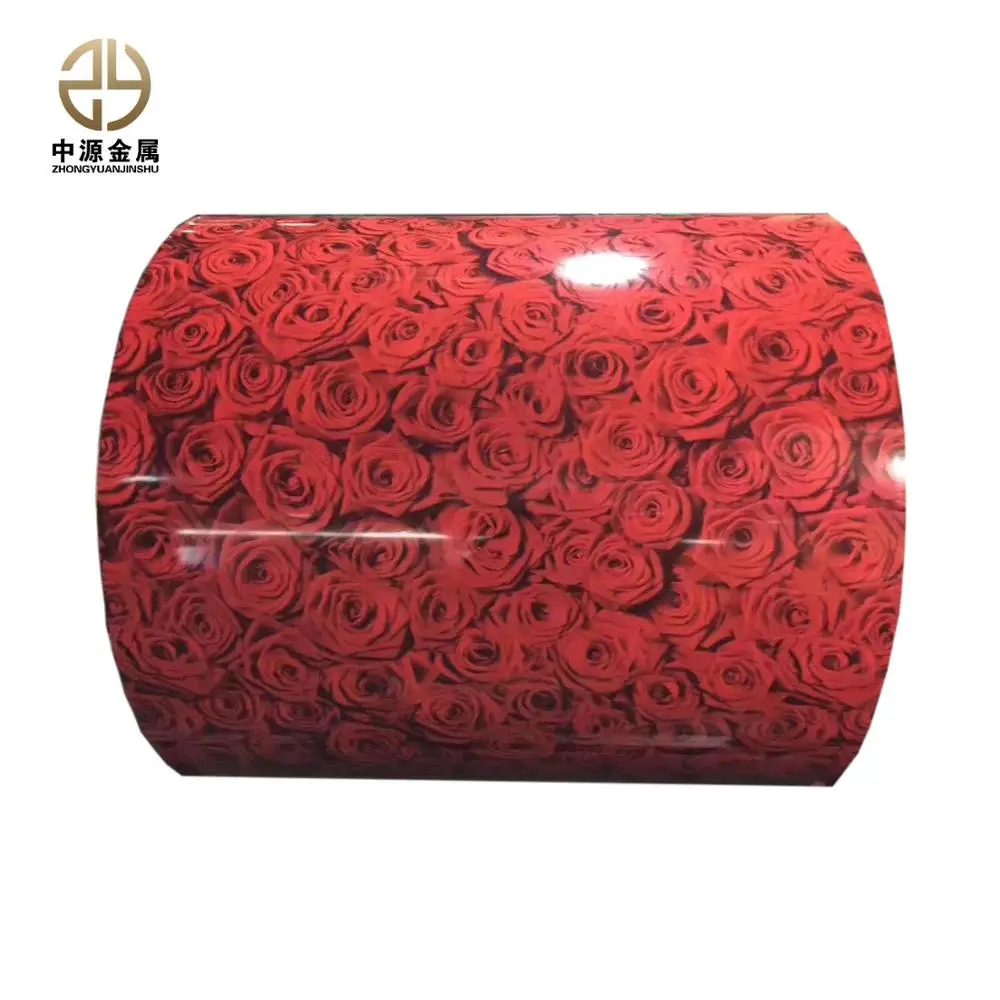

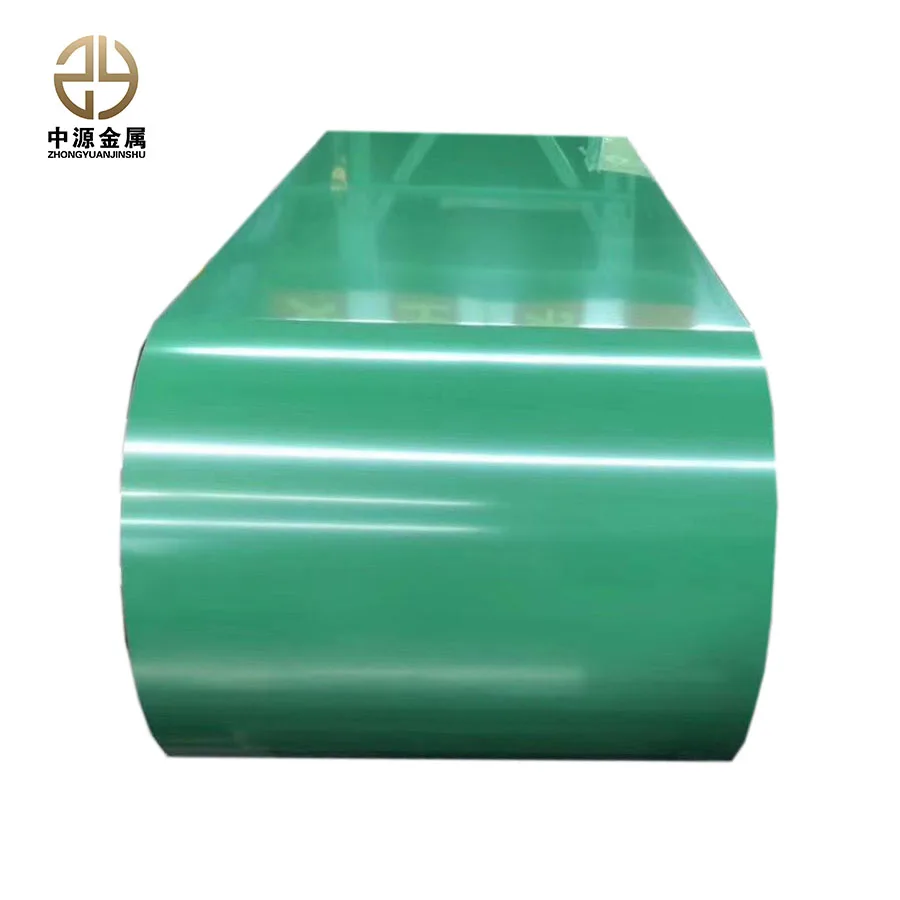

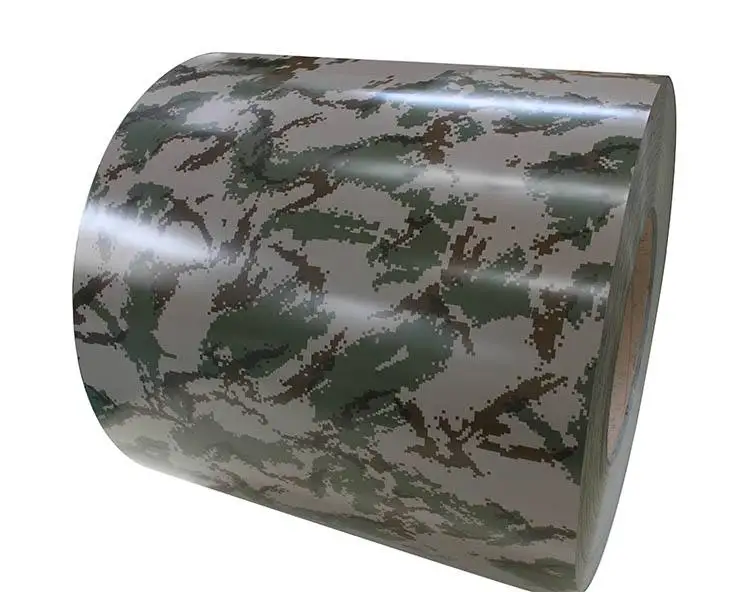

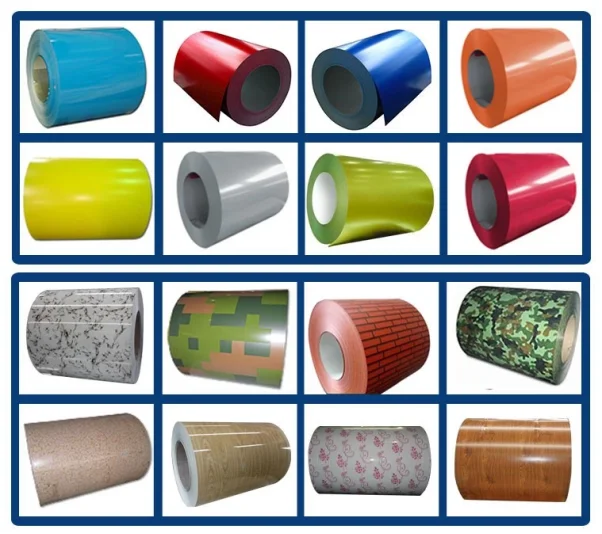

Images of prepainted steel coils

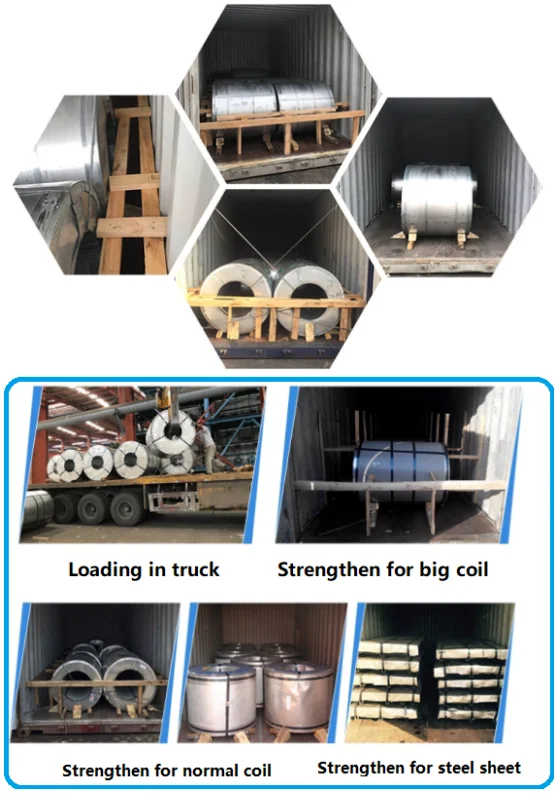

Packaging & Shipping
Packing Process

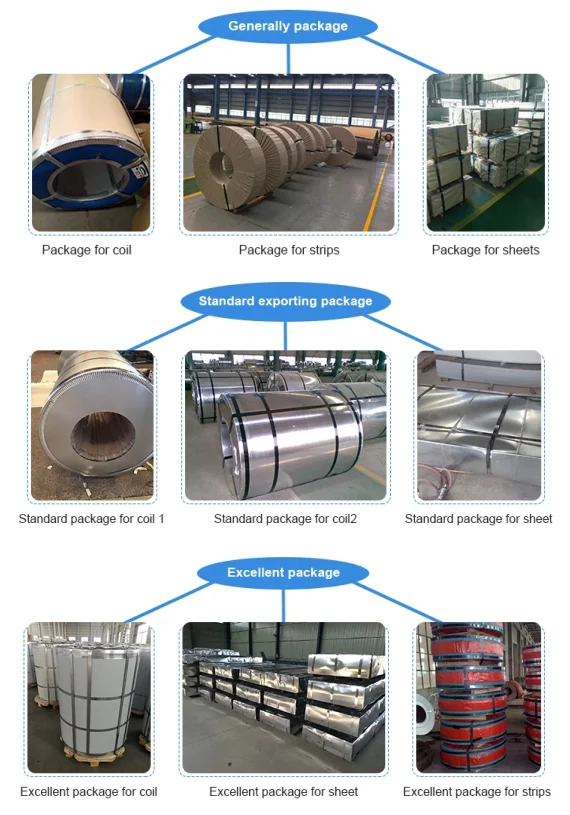

Packing
1.Generally package: Anti-water paper+strapped with min three strapping strips
2.Standard exporting package: Anti-water paper and plastic+covered by iron sheet+strapped with min three strapping strips
3.Excellent package: Anti-water paper and plastic film+covered by iron sheet+strapped with min three strapping strips+fixed on the iron or wooden pallets by strapping strips
The deep processing directly delivers the finished product that the customers need.

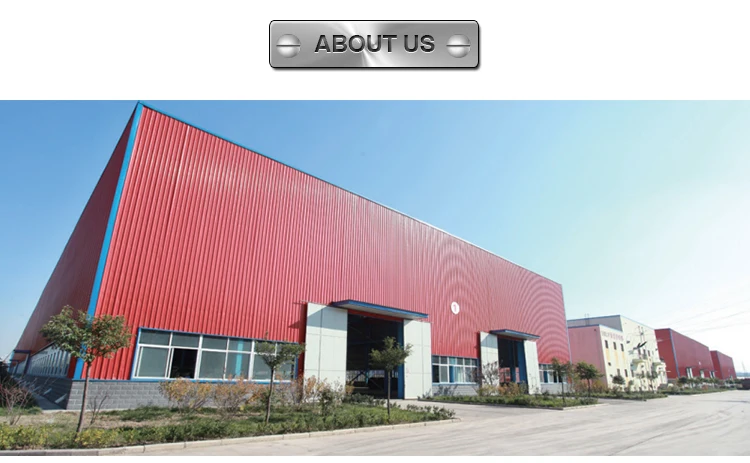

Zhongyuan Company has 5 color coating production lines and 3 galvanizing production lines. The production thickness is 0.12-1.2cm, the width is form 600CM to 1250CM, the galvanizing capacity is 300,000 tons per year, the color coating capacity is 500,000 tons per year.
