Product Overview

Description

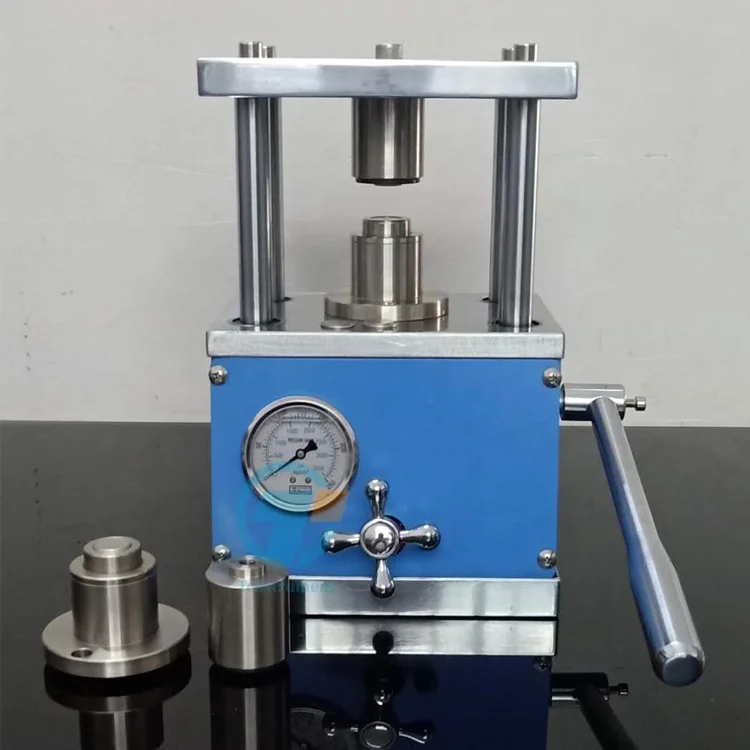

Hydraulic Coin Cell Crimping and Disassembling machine (manually operated) TCH- MSK-110 , coin cell crimper



Product Description


 MSK-110 is a new design and CE Certified coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets.





Specification of the Hydraulic Coin Cell Crimping and Disassembling machine (manually operated) TCH- MSK-110 , coin cell crimper

































Features

  • Heavy duty steel frame

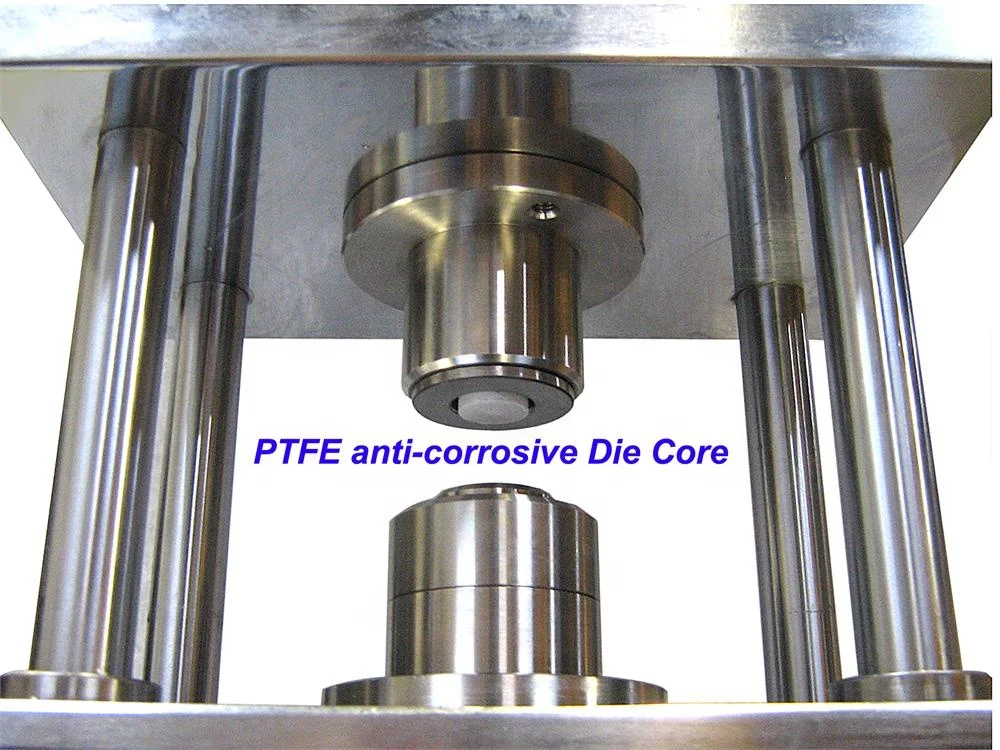

  • PTFE Anti-Corrosion Core prevents coin cells from being short-circuited

  • An Aluminum tray is included to put at the bottom of crimper for avoiding oil leakage by accident


Crimping Die



  • One set of crimping die for CR2032, CR2025, and CR2016

  • Die is consumable,  please click picture below to order replacement

  • 100 pcs Coin cell cases ( CR2032 cases) are included in the package for testing and immediate use

  • Optional die available from product option for crimping CR2325, CR2450, AG3, AG5


Pressure

  • Max. 8 metric Tons hydraulic pump with automatic pressure relief

  • Max.200 Kg/cm2 on CR20XX series coin cell

  • Effective piston area: 11.34 cm^2


Product  Weight & Dimensions



  • With handle positioned horizontally: 280mm(L) x 280mm(W)  x 333mm(H)

  • Without handle: 228mm(L) x 176.8mm(W) x 333mm(H)

  • Tray: 330mm(L) x 230mm(W) (See section Maintenance & Equipment Care below for more)

  • Net Weight:   26 kg (58 lbs)

  • Shipping weight & Size:   45 kg (100 lbs)  40" x 30" x 21"


ComplianceCE Certified
WarrantyOne Year limited warranty with lifetime support (Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)

How to Choose Crimper

  • TCH-MSK-110 is hydraulic manual  crimper. It is suitable use oteside glovebox at lower cost.   It is a little difficult to operate inside glovebox , and also may be risky on oil leaking for long time use

  • TCH-MSK-110-S  is driven by  inert gases, which is suitable for using inside glovebox with N2/Ar and with faster operation.

  • TCH-MSK-160E is driven by electric and  good for using in glovebox with N2/Ar.   but speed is a a little slow than MSK-110-S. It has compact size and can be transfered via air-lock chamber of glovebox.

  • Attention: Please use our Coin Cell Cases with our crimper. We don't guarantee the crimping quality if other brand cells are used.






Product show of the Hydraulic Coin Cell Crimping and Disassembling machine (manually operated) TCH- MSK-110 , coin cell crimper


coin cell crimping.jpg


crimper.jpgMSK-110-PTFE.jpgMSK110.jpgtch .jpg
