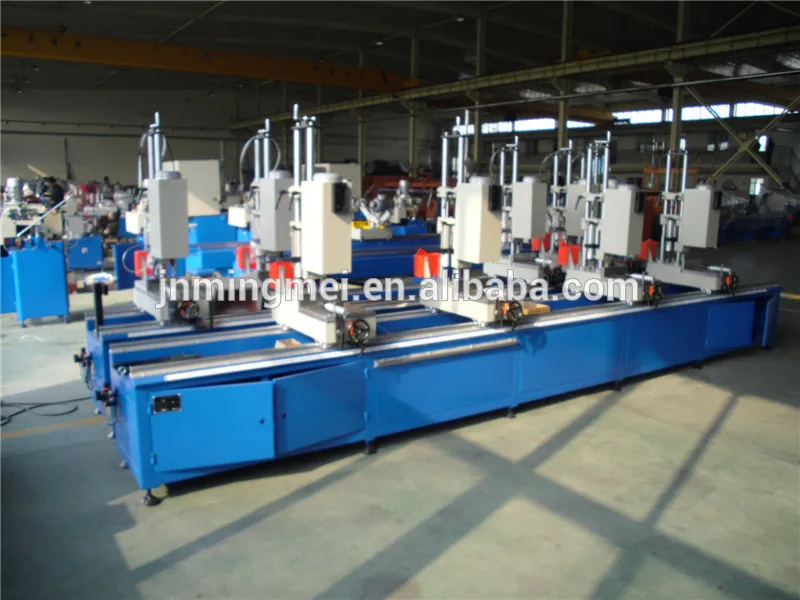

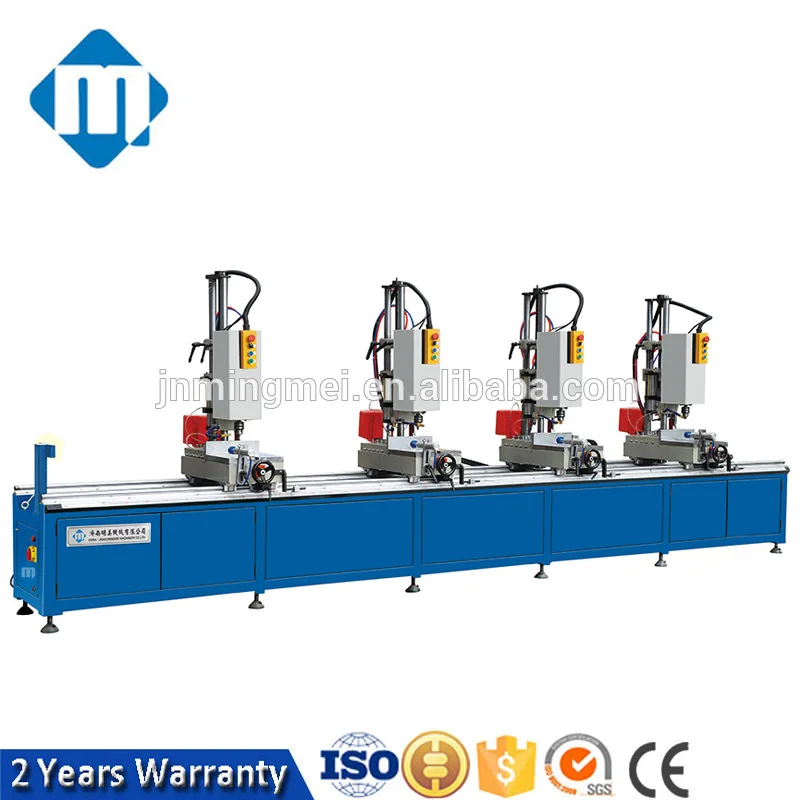

1) Special for drilling of aluminum window, curtain wall profiles. It is suitable for long profile process and mass production.
2) Max process cross section is 250*250mm, Max process length is 5000mm.

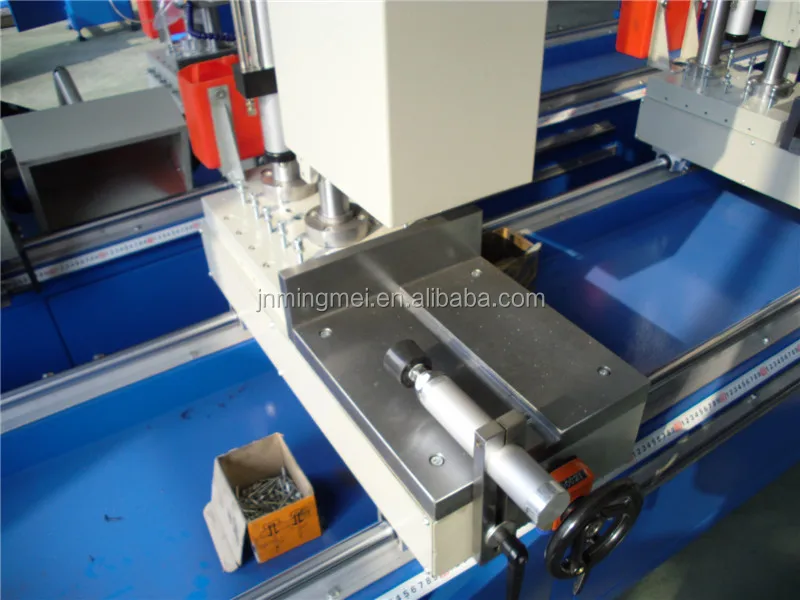

3) Pneumatic-hydraulic damp feeding system.

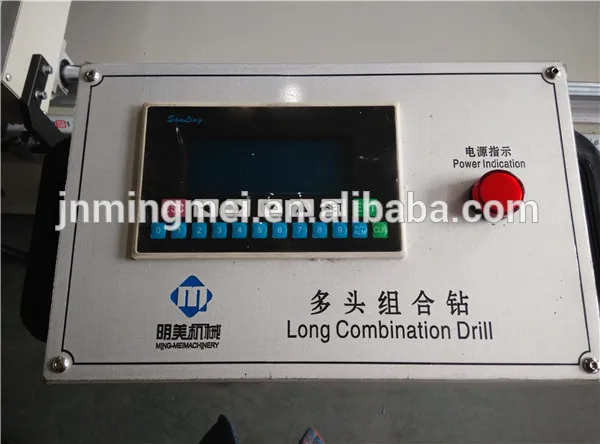

4) Imported PLC control system with steady capability.
Main features
Brand Name
Mingmei
Model

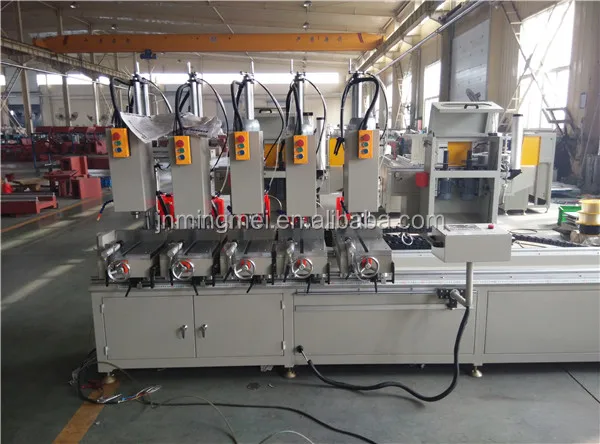

LZZ4-13
Main motor Power
4x1.1KW
Working voltage
380V 50Hz
Operating air pressure
0.5-0.8Mpa
Max/Min distance between each group holes
5000mm/300mm
Max processing profile section size
250*250mm
Drilling head feeding travel
125mm
Work table size L x W
300*200mm
Size
5500*1100*1800mm
Weight
1300KG
What we can do for customers?
Trade Asssurance
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* Design drawing of the factory workshop
* View our Factory.
After-Sales Service
* One year warranty time, we can repair and replace parts for free in one year. * Free training course at our factory with professional engineers. * Technical support in 24 hours online, TM, Skype, E-mail solving the relative questions in time.
* Engineers available to service machinery overseas.
*We provide the consumable parts at agent price when you need replacement
