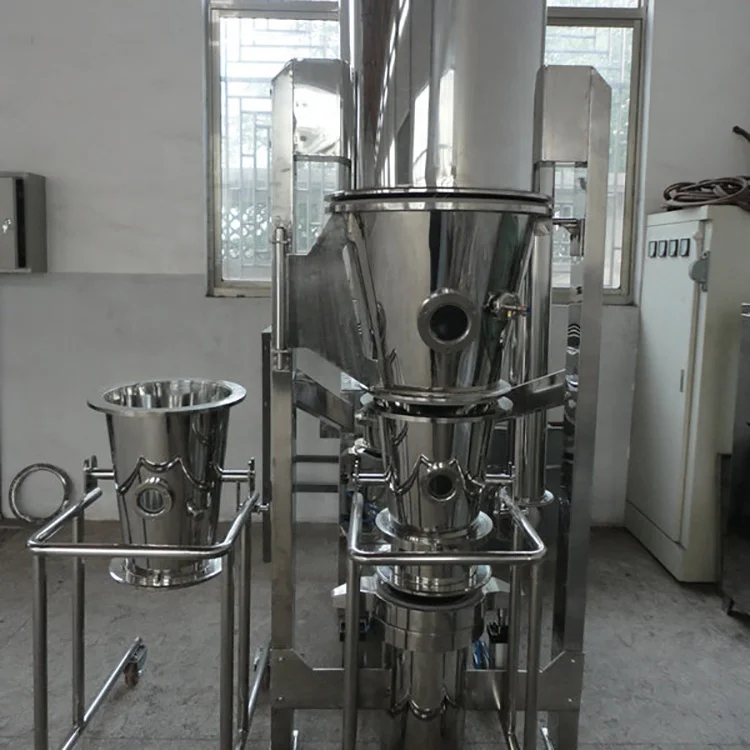

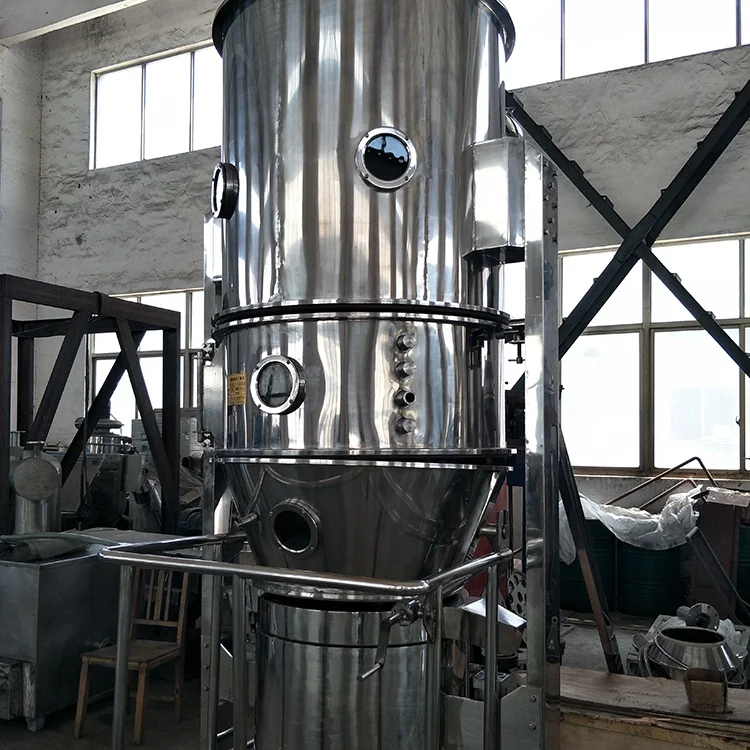

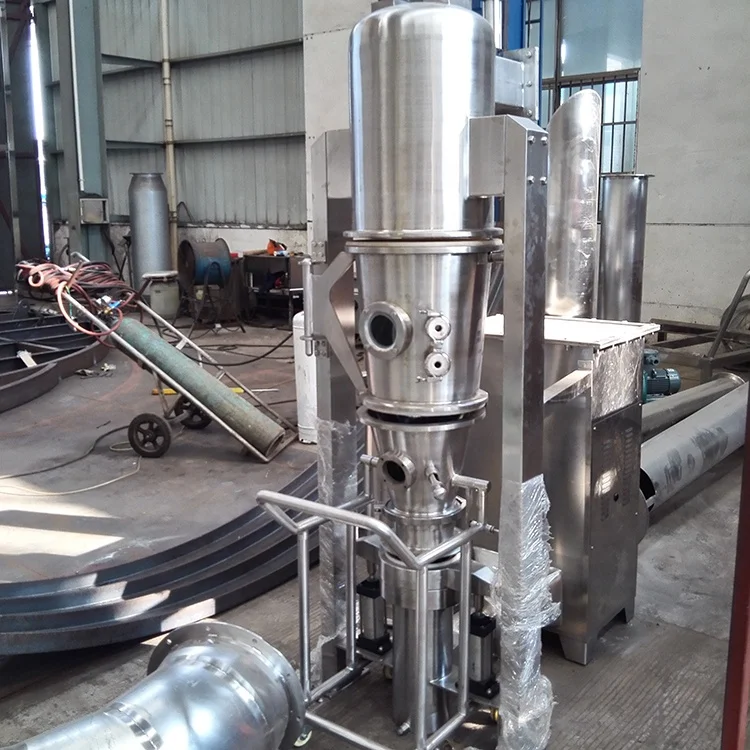

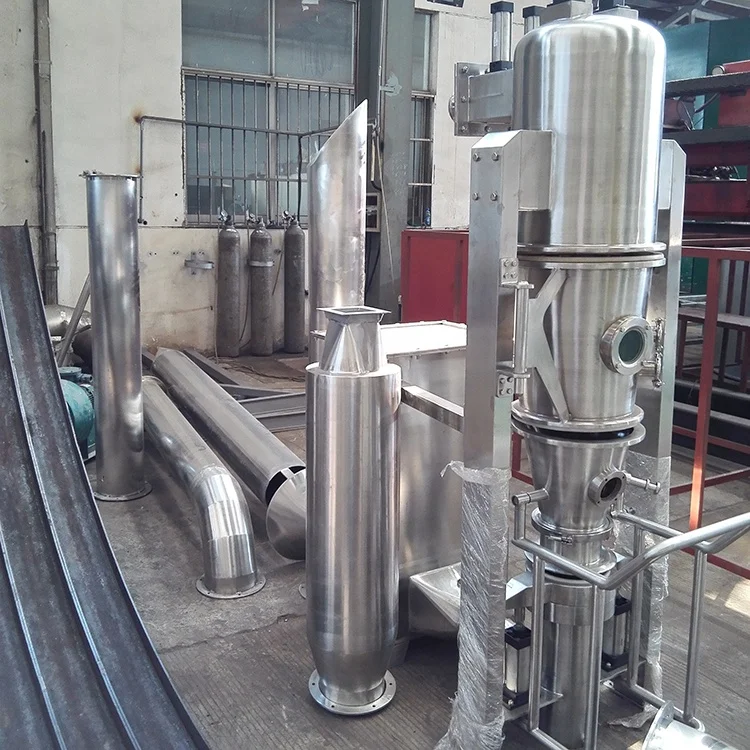

coffee granule making machine and fluid bed granulator for instant coffee soluble coffee
Product Application
Granulated pharmaceutical industry: tablet granule, granules, capsules, granules. Granulated food industry: cocoa, coffee, milk powder, granule juice, spices and the like. Other industries granulation: pesticides, feed, fertilizer, pigment, dyestuff and so on. Powdered or granular drying wet materials.
Principle Material powder particles in the material container (fluid bed) was boiling in a fluiding state by the heated air is preheated and mixed after purification, the binder solution sprayed into the spray, so some particles to contain a binder pellets, since the hot air drying of materials continue to make pellets in the water evaporates, the adhesive sets, this process is repeated continuously, form an ideal, uniform microporous spherical particles.
Typical technical data
Item
Unit
5
60
120
200
500

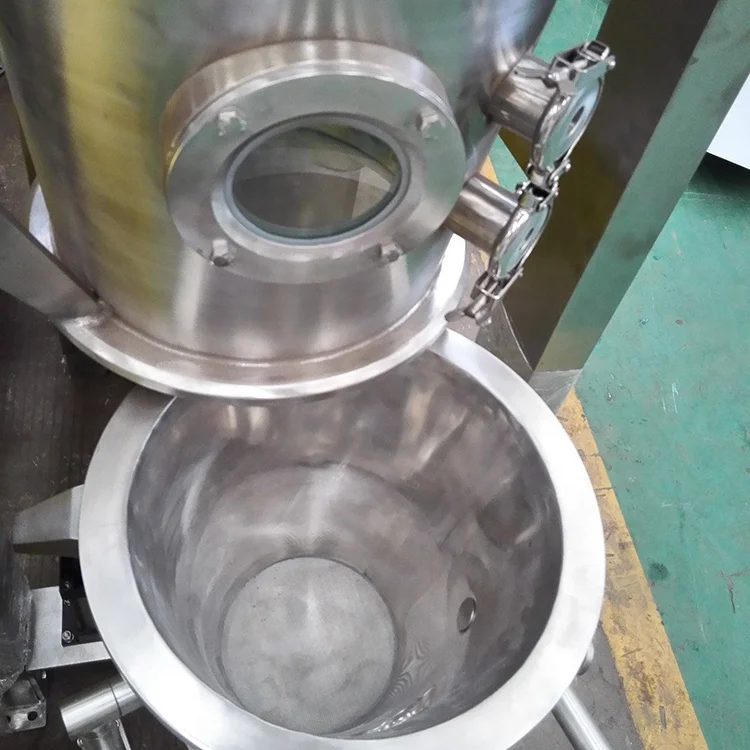

Container
Volume
L
22
220
420
670
1500
Diameter
mm
400
1000
1200
1400
1800
Capacity
MIn
Kg
4
30
80
100
250
Max
Kg
6
90
160
300
750
Fan
Capacity
m³/h
1200
3000
4500
6000
8000
Pressure
mmH2O
375
950
950
950
950
Power
Kw
4
11
18.5
22
45
Steam consumption
Kg/h
23
141
211
282
451
Electrical heater
Kw
18
45
63
96
123
Compressed air need
m3/min
0.9
Heating tempreture
℃
Environmental T.-120
Steam pressure
Mpa
0.3-0.6
Working time
Min
45-90
Weight
Kg
700
1100
1300
1500
2000
Overall dimension
M
1.2*0.7*2.1
1.85*1.4*3
2.2*1.65*3.3
2.34*1.7*3.8
3*2.25*4.4
All data are used for reference only. According to different conditions of material and customer’s requirements, people can customize the machine.
Pre-service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
Sale service : 1. Ensure product with high quality and pre-commissioning before delivery; provide each manufacturing step photo for customer checking on time.
2.Testing the machine and making video for customer’s checking. 3. Delivery on time; 4.Provide full sets of documents as customer’s requirements.
After-sale service : 1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
Company Information
Product
Certifications
FAQ
Q: Can I visit your factory? A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai. Q: What’s the quality of your products? A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely. Q: What to do if the machine has a problem? A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment? A: Our warranty period is one year generally. Q: What is your payment term? A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement. Q: Does your price include freight? A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
