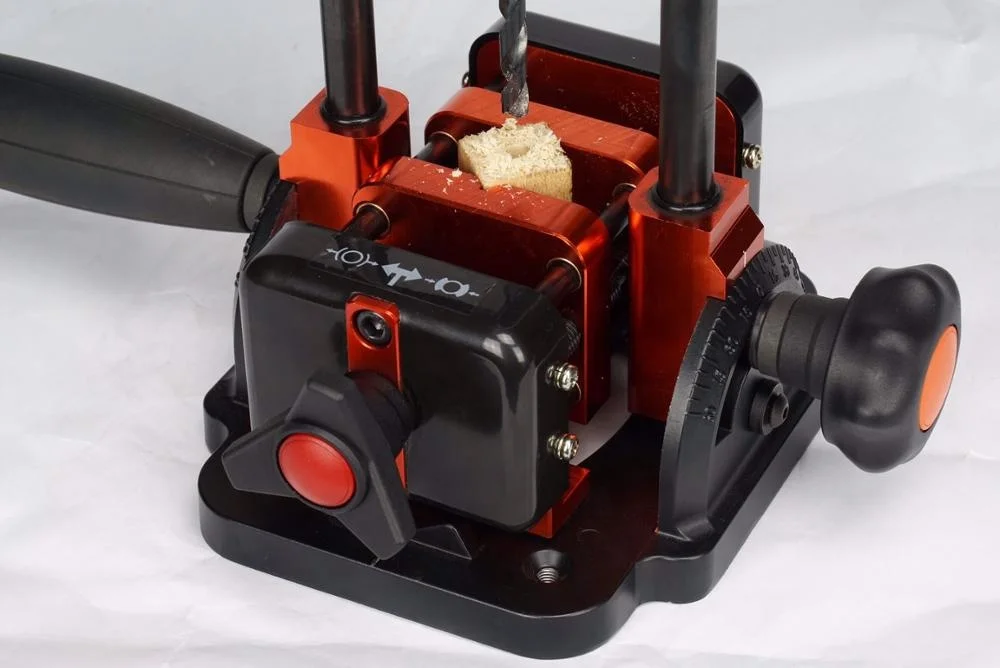

grilling orifice offset oblique drill guide

* Hugely versatile, portable drill guide
* Accurate engineering guarantees accurate results
* Capable of drilling any angle between +/- 60°
* Set at 90° for perfectly perpendicular holes
* Takes bits or holesaws up to 60mm diameter
* Suitable for most power drills, mains or cordless

It is practically impossible to drill at a specific angle freehand.This highly engineered drill guide guarantees precise results.

The drill guide is in effect a hugely versatile and portable pillar drill.The portability of this guide ensures

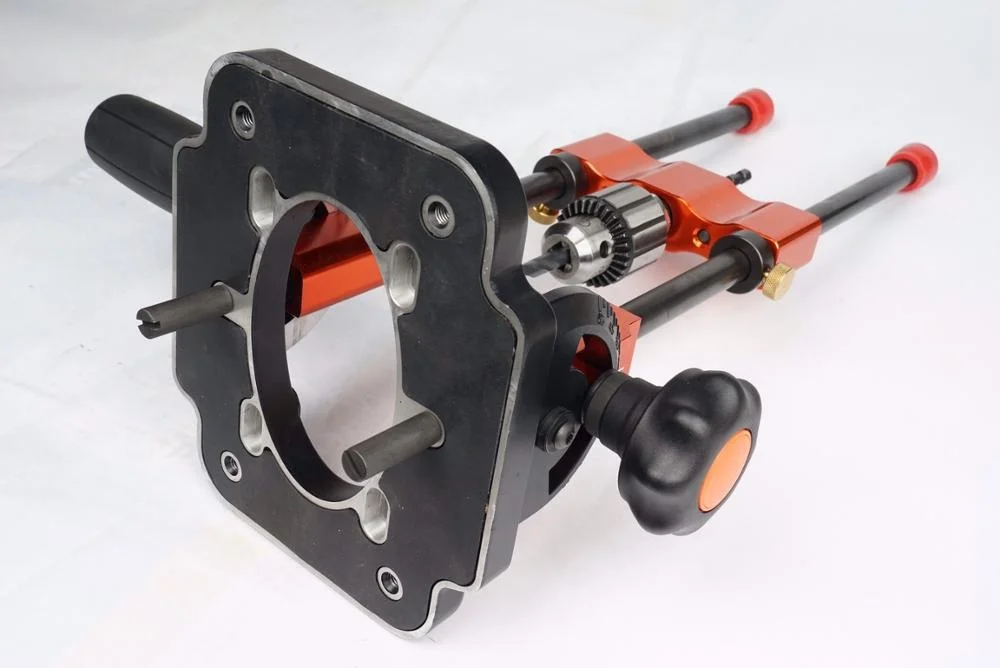

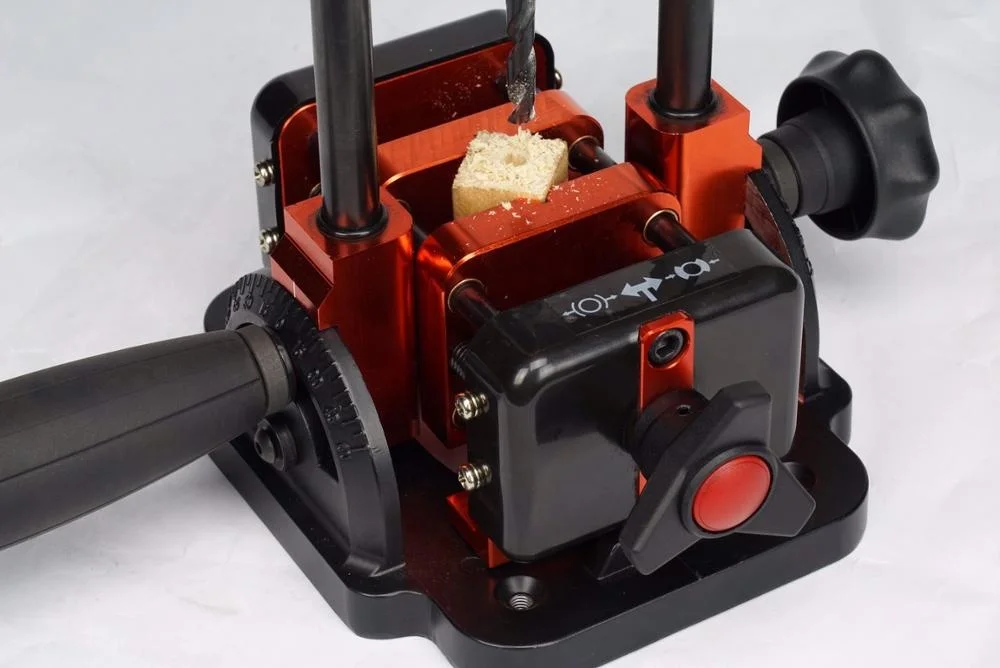

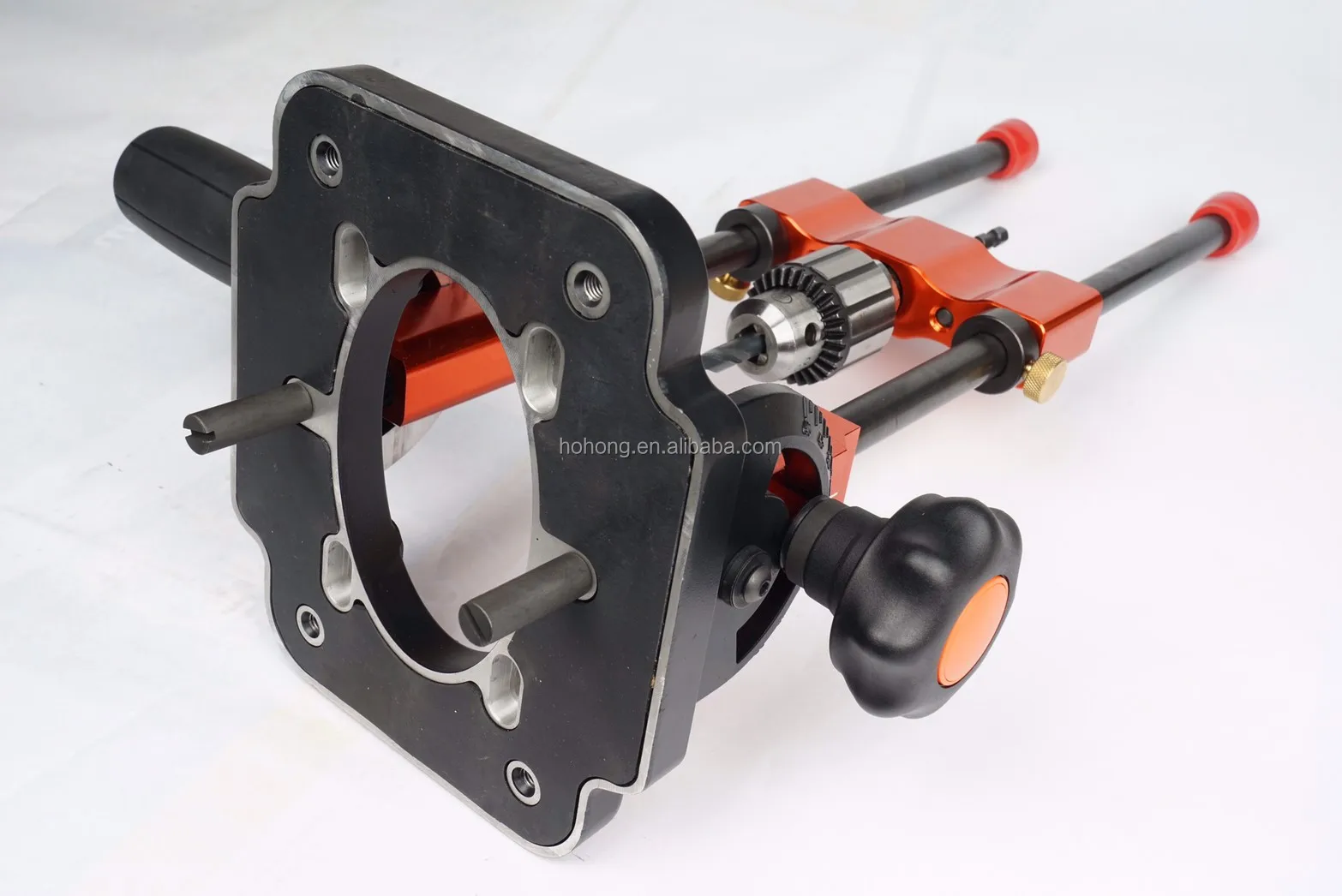

that you can drill virtually anywhere. Set at 90° it produces perfectly perpendicular holes. Quadrants on each side of the base allow angle setting at ±60°. A threaded knob on one side and the auxiliary handle on the other ensure any chosen angle setting is secure. The underside of the base has a rubberised high friction pad to help steady the guide. The large aperture in the base gives a clear view of the drilling mark and allows the use of bits up to 60mm diameter. Integral vee-guides mean you can drill round the stock or pipes. The base has holes for fixing the guide in place onto a jig or sub-base.

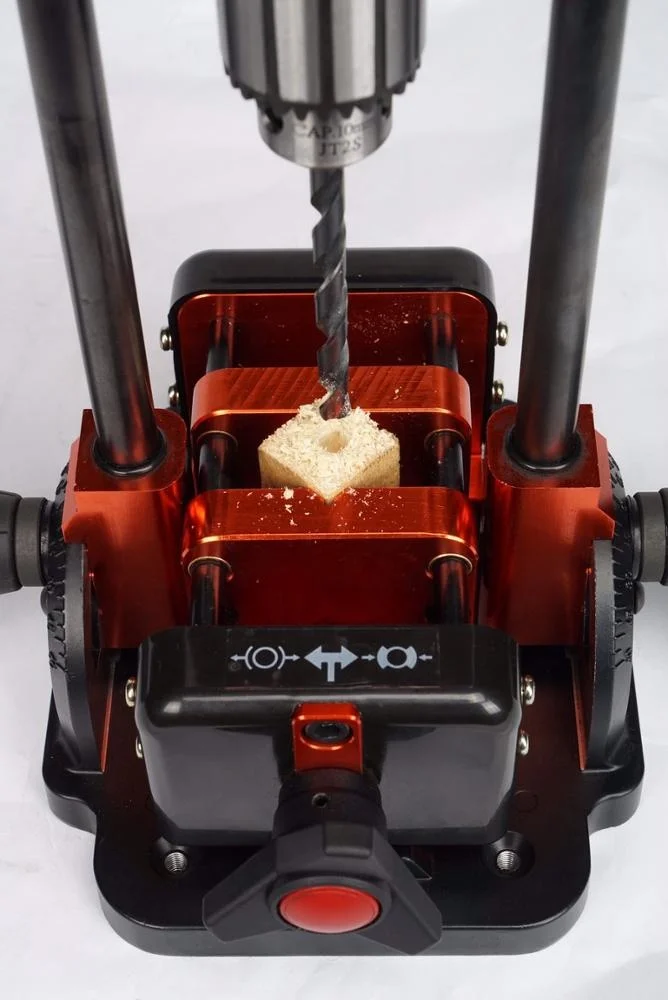

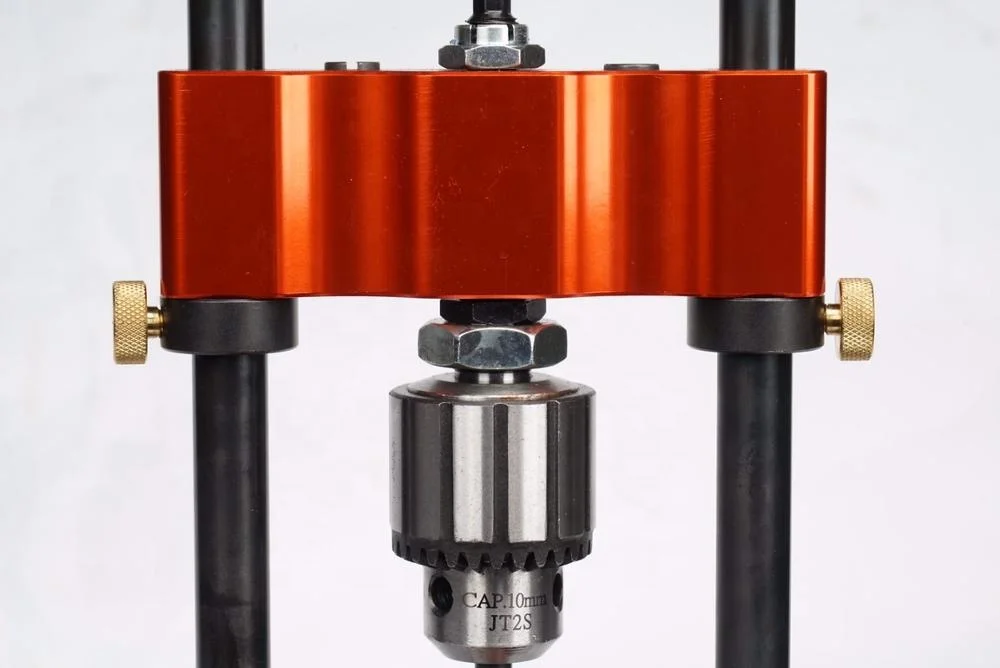

The chuck guide assembly runs between twin steel guide bars. Oilite bronze bushes ensure a smooth action and zero play between the assembly and guide bars. There is enough space between the bars to accommodate most drills. A precision-machined main shaft runs inside another Oilite bush for accuracy. The drive shaft is a 1/4" hex allowing you to use either mains or cordless drills. The drill shaft ends in a 10mm capacity chuck. There is a depth stop for accurate boring and countersinking. Two pins, stored in the chuck guide assembly, when screwed into the base allow self-centring drilling, for example when fitting a lock mortice into a door.

The Hohong drill guide is solid,very accurate and offers a great deal of flexibility.Bottom of drill chuck to underside of base is 230mm. Maximum Travel 210mm.
