Double head edge scraper triangular scraper deburring triangular cutter T80 BT8001
- Category: >>>
- Supplier: Kunshan Haonaiqi Automation Technology Co. Ltd.
Share on (62017462623):
Product Overview
Description
Product Description

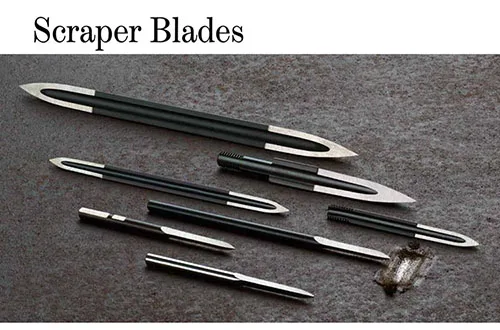

Scrapers
Scraper is mainly used in metal processing industry to remove irregular surface defects and high points on previously processed parts. The scraper removes very little material but produces a smooth surface. It is mainly used for polishing inner surface and concave surface. Most scrapers have a triangular cross-section and can obtain three cutting edges, but there are also special scrapers that can be used to remove the inner ridge caused by the hole penetration into the pipe or bushing.

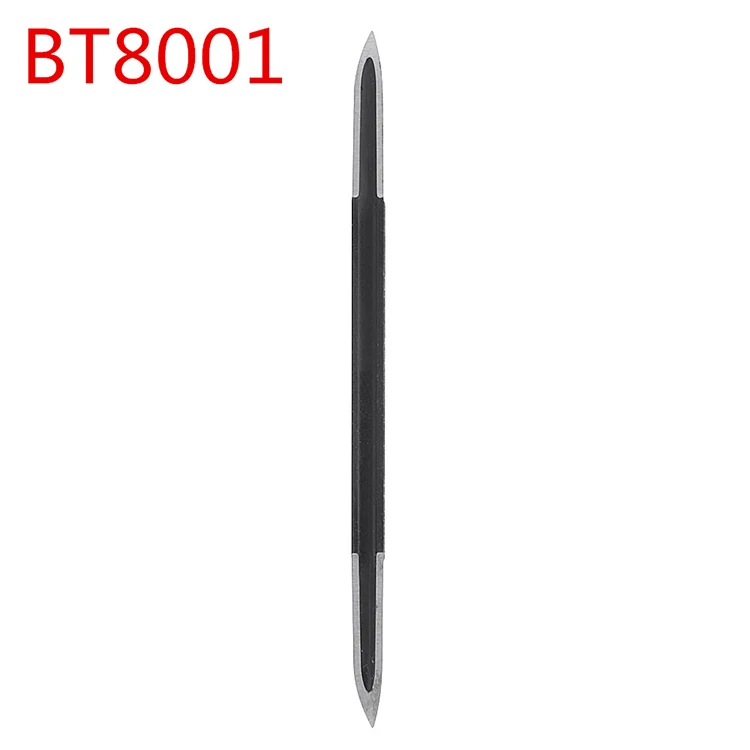

T80 - BT8001
Materia | H.S.S |
Angle | 60 Deg |
Hardness | 62-64 Rc |
Blade Size | 80mm*4.2mm(Total length * Diameter) |
Packing | 1 pcs/box |
Suitable for | PVC, hard plastic and iron，Stainless steel |
Machining position | he circular hole edge, straight edge, curved edges. Not suitable for outer edges, flat. |
With the handle | SC1300,SC1000 |
T80 - BT8001
For effective working on various materials, Noga scrapers are made out of either alloy tool steel, high speed steel or solid
tungsten carbide. The scrapers are made in many diameters, as to facilitate working in holes of various diameters, and different
length for shallow or deep holes. Every tool consists of a scraper blade, gripped either directly in a convenient handle, or in a
blade-holder which fits into an appropriate handle
Detailed Images

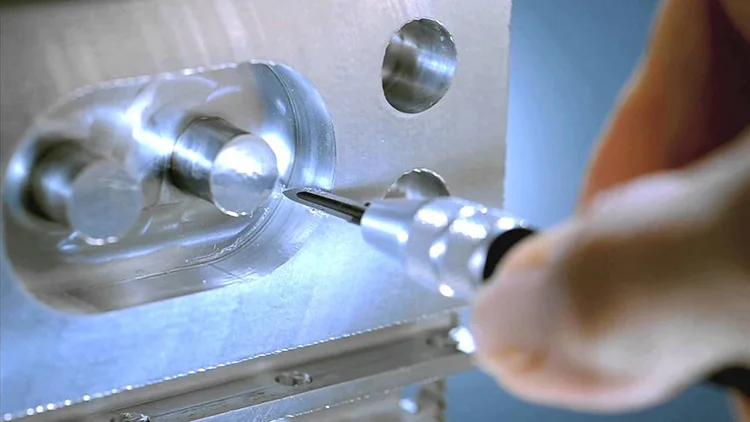

Description of application effect
Material specification: Bushing Scraping,Straight Edge,Holes
Matching handle:
SC1300
SC1000
Size Information
Size Chart of This Design
BLADES | order no. | works best on： | ||||||
S10 | BS1010 | steel, aluminium and plastic | BS2012 | BS3010 | BS3510 | |||
S10TiN | BS1012 | abrasive material | BC1041 | BC1051 | BC6301 | |||
S100 Cobalt | BS1018 | plastic and hard materials | ||||||
S20TiN | BS2012 | stainless steel | ||||||
S30 | BS3010 | both int. and ext. burrs | ||||||
S35 | BS3510 | straight edges on most materials | ||||||
S20 | BS2010 | brass and cast iron | ||||||
S60 | BS6001 | cross holes in difficult to reach places | ||||||
S101 | BK1010 | fine edges on all materials | ||||||
S202 | BK2010 | brass and cast iron fine edges | ||||||
S150 | BK3010 | holes as small as 1.5 mm dia | ||||||
S150 TiN | BK3112 | holes as small as 1.5 mm dia. for long life | ||||||
