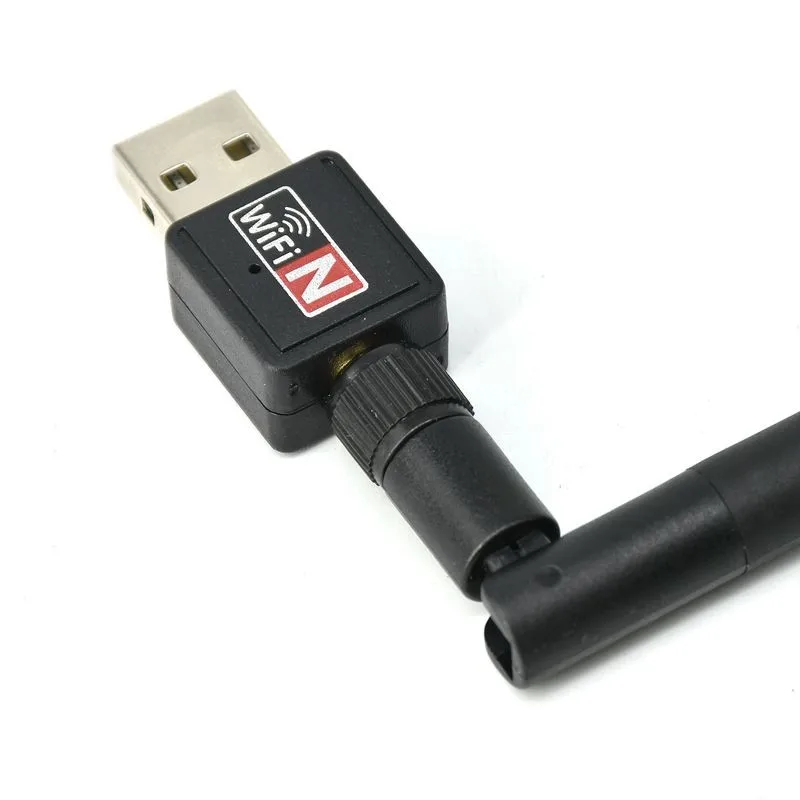

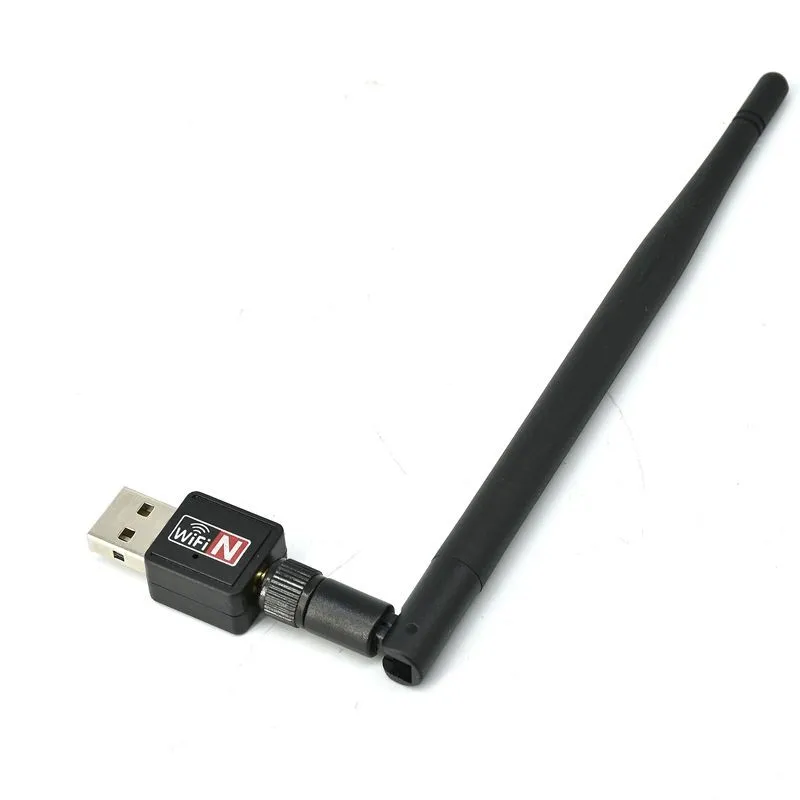

The product is a high-speed USB2.0 WLAN adapter support 2.4G, with 150Mbps PHY rate for both transmit and receive.
Complies with IEEE 802.11n , IEEE 802.11g , IEEE 802.11 b standards. Supports 64/128 -bit WEP , WPA/WPA-PSK/WPA2/WPA2-PSK encryption methods and 802.1x security authentication standards. Additionally, this product supports QSS function , which can help you create a wireless connection with effortless security set up to prevent outside intrusion and protect your personal information from being exposed. Featuring high performance transmission rates , simple installation and adaptability , as well as strong security, this USB WLAN adapter is a perfect solution for small office and home need.
Features
· 150Mbps wireless transmission rate · Provides two methods of operation: Infrastructure and Ad-Hoc · Support WPS a key encryption · Security support for 64/128 WEP,WPA/WPA2/WPA-PSK/WPA2-PSK · Supports Windows 2000/XP/Vista/Win7/CE/Linux/MAC · Seamlessly compatible with 802.11b/g/n devices
· Size:73mm*23mm*12mm
Specification
Standards
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Signal Rates With Automatic Fallback
11g: Up to 54Mbps(dynamic) 11n: Up to 150Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Frequency Range
2.4-2.4835GHz
Wireless Transmit Power
17dBm(MAX EIRP)
Modulation Type
OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity (without antenna)
135M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -76dBm@10% PER
11M: -89dBm@8% PER
6M: -90dBm@10% PER
1M: -92dBm@8% PER
Work Mode
Ad-Hoc
Infrastructure
Wireless Security
64/128 bit WEP
WPA/WPA2,WPA-PSK/WPA2-PSK(TKIP/AES)
Support Operating System
Win XP/ Vista/Win 7/Linux/MAC.OS
Interface
USB2.0 Hi-Speed connector
Certifications
CE, FCC
Operating Temperature
0 ℃~40 ℃(32℉ ~104℉ )
Storage Temperature
-40 ℃~70 ℃(-40℉~158℉ )
Relative Humidity
10% ~ 90%,non-condensation
Storage Humidity
5%~95%,non-condensation
