Round plastic nylon roller bearing wheel rowing seat wheel 5x23x7mm
- Category: >>>
- Supplier: Changsha Terry Machinery Co. Ltd.
Share on (62017483778):
Product Overview
Description

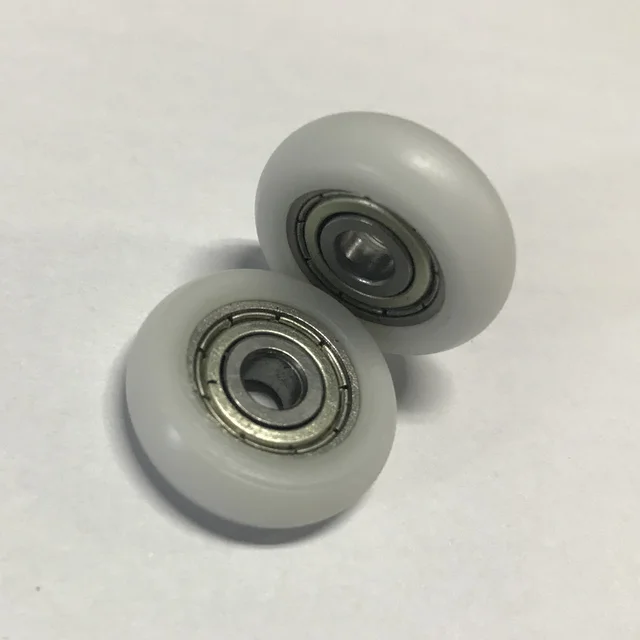

Round plastic nylon roller bearing wheel rowing seat wheel 5x23x7mm
Product Description
Rubber covered bearing
Plastic pulley ball bearing for bathroom ,doors and windows.
SIZE
ID:5MM
DO:24MM
WIDTH:7MM
We supply the pulley at best price,good quality.If any needs,pls contact us.
Drawing and Size
| BearingNo | Bored(mm) | O.dD(mm) | WidthB(mm) | Load Rating | Weight(kg) | |
| 695 | 5 | 13 | 4 | 0.83 | 0.39 | 0.0022 |
| 696 | 6 | 15 | 5 | 1.13 | 0.56 | 0.0039 |
| 697 | 7 | 17 | 5 | 1.55 | 0.78 | 0.0053 |
| 698 | 8 | 19 | 6 | 2.03 | 1.05 | 0.0072 |
| 699 | 9 | 20 | 6 | 1.9 | 0.99 | 0.0075 |
| 6900 | 10 | 22 | 6 | 2.07 | 1.12 | 0.01 |
| 6901 | 12 | 24 | 6 | 2.2 | 1.24 | 0.011 |
| 6902 | 15 | 28 | 7 | 2.64 | 1.51 | 0.017 |
| 6903 | 17 | 30 | 7 | 2.79 | 1.66 | 0.018 |
| 6904 | 20 | 37 | 9 | 5.05 | 3.08 | 0.036 |
| 6905 | 25 | 42 | 9 | 5.63 | 3.68 | 0.042 |
| 6906 | 30 | 47 | 9 | 5.82 | 3.97 | 0.048 |
| 6907 | 35 | 55 | 10 | 9.5 | 6.8 | 0.074 |
| 6908 | 40 | 62 | 12 | 13.7 | 9.9 | 0.11 |
| 6909 | 45 | 68 | 12 | 14.1 | 10.9 | 0.132 |
| 6910 | 50 | 72 | 12 | 14.5 | 11.7 | 0.133 |
picture showing
