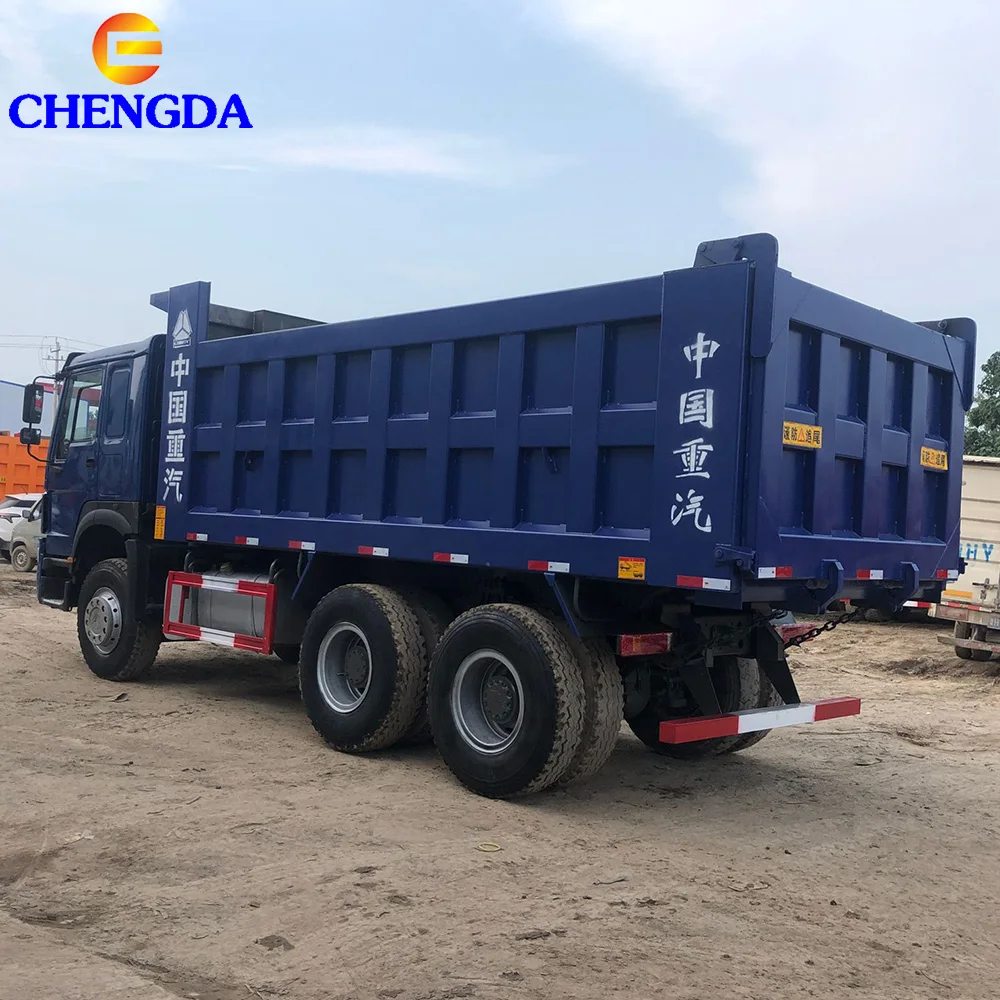

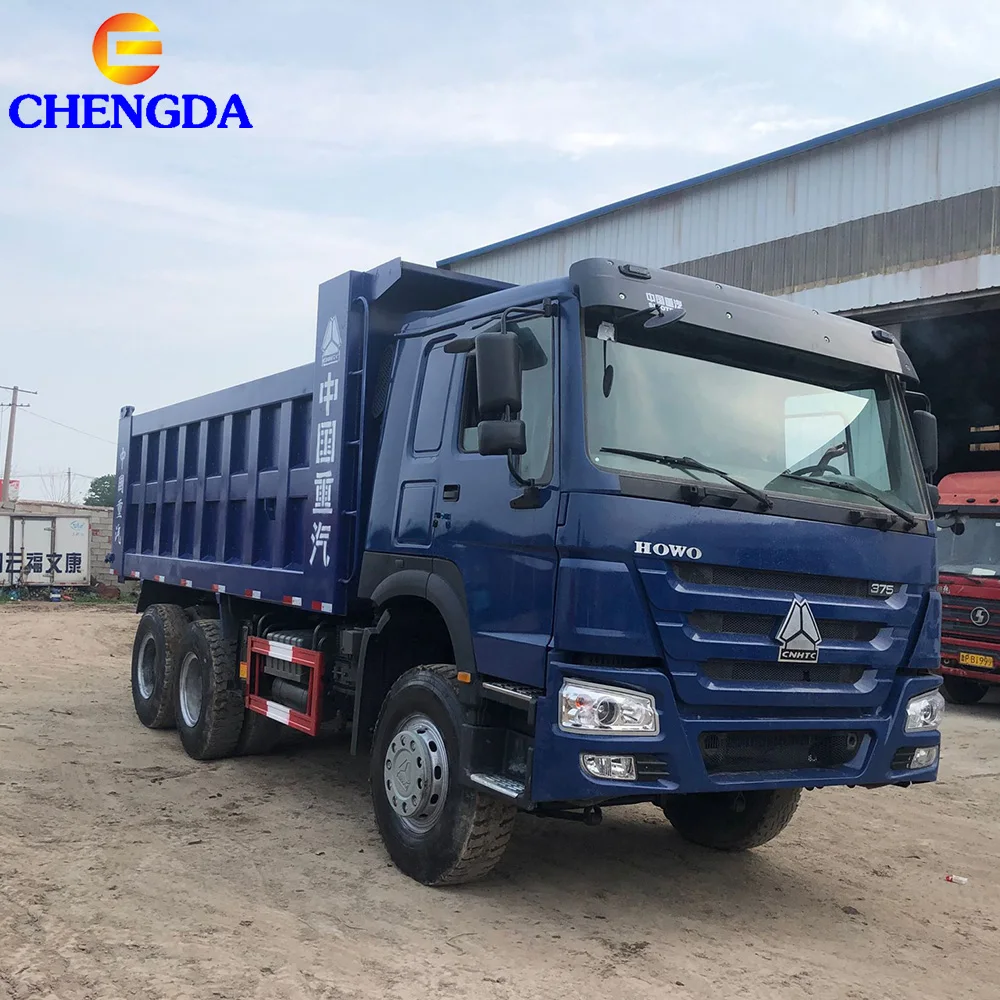

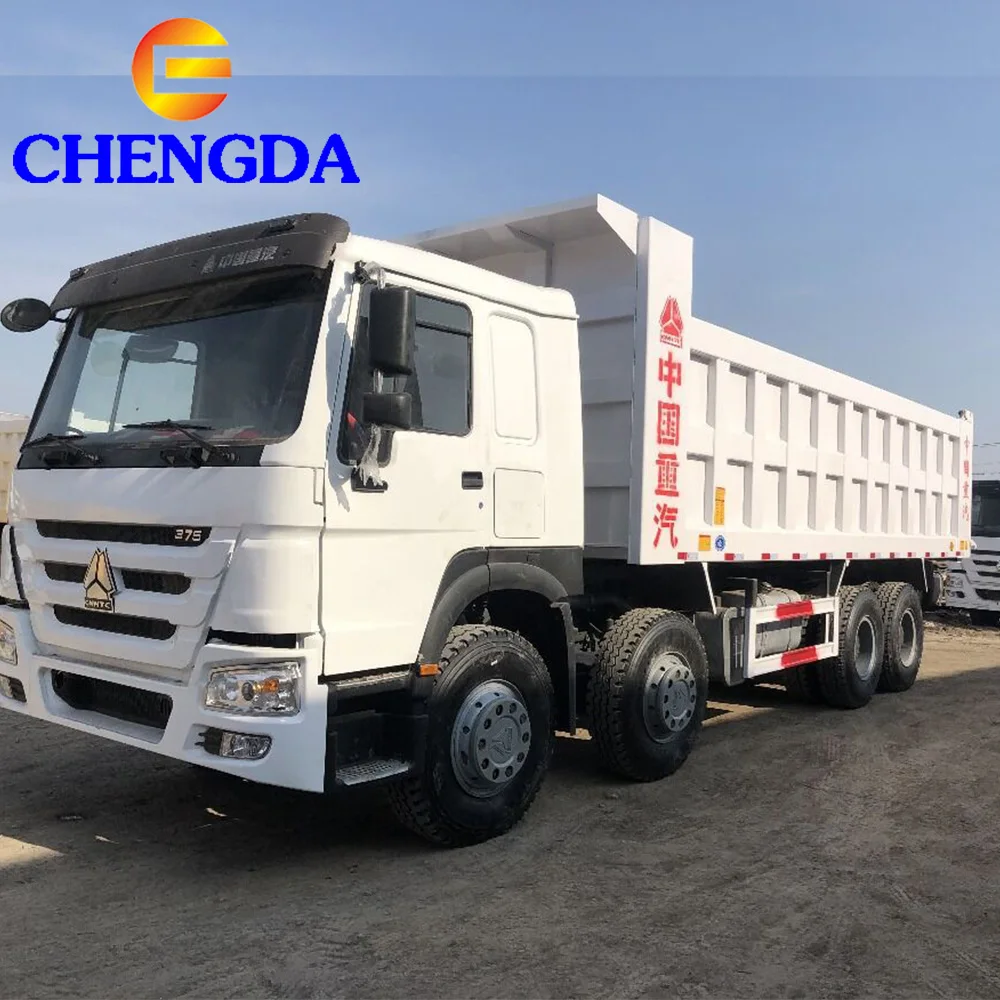

the howo 6*4 336 371 used dump dumper tipper truck for sale
the howo 6*4 336 371 used dump dumper tipper truck for sale
Truck Model
ZZ3257N3847A
Truck Brand
SINOTRUK –HOWO
Dimension(Lx W xH)(mm)
8614x2496x3450
Cargo body size (L*W*H, mm) (mm)
5600x2300x1500
Cargo thickness(mm)
Bottom:8mm, Side:6mm
Lift type of Carriage
middle lifting
Approaching angle/Departure angle(°)
19/26
Overhang(front/rear) (mm)
1500/1739
Wheel base (mm)
3825+1350
Max speed(km/h)
75
Maximum gradeability (%)
40
Minimum ground clearance(mm)
314
Minimum turning circle (m)
20
Curb weight(kg)
12290
Loading Weight(kg)
30000
Fuel tanker capacity(L)
300
Fuel consumption(L/km)
23L/100 km
Clutch
Single-plate dry clutch Φ430mm
Engine (Steyr technology, made in China)
Model
WD615,water-cooled,four strokes,6 cylinders in line with water cooling , directly injection
Fuel type
Diesel
Horse Power, max
336HP 371hp
Emission
EURO2
Fuel tanker capacity(L)
400
Transmission
Model
HW19710, 10 forwards and 2 reverse
Brake system
Service brake
Dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Auxiliary brake
Engine exhaust brake
Steering system
Model
ZF8118 hydraulic steering with power assistance
Front axle
HF9
Rear axle
HC16
Tyre
12.00R20
Electrical system
Battery
2X12V/165Ah
Alternator
28V-1500kw
Starter
7.5Kw/24V

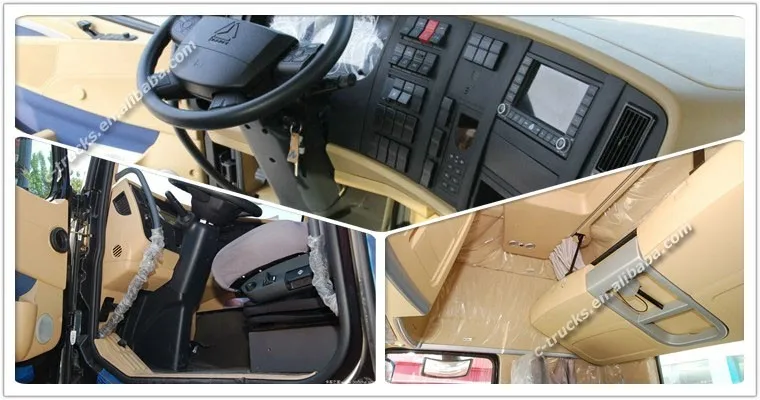

Cab
HW76cabin, one sleeper, with air conditioner

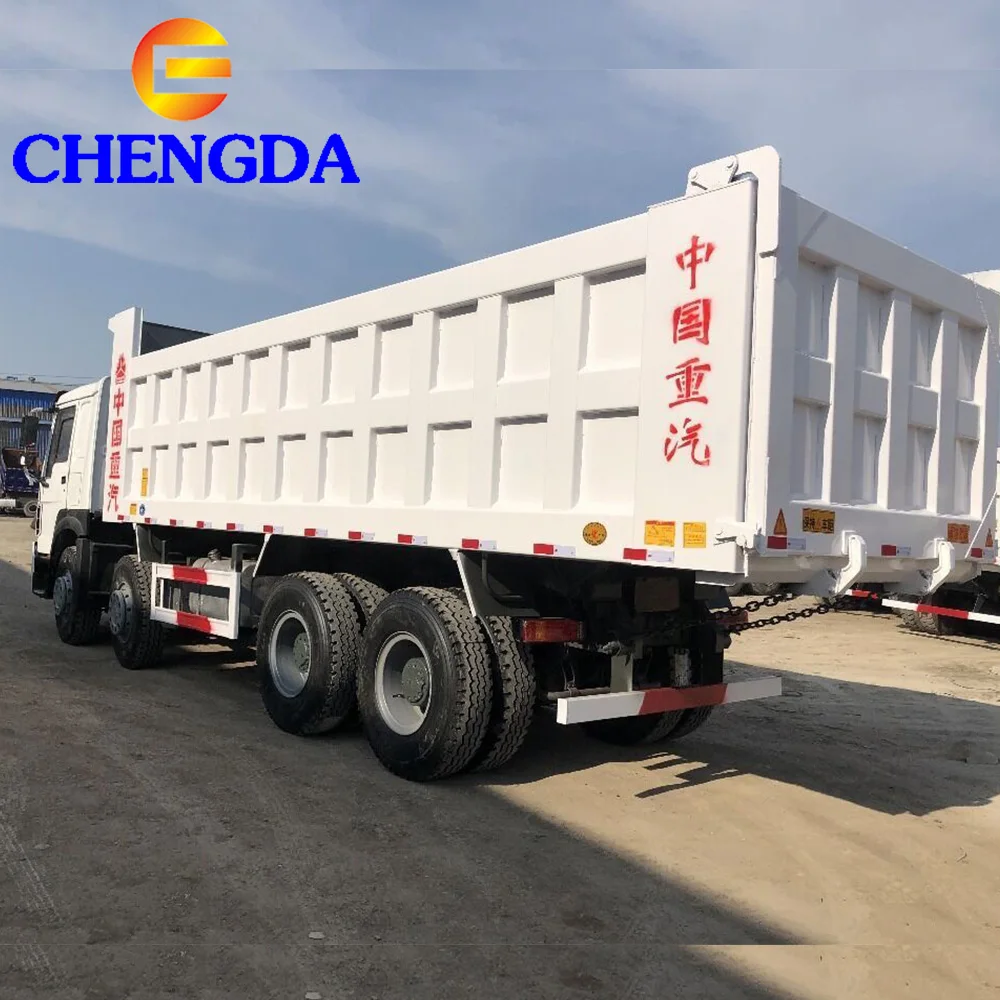

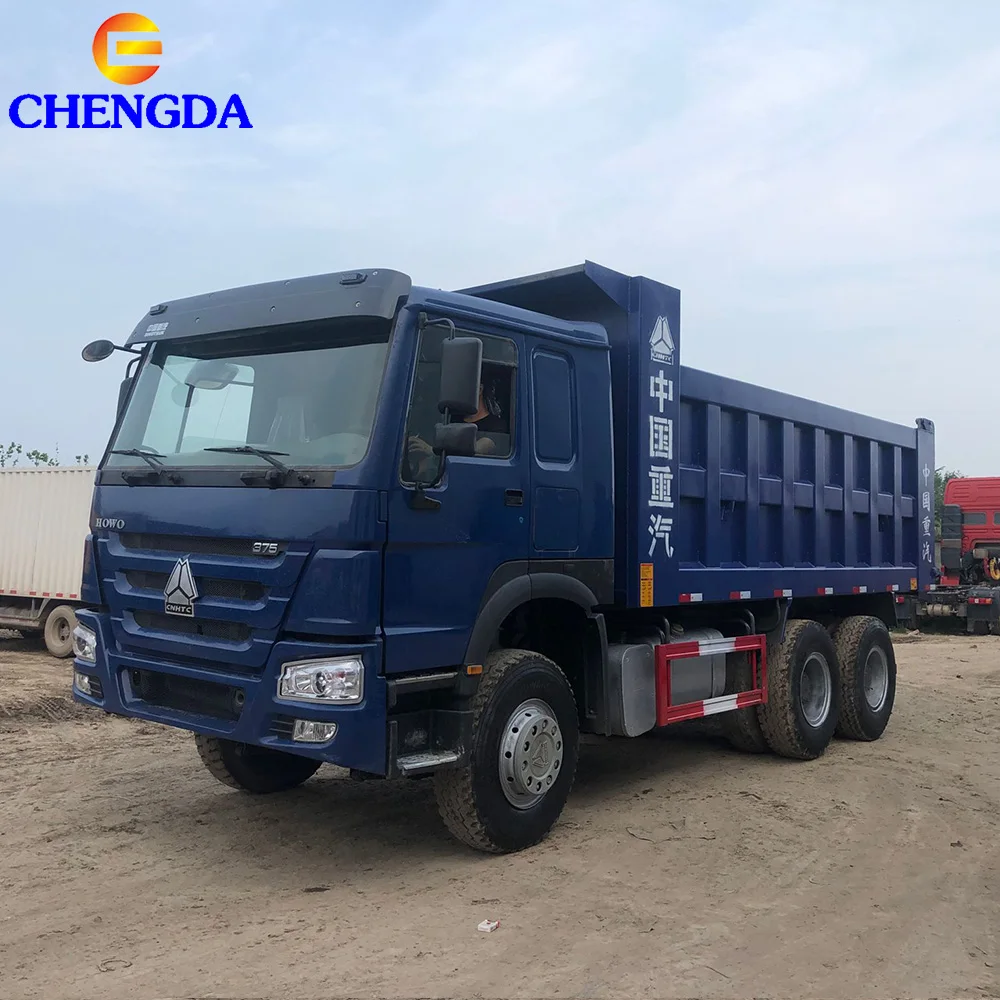

Detailed Images

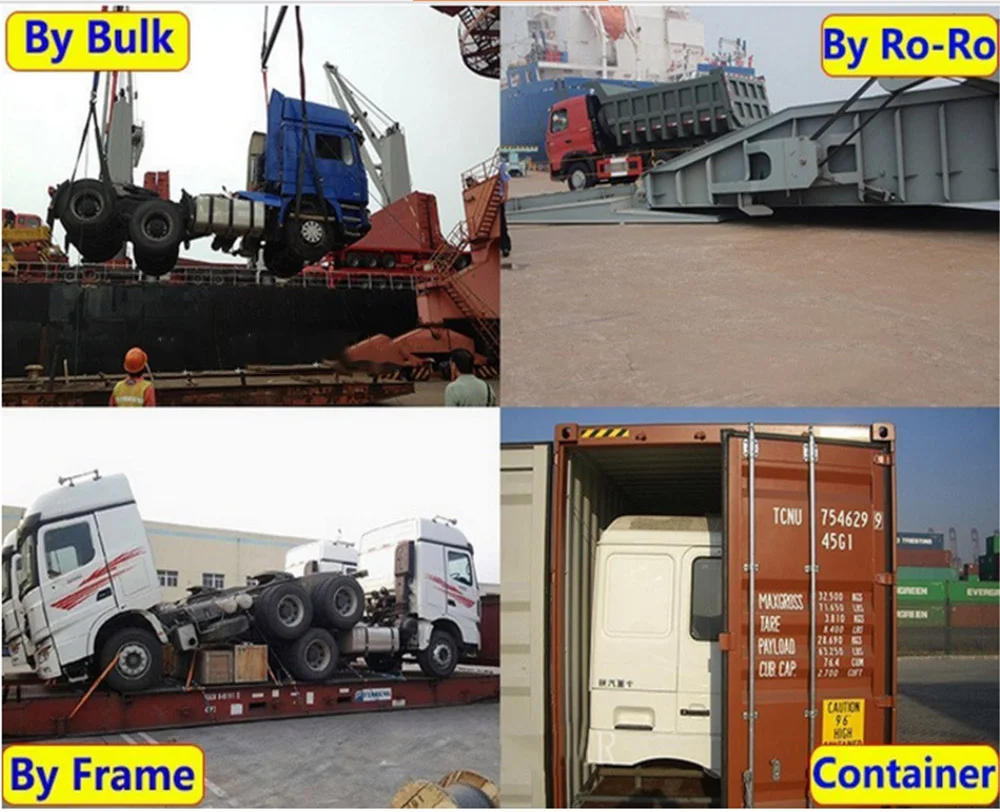

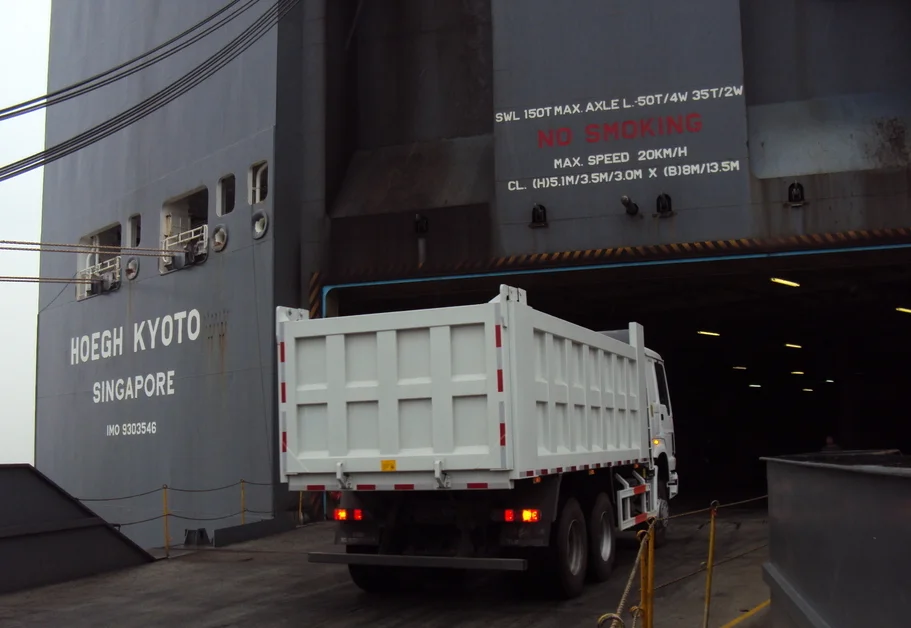

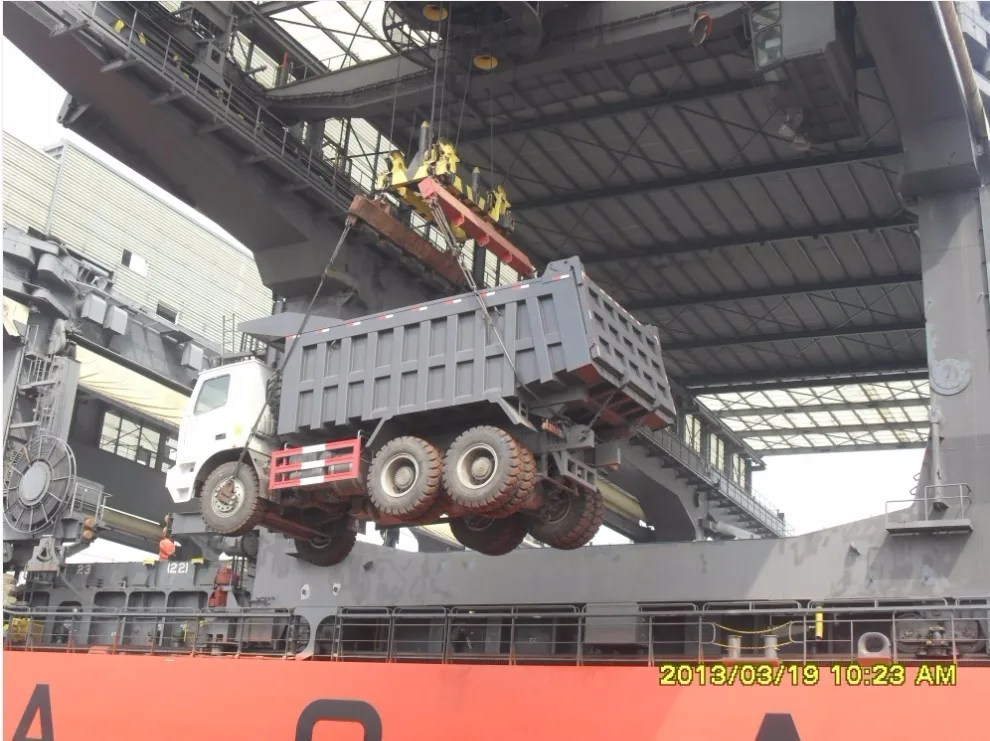

Packing & Delivery

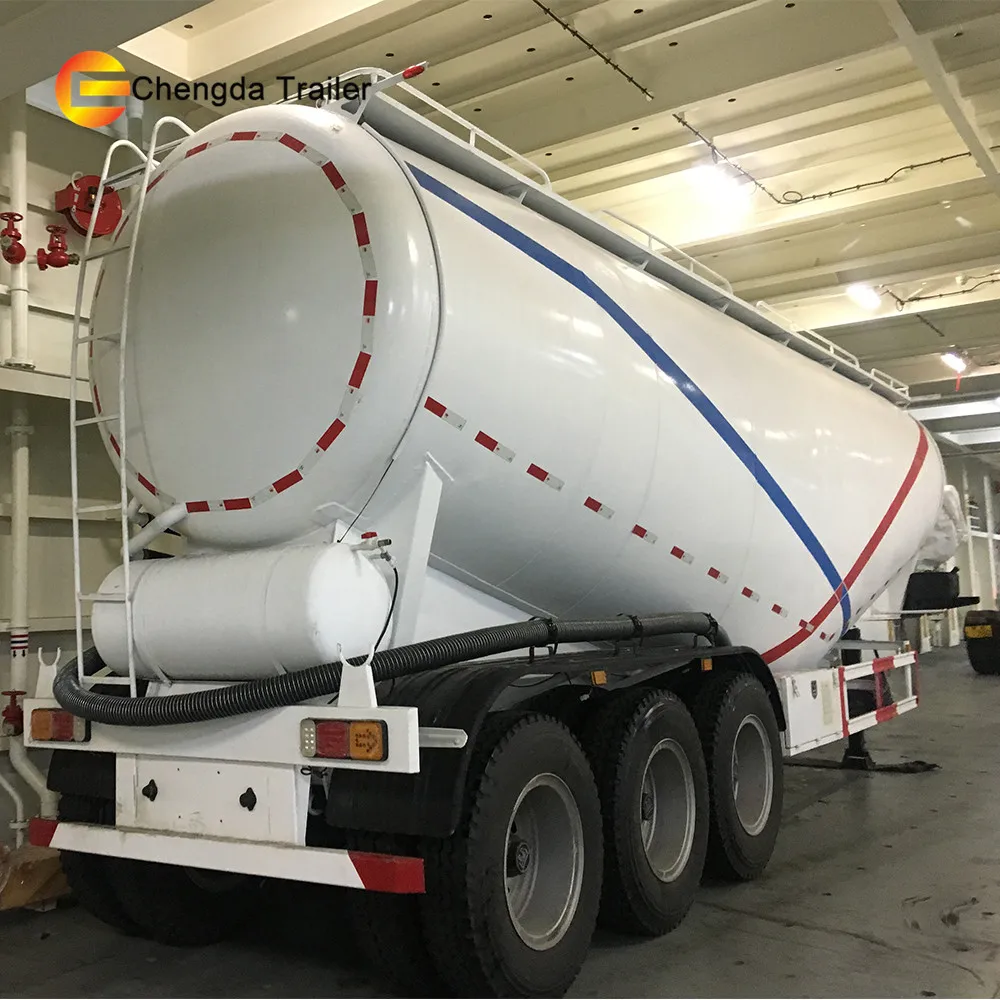

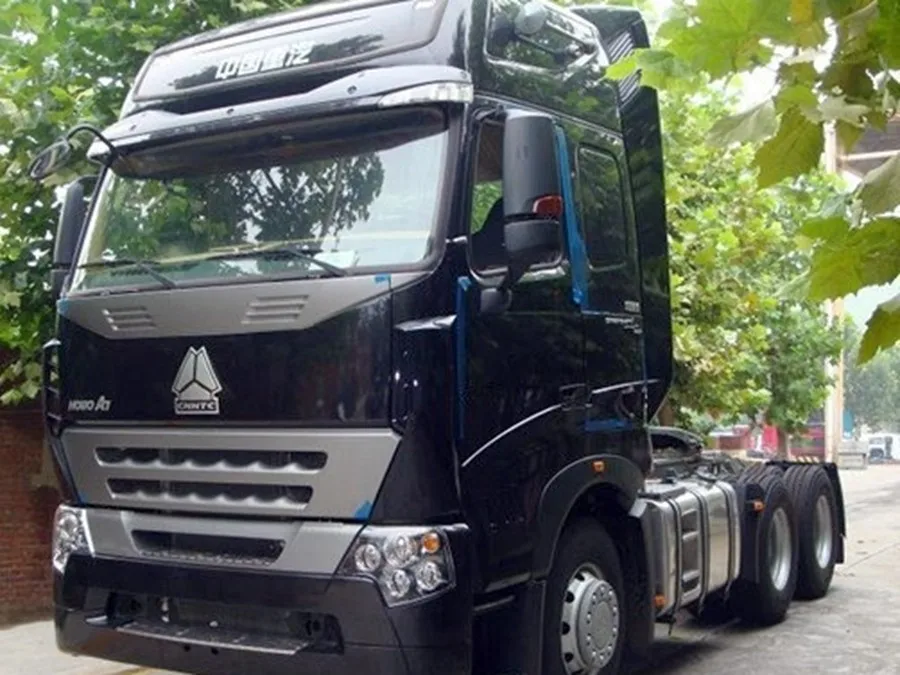

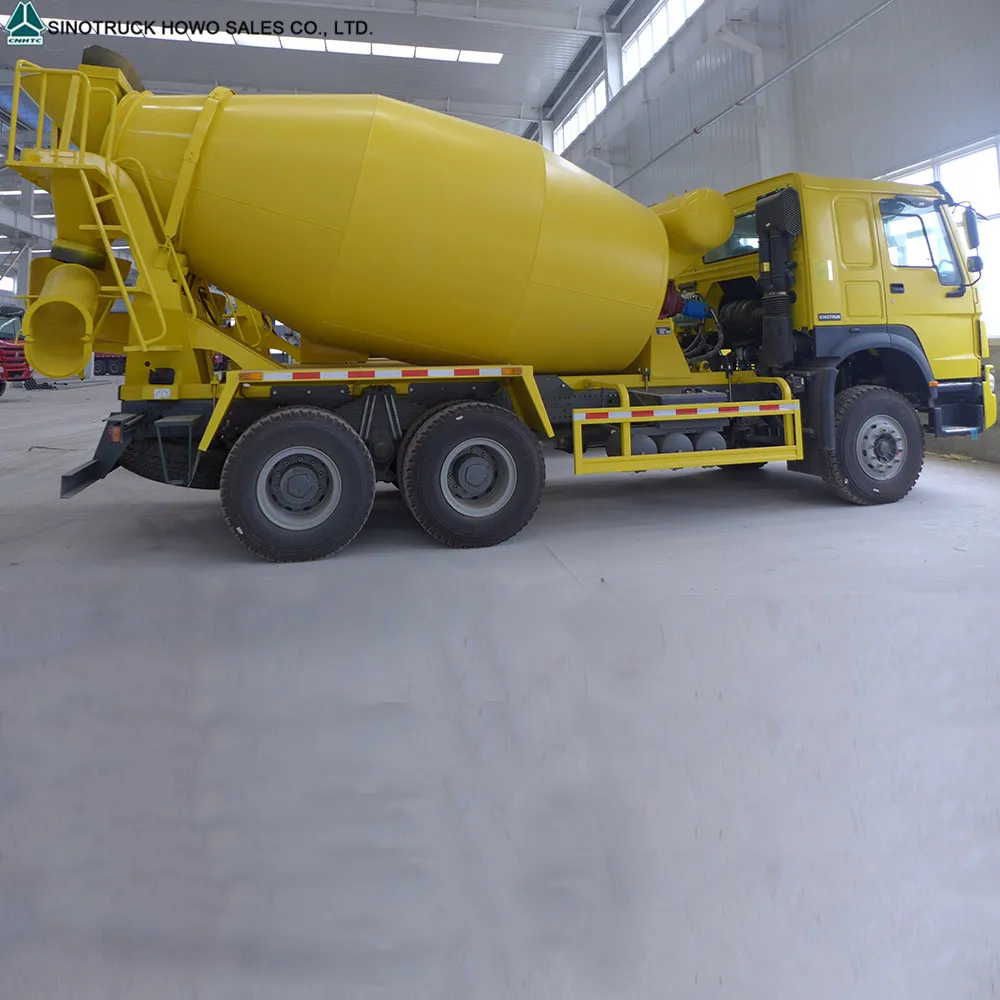

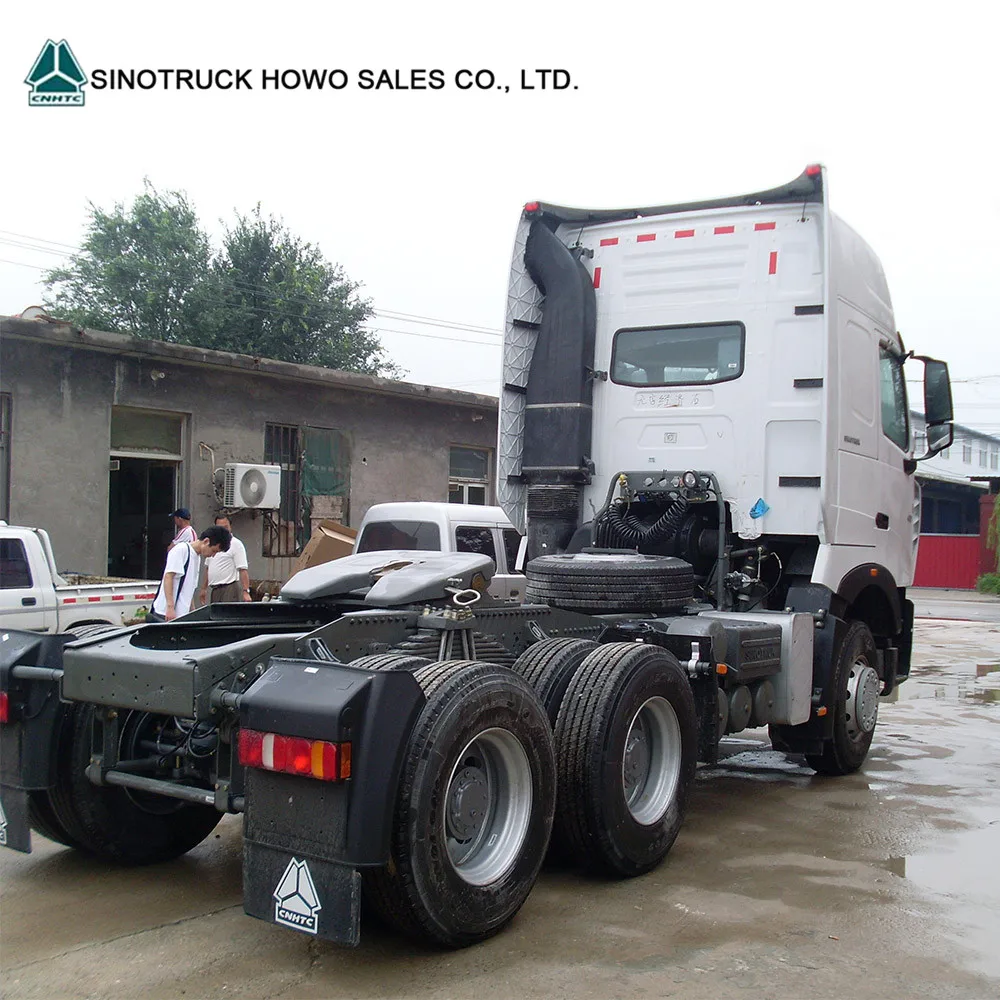

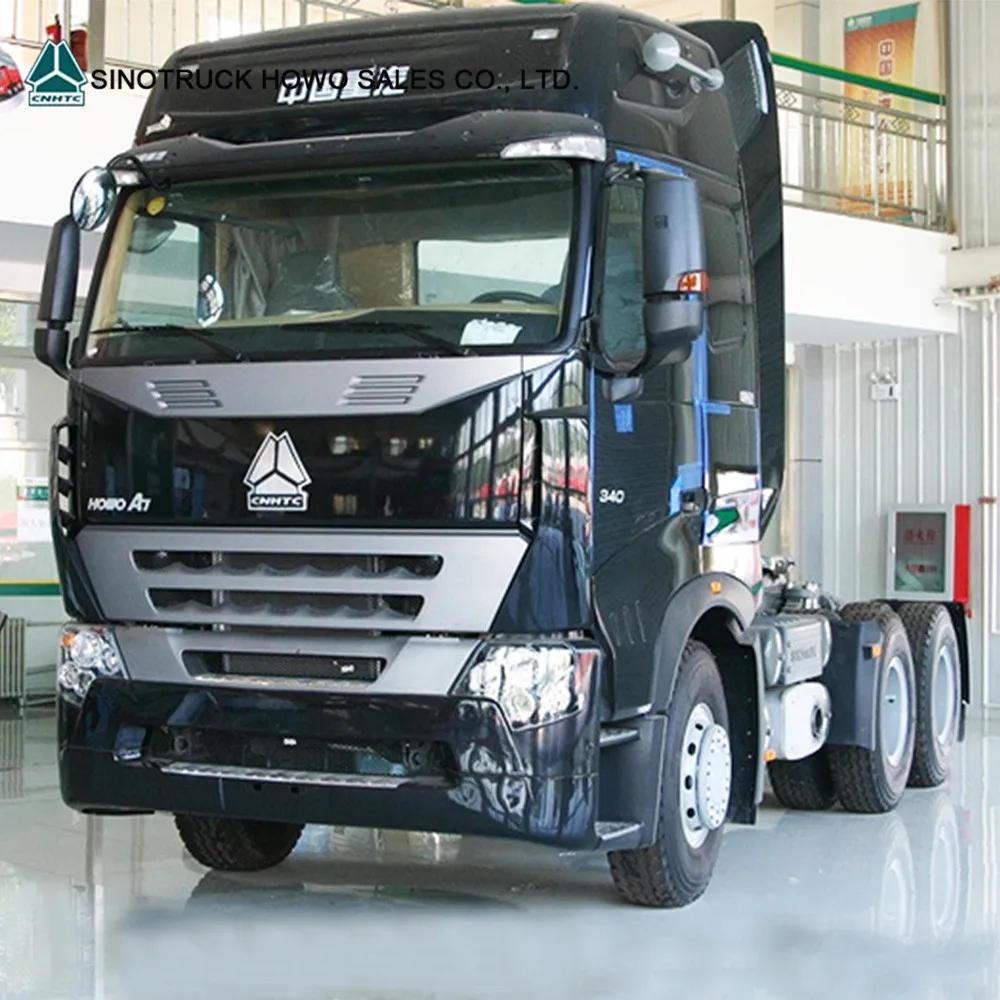

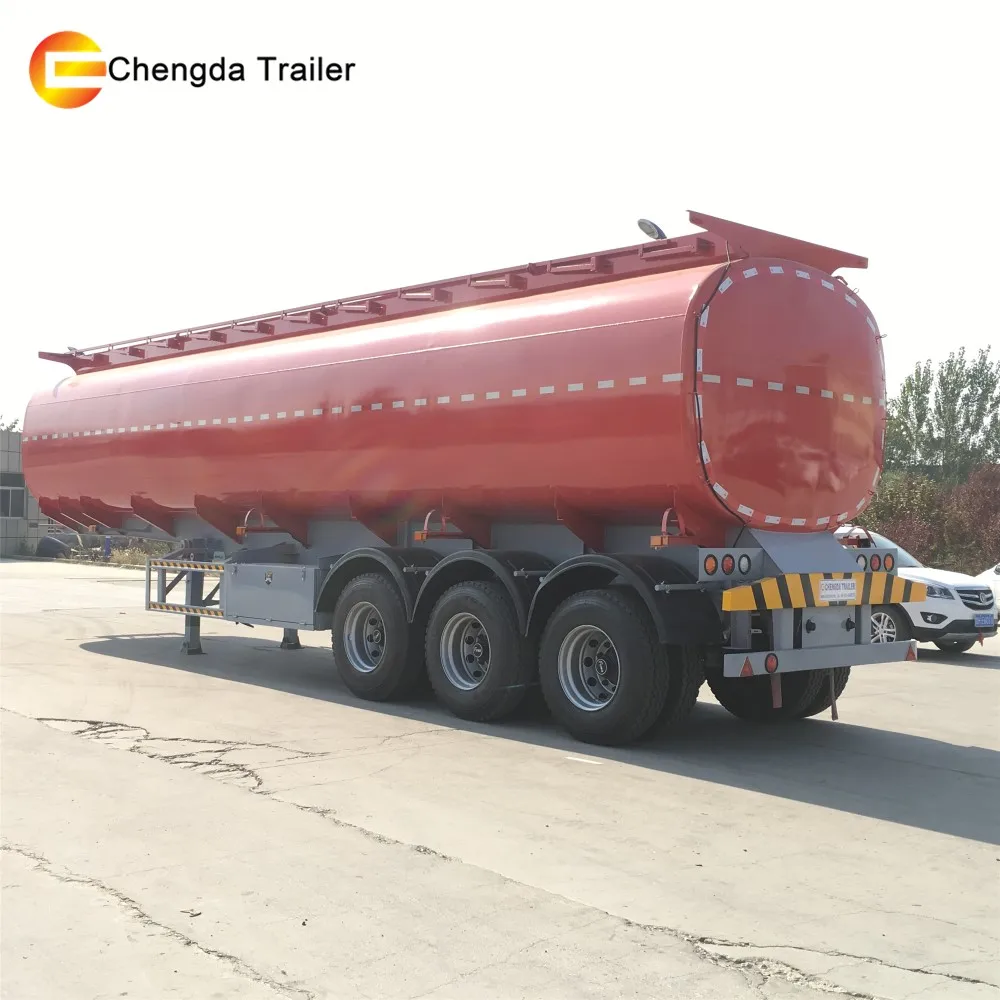

Other Products

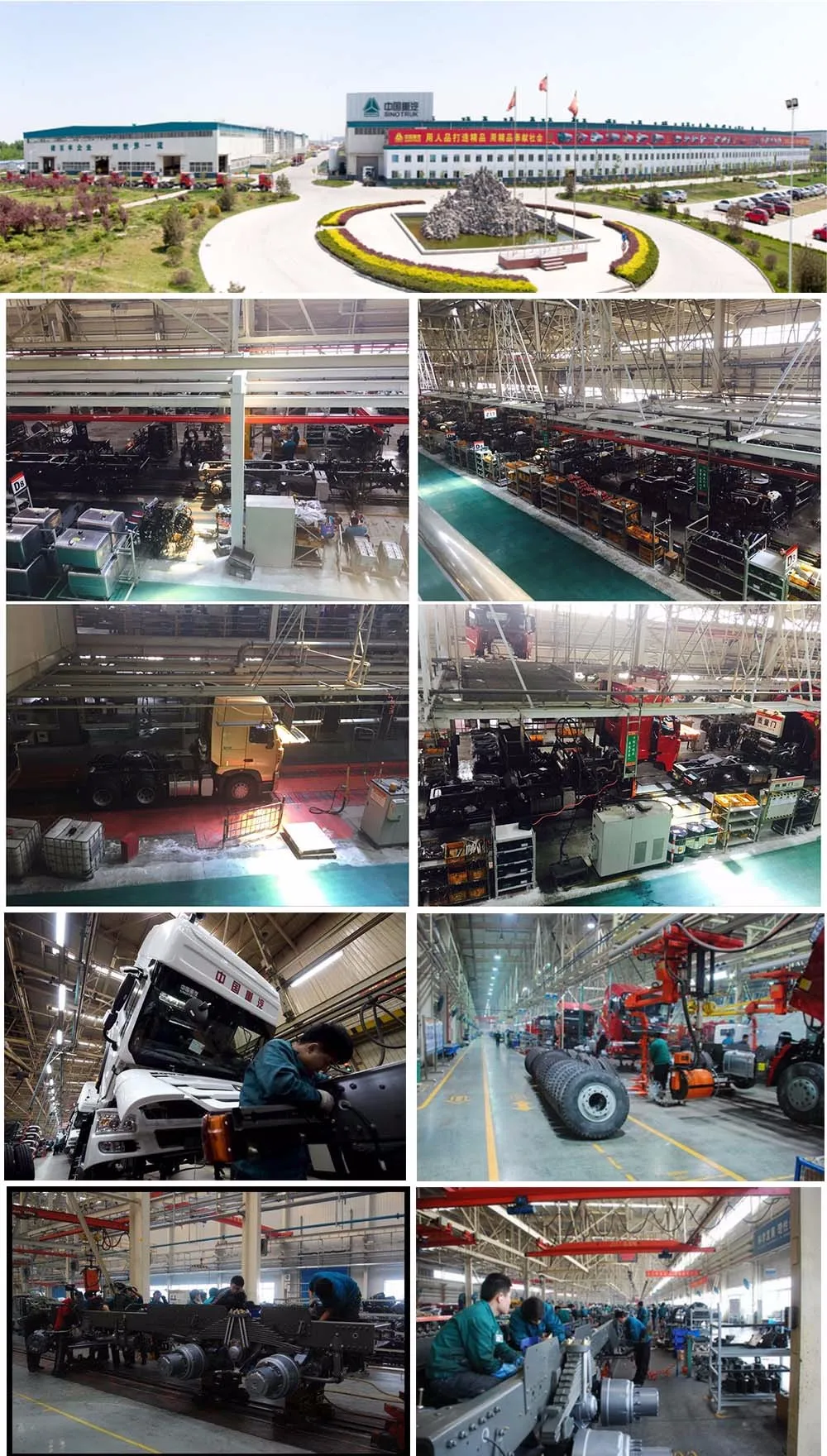

Our Company
CNHTC) is located in Jinan city, Shandong Province, P. R. China. It is the cradle and leading production base of the heavy-duty truck industry in China. It is famous for developing and manufacturing the first heavy duty truck -- "HUANGHE" brand vehicle model JN150 in China, for successful introducing the "STEYR" heavy duty truck production project, and for setting up a joint venture with VOLVO to manufacture the heavy duty trucks with up-to-date international level.
CNHTC performed technique innovation; it has invested 4 billion to more than 100 programs to make man craft and scale production linked quickly with advanced enterprise in the world. Jinan Industrial Aera, Changqing Industrial Aera and Zhangqiu Industrial Area have been built up in succession; the digital frame line, new assembly line, HOWO welding line, painting line ect. Which are representatives of international advanced level have been put into use.
