Hot Sale Hexagonal Wire Netting Machine Gabion Mesh Making Machine for Producing Chicken Cage Mesh Field Installation 1 YEAR

Product Overview

Description

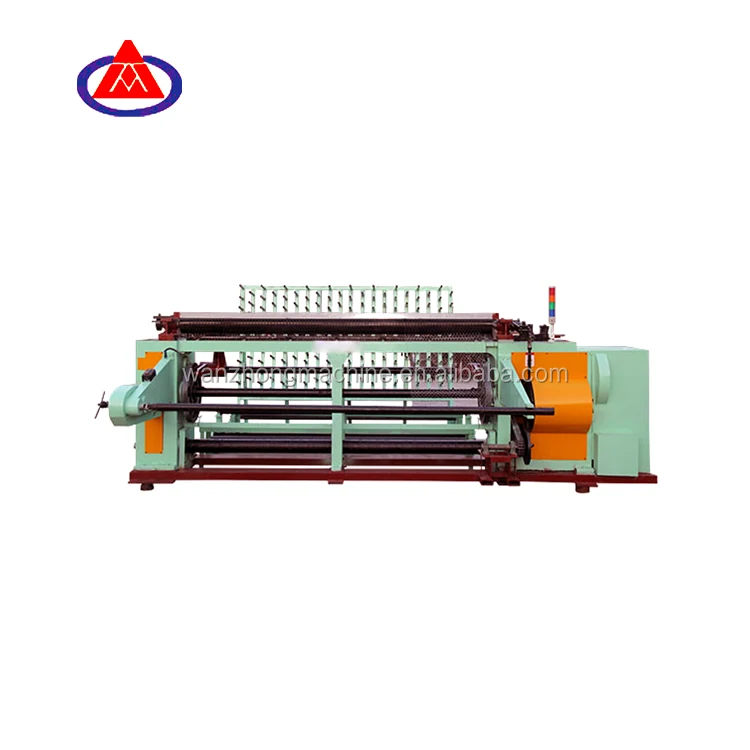

hot sale hexagonal wire netting machine for producing chicken cage mesh

Hexagonal wire netting weaving machines adopt straight-reversetwisted principle, do not need to make the iron wire into spring type, so work fficiency is increased so that can work continuously. The models such as: 1/2", 5/8", 3/4", 1", 11/4", 11/2", 2", 3", 80x100mm or at the customer's requirement.



Main Parameters:



Item	WZ-2600A	WZ-3000A	WZ-4000A
Mesh Size	1/2",3/4",1",2"	1/2",3/4",1",2"	3/4",1",2"
Max.Mesh Width	2600mm	3000mm	4000mm
Wire Diameter	0.35-0.7mm	0.35-0.7mm	0.35-0.7mm
Motor	10.2KW	11.5KW	13.5KW
Driving Way	Servo Motor	Servo Motor	Servo Motor
Speed	60-70m/h	60-70m/h	60-70m/h
Control System	PLC+Touch Screen	PLC+Touch Screen	PLC+Touch Screen
Dimension	5600*1700*1600m	6000*1700*1600m	6800*1700*1600m



Function features:

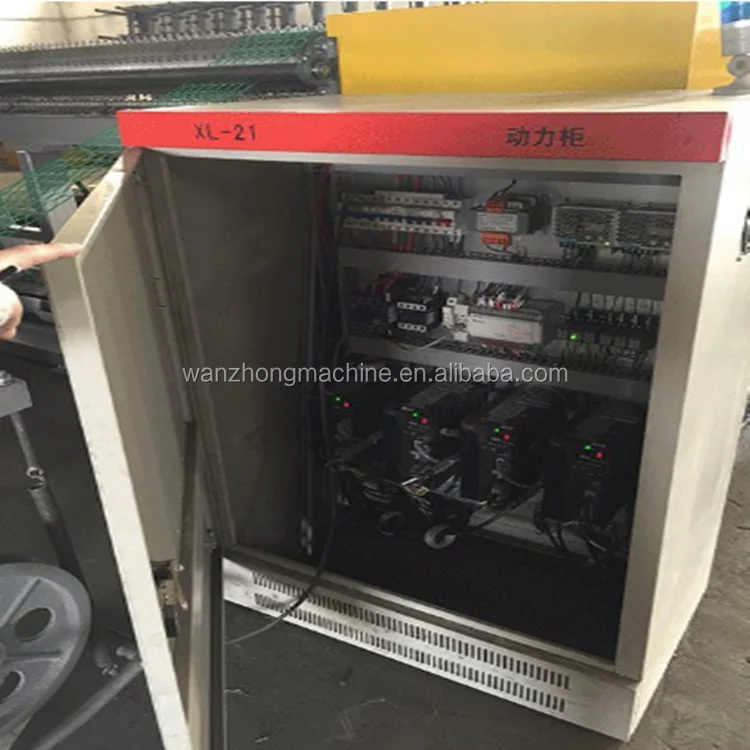

1. The machine is designed with PLC and touch screen. The man-machine interface is simple to operate. Servo driving mechanism is adopted instead of gear, swing arm and other traditional mechanical transmission, with fast speed, small vibration, point-to-move, single-step operation, work level steady, low noise,high efficiency advantages;

2. Install automatic wire breaking stop and computer automatic counting,the length accuracy can reach 1.0mm.When the machine is weaving,it will automatically stop down and alarm for broken wire, broken mesh or length in place; reduce broken wire and improve production efficiency;

3. The machine is equipped with an automatic lubrication system, which adopts centralized lubrication and is more convenient to use.

4.Mesh width is very big, machine width 2.6-4m, can weave multiple rolls at the same time, effectively improve production.

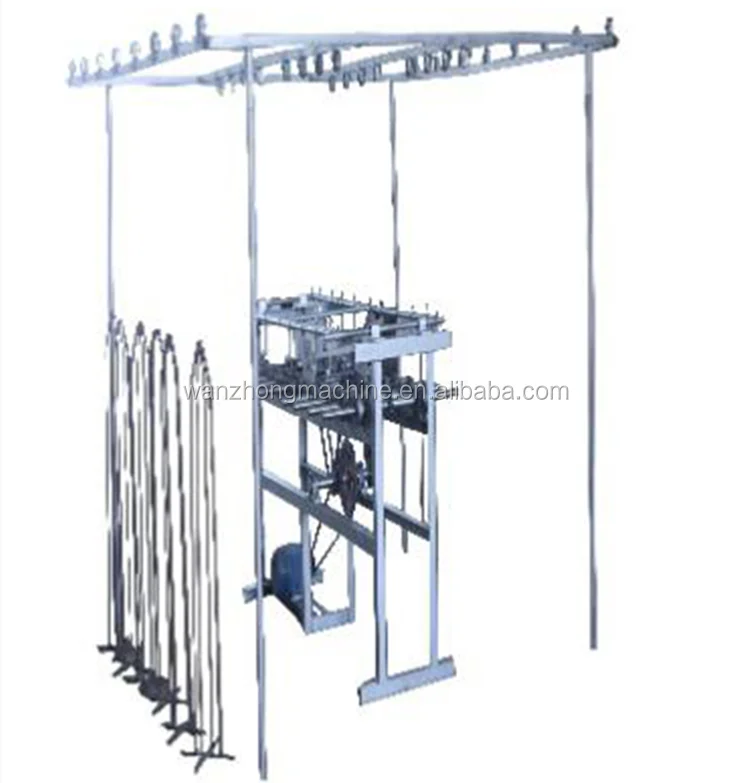

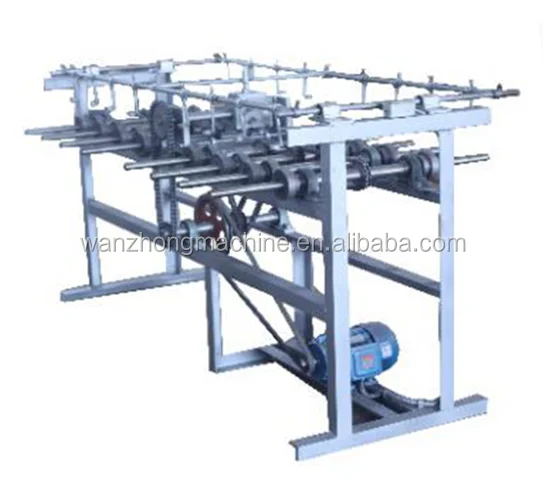

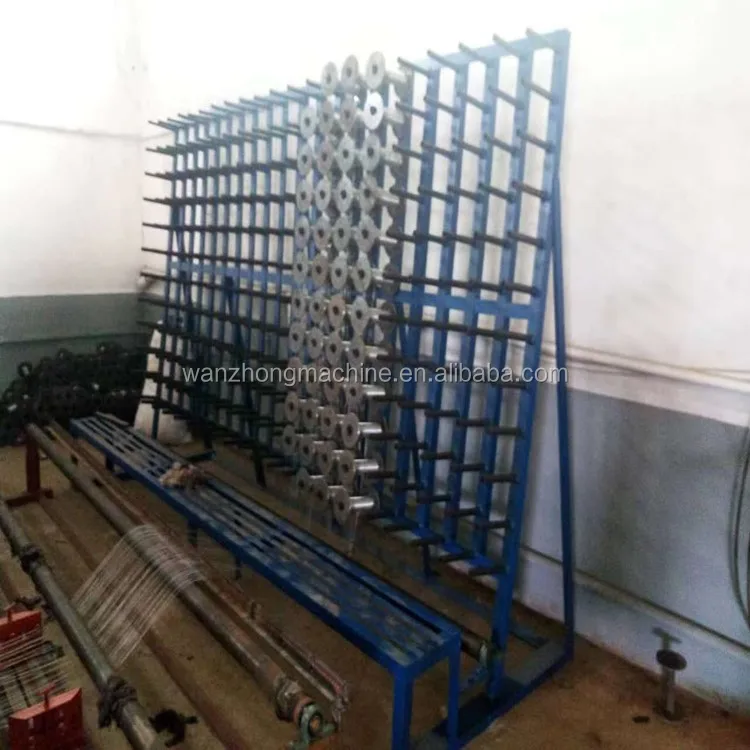

Spool winding machine and feeding    systerm:
