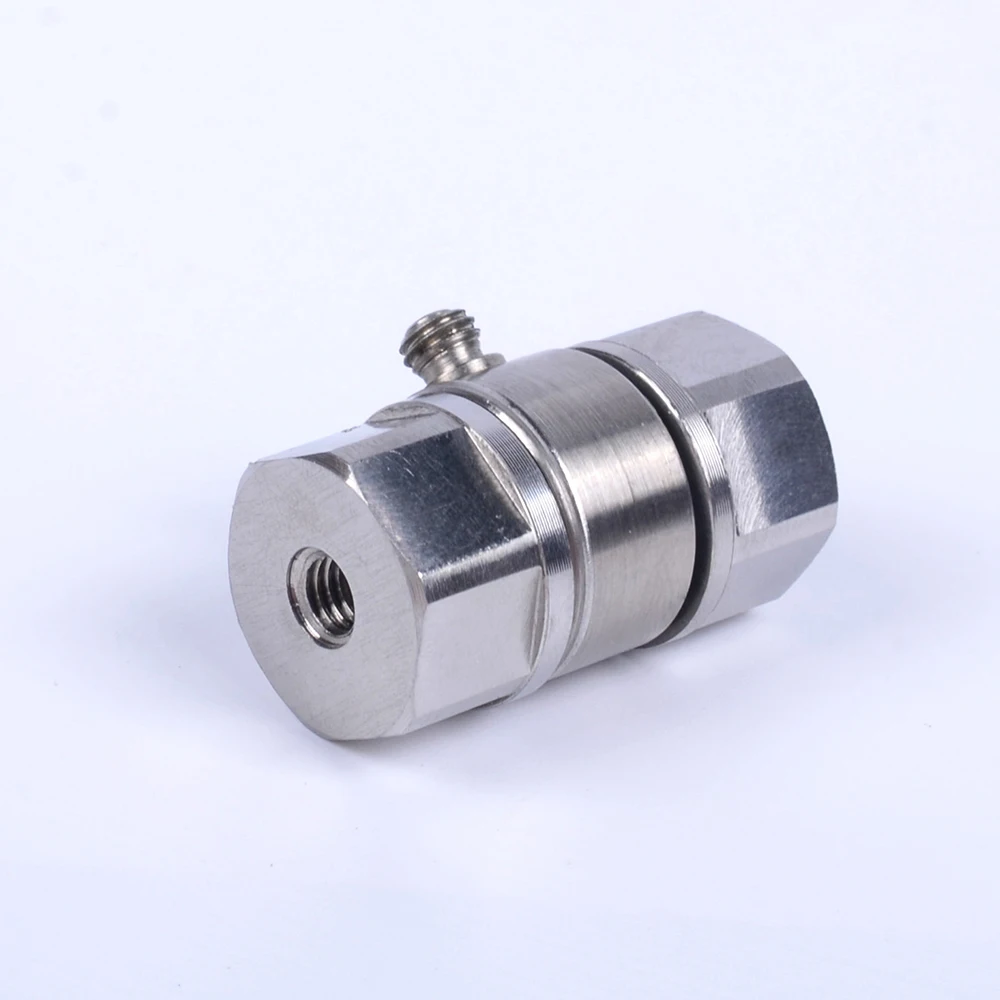

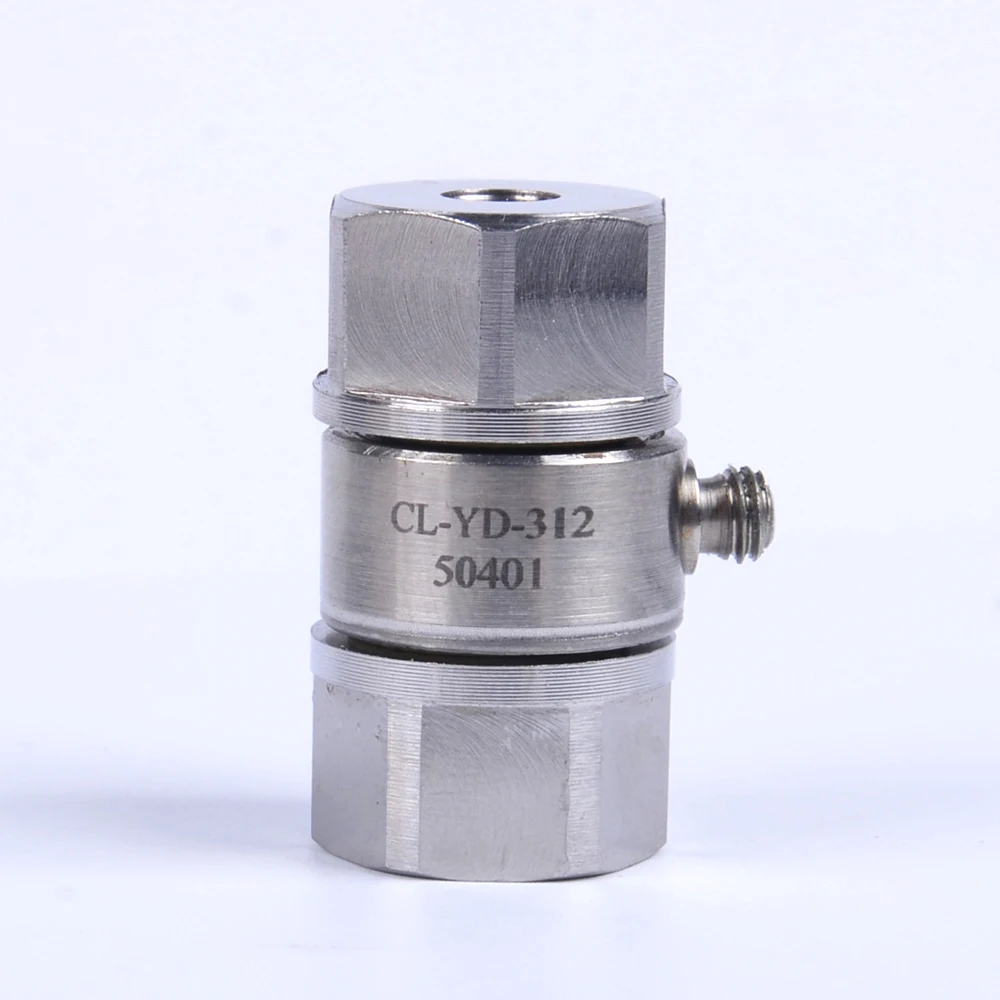

Piezoelectric Force Transducer CL YD 312
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (62017569950):
Product Overview
Description
Piezoelectric Force Transducer
Features
Dynamic measurement responds quickly
Long duration of static calibration
Matching LC-02A hammer
Specifications
Model: CL-YD-312
Sensitivity(20±5℃) | ~4 pC/N |
Measurement Range | 0-5,000 N |
Overload | 120 % |
Linearity | ≤1% F·S |
Hysteresis | <1% F·S |
Repeatability | <1% F·S |
Capacitance | 6 pF |
Insulation Resistance | >1013 Ω |
Resonant Frequency | 45 kHz |
Operating Temperature Range | -40~+150 ℃ |
Weight | 14 g |
Case Material | High Strength Stainless Steel |
Mounting | Through hole φ6 |
Sensing Element | Quartz |
Output | Side L5 |
Accessories |
|
Certificate | Calibration parameter |
Protection cap | 1 |
2m,L5/ L5 STYV-1 | 1 |
Detailed Images

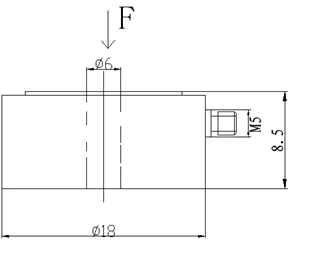

| Dimensions |  |

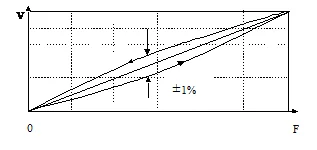

| Typical Static Error Curve |  |
Company Information
SINOCERA PIEZOTRONICS, INC was established in 2001, with 34.6 million yuan registered capital. We are mainly engaged in R&D, production and sales of high-performance piezoelectric ceramic materials, piezoelectric ceramic components, piezoelectric sensors and dynamic testing instrument.
Our Services
We are the manufacturer. We can offer the OEM service.
