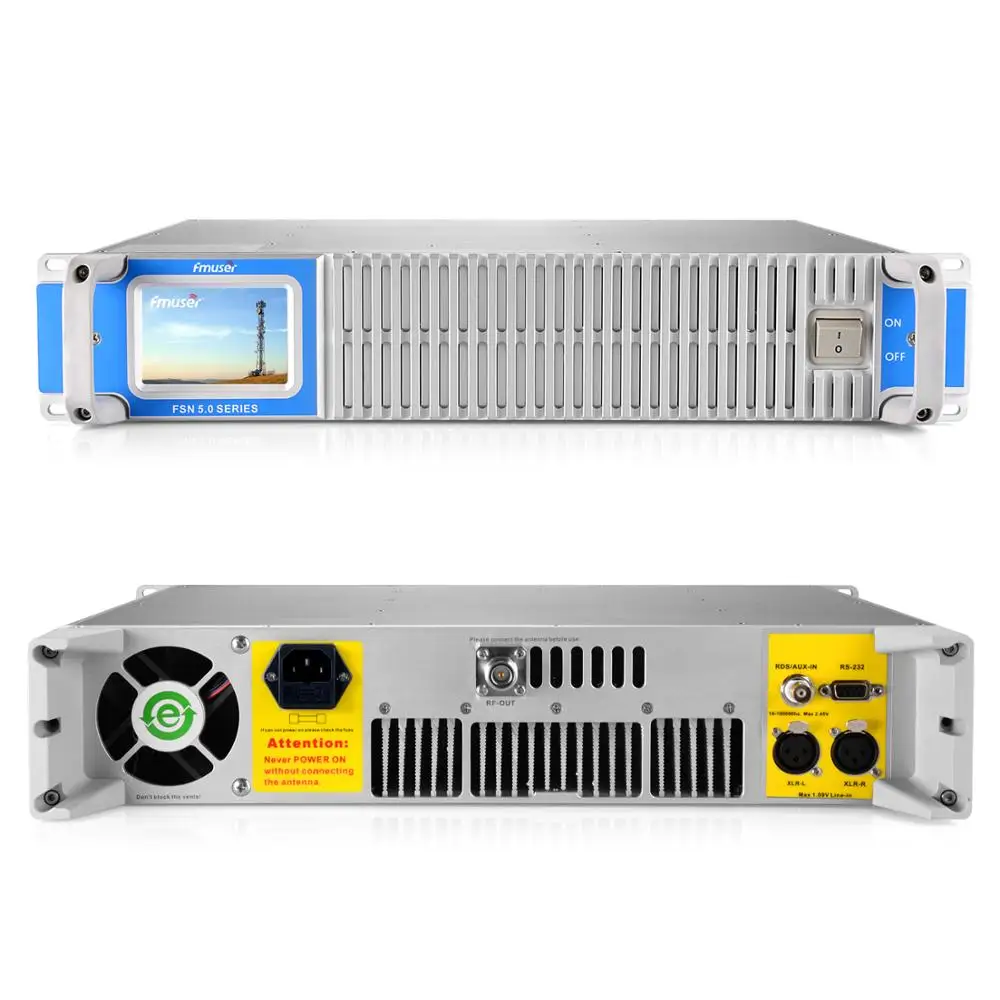

FMUSER FMT 1000W 1000watts 1KW FM Transmitter FU DV1 High gain Antenna Coax Cable kit Radio Broadcast studio For sale
- Category: >>>
- Supplier: Guangzhou Fmuser Information Technology Ltd.
Share on (62017582492):
Product Overview
Description
Product Description
Feature:
FMUSER V5.0 1kw FM transmitter features by its human-friendly touch screen operation interface, highly stable and reliable performance and near CD quality stereo sound effect, which make it a remarkable improvement in the whole market, and leads to its high popularity in using for the most of radio stations.
This 1kw FM transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size and easy in operation and maintenance. It adopts the most advanced RF transistor of BL188 OR MRFE6VP61K25H, which ensures a high working efficiency of 72%, the power loss is reduced to the minimum value ever.
The DSP(Digital Sound Processing) technology makes FMUSER V3.0 1000w FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.
As quality assurance, FMUSER Provides 5 YEAR warranty for this V3.0 professional broadcast transmitter, you’ll have no worries to use it for the radio station.
This 1kw FM transmitter is designed in a compact 19 inch 2U chassis by integrating all modules inside, small in size and easy in operation and maintenance. It adopts the most advanced RF transistor of BL188 OR MRFE6VP61K25H, which ensures a high working efficiency of 72%, the power loss is reduced to the minimum value ever.
The DSP(Digital Sound Processing) technology makes FMUSER V3.0 1000w FM transmitter an enjoyable sound broadcasting device for all music lovers, you’ll no longer be bothered by the noises or distortions.
As quality assurance, FMUSER Provides 5 YEAR warranty for this V3.0 professional broadcast transmitter, you’ll have no worries to use it for the radio station.
TECHNICAL SPECIFICATION:
RF Part:
Frequency: 87.5-108MHz,
Frequency step value: 10KHz
Modulation: FM, peak deviation ± 75KHz
Frequency stability: <± 100Hz
Frequency stabilization method: PLL frequency synthesizer
RF output power: 0~1000 watts ± 0.5dB
Residual wave: <- 70dB
Higher harmonics: <- 65dB
Parasitic AM: <- 50dB
RF output impedance: 50Ω

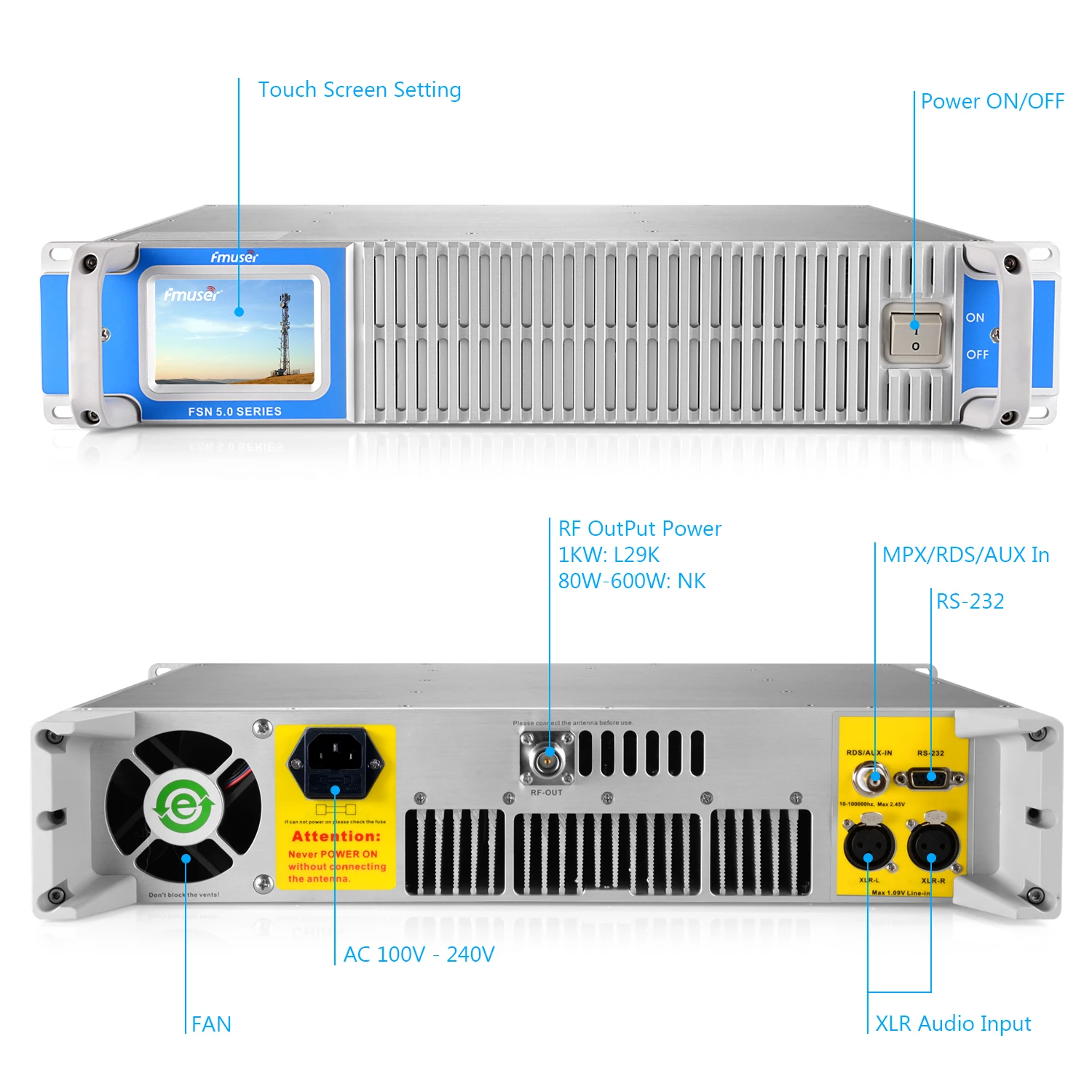

RF output connector: L29 female
Audio Part:
Audio input connector: XLR female
AUX input connector: BNC female
Pre-emphasis: 0us, 50us, 75us (user setting)
S / N ratio mono:> 70 dB (20 to 20KHz)
S / N ratio stereo:> 65 dB (20 to 15KHz)
Stereo resolution: -50dB
Audio frequency response: 30 ~ 15000Hz
Audio distortion: <0.3%
Audio level gain: -12dB ~ 12dB step 3dB
Audio input: -19dB ~ 5dB
General Features:
Power supply voltage range: 110V ~ 260V
Operating temperature range: -10 to 45 ℃
Work mode: continuous work
Cooling method: air cooling
Cooling efficiency: <95%
Work Altitude: <4500M
Power consumption: 1500VA
Dimensions: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack.
Weight: 15Kg
Frequency: 87.5-108MHz,
Frequency step value: 10KHz
Modulation: FM, peak deviation ± 75KHz
Frequency stability: <± 100Hz
Frequency stabilization method: PLL frequency synthesizer
RF output power: 0~1000 watts ± 0.5dB
Residual wave: <- 70dB
Higher harmonics: <- 65dB
Parasitic AM: <- 50dB
RF output impedance: 50Ω
RF output connector: L29 female
Audio Part:
Audio input connector: XLR female
AUX input connector: BNC female
Pre-emphasis: 0us, 50us, 75us (user setting)
S / N ratio mono:> 70 dB (20 to 20KHz)
S / N ratio stereo:> 65 dB (20 to 15KHz)
Stereo resolution: -50dB
Audio frequency response: 30 ~ 15000Hz
Audio distortion: <0.3%
Audio level gain: -12dB ~ 12dB step 3dB
Audio input: -19dB ~ 5dB
General Features:
Power supply voltage range: 110V ~ 260V
Operating temperature range: -10 to 45 ℃
Work mode: continuous work
Cooling method: air cooling
Cooling efficiency: <95%
Work Altitude: <4500M
Power consumption: 1500VA
Dimensions: 483 x 320 x 88 mm without handles and protrusions, 19 "2U standard rack.
Weight: 15Kg
Related Products

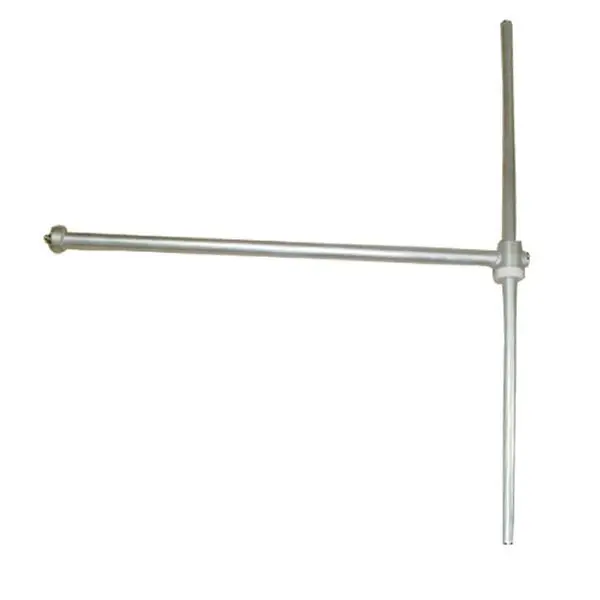

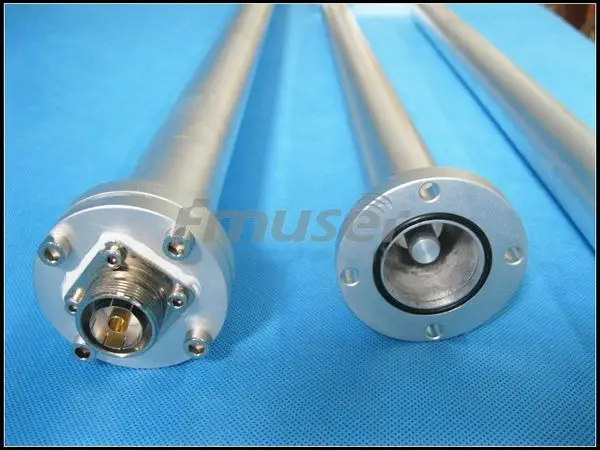

FU-DV1 Antenna:

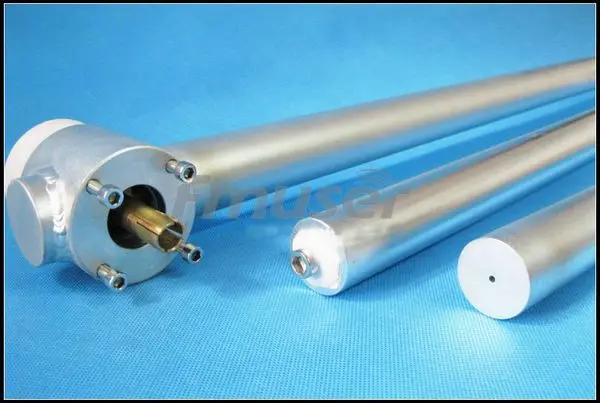

FU-DV1 FM radio antenna for 1000W fm broadcast transmitter equipment 1/2 wave outdoor Dipole antenna.
This FU-DV1 FM dipole antenna is specially designed for FM radio broadcasting system, to receive FM radio transmitter output power signal and send the signal out efficiently. It can use multiple antenna elements to compose antenna array to enhance the gain. It is very easy to assemble for use.
This FU-DV1 FM dipole antenna is specially designed for FM radio broadcasting system, to receive FM radio transmitter output power signal and send the signal out efficiently. It can use multiple antenna elements to compose antenna array to enhance the gain. It is very easy to assemble for use.
Features:
Side-mount low-loss
Broadband Antennas
Vertical polarization
Stainless steel
DC Grounding
Broadband Antennas
Vertical polarization
Stainless steel
DC Grounding
Technical Specification:
Frequency Range:87-108 MHz(we can make either full band/fixed frequency)
Input Impedance: 50 ohm
VSWR:<1.3 (full band),<1.10(fixed frequency)
Gain:1.5 dB
Polarization:Verticality
The antenna array unit is particularly suitable for forming a variety of radiation pattern
Maximum Power Input-watts:1KW/3KW/5KW/10KW
Lighting Protection: Direct Grounding
Connector: L27-50K(1KW), IF45-50K(3KW), IF70-50K(5KW), IF110-50K(10KW)
Dimension:1415×1100×70 mm(L/W/D)
Weight: 7KG
Rated Wind Velocity: 200 km/h
Radiating Element Material:Aluminum Alloy

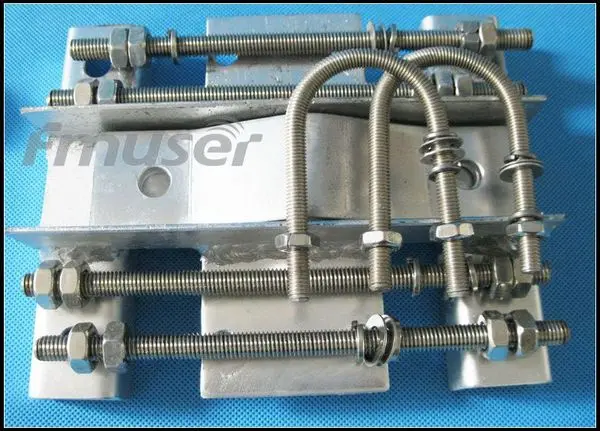

Holding Pole Diameter: 50-100 mm
Input Impedance: 50 ohm
VSWR:<1.3 (full band),<1.10(fixed frequency)
Gain:1.5 dB
Polarization:Verticality
The antenna array unit is particularly suitable for forming a variety of radiation pattern
Maximum Power Input-watts:1KW/3KW/5KW/10KW
Lighting Protection: Direct Grounding
Connector: L27-50K(1KW), IF45-50K(3KW), IF70-50K(5KW), IF110-50K(10KW)
Dimension:1415×1100×70 mm(L/W/D)
Weight: 7KG
Rated Wind Velocity: 200 km/h
Radiating Element Material:Aluminum Alloy
Holding Pole Diameter: 50-100 mm
Package Include:

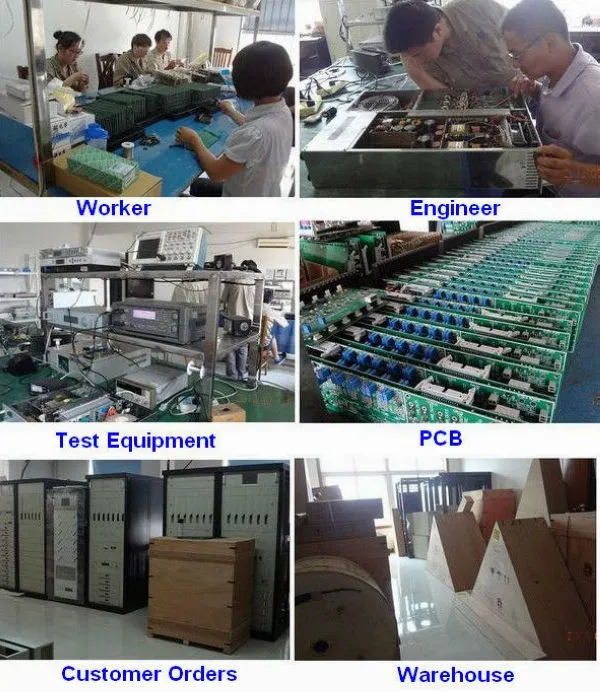

Our Company
The fmuser company is specialized in production and sales of FM / TV Transmitter , FM / TV antenna , the FM / TV transmitter accessories. We have been exporting FM /TV transmitter for 6 years. We have clients all over the world, not only the resellers but also the consumers. With 6 years experience in this field ,we have professional team and excellent aftersales service. We dedicated in supplying the best quality products with competive prices and excellent customer sevice! If you have any question about it , No matter you buy or not, please feel free to tell us your questions,we are very willing to help you and solve your problems.
FAQ
How far(long) the transmitter cover?
The transmission range depends on many factors. The true distance is based on the antenna installing height , antenna gain, using environment like building and other obstructions , sensitivity of the receiver, antenna of the receiver . Installing antenna more high and using in the countryside , the distance will much more far.
EXAMPLE 5W FM Transmitter use in the city and hometown:
I have a USA customer use 5W fm transmitter with GP antenna in his hometown ,and he test it with a car, it cover 10km(6.21mile).
I test the 5W fm transmitter with GP antenna in my hometown ,it cover about 2km(1.24mile).
I test the 5W fm transmitter with GP antenna in Guangzhou city ,it cover about only 300meter(984ft).
Below are the approximate range of different power FM Transmitters. ( The range is diameter )
0.1W ~ 5W FM Transmitter :100M ~1KM
5W ~15W FM Ttransmitter : 1KM ~ 3KM
15W ~ 80W FM Transmitter : 3KM ~15KM
80W ~500W FM Transmitter : 10KM ~30KM
500W ~1000W FM Transmitter : 30KM ~ 50KM
1KW ~ 2KW FM Transmitter : 50KM ~100KM
2KW ~5KW FM Transmitter : 100KM ~150KM
5KW ~10KW FM Transmitter : 150KM ~200KM
