high sensitivity piezoelectric pressure sensor
- Category: >>>
- Supplier: Sinocera Piezotronics Inc.
Share on (62017599180):
Product Overview
Description

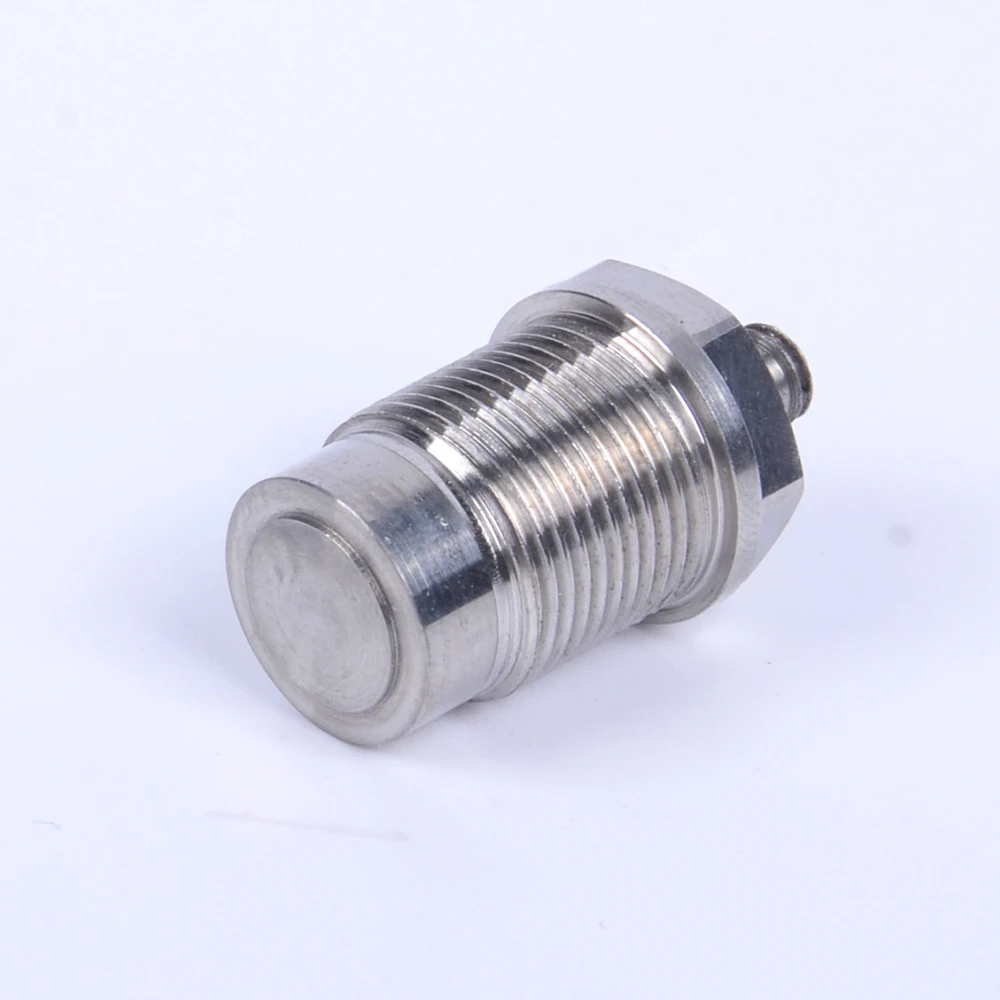

Piezoelectric Pressure Transducer (high sensitivity)
Features
- Passive PE charge type, ultra-high sensitivity
- Gas, liquid fretting pressure measurement
- Available for pipeline leak monitoring
- Wide frequency response, large rigidity
Specifications

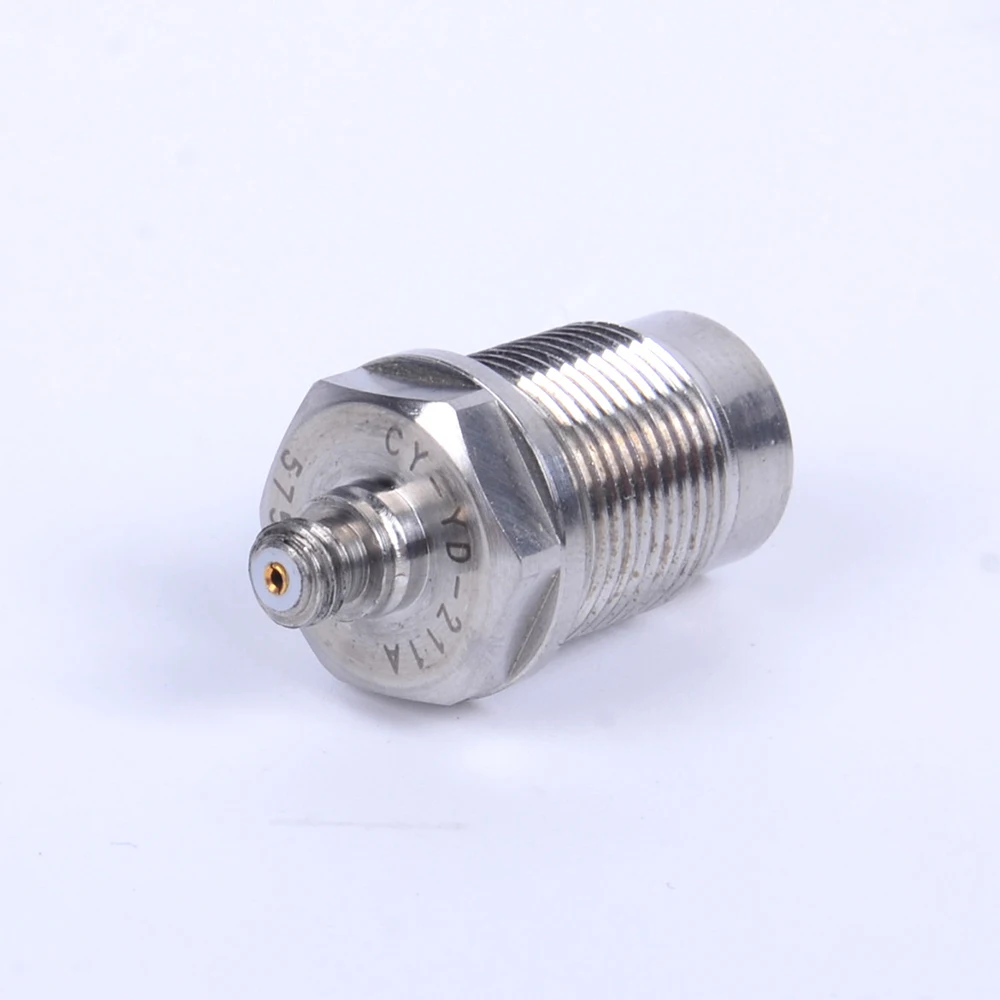

Model: CY-YD-211
Pressure sensitivity(20±5℃) | 5000pC/0.1MPa±20% |
Measurement Range | 50Pa~1 MPa |
Overload | 500 % |
Non-linearity | <5% FS |
Hysteresis | <5% FS |
Repeatability | <5% FS |
Isolation Resistance | >109 Ω |
Capacitance (1000Hz) | ~4000 pF |
Resonant Frequency | >50 kHz |
Operating Temperature | -40~+80 ℃ |
Case Material | Stainless steel |
Weight | 25 g |
Mounting | M14*1 |
Sensing Element | Piezoelectric Ceramics |
Output | L5 |
Accessories |
|
Certificate | Calibration parameters |
Protective cap | One |
Sealing gasket | one |
L5 /L5 STYV-1 Cable | one(2m) |
Detailed Images

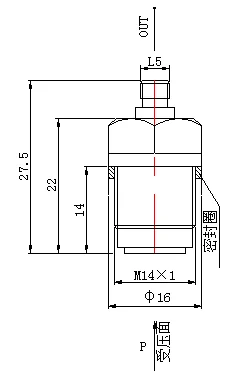

| Dimensions |  |
| Typical Static Error Curve |  |
