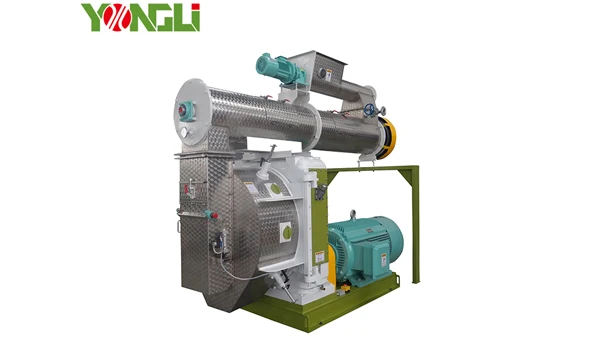

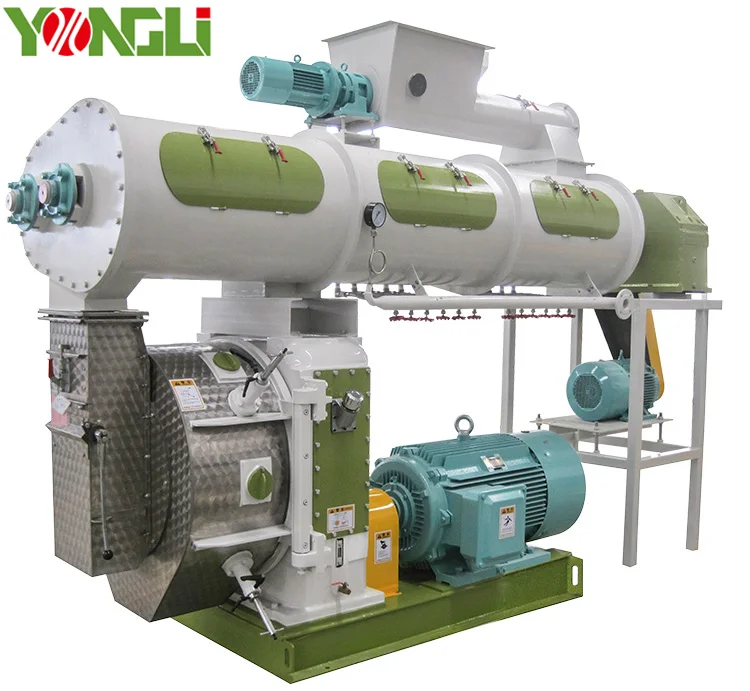

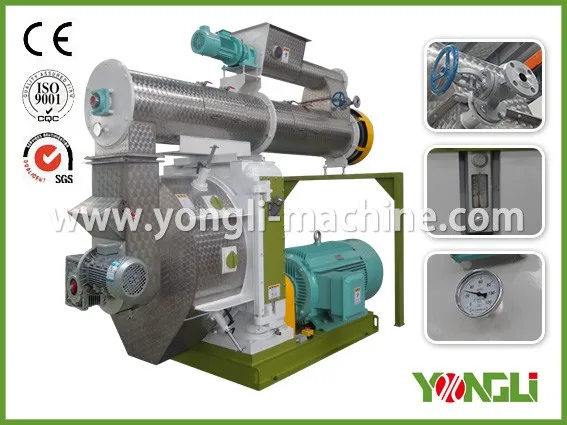

YONGLI Fertilizer Plant/Organic Fertilizer Pellet Machine

Product Overview

Description

YONGLI Fertilizer Plant/Organic Fertilizer Pellet Machine

Application

It’s used to form pellets from animal manure: such as chicken manure, cow manure,

sheep manure, rabbit  manure etc.

Attractive Advantages for YONGLI Fertilizer Plant/Organic Fertilizer Pellet Machine:

 1. Siemens motor, imported SKF bearings.

 2. Equipped with auto cooling and oil adding lubrication system.

 3. National patent. Reasonable price.

 4. Output pellet size: Φ6-Φ12(mm)

 5. Force feeder: Forced feeding into pelletizing chamber, make pellet mill operate stable and with high efficiency.

 6. Gear reducer with aluminum alloy housing, with compact structure, attractive appearance and high driving efficiency.

 7.  Processing of gear box: CNC procesing with high accuracy, low operation moise

and long service time

 8.  It's equipped with safe protection mechanism. When operating overload, it could be

quickly unload and protect the pellet mill effectively.

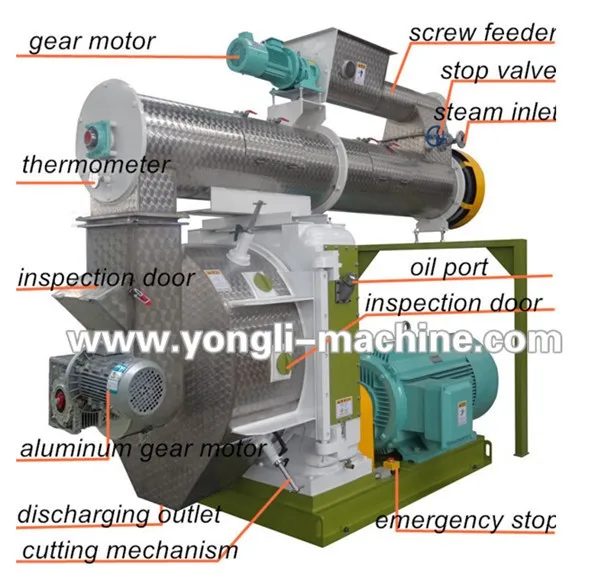

Fertilizer Pellet Machine Structure

Technical Parameters

Model	Capacity (t/h)	Power (kw)	Inner diameter of die (mm)	Pellet size (mm)	Dimension (mm)	Net weight (T)
YPM250	0.1-0.2	18.5	250	Ø6,Ø8,Ø10	1300*1330*850	0.73
YPM320	0.3-0.5	37	320	Ø6,Ø8,Ø10	2100*1100*1140	1.2
YPM350	0.5-0.8	55	350	Ø6,Ø8,Ø10	2500*1100*1150	1.65
YPM420	0.9-1.2	90	420	Ø6,Ø8,Ø10	3000*1200*1470	2.8
YPM520	1.3-1.8/1.8-2.5	132/160	520	Ø6,Ø8,Ø10	3200*1300*1420	4
YPM600	2.5-3	185	600	Ø6,Ø8,Ø10	3000*1750*1810	4.5
YPM660	3-4	200	660	Ø6,Ø8,Ø10	3570*1800*1850	7.5
YPM800	4-6	315	800	Ø6,Ø8,Ø10	4300*1900*2040	11
