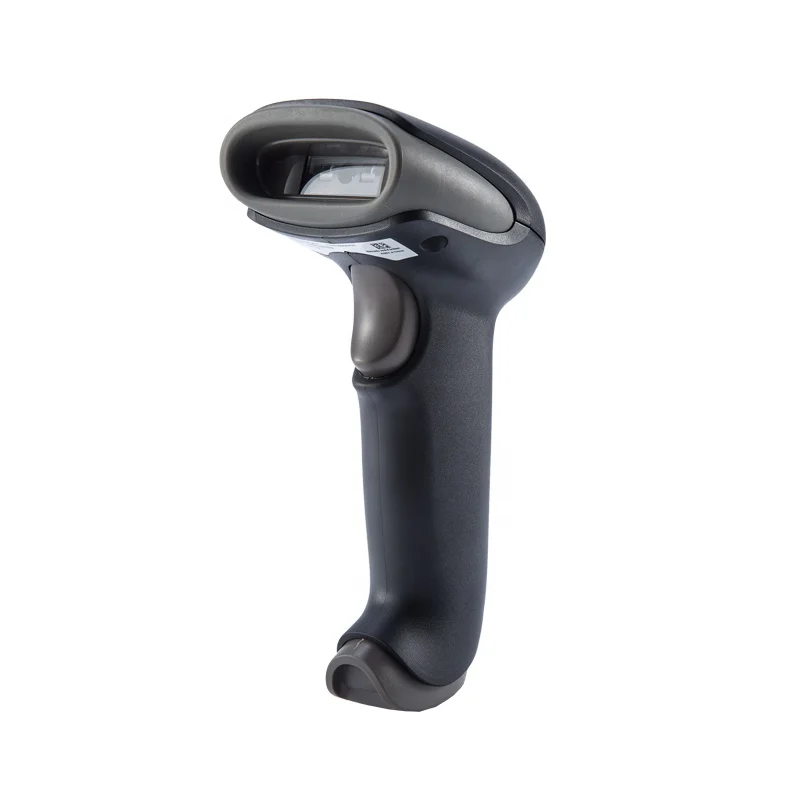

Winson WNC 6080g CCD Handheld Barcode Scanner Warehouses Barcode Reader Corded
- Category: >>>
- Supplier: Guangzhou Yingbin Mould & Die Co. Ltd.
Share on (62017635101):
Product Overview
Description
Excellent quality cheap price CCD Bar code Reader Portable
1D Wired Barcode Scanner
Features

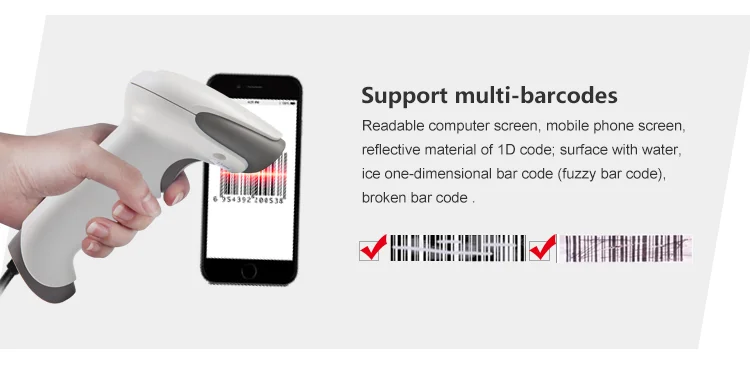

| 1.Support read 1d paper and screen barcodes. |
| 2.Support multiple keyboard language,such as USA, Germany, French, Italy, Spanish, Turkey and so on. |
| 3.After 1.8 drop onto concrete surface floor, still works well. |
| 4.It applies to cashier for mobile payment and Logistics & Express. |
Technical Parameters | ||
Electrical Characteristics | ||
Interface | RS-232/USB HID KEYBOARD/USB VCP/RS-485 | |
Voltage requirement | DC5V±10% | |
Current consumption | Max :138mA | |
Optical Characteristics | ||
Photo sensor | CCD linear sensor | |
Sensor Resolution | 2500Pix | |
Light source | 632nm red LED | |
Performance Characteristics | ||
Scan Rate | 350±50 (scans/second) | |
Decode angle | Pitch angle:±30° Skew angle::±75° Tilt angle:±45° | |
Min resolution | 0.115mm/4.5mil(PCS 0.9) | |
Min.PCS value | >25%UPC/EAN 13(13mil) | |
Curvature | R≥15 mm (EAN8),R≥20 mm (EAN13) (resolution=0.26mm,PCS=0.9) | |
Language | Multiple languages | |
Error rate | 1/500W | |
Identification | EAN13,EAN8,UPC A,UPC E,CODABAR(NW-7),CODE 39,CODE 93,INTERLEAVED 2OF5,STANDARD 2OF5,MATRIX 2OF5,CODE 128,EAN/UCC 128,CODE 11,CHINESE POST | |
Physical Characteristics | ||
Dimensions | 70mm×95mm×168mm(L x W x H) | |
Weight | 127.8g | |
Environmental Characteristics | ||
Temp | -20°-65°C / -4°-149°F((operation) ) -30°- 70°C /-22°- 158°F(storage) | |
Humidity | 5 - 90% (operation) ) 5 - 90% (storage) | |
Ambient Light: | Fluorescent light 4000 lx max , direct sun light 80,000 lx max ,white light 4000 lx max | |
Shock drop test | 1.5m drop onto concrete surface | |
Regulatory | ||
Electrical Safety | UL 60950,EN/IEC 60950 | |
EMI/RFI | FCC Part 15 Class B ,EN 55024/CISPR 22 | |
Environment | RoHS | |
Product Description
Better scanning performance 32-bit CPU, scanning code speed up to 350 scans per second. Support customized functions |  |
 | |
 | |
Compatibility Compatible with the current system used by the general public, such as Windows, Android, Mac OS, IOS, Linux, and so on.
| Mechanical shock After 1.8m drop onto concrete surface, still work as usual,shockproof and Anti-broken. |
