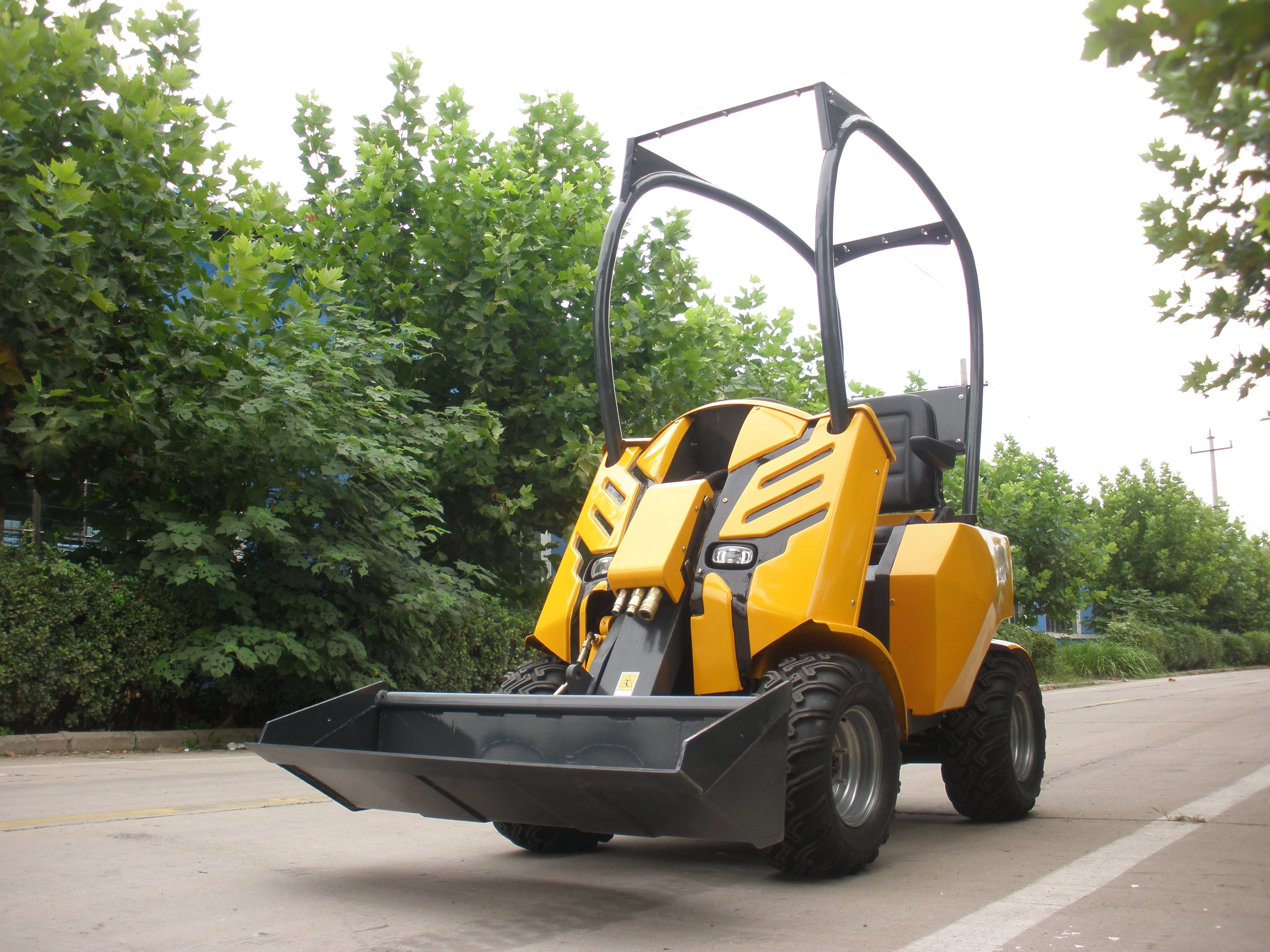

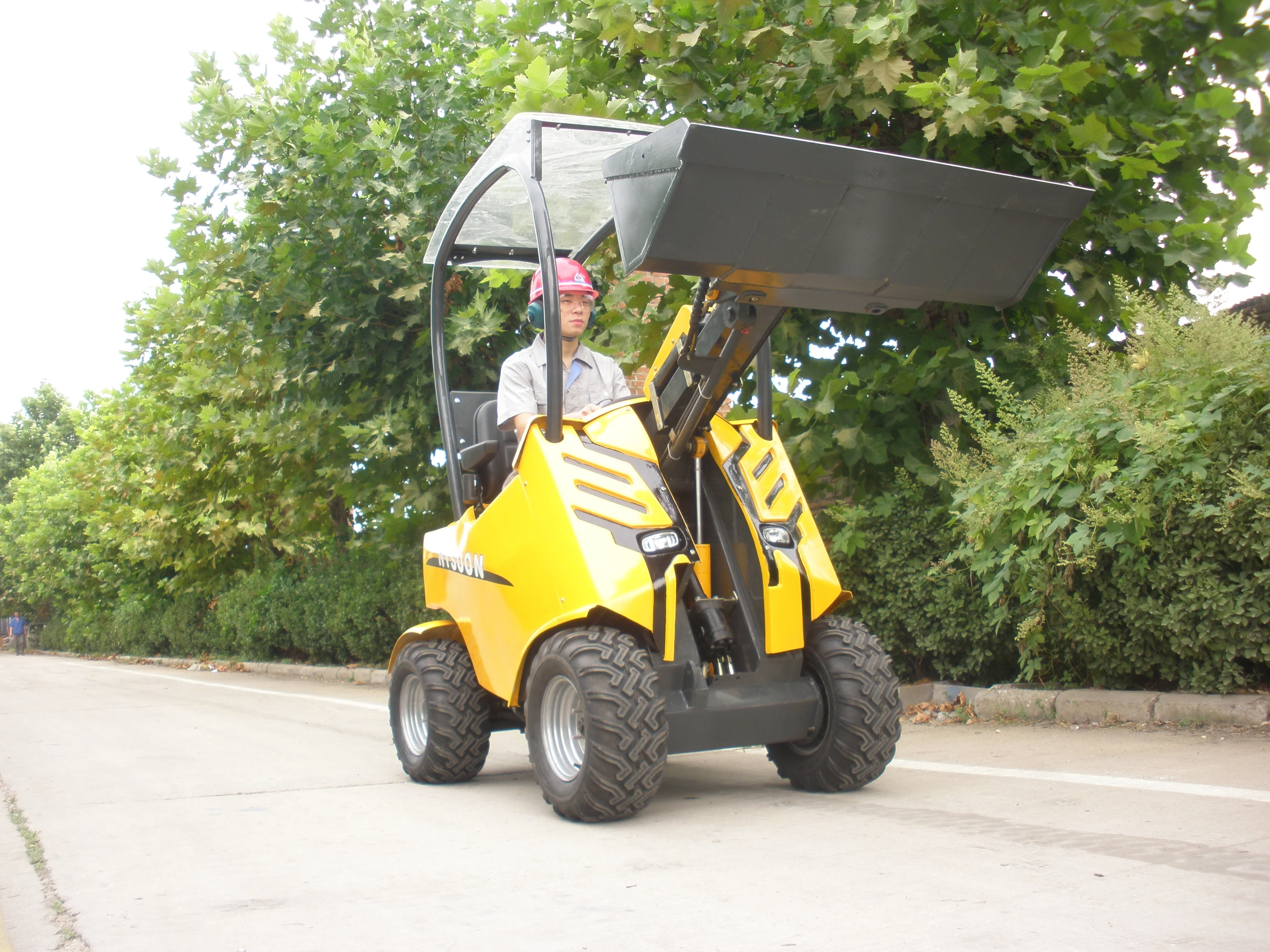

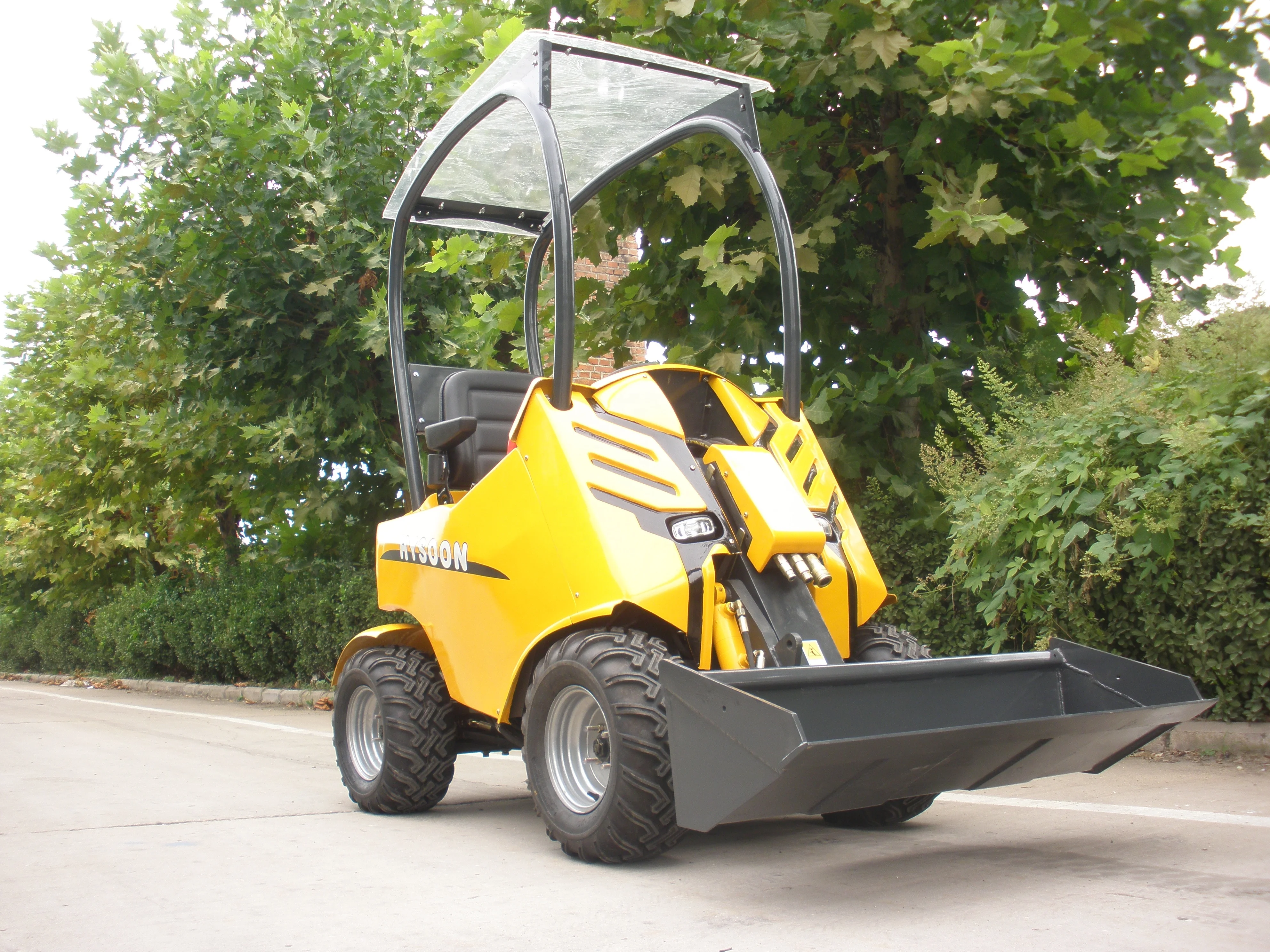

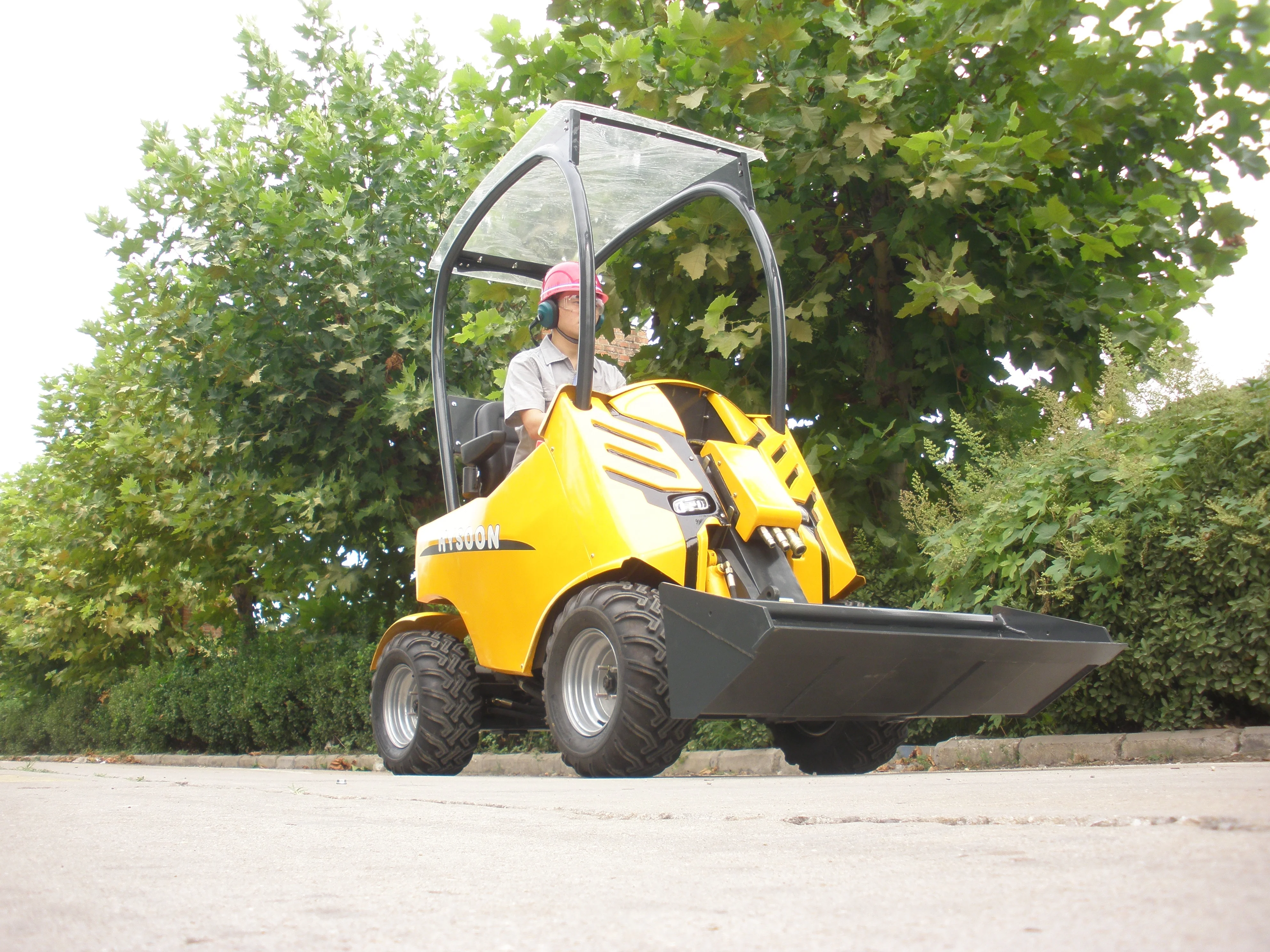

HOT SALE!!! Crawler Mini Skid Steer loader ht200
- Category: >>>
- Supplier: Shandong Cnmc Machinery Co. Ltd.
Share on (62017638045):
Product Overview
Description
Product Description
Item | HT200 | ||
Metric | Inch | ||
Max pin height （B） | 1769 mm | 69.6 inch | |
Max height of unloading （C） | 1260mm | 49.6inch | |
The highest point of unloading distance（D） | 558 mm | 21.9 inch | |
Total length （H） | 2020 mm | 79.5 inch | |
The height from ground （F） | 160 mm | 6.3 inch | |
Wheelbase （G） | 1207 mm | 47.5 inch | |
No bucket length （J） | 2030 mm | 79.9 inch | |
Total width （W） | 970 mm | 38.2 inch | |
Bucket width （K） | 980mm | 38.6 inch | |
Total length （L）（with bucket ） | 2424 mm | 93.1 inch | |
Angle of departure （α） | 40° | 40° | |
Bucket unloading angle（γ） | 27° | 26° | |
Collecting bucket （θ） | 48° | 48° | |
.23HP Crawler mini skid loader

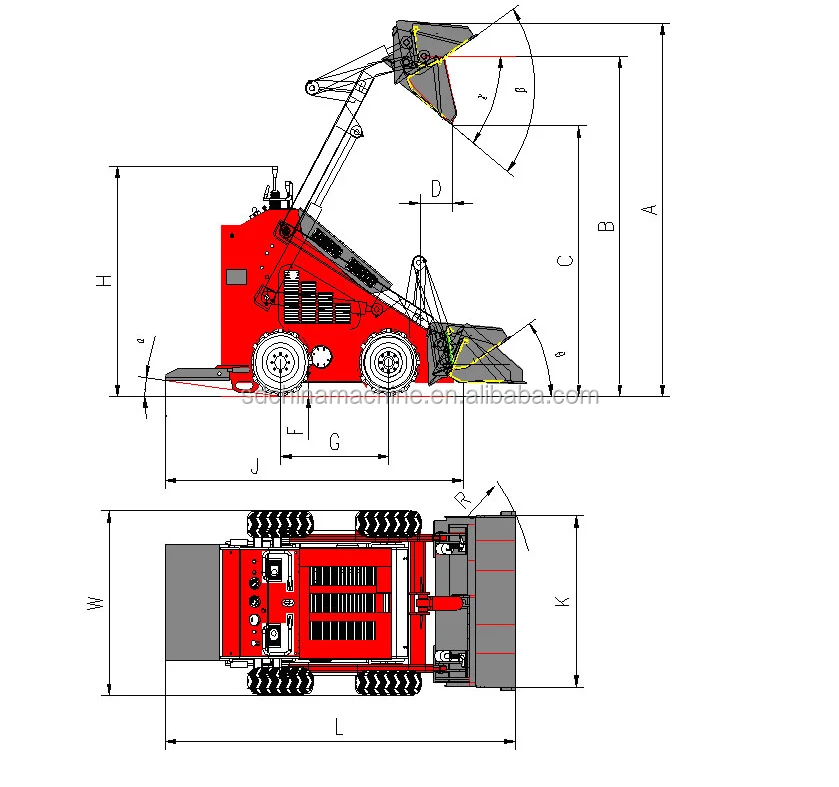

Item | Metric | Inch |
Max working height(A) | 2115 mm | 83.3 inch |
Max pin height (B) | 1856 mm | 73.1 inch |
Max dump height(C) | 1460 mm | 57.5 inch |
The highest point discharge distance(D) | 388 mm | 15.3 inch |
Bucket swing angle(β) | 55° | 55° |
Bucket unloading angle(γ) | 30° | 30° |
Opening-closing angle(θ) | 25° | 25° |
Angle of departure(α) | 8° | 8° |
Total height (H) | 1205 mm | 47.4 inch |
The height from the ground(F) | 90 mm | 3.5 inch |
Wheelbase (G) | 636 mm | 25.0 inch |
No bucket length(J) | 1752 mm | 69.0 inch |
Total width (W) | 1033 mm | 40.7 inch |
Bucket width (K) | 980 mm | 38.6 inch |
Total length(L)(with bucket) | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |
