Aluminum Profile Four Head Drilling Machine for aluminum door and window making machine
- Category: >>>
- Supplier: Jinan Mingmei Machinery Co. Ltd.
Share on (62017677944):
Product Overview
Description
Product Description

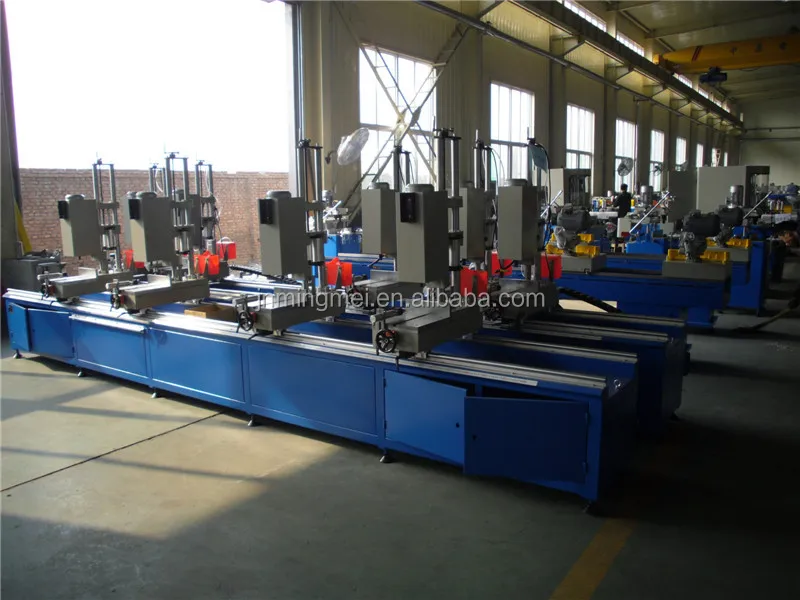

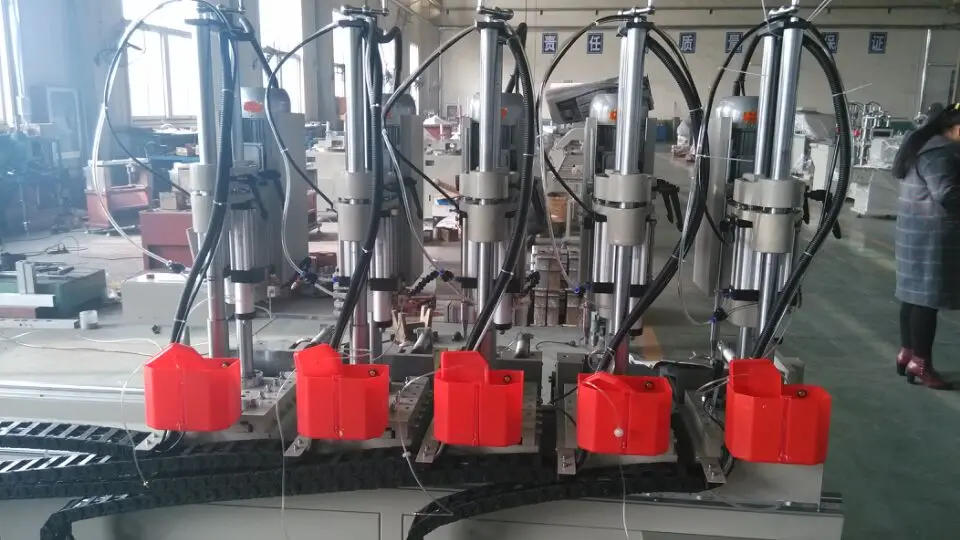

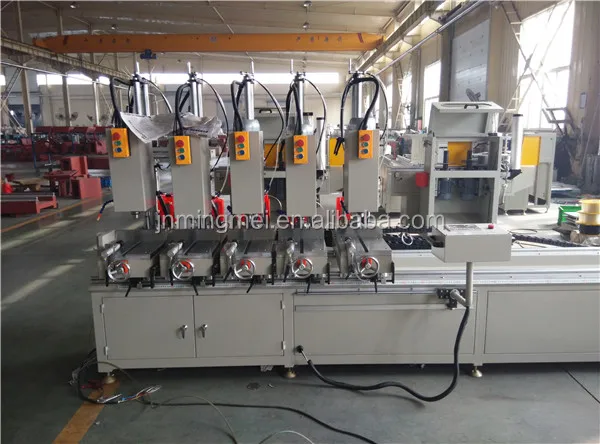

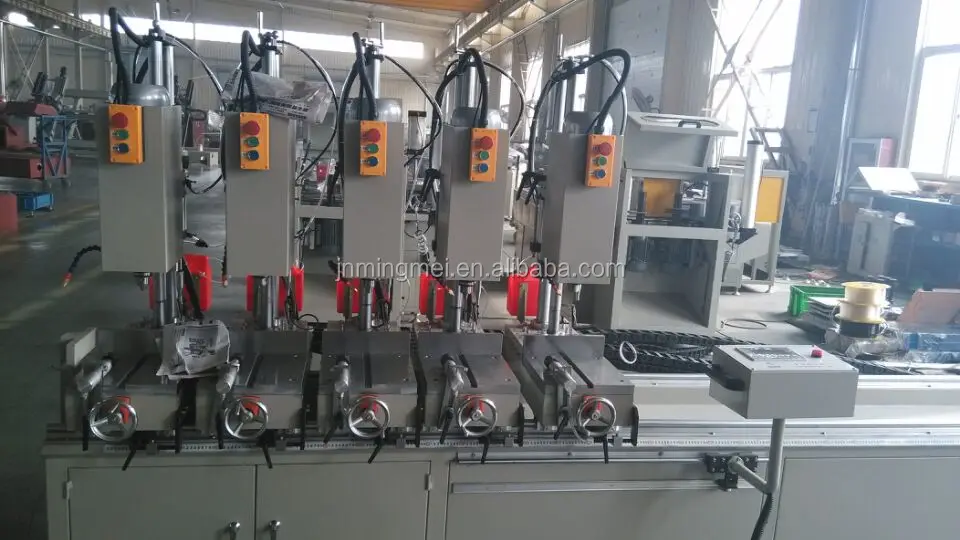

Multi-head Drilling Window Machine
Main Features
1.Special for drilling of aluminum window, curtain wall profiles. It is suitable for long profile process and mass production
2.Max process cross section is 250*250mm, Max process length is 5000mm
3.Pneumatic-hydraulic damp feeding system
Technical Parameters
|
Main motor Power |
4x0.75KW |
|
Working voltage |
380V 50Hz |
|
Operating air pressure |
0.5-0.8Mpa |
|
Max/Min distance between each group holes |
500-300mm |
|
Max processing profile section size |
250*250 |
|
Max drilling hole diameter |
ø13 |
|
Drilling head feeding travel |
125mm |
|
Work table size (LXW) |
300*220mm |
|
Tolerance of drilling hole |
±0.3mm |
|
Tolerance of drilling position |
≤0.3mm |
|
Size |
5500*1100*1800mm |
|
Weight |
880KGS |
