FMUSER DP100 Dipole High Gain DBi FM Antenna 87 108MHz 30w 50w 80w 100w 150w Radio FM Transmitter
- Category: >>>
- Supplier: Guangzhou Hanting Information Technology Co. Ltd.
Share on (62017695838):
Product Overview
Description
Overview:
Two Bay DP-100 Exclusive 1/2 Half Wave High gain FM Dipole Antenna for 5W -300W FM Radio Transmitter
A dipole antenna is a radio antenna that can be made of aluminum, copper, and bronze tube with a center-fed driven element. It consists of two metal conductors of rod, oriented parallel and collinear with each other (in line with each other), with a small space between them.
The dipole antenna is a particularly important form of RF antenna which is very widely used for radio transmitting and receiving applications. The dipole is often used on its own as an RF antenna, but it also forms the essential element in many other types of RF antenna. As such it is the possibly the most important form of RF antenna.
A half-wave dipole antenna means the length of this dipole antenna is equal to a half-wavelength at the frequency of operation.
A dipole antenna is a radio antenna that can be made of aluminum, copper, and bronze tube with a center-fed driven element. It consists of two metal conductors of rod, oriented parallel and collinear with each other (in line with each other), with a small space between them.
The dipole antenna is a particularly important form of RF antenna which is very widely used for radio transmitting and receiving applications. The dipole is often used on its own as an RF antenna, but it also forms the essential element in many other types of RF antenna. As such it is the possibly the most important form of RF antenna.
A half-wave dipole antenna means the length of this dipole antenna is equal to a half-wavelength at the frequency of operation.
Specification:
Frequency range: 88~108 MHz ( 1MHz stepping)
Input Impedance Impedance:50 ohm

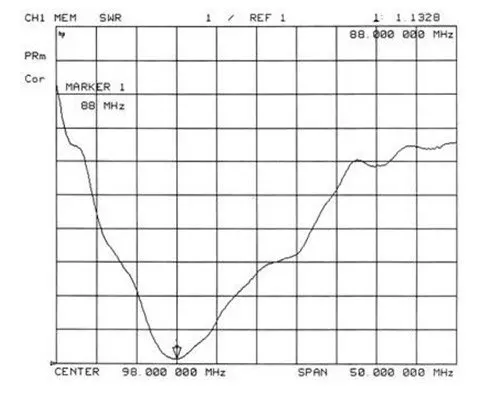

VSWR <1.5
Gain:5 dBi
Polarization: Verticality
Maximum Power Input: 30W,50W,80W,150W
Input Impedance Impedance:50 ohm
VSWR <1.5
Gain:5 dBi
Polarization: Verticality
Maximum Power Input: 30W,50W,80W,150W

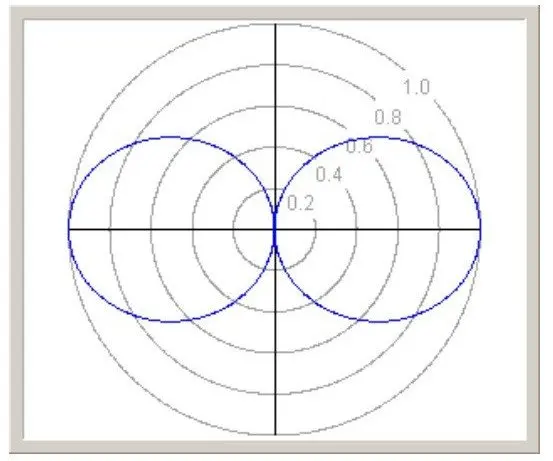

Horizontal 3dB Beam Width:360 °

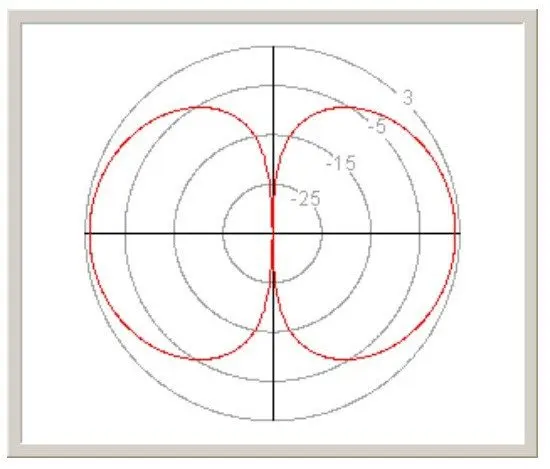

Vertical 3dB Beam Width:73 °

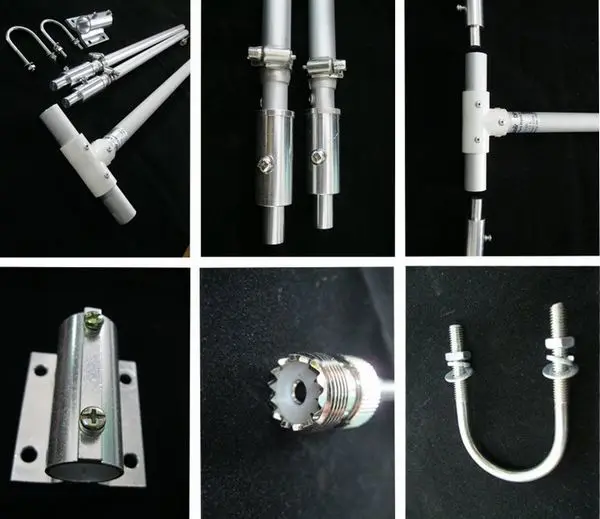

Mechanical Specifications:
Height: 990mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm
Vertical 3dB Beam Width:73 °
Mechanical Specifications:
Height: 990mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm
Height: 990mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm
Radiating Element Material:Aluminum Alloy
Connector:SL16-K
Holding Rod Diameter: Φ30~Φ40 mm
Products details:
