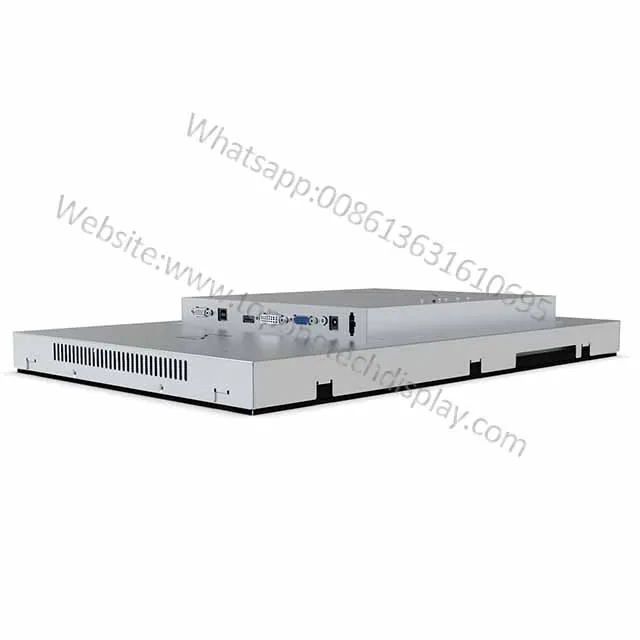

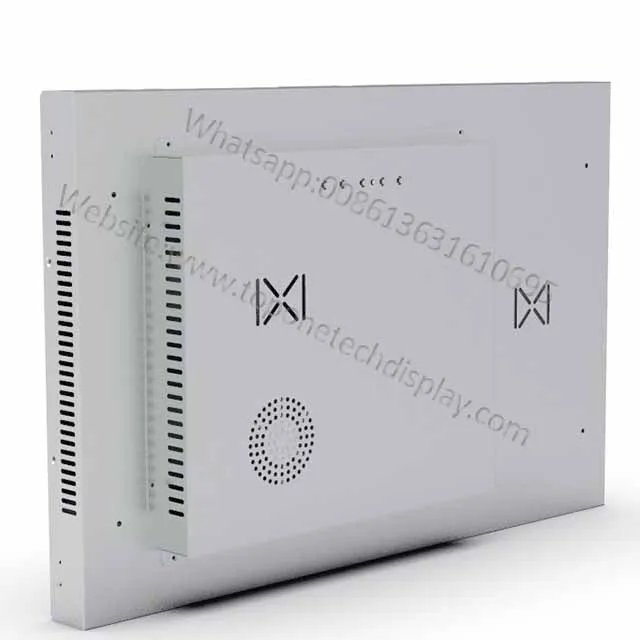

TopOneTech 22 inch Aristocrat slot machine touch screen monitor display Compatible 3M Microtouch gaming moniteur ecran tactile
- Category: >>>
- Supplier: Top One Tech Limited
Share on (62017707353):
Product Overview
Description
Toponetech slot machine 22 inch in touch screen monitors capacitive dvi resistive
Fully Supports Aristocrat Viridian WS,Gen7,Upright ,Aristocrat Vii Slant, Aristocrat Viridian Hybird,Upright
Features
(1)Fully Supports Aristocrat Viridian WS,Gen7,Upright ,Aristocrat Vii Slant, Aristocrat Viridian Hybird,Upright
(2)1680x1050 Resoultion 16.7M Colors LCD Panel With LED Backlight
(3)HDMI + DVI + VGA Input Video Source
(4)DC-24V Input Voltage
(5)P-CAP 10 Points(Max) Touchscreen With RS232 Interface
(6)TouchScreen Supports Upgrade Firmware Via RS232 and USB Interface
(1)Fully Supports Aristocrat Viridian WS,Gen7,Upright ,Aristocrat Vii Slant, Aristocrat Viridian Hybird,Upright
(2)1680x1050 Resoultion 16.7M Colors LCD Panel With LED Backlight
(3)HDMI + DVI + VGA Input Video Source
(4)DC-24V Input Voltage
(5)P-CAP 10 Points(Max) Touchscreen With RS232 Interface
(6)TouchScreen Supports Upgrade Firmware Via RS232 and USB Interface
3M™ Compatible Gaming Touchscreen Monitors
Toponetech`s Open frame Gaming Monitors is available in both standard and custom open frame monitor sizes, China Supplier Toponetech’s projected capacitive touch screens are form, fit or function replacements for 3M™ touch sensors.
*Sizes : 22"(Other Sizes Available)
*Touch Screen Available
*TOT220UCA0V1 Fully Replace with 3M™ Microtouch™ C2234SW

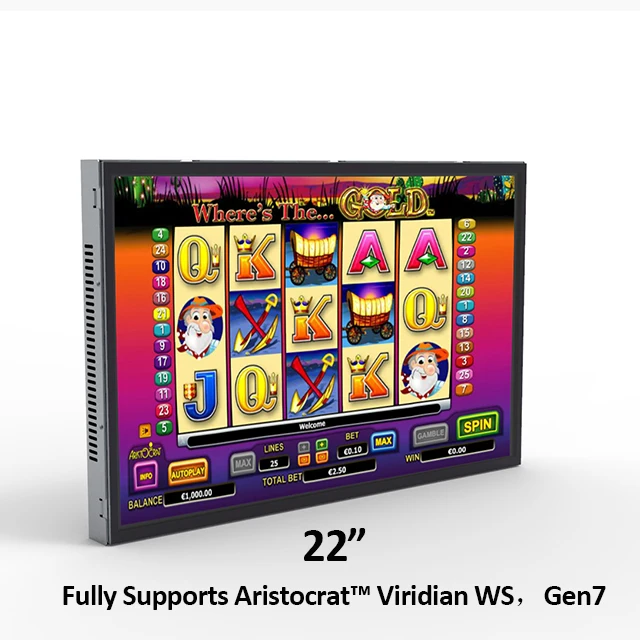

*TOT220UCA0V2 Fully Supports Aristocrat™ Viridian WS,Gen7,Upright Aristocrat™ Vii Slant, Aristocrat™ Viridian Hybird,Upright
*TOT220UCA0V3 Fully Supports Shuffle Master™ Equinox
|
Suggested Resolution |
1680x1050 @ 60Hz |
|
|
Support Colors |
16.7M |
|
|
Brightness(Typ.) |
Pure LCD Panel |
250cd/m2 |
|
Contrast Ratio(Typ.) |
1000:1 |
|
|
Frequency(H/V) |
30~80KHz / 60~75Hz |
|
|
Power Supply |
Type: External brick |
|
|
Environment |
Operating Temp |
0~45°C |
|
Storage Temp |
-20~55°C |
|
|
MTBF |
30,000 Hours | |
|
Mount Interface |
1)VESA 100*300mm and 100*400mm 2)Mount bracket, horizontal or vertical |
|
| Touch Response time | USB: <10ms | |
|
Agency Approval |
CCC, ETL, FCC, CE, RoHS |
|
