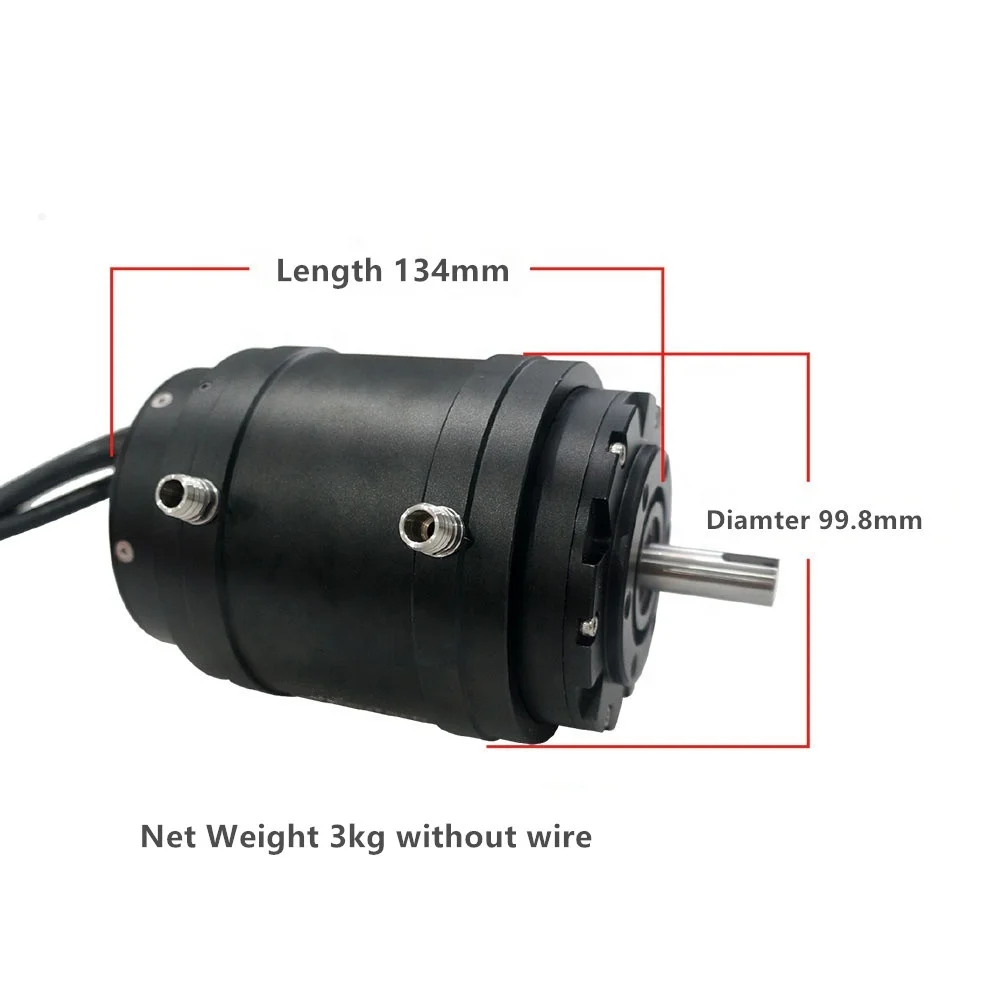

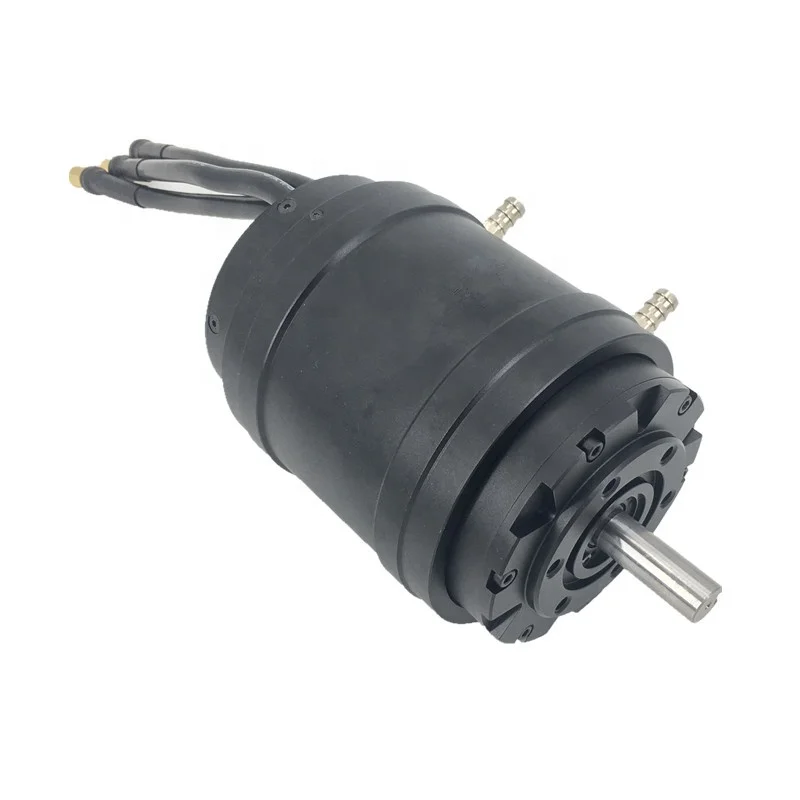

water cooling 85134 10 14S 240KV 14000rpm 60V 48V 10kw brushless dc motor

Product Overview

Description

water cooling 85134 10-14S 240KV 14000rpm 60V 48V 10kw brushless dc motor

Note: All our products are designed for RC Area, if you are not in this area and don't have the knowledge of brushless dc motor, please Do Not Directly pay before inquiry from us. All of our brushless dc motor need to work together with speed controller, speed controller need to buy by separately.

Product Description

The Reacher Tech WC85134 Brushless DC Motor is designed for electric hydrofoil, surfboard, Jet Board,electric foil,surfboard hydrofoil, small boat and so on.

Smaller Size,Space Saving. Lighter Weight, Quick Response. Low Price, High Performance-Price Ratio.

D85 rotor was designed with segmentation and stagger magnets ,the segmentation design can reduce eddy current in the magnets,then make the rotor have less heat generation,stagger magnets design make the motor have more bigger start torque , smooth start,and smaller vibration, the ripple of the torque is more smaller,

The 85134 motor have three options , water-proof or water-cooling ,or combined two feature in one .

The RTD85L134 motor is water-proof Brushless Motor, the motor use water-proof structure between endbell and case, use sealed part between axle and front bell and between motor wires and endbell , so the motor have great water-proof function, can work in the deep water ,wet environment,dirt or dust condition .

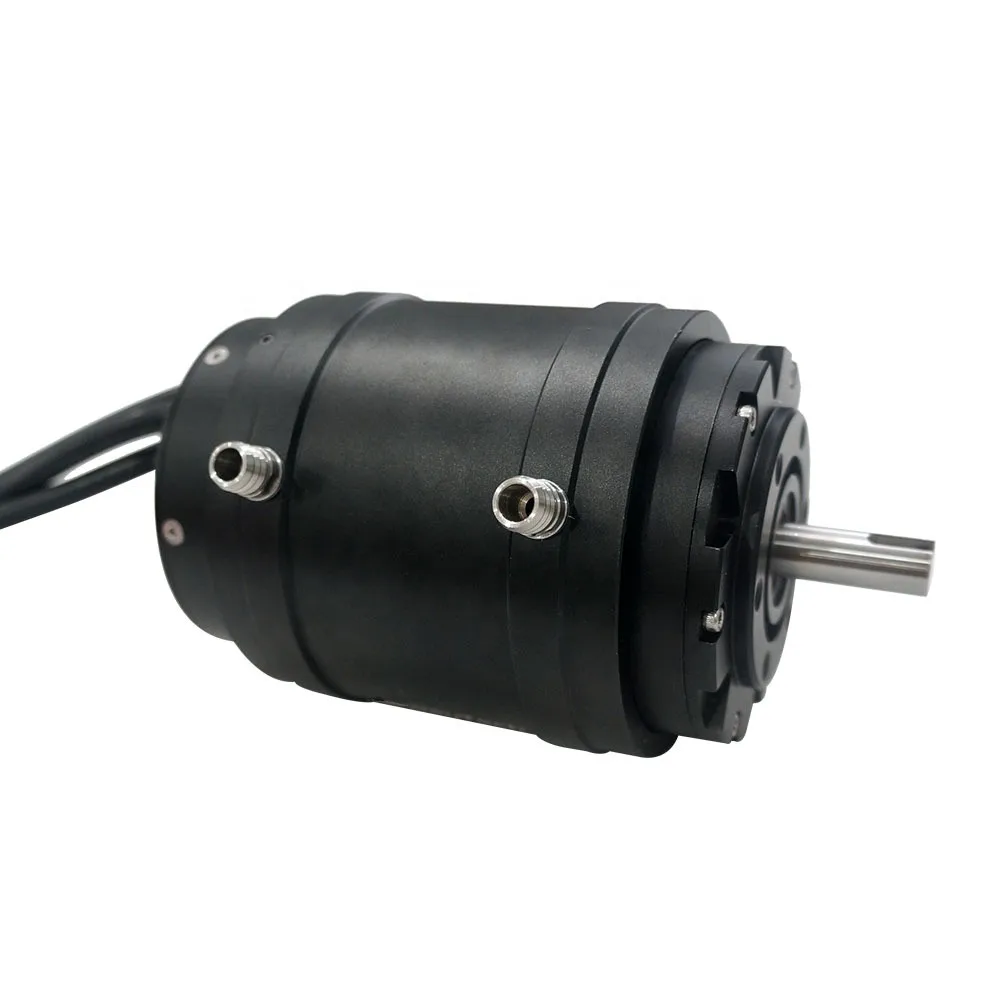

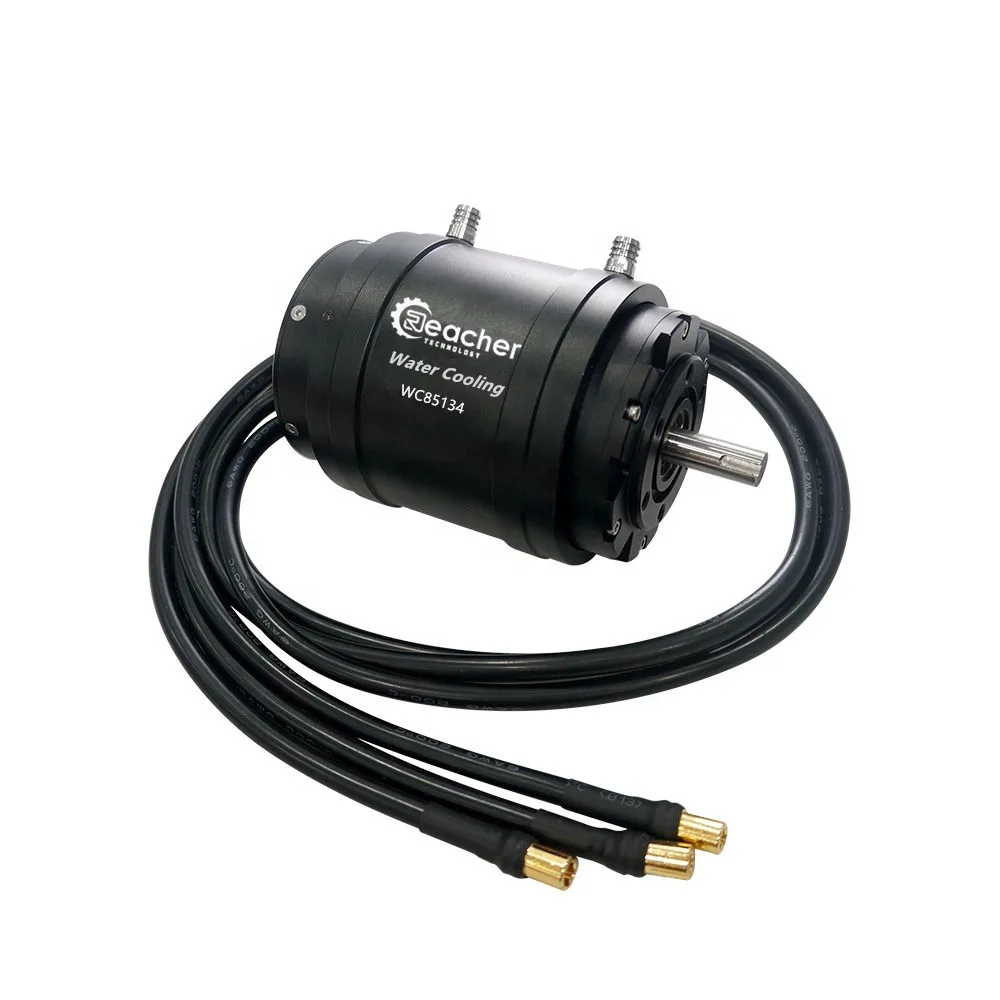

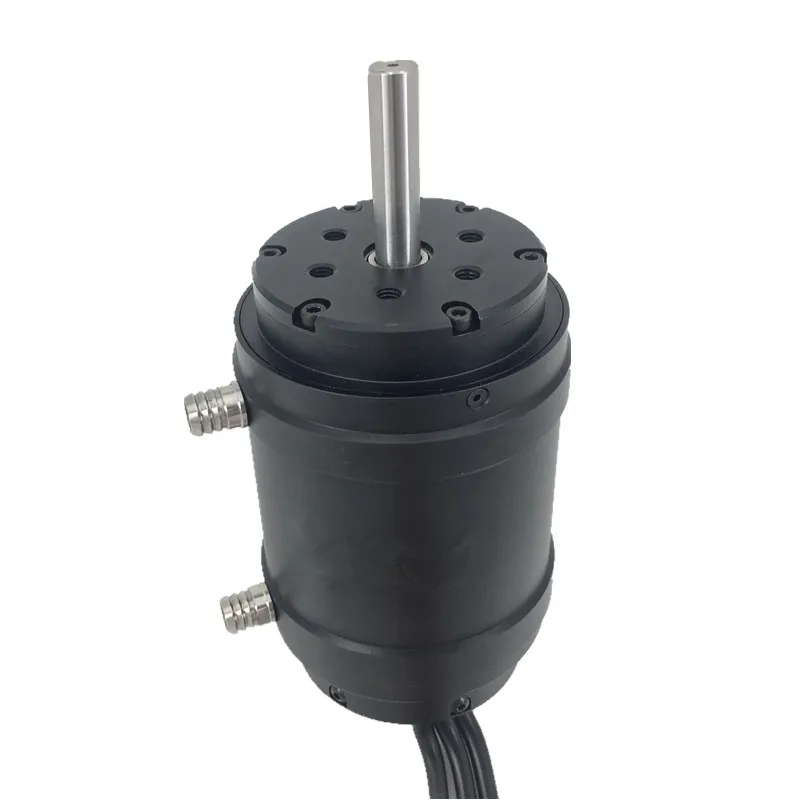

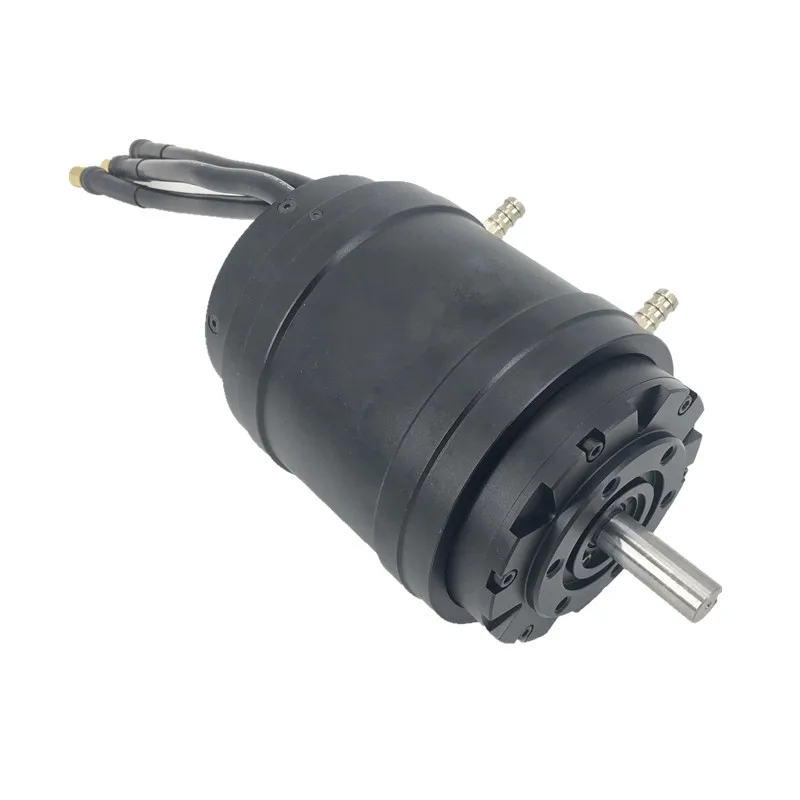

WC85134 motor is water-cooling motor,it with an extra water cooling jacket , the water flow in the slot of the can for cooling the motor.

We can combine two feature in one motor also, then the motor will have water-proof and water-cooling feature .

Product Feature

1. 85134 motor rotor was designed with segmentation and stagger magnets ,the segmentation design can reduce eddy current in the magnets,then make the rotor have less heat generation,stagger magnets design make the motor have more bigger start torque , smooth start,and smaller vibration, the ripple of the torque is more smaller,.

2. High quality ball bearing ,very low noise and vibration.

3. The rotor have good dynamic balance,the vibration of the motor is very low .

4. The magnets have very high magnet strength and temperature limit can reach to 150°  .

5. H-grade ,high temperature copper wires  with high insulation .

6. High power density ,High torque, and high efficiency,High RPM .

7. Water-proof grad IP8 (For RTD85L134).

8. Water cooling feature (For WC85134)

9. The case use Light,high strength 7075 alloy with blaster and black anodize,can prevent from Oxidation and corrosion

10.H-grade ,high temperature copper wires  with high insulation .

11.The project was designed to three version for different application,there are Water-proof feature, water-cooling feature or Combined Water-proof and water cooling .

Product Parameters

OEM/ODM Order question

We can custom made whatever brushless dc motor and servo you want. Before you give us inquirey, please supply below requirements to us, the more details you can offer, the better suggestion we can give.

For the motors please let us know your requirements:

1. Please choose inrunner motor or outrunner motor you need.

2. Do you have motor diameter and length limited?

3. What working voltage you will use for this motor?

4. What's your expected rated power?

5. What's your expected RPM?

6. You battery pack can bear how high peak current?

7. You estimated yearly sales qtys?

8. Do you need the speed controller together or if you have your own speed controller, please let us know the specifications.

9. Other requirements if you need, for example, wire length, connector types and so on.

Contact Us directly via Trade Manager or send us email both ok, we will reply ASAP in 24 hours.

Below our custom made motors for other clients for your information.

Product Pictures

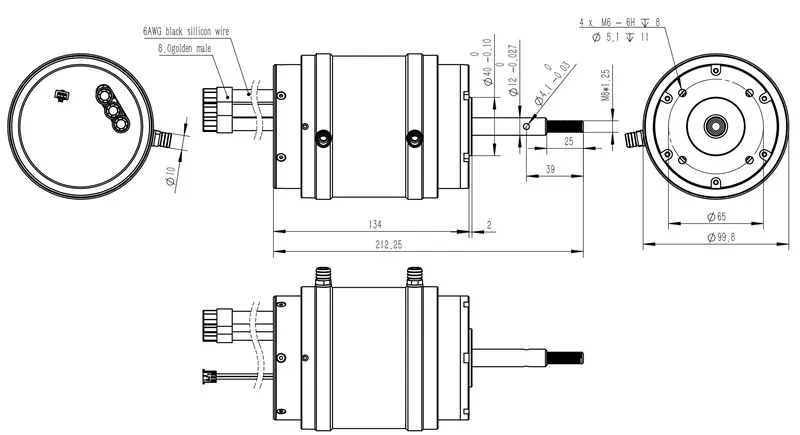

Please Note: We improve our motor every month, so always will modify the new drawing, before your order , please double check with the sales for the latest drawing, as we are manufactor , we custom made for all our motors, so if you have special shaft or mounting holes, wire length, connctors need, please let us know before order.
