4 порта Impinj R2000 чип UHF RFID считыватель модуль
- Category: Access Control Card Reader >>>
- Supplier: Shenzhen Tasei RFID Co. Limited
Share on (62017737994):
Product Overview
Description

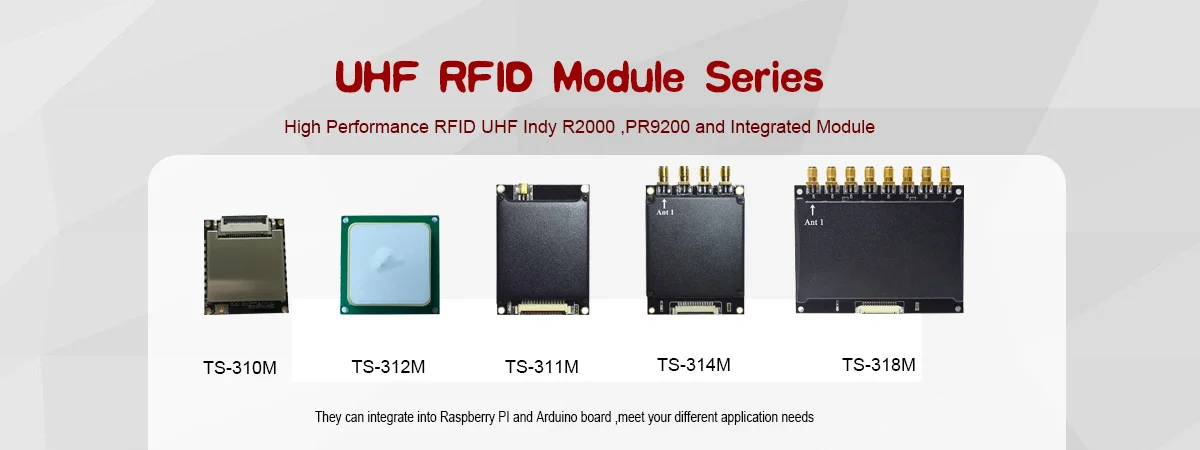

4 ports Impinj R2000 Chip UHF RFID Reader Module
Products Description
TS-314M is a high performance 4-channel module based on Impinj Indy R2000 chip
*Using Impinj INDY R2000 RF chip
*24hoursx365 days non-stop
*Peak Inventory Speed: 700 tags/s.
*Unique I-Search multi-tag recognition algorithm
*EPC C1 G2 and ISO 18000-6B protocols are both supported.
*Low power design, peak current is only 1.2A at 30dBm output power
*Antenna protection function, reminding the user when the antenna is not connected (can be turned off)
*Using Impinj INDY R2000 RF chip
*24hoursx365 days non-stop
*Peak Inventory Speed: 700 tags/s.
*Unique I-Search multi-tag recognition algorithm
*EPC C1 G2 and ISO 18000-6B protocols are both supported.
*Low power design, peak current is only 1.2A at 30dBm output power
*Antenna protection function, reminding the user when the antenna is not connected (can be turned off)
Working Environment | ||||||||
Operating Temp | -20°C to 55°C | |||||||
Storage Temp | -20°C to 85°C | |||||||
Humidity | 95%(+55°C) | |||||||
Parameter | ||||||||
Protocol | ISO 18000-6C(EPC gen2) ISO 18000-6B | |||||||
Frequency Range | 902MHz~928MHz or 865MHz~868MHz or customize others frequency according to your needs | |||||||
Working Voltage | 3.7V-5V | |||||||
Standby current | <50mA (EN high level) | |||||||
Sleep Current | <100uA (EN low level) | |||||||
Operating Current | 1.2A +/-10% | |||||||
Output Power | 0-33dbm | |||||||
Output Power Precision | +/- 1dB | |||||||
Output Power Flatness | +/- 0.2dB | |||||||
Data interface | RS232 and TCP/IP | |||||||
Receive Sensitivity | < -85 dBm | |||||||
Peak Inventory Speed | >700 tags/sec | |||||||
Tag Buffer Capacity | 1000 tags @ 96 bit EPC | |||||||
Tag RSSI | Supported | |||||||
Antenna Detector | Supported | |||||||
Ambient Temp Monitor | Supported | |||||||
Working Mode | Single/DRM | |||||||
GPIO | 2 inputs optical coupling 2 outputs optical coupling | |||||||
Max Baud Rate | 115200 bps | |||||||
Heat Dissipation | Air cooling | |||||||

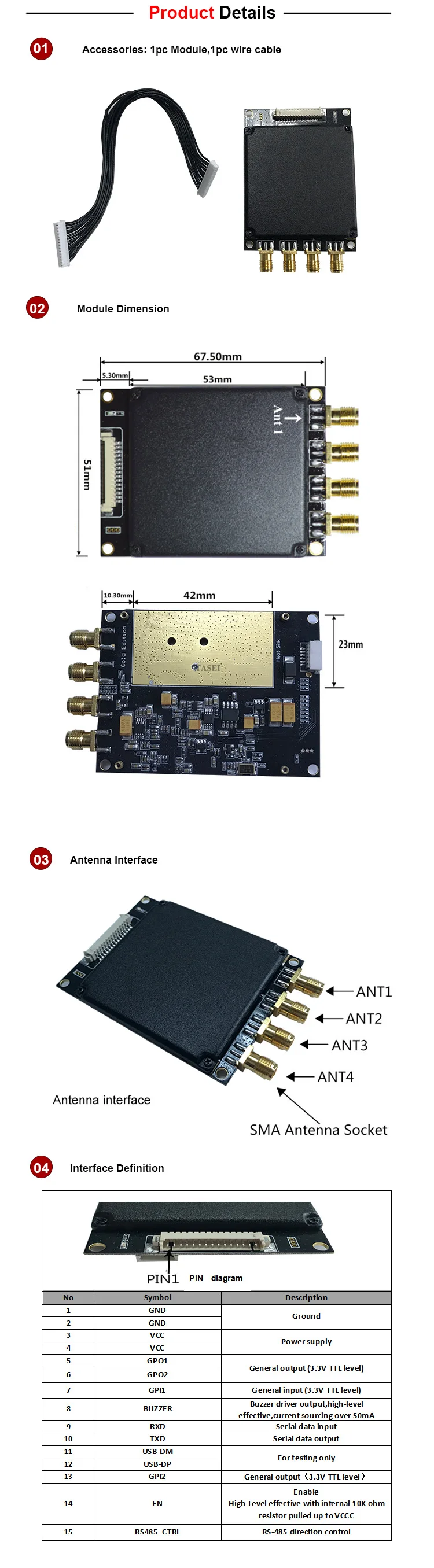

Product Details
