Europe stype bathroom mirror light fixtures led lamp with socket
- Category: LED Mirror Lamps >>>
- Supplier: Ningbo Homer Electronics Lighting Co. Ltd.
Share on (62017747797):
Product Overview
Description
Customized Socket:
Europe,UK or France
Aluminium housing:
is good for heat dissipation
The IP44 splash water protection
Waterproof is suitable for bathroom
The Homer LED Vanity Light will add sophistication, provide proper lighting and add a sense of glamour to any
space. Chrome frame with opal diffuser.
Project case

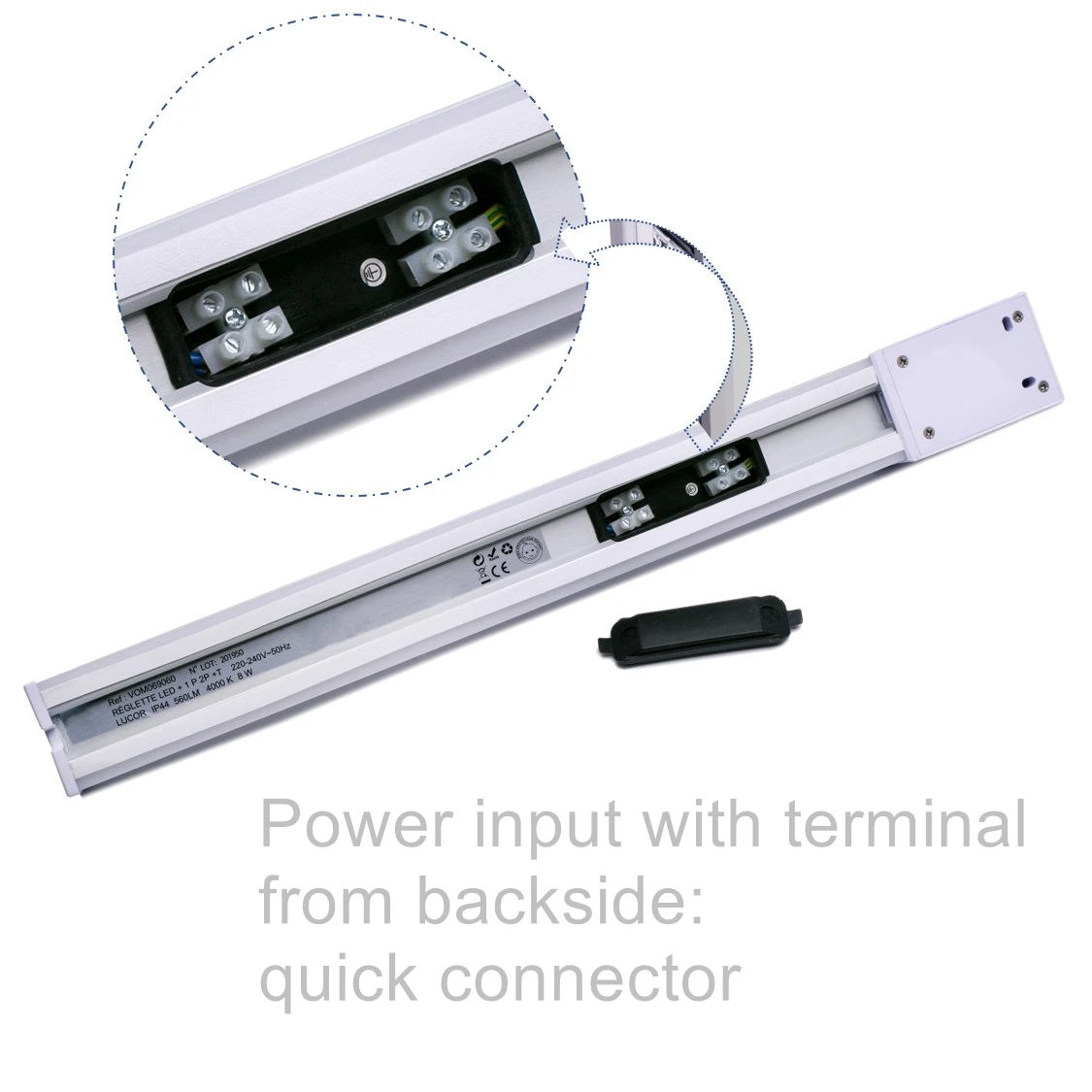

Power input with terminal from backside: Screw-up connector and quick connector
【IP44 Waterproof Level bathroom mirror light 8-20W】 【Bright, safe and Pleasant Mirror front lamp】
This over-mirror-lamp is made of Aluminium +Plastic ,and the splash-proof drive and IP44's degree of protection makes it splash-proof and anti-fog. The mirror light can be used in bathroom or other humid indoor areas.Like mirrored cabinet,bathrooms,mirror,Lav, Wardrobe,cupboard mirror lights,home,hotels, offices,work stations,and architectural bathroom lighting etc.
This mirror lighting has a clear neutral light, it looks very naturally without the yellowness or Blue Tint. It is very suitable for use as a make up light and no dark area. No strobe, no flicker and.Soft natural light is eye protection and no mercury, lead, UV or thermal radiation. Suitable for artwork or picture,display lighting.
Detailed Images
Product detail drawing
Customized Socket: Europe,UK or France

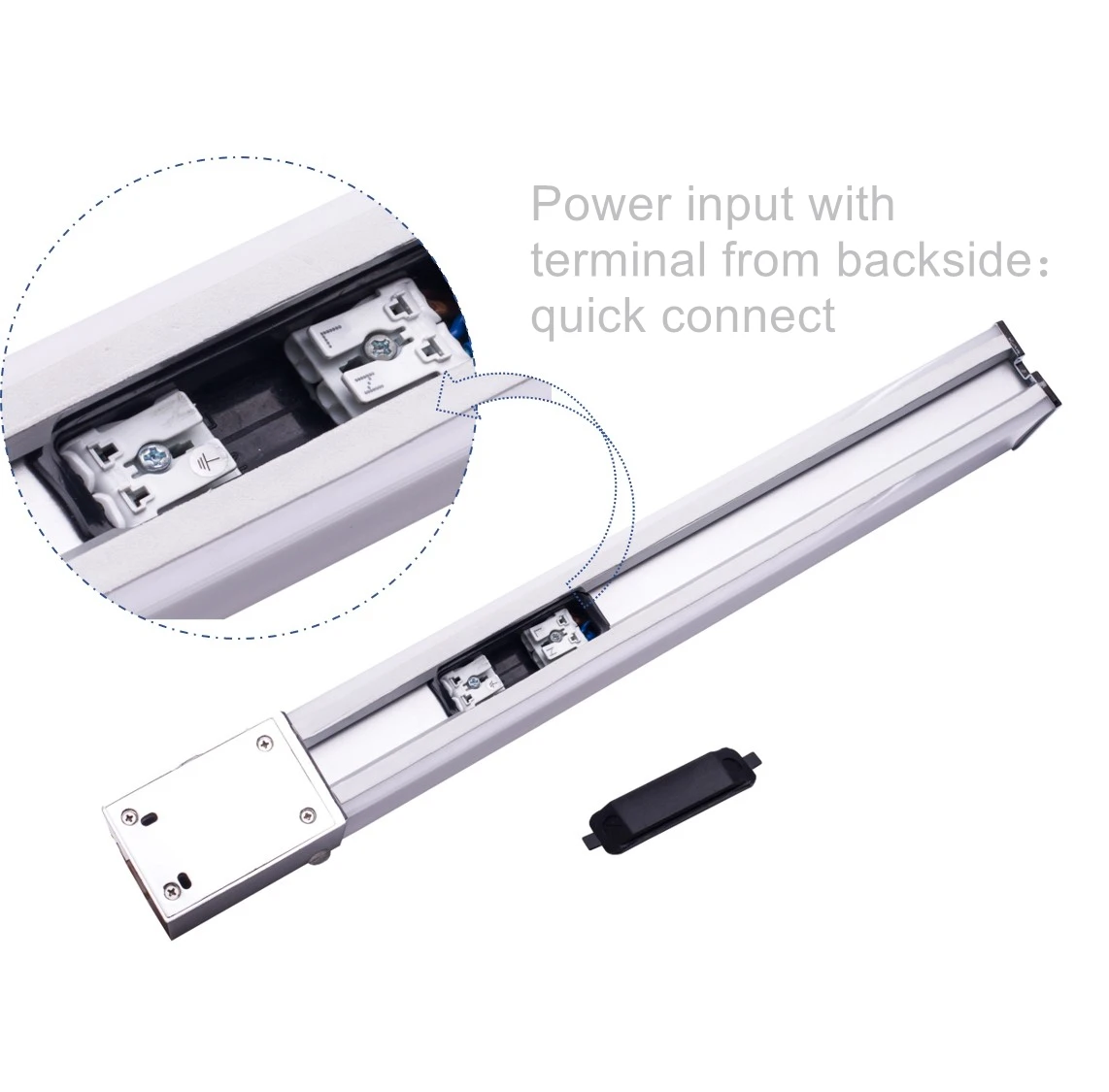

Power input with terminal from backside
IP44 switch to control light ON/OFF
Waterproof design,suitable for bathroom.
Surface emitting light with gentle beam
Stable performance and use-friendly
The color can be chosen: White,Chrome,Silvery ...

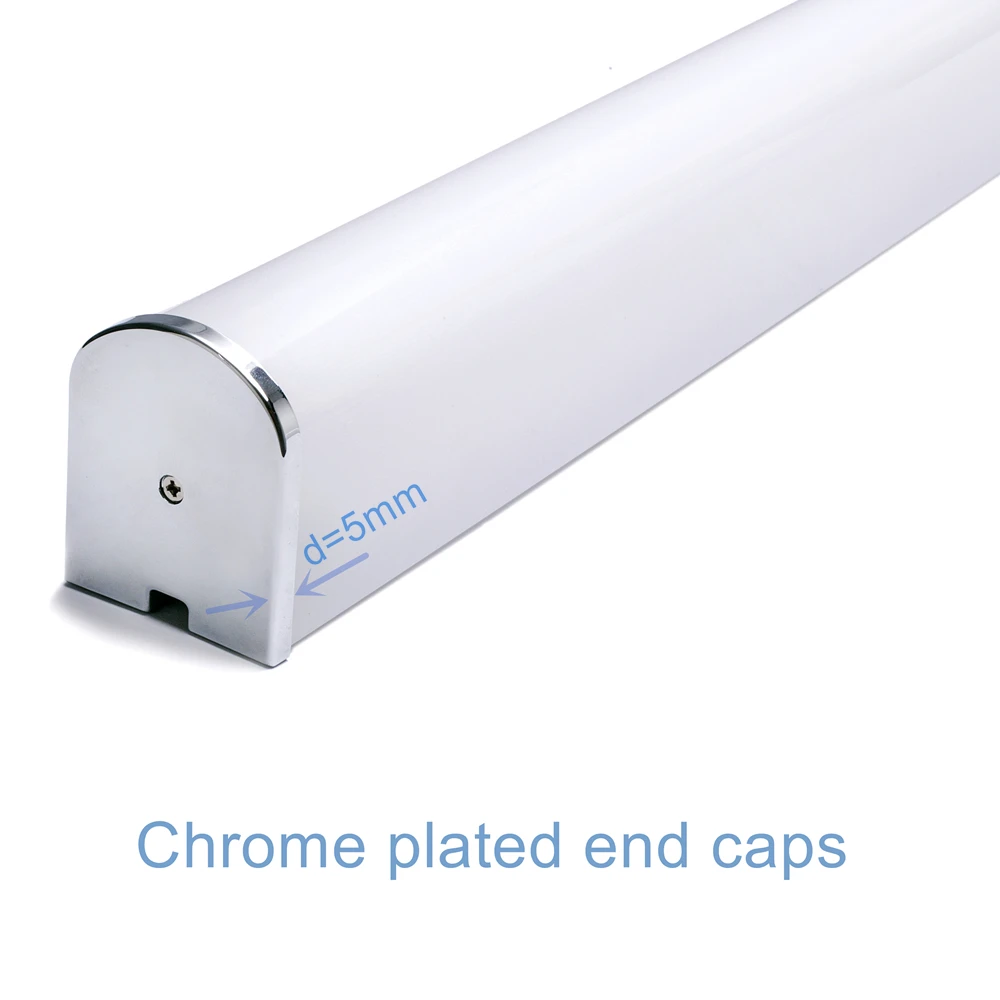

Custom End caps and housing :
The housing can be made into different color:black,white..... Modern and simple style design, suitable for your bathroom, mirror cabinets .
Customized socket
UK/De/Ero/Fr/Aus socket
Light Source:
2835SMD creates stable and efficient light. High quality SMD integrated LED source. LED technology saves up to 80% electricity
compare to conventional light bulbs and lifespan up to 30,000hours.
compare to conventional light bulbs and lifespan up to 30,000hours.
wiring diagram :
First: open the waterproof box cover.
Second: the wire go through the waterproof cover.
Third: screw the wire into the terminal.
Fourth: the waterproof cover assembly in place.
Fifth: install the lights properlly.
Second: the wire go through the waterproof cover.
Third: screw the wire into the terminal.
Fourth: the waterproof cover assembly in place.
Fifth: install the lights properlly.
Related Products
Product Presentation
Size introduction and size picture
Product Specifications | |
Material | Aluminum + PC |
Parts | Mounting hardware, Screws |
Dimensions | 59mm (W) x 66mm (H) x 492/682/982mm(L) |
Light Source: | High brightness SMD2835 LED |
Operating Temperature: | -20°C to 45°C - Indoors |
Warranty: | 2 years with proper installation |
Installation: | 4pcs M4 screws allows easy installation |
Ingress Protection Grade: | IP44 |
Technical - Electrical Data | W490S50 | W600S50 | W600S50 |
Rated wattage | 8W | 15W | 20W |
Rated lamp efficacy | 100lm/W | 80lm/W | 80 lm/W |
Rated Current | 0.12A | 0.18A | 0.21A |
Rated voltage | 220-240VAC | 220-240VAC | 220-240VAC |
Led quantity | 30pcs | 30pcs | 45pcs |
Luminous Flux | 800lm | 1200lm | 1600lm |
Color Temp | 2700-6500k | 2700-6500k | 2700-6500k |
Angle | 133° | 133° | 133° |
Lifespan | 30000H | 30000H | 30000H |
Certificate
Our factory is approved by BSCI,The light has CE,ROHS and GS certificate by TUV and SGS
Company Introduction
NINGBO HOMER ELECTRONICS LIGHTING CO.,LTD is located in Ningbo city and established in year of 2010,We specialized in manufacturing cabinet lights and LED IP44 bathroom mirror light and LED mirror ,our R&D can meet various customized requirements from different market like EU,North America and South-east Asia,etc.,and the products ae certified and in compliance with target market's regulation like UL,CE,ROHS,GS and ERP etc.
HOMER is BSCI audited and acquire the certificate,and the management system is strictly implemented according ISO9001,We invest large tiem and effort to phase in advanced production line,testing device and quality control team.
Packing&Shipping
