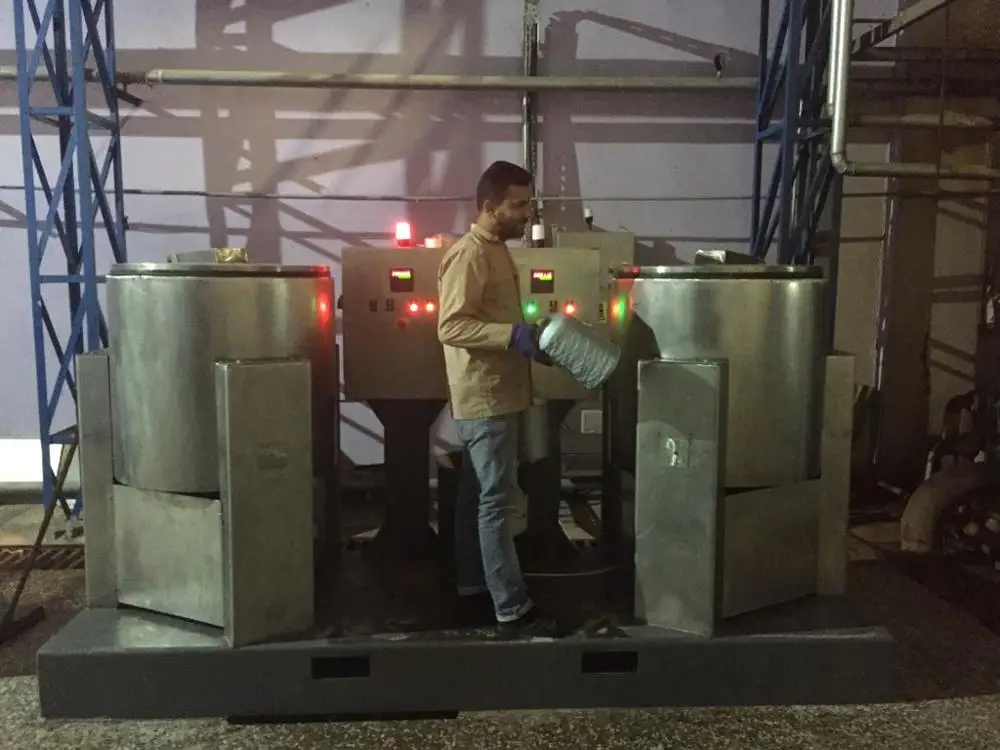

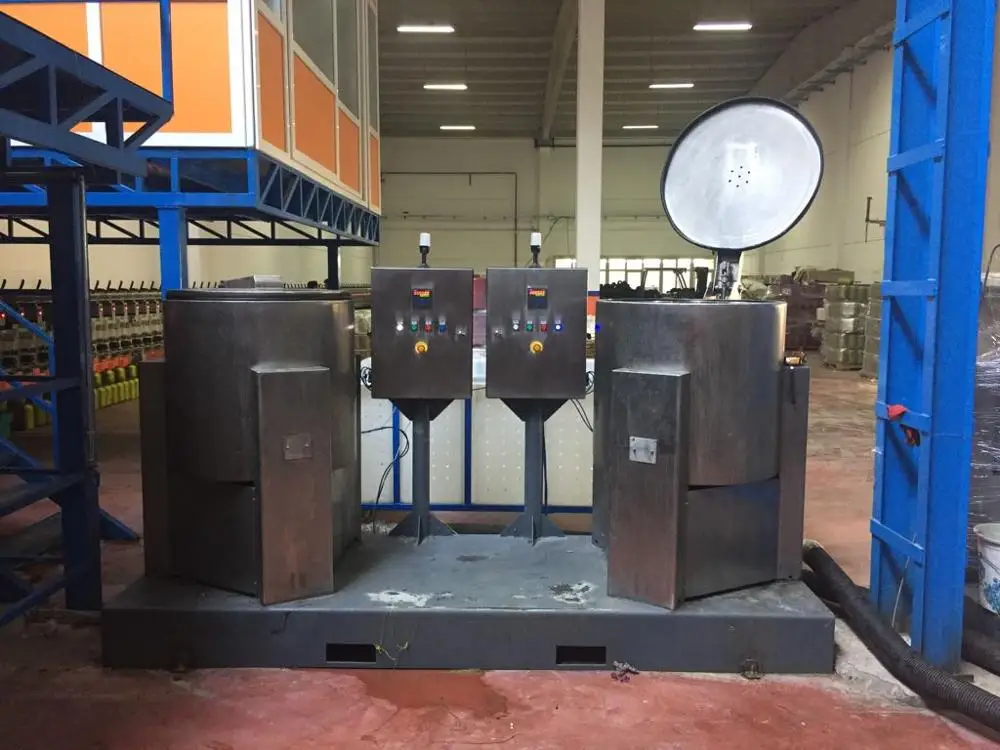

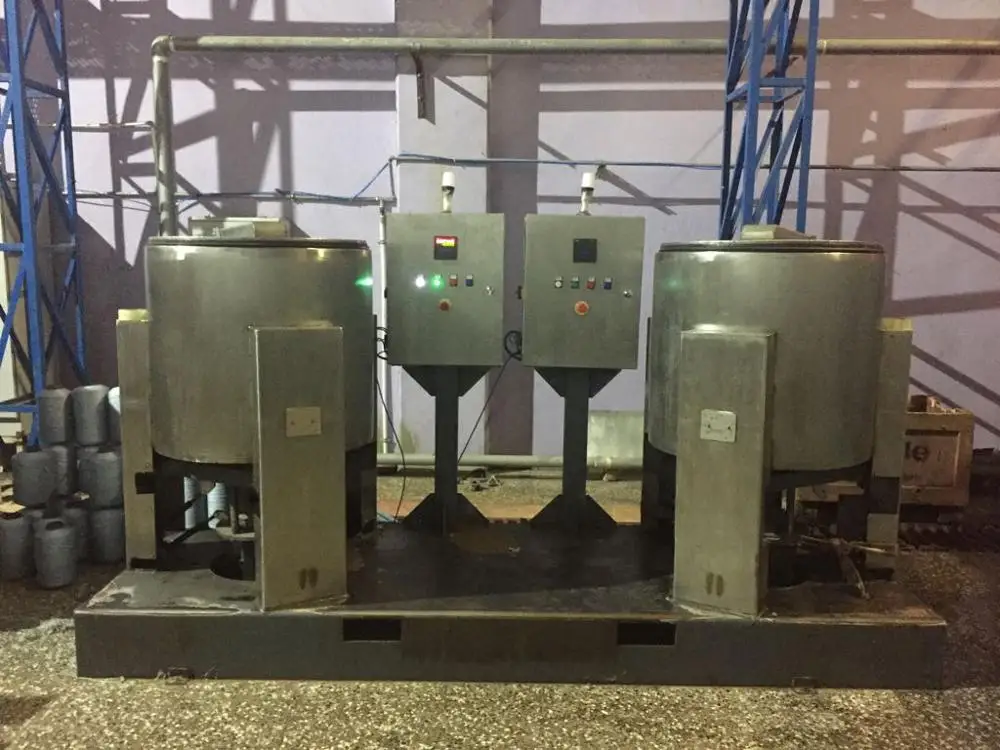

Bobbin Hydro extractor Machine

Technical Specifications of Cone Hydro extractor:

Machine Type : CEDIT CONE HYDROEXTRACTOR

Motor : 15 kw 1500 rpm (For two basket machine)

Basket speed : 1500 rpm

Inverter controlled, adjustable speed

Brake System : Inverter controlled, adjustable brake

Yarn Type : Wool, cotton, acrylic, viscose, polyester, polyester wool mixed, mixed yarns and etc.

Volume :0.80 m3

Capacity : According to cone weight. The cone capacity is standard.

It is available to work in small capacities.

Vibration protection system : Included

Operation Program : Included


MACHINE SPECTS

Machine has modular construction system.

Machine operation has timer, all stages are automatically occurred. These stages have warnings and alerts for operator.

OUTER BASKET

It is stainless-steel material. This basket is assembled to bottom tray and can be disassembled easily.

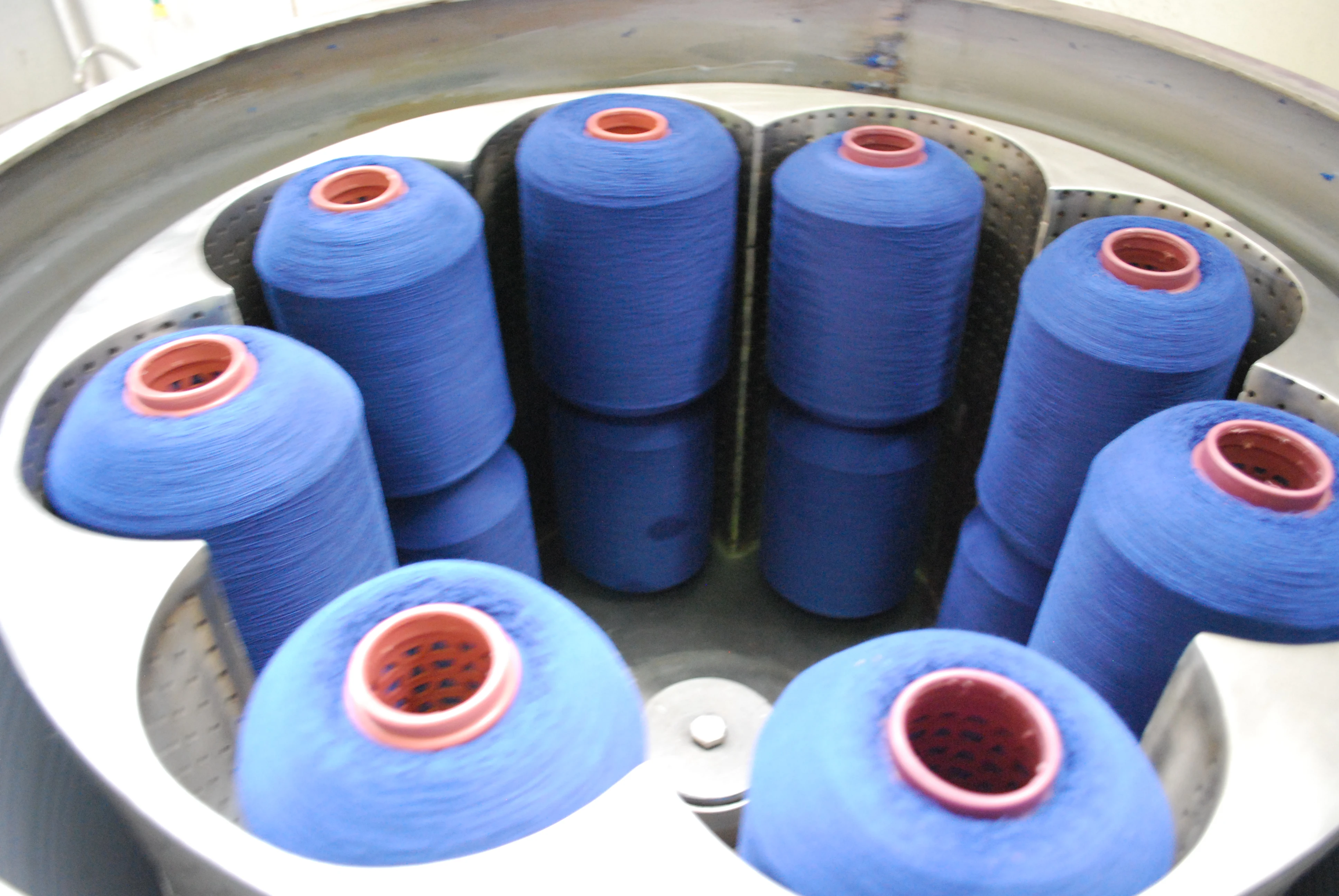

INNER BASKET

All parts are produced from stainless steel material.

MACHINE LEGS

Special designed pistons mounted to legs, these pistons have ability to prevent vibration.

All materials of legs are selected from high quality hard materials.

COVER

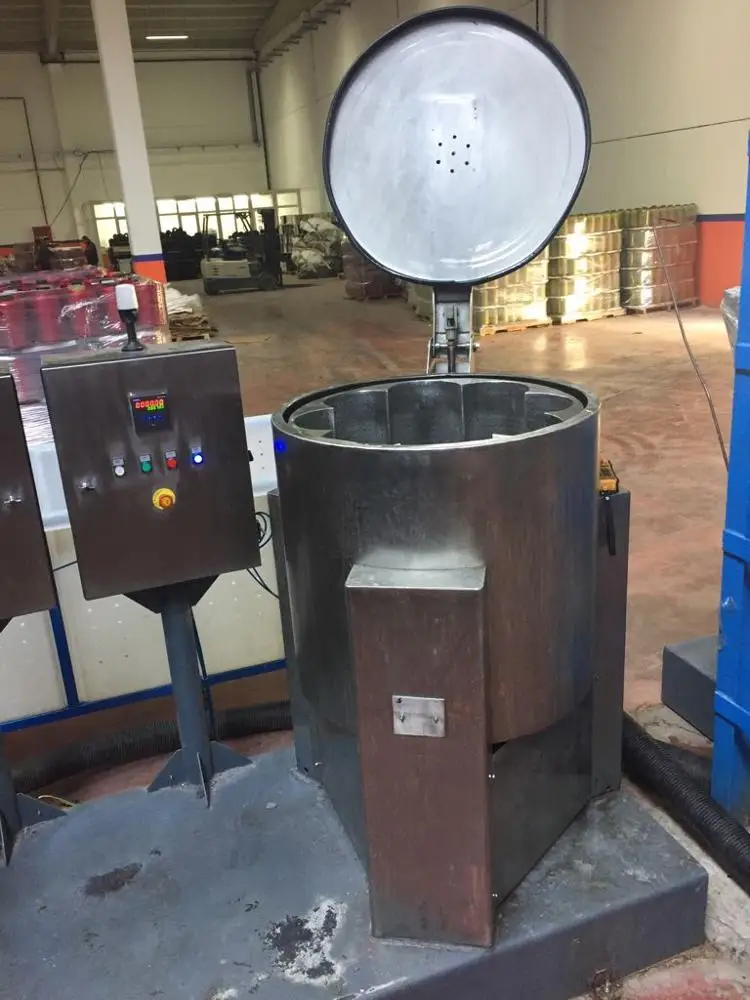

All part is produced from stainless steel material. Cover is opened and closed by pneumatic piston automatically.

Machine has safety system by automation; not start before closing of the cover and not stops before opening the cover.

SAFETY SYSTEMS

Vibration sensor included and the system is fully produced for prevent the vibration.

For operator safety; opening of the cover is by means of programmer.

YARN HUMUDITY AFTER HYRO EXTRACTOR OPERATION

Cedit Cone Hydro Extractor Humidity Table

YARN KINDS Humidity ration after process

Polyester Yarn % 8 – 10

Acrylic % 10 – 12

Polyester wool % 18 – 22

Wool % 25 – 30

Polyester cotton % 30 – 35

Silk % 30 – 35

% 100 Cotton % 45 – 50

Viscose % 60 – 70

COMMAND PANEL

Electro pneumatic control panel is consisting of the followings below:

Magnet-thermic motor protection control devices.

Low voltage helper circuit.

Electro valves and pneumatic control apparatus are inclusive.

Construction is stainless steel.

Process control and buttons and signal lamps included.
