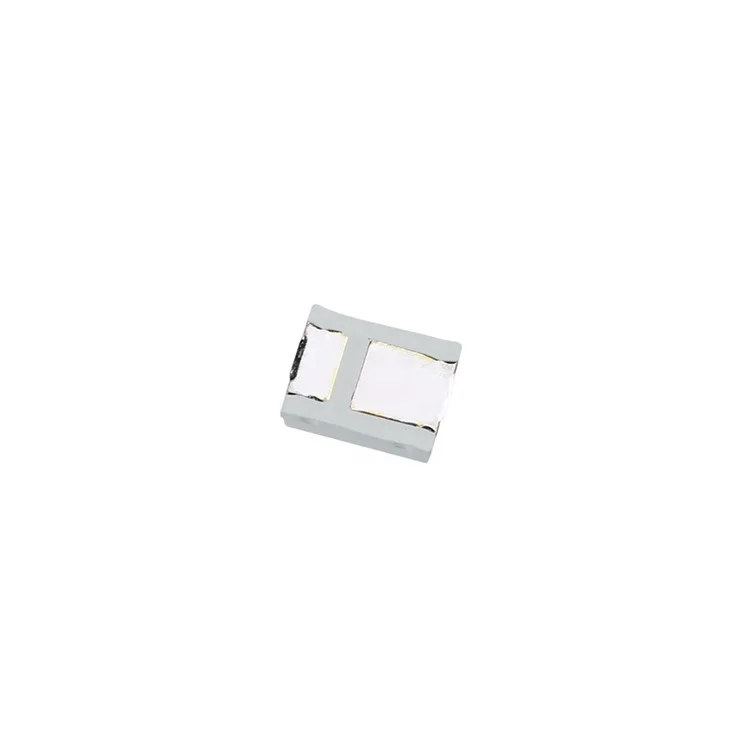

0.2w 0.5w 2835 smd led for tail light
- Category: >>>
- Supplier: Shenzhen Xinminghong Electronic Co. Limited
Share on (62017785774):
Product Overview
Description
Product Category
Product Description

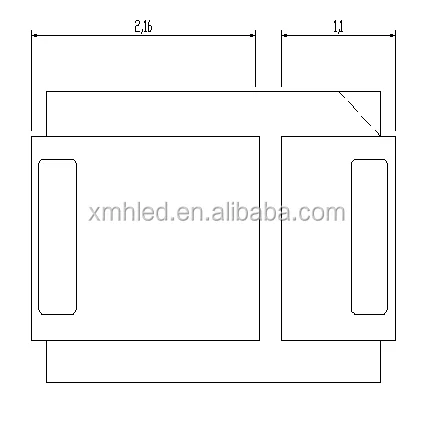

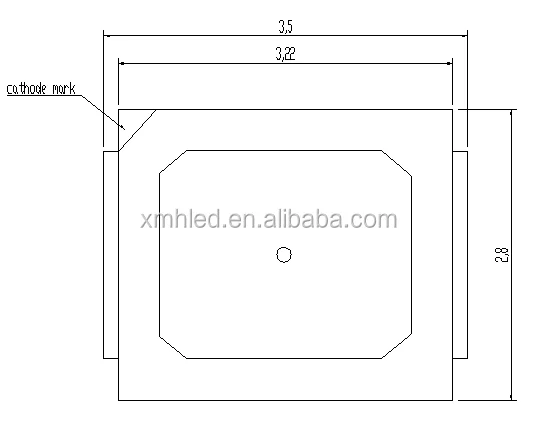

Outline dimension:
Feature:
2.8x3.5x0.75mmmm SMD LED
Avaliable color:red yellow blue green RGB etc.
Low power consumption
Wide view angle
Long lifespan
Package:3000pcs/reel
ROHS Compliant
Application:
Ideal for backlight and indicator
Various colors and lens types available
Absolute Maximum rating:(Ta=25°C)
| Parameter | Symbol | Value | Unit |
| Forward current | If | 70 | mA |
| Reverse Voltage | Vr | 5 | V |
| Power dissipation | Pd | 180 | mW |
| Operationg temperature | Top | -40∼+85 | °C |
| ESD(Human-body mode | -- | 2 | KV |
| Storage temperature | Tstg | -40∼+85 | °C |
| Peak pulsing current(1/8 duty f=1kHz | lfP | 125 | mA |
Electrical characteristics:(Ta=25°C)
| Parameter | Test condition | Symbol | Value | Unit | ||
| Min | Typ | Max | ||||
| Dominant wavelength | If=60mA | λd | 6000 | --- | 6500 | k |
| Forward voltage | If=60mA | Vf | 2.8 | --- | 3.6 | v |
| Luminous intensity | If=60mA | Iv | 20 | --- | 30 | lm |
| Viewing angle at 50% lv | If=10mA | 2θ1/2 | 140 | Deg | ||
| Resverse current | Vr=5v | Ir | 10 | mA | ||
Related Products
Certifications
Packaging & Shipping
PACKAGE:
Standard export carton packing.
DELIVERY TIME:
1-7 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
