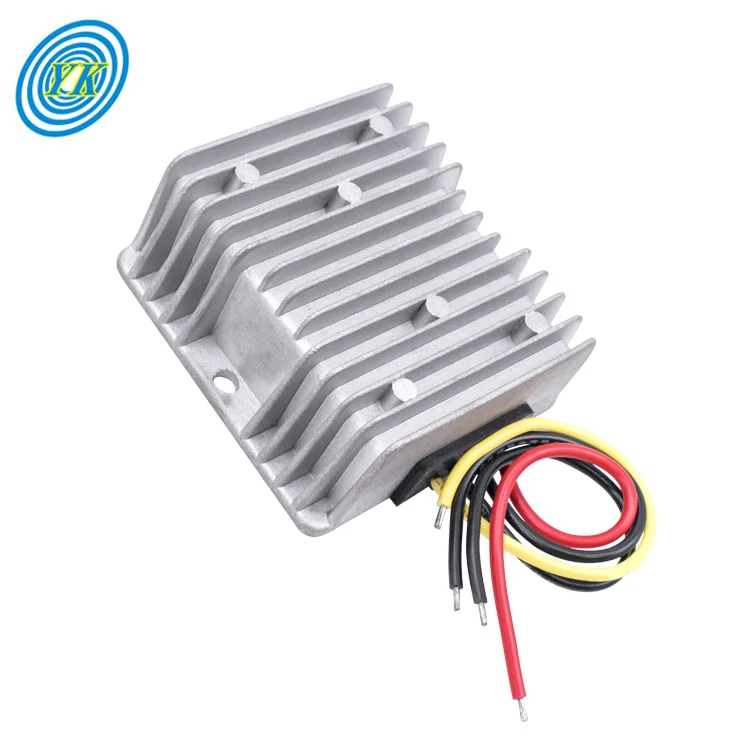

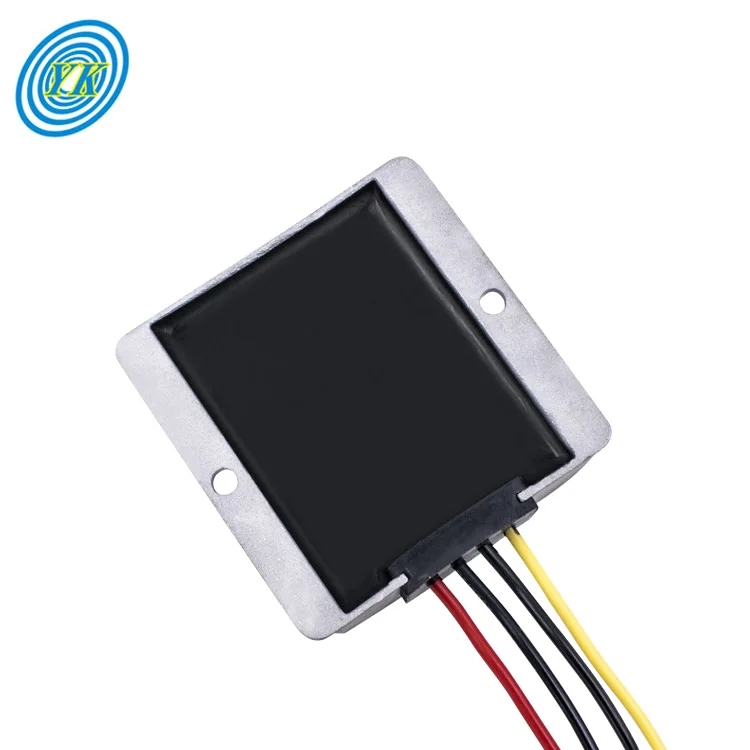

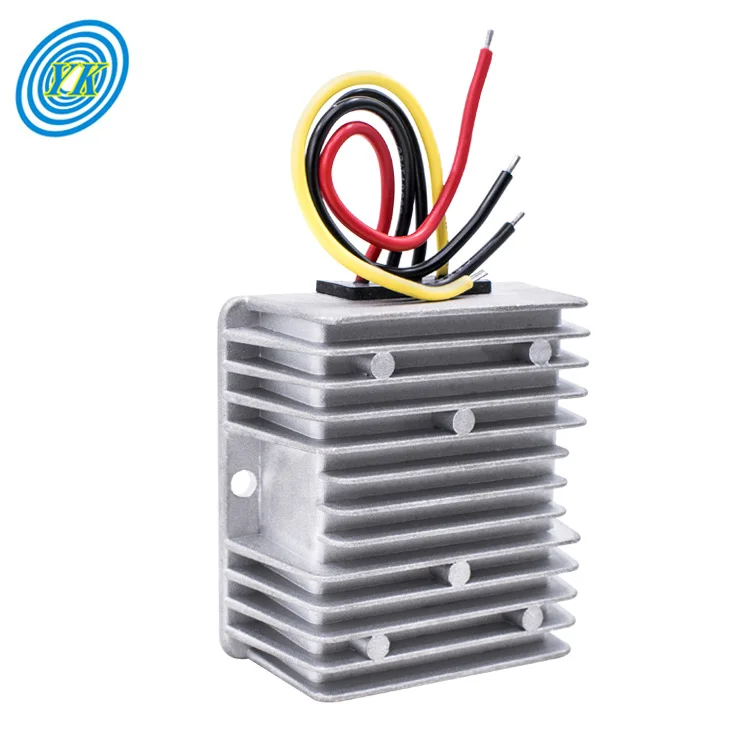

Buck boost converter 12A 12v to 12v dc dc converter
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (62017786801):
Product Overview
Description
Buck boost converter 12A 12v to 12v dc dc converter
Product Description
Model | YK-DD12S1212 |
Input | |
Input voltage | 12Vdc |
Rate voltage | 9-36Vdc |
Output | |
Rate voltage | 12vdc |
Output current | 12A |
Power | 144W |
Output peak power | 125% |
Efficiency | 93% (half load) ; 92% (full load) |
Voltage regulation | < 1% |
Load regulation | < 2% |
Ripple (Full load test) | < 50mV |
No-load current | < 20mA |
| Working temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protection
| Over-current / voltage / load protection |
| Overheat protection | |
Lower voltage protection | |
Intrusion protection | |
Short-circuit protection and automatic recovery | |
Full waterproof potting | |
Cooling way | Free air convection |
Certifications | CE, RoHS |
Dimension | Machine size: 74*74*32mm NW:250g |

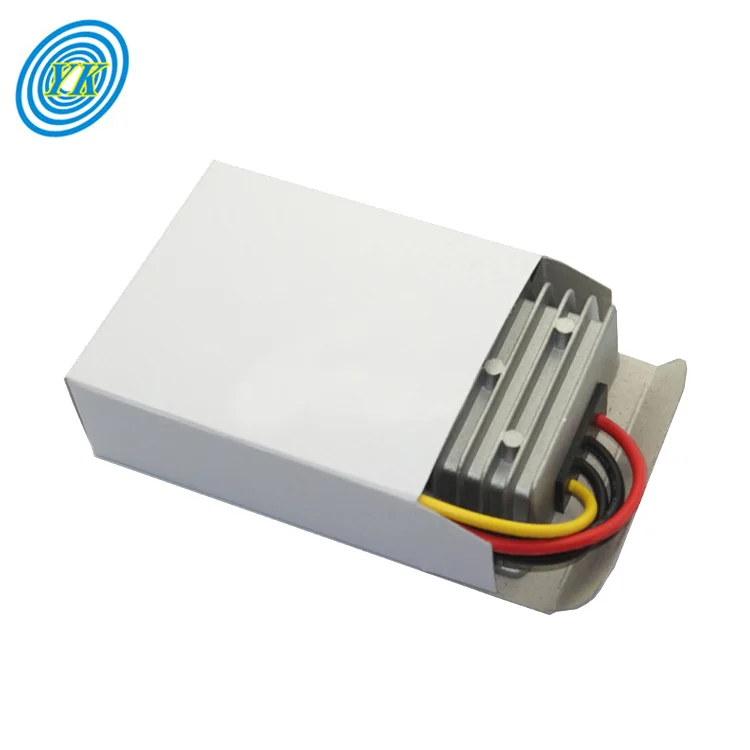

Other | Carton packing |
Features
1. Constant voltage design
2. SMT Process
3. Non-Isolated Module
4. 2:1 wide input range
5. Built-in EMI filter, low ripple noise
6. 100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP67
9. Protections: Short circuit/Over load /voltage / Automatic recovery work
10. Ultra compact size, light weight , high reliability
11. 1 year warranty, lifetime up to 100,000 hours
Customize range
Type | Model | Voltage convert Input to output | Output Current (Be option) |
Boost DC-DC Converter |
YKDD5S12** Series | 5vdc to 12vdc | 1~10A |
YKDD12S13.8** Series | 12vdc to 13.8vdc | 1 ~20A | |
YKDD12S15** Series | 12vdc to 15vdc | 1~15A | |
YKDD12S19** Series | 12vdc to 19vdc | 1~20A | |
YKDD12S24** Series | 12vdc to 24vdc | 1~40A | |
YKDD12S27/28 Series | 12vdc to 27vdc/28vdc | 1~40A | |
YKDD12S32/36** Series | 12vdc to 32vdc/36vdc | 1~30A | |
YKDD12S48** Series | 12vdc to 48vdc | 1~20A | |
Sep down DC-DC Converter | YKDD1224S3.3-9** Series | 12vdc/24vdc to 3.3-9vdc | 1~60A |
YKDD24S12** Series | 24vdc to 12vdc | 1 ~30A | |
YKDD3648S5** Series | 36vdc/48vdc to 5vdc | 1~25A | |
YKDD3648S12** Series | 36vdc/48vdc to 12vdc | 1~60A | |
YKDD3648S24** Series | 36vdc/48vdc to24vdc | 1~30A | |
YKDD48S36** Series | 48vdc to 36vdc | 1~10A | |
YKDD60S5** Series | 60vdc to 5vdc | 1 ~20A | |
YKDD60S12** Series | 60vdc to 12vdc | 1 ~15A | |
YKDD60S24** Series | 60vdc to 24vdc | 1 ~10A | |
YKDD60S36 Series | 60vdc to 36vdc | 1 -8A | |
Automatic Step down andBoost DC-DC Converter | YKDD12S12 Series | 12vdc to 12vdc | 1-10A |
YKDD24S24 Series
| 24vdc to 24vdc | 1-8A | |
| Note: A.Output current be option only but not constant adjustable B.Other Specification can customize base on user request. Please contact with YUCOO Sale team C.Non-Isolated design D.Constant voltage design E.Waterproof F.High efficiency | |||
