3.7v 5v 7.4v 9v 12v 24v 36v 48v 60v polyimide film heater

Product Overview

Description

Description for 60v polyimide film heater

Polyimide is a thin, translucent material, has excellent dielectric strength. In the narrow space or require lighter, heater exposed to vacuum, oil or chemicals application environment, polyimide heaters are ideal. Compared with silicone heating film, PET film or ceramic electric heating film, polyimide is more compact. The process for making polyimide heater is similar to that of Etched Foil Silicone heaters. It is a high-temperature flexible heating element with excellent dielectric properties capable of operating environments between -185 degree celsius to 150 degree Celsius.

Technical Data for 60v polyimide film heater

Length range	10mm-6000mm
width range	10mm-500mm
thermocouple	K or J type
Voltage	12V~480V
Wattage	3w-100kw
Max tem	150 Celsius degree
Material	Kapton/FEP, polyimide membrane
Resistance Precision	±10%ak±0.5Ω
Power	1-6.5w/cm2
Size	can be very small and thin based on your requirements

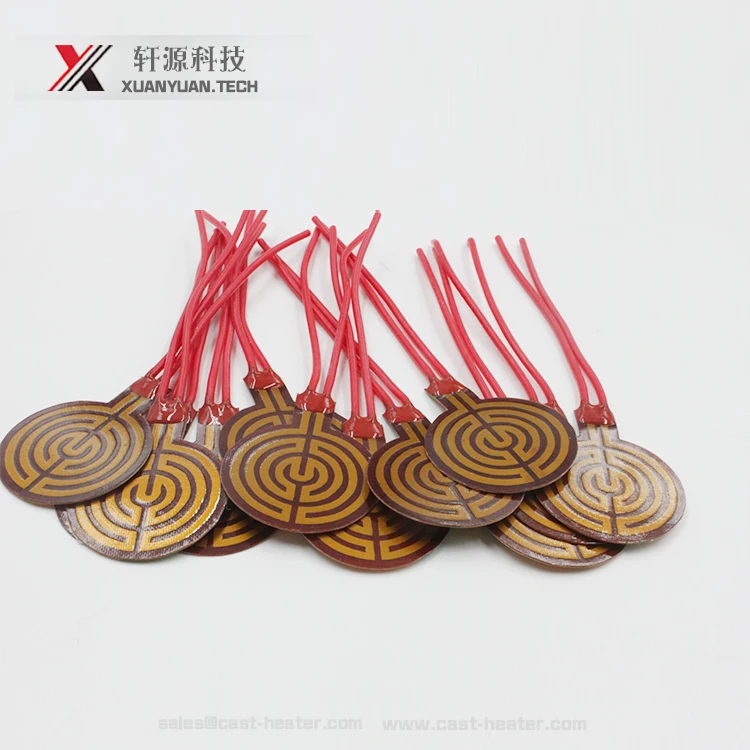

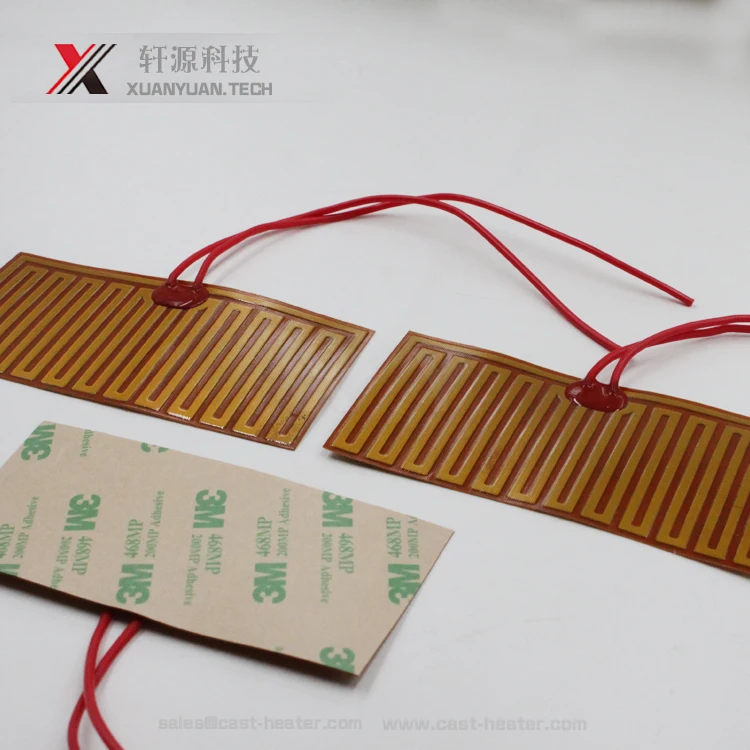

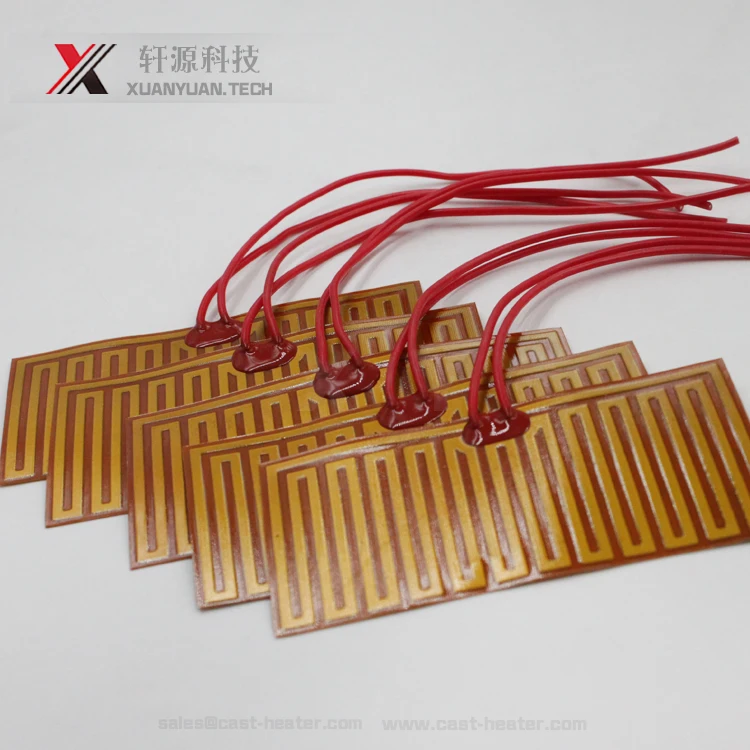

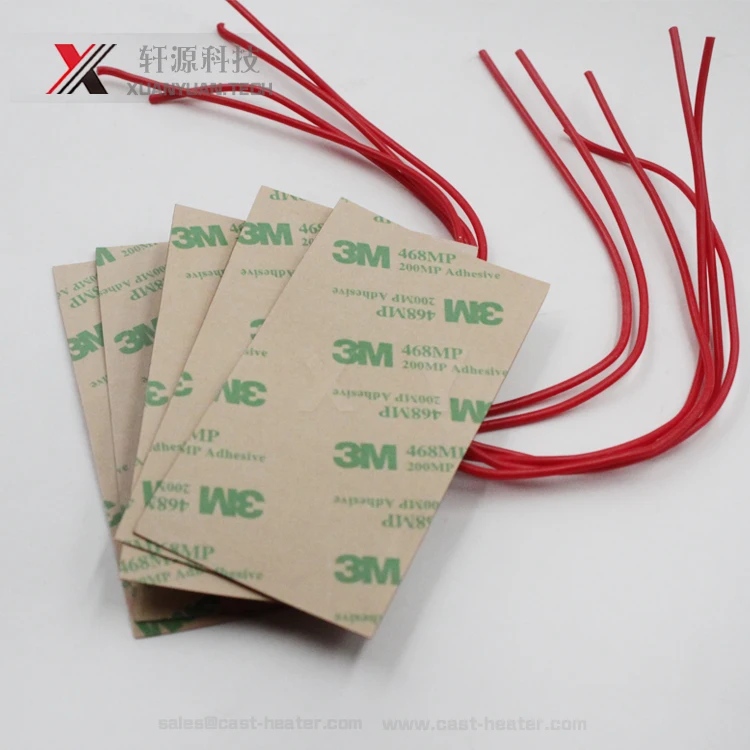

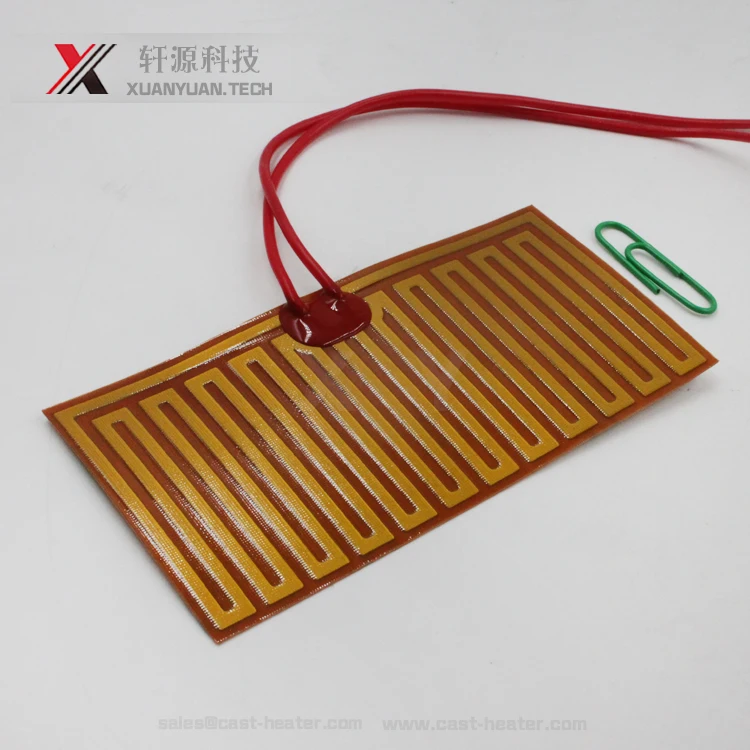

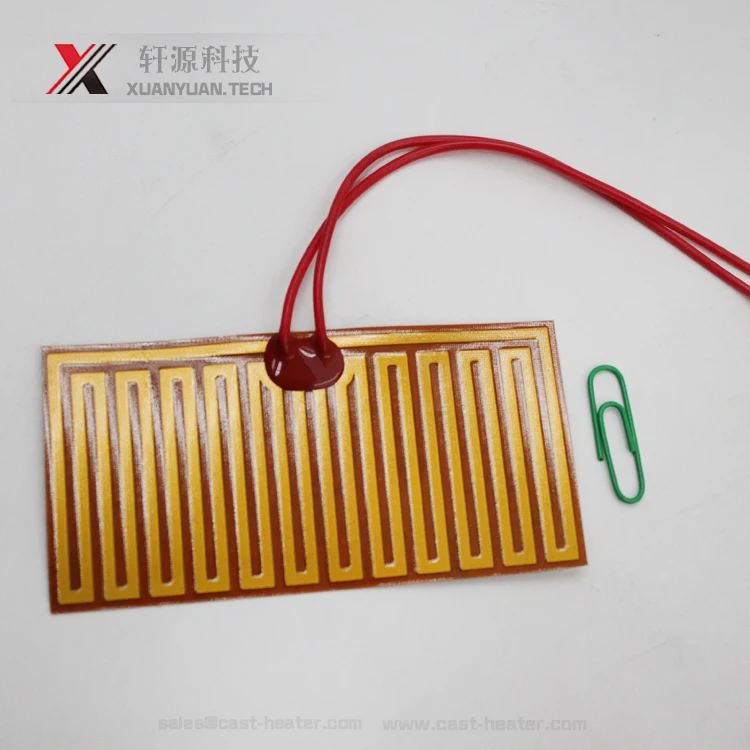

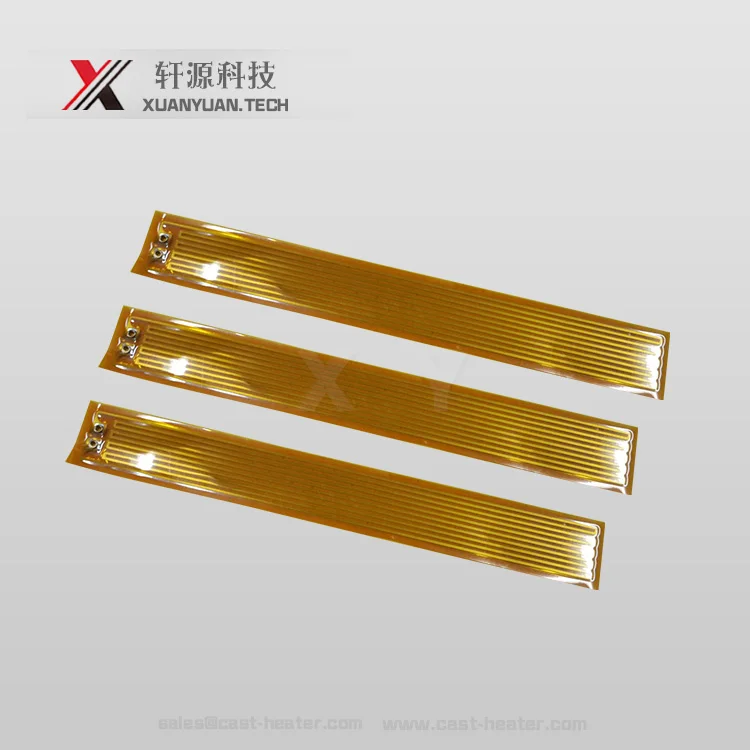

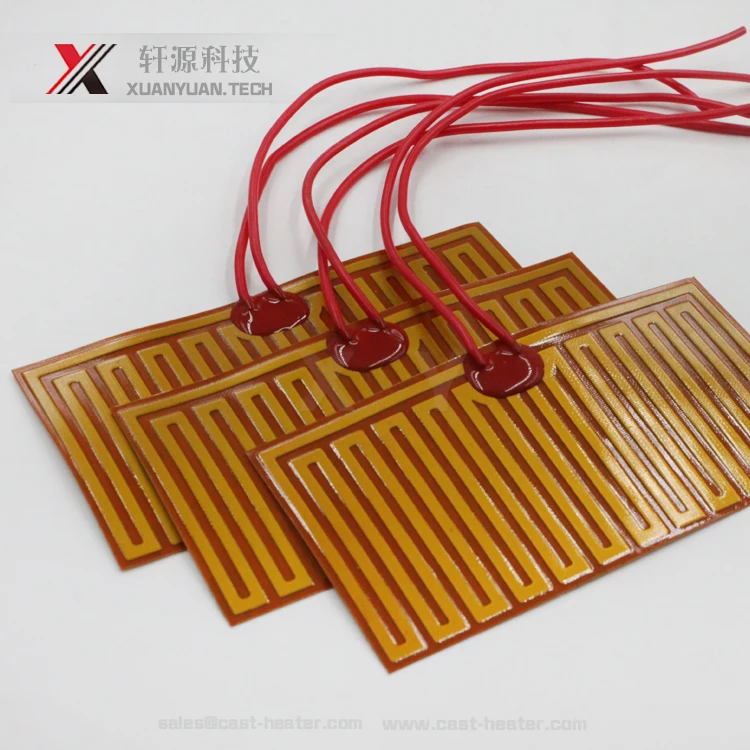

Product Photos for 60v polyimide film heater

Application for 60v polyimide film heater

• Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
• Stabilize optoelectronic components
• Test or simulate integrated circuits
• Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
• Protect aircraft electronic and mechanical devices in cold weather / area.

Company Informaiton

Yancheng Xuanyuan Heating Equipment Technology Co.,ltd is located in Yancheng , a beautiful city in the region of Yangtze River Delta which has many talented people and developed culture and economy.

The workshop area is 10000 square meters, office area is 1500 square meters and there are about 80 machine equipment., It also has technical talented people over 30%.

Manufacturing Cartridge Heater,Tubular Heater,Cast Aluminum Heater,Cast Copper Heater,Cast Iron Heater,Teflon Coated Electric Heater, Stainless Steel Heater,Silicone Rubber Heater,Ceramic Band Heater,Infrared Ceramic Heater,Infrared Ceramic Bulb,Flexible Ceramic Pad Heater,Laboratory heater board etc



 For more information for 60v polyimide film heater
