Smart HDCP EDID seamless 8x8 4k 8 in 8 out HDMI matrix switcher

Product Overview

Description



Breif Introduction



MT-HD0808-H HD matrix is a new generation HDMI matrix that our company is committed to. It supports HDMI standard and supports EDID management. The resolution is up to 4K@30Hz and 1080@120Hz. Support audio and video synchronization switching, suitable for conference rooms, command centers, multimedia rooms and other application scenarios.



Product Specification:



1 The full hardware architecture has no CPU and operating system, and the operation response is faster;
2 Adopt US 17GHz high bandwidth imported switch chip to synchronize all switching signals;
3 Each channel supports HDCP decryption, Blu-ray, 3D;
4 Support signal timing reorganization, CEC, 36-bit true color technology;
5 Supports fast two-button switching of channels, one-to-one correspondence and fast save and retrieval of scene modes;
6 Support HDMI protocol version support: 4K x 2K@30Hz, 1080P@120Hz, 1080P 3D@60Hz;
7 Visualize the operation buttons, and realize the visualization of the input and output channel status through the button indicators;
8 Broadcasting and switching chip, the image can be switched by a single chip, and the integration is higher;
9 Support button, infrared remote control, RS232 serial port control, optional WEB control;
10 Support EDID rewritable and EDID adaptive function, better adapt to the variety of display devices on site, improve compatibility;
11 Long-line drive capability: The input has automatic equalization, which effectively reduces the deterministic jitter caused by line transmission;
12 The input supports the receiving delay, which effectively responds to time compensation when the differential pair is not equal in length;
13 Power-down memory live protection function.



Specifications



Product name	4K HD 8x8 8 input 8 output HDMI matrix switcher
Model	MT-HD0808-H
Input port	8×HDMI,
Ourput port	8×HDMI
Device height	1U
Support resolution	480i, 576i, 480p, 576p, 720p ,1080i, 1080p@24/30/50/60/120Hz, 1080P3D@60Hz, 4K*2K@30Hz
Control port	1 route RS-232 IN,1 route RS-232 OUT,1 route RJ-45
Protocol standard	Support HDMI1.4a,support EDID management and erasable,support HDCP parsing
Color space	Support RGB444,YUV444,YUV422 color space,Support X.V.Color extended gamut standard
Electrostatic protection	Human discharge mode: + / - 8kV (air gap discharge) + / - 4kV (contact discharge)
Control mode	Standard panel button,RS232,Remote switch; Select and configure WEB or APP control
Power supply	AC:110V-240V 50/60Hz   DC:12V/3A
Input voltage	100VAC ~ 260VAC, 50/60 Hz
Consumption	23W(Max)
Dimmension(mm)	448×250×45(mm)
Weight	4Kg
Operation temperature	0 ºC~40 ºC/32 ºF~104 ºF
Storage temperature	−20 ºC~60 ºC/−4 ºF~140 ºF

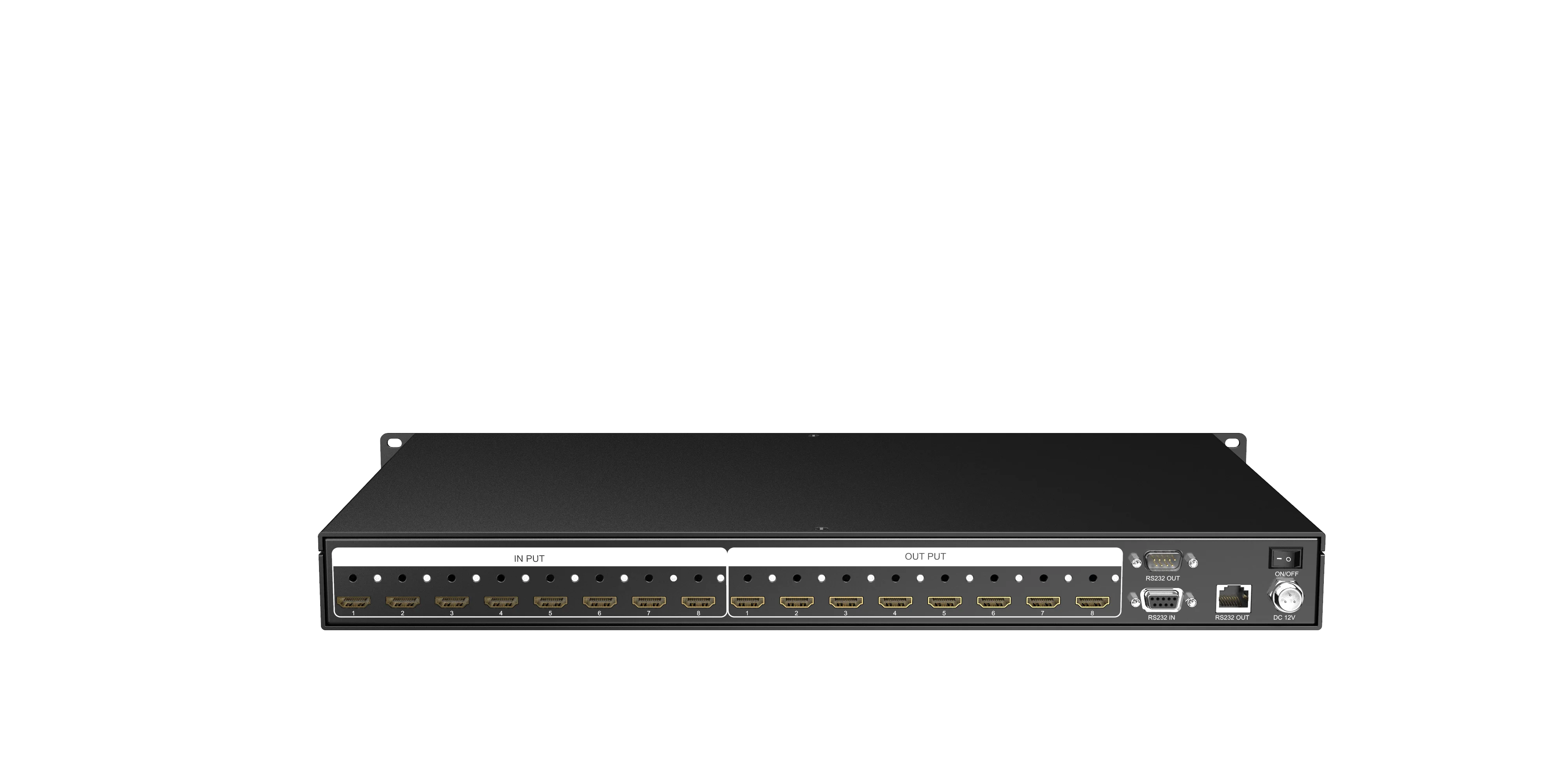

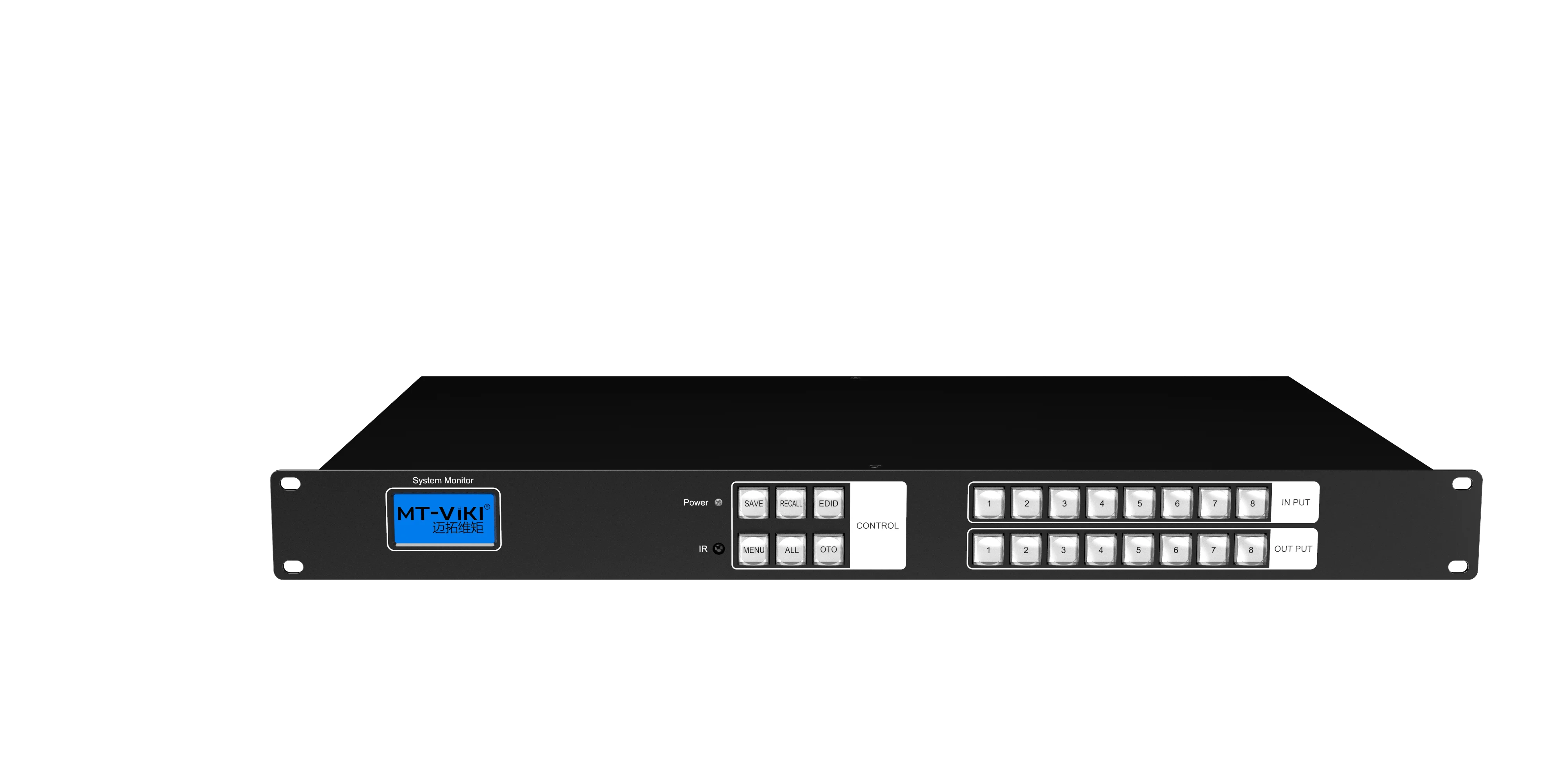

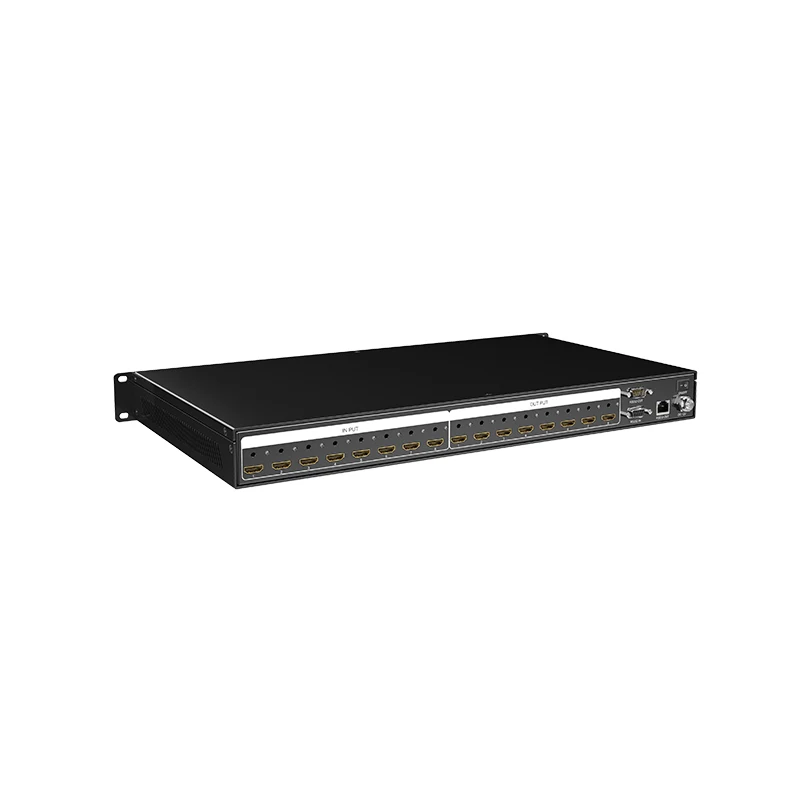

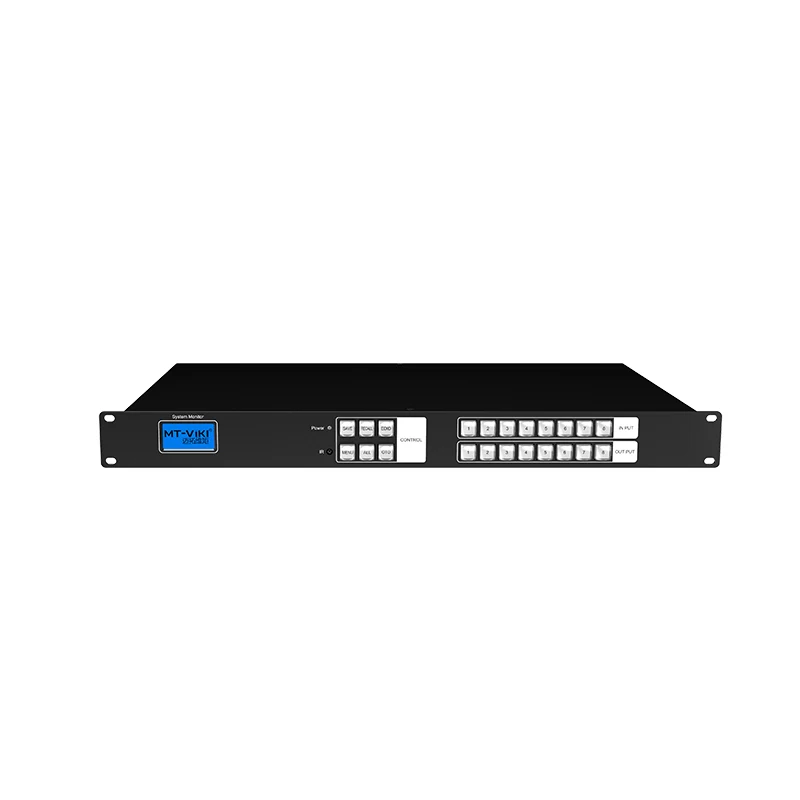

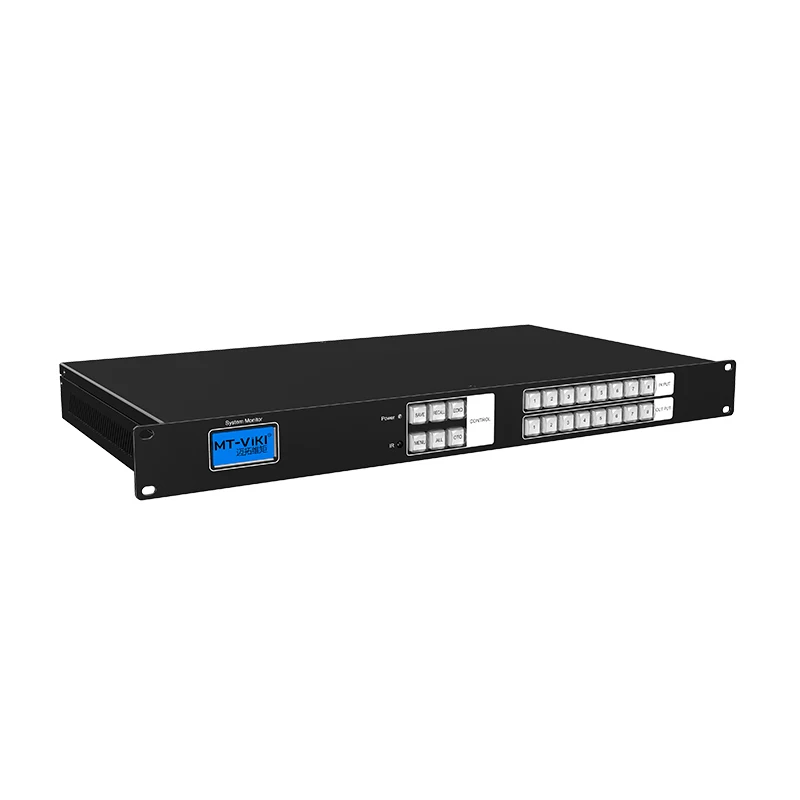

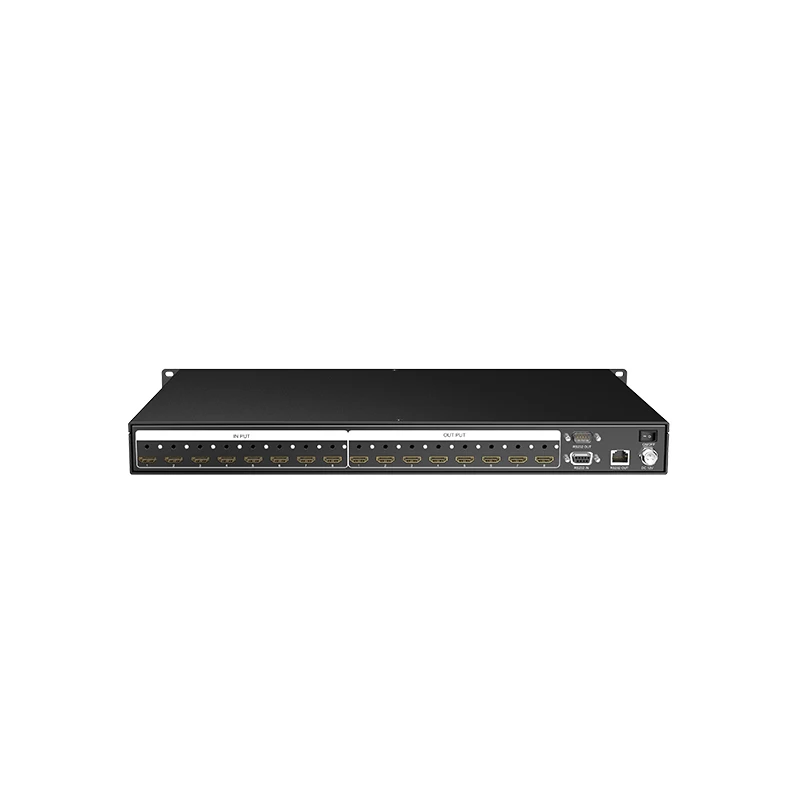

Product image
