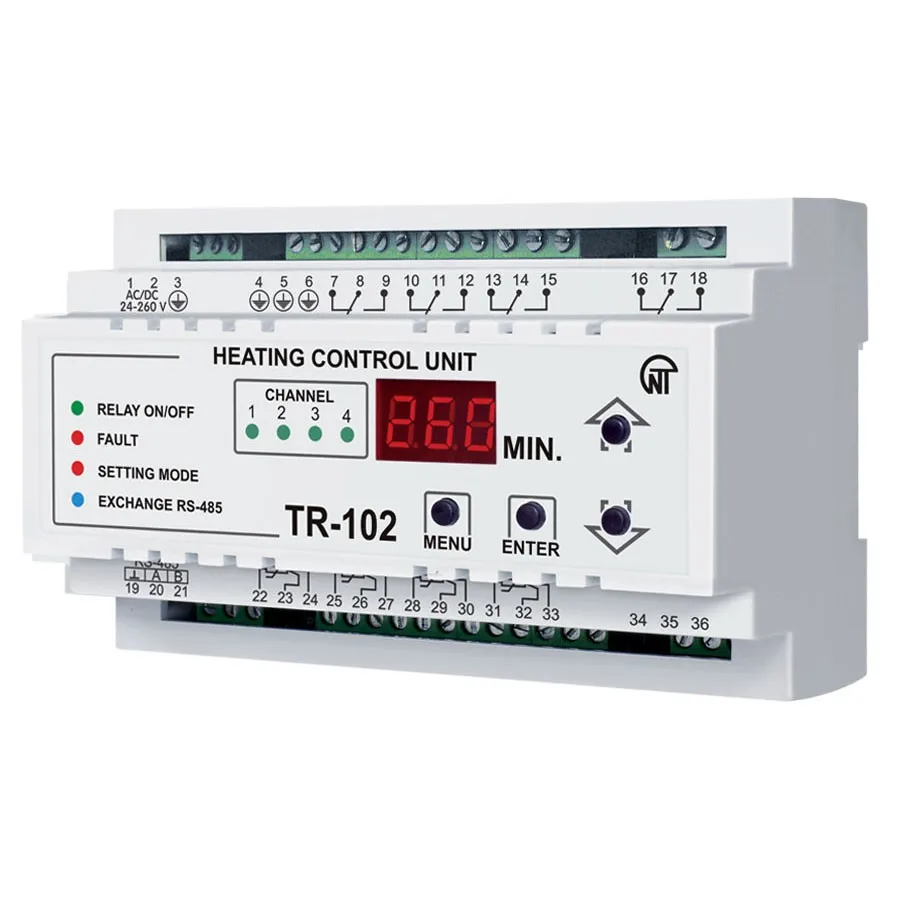

Thermoregulation with programmable function Digital Temperature Relay

TR-102 is designed to maintain the temperature in four areas through the contacts of heat regulator (bimetallic sensor).
The temperature is maintained in cycles with the indication of present controlled area.
The device allows for performing the following functions:
- Maintaining temperature in four thermal area in cycles;
- Blocking control over the uncontrolled area;
- Displaying information on the controlled area and time of control on the integrated LED display;
- Transferring information on the controlled areas to the PC via Modbus RTU standard protocol;
- Programming by the front panel keys and via PC;
- Settings backup when de-energized;
- Settings protection from unauthorized change.

Description	Value
Supply voltage, V	24 – 260 AC/DC
Recommended fuse, A	1 – 2
Types of sensor, dry contact	Bimetallic sensor
Quantity of sensors connectable, pcs	1 – 4
Quantity of output relays, pcs	4
Data memory, years, ≥	10
RS-485 MODBUS RTU	available
Protection degree:  - enclosure  - terminal block	ІР30 ІР20
Climatic resistance version	UHL3.1
Power consumption (under load), ≤, VA	4.0
Weight, ≤, kg	0.370
Dimensions, mm	90 х 139 х 63

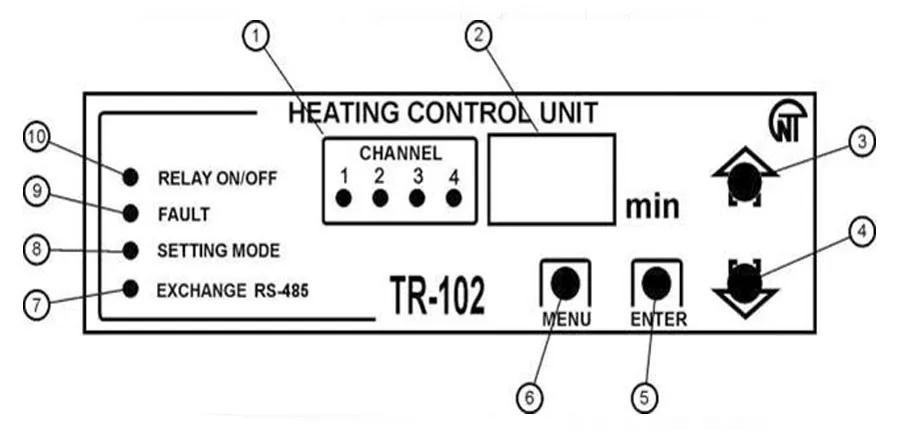

1 – Indicator of the number of present controlled channel;
2 – Seven-digit numerical display;
3 – Up key;
4 – Down key;
5 – Enter key, used in the device programming mode;
6 – View mode and parameters programming mode enter key;

7 – RS-485 connection and communication activity indicator;
8 – Parameter programming mode indicator;
9 – Device failure indicator;
10 – Loading relay close (open) indicator;
