Refractory kiln furniture cordierite mullite extruded batts for ceramic tunnel kiln of sanitary ware
- Category: Refractory >>>
- Supplier: Henan Lite Refractory Material Co. Ltd.
Share on (62017920647):
Product Overview
Description
Product Description
Pls provide us more informations you can ,we try to advice you detailed solutions !

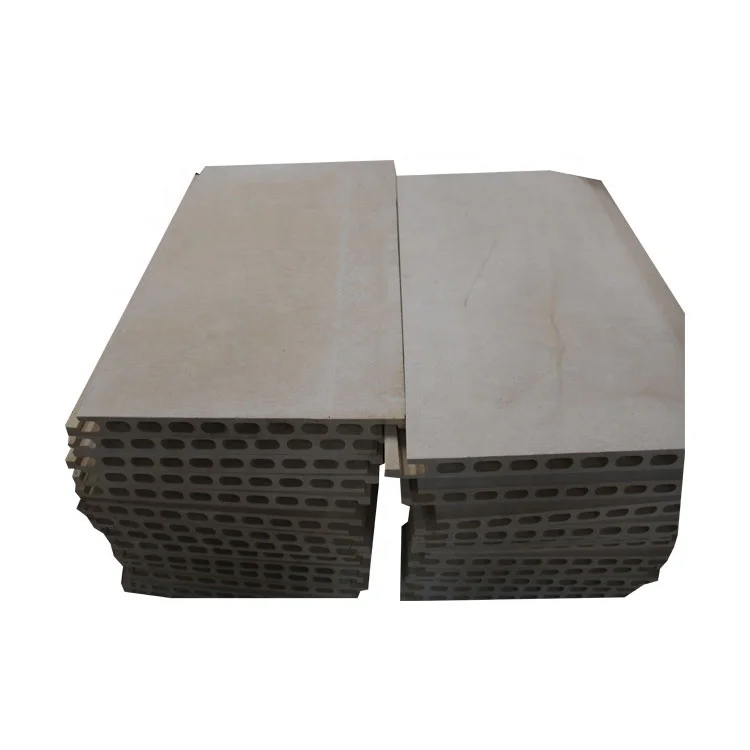

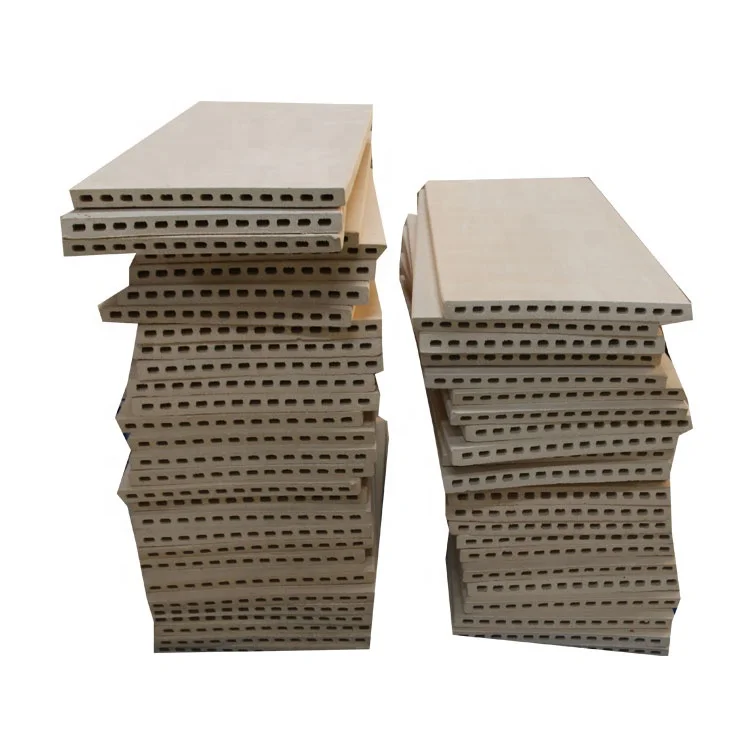

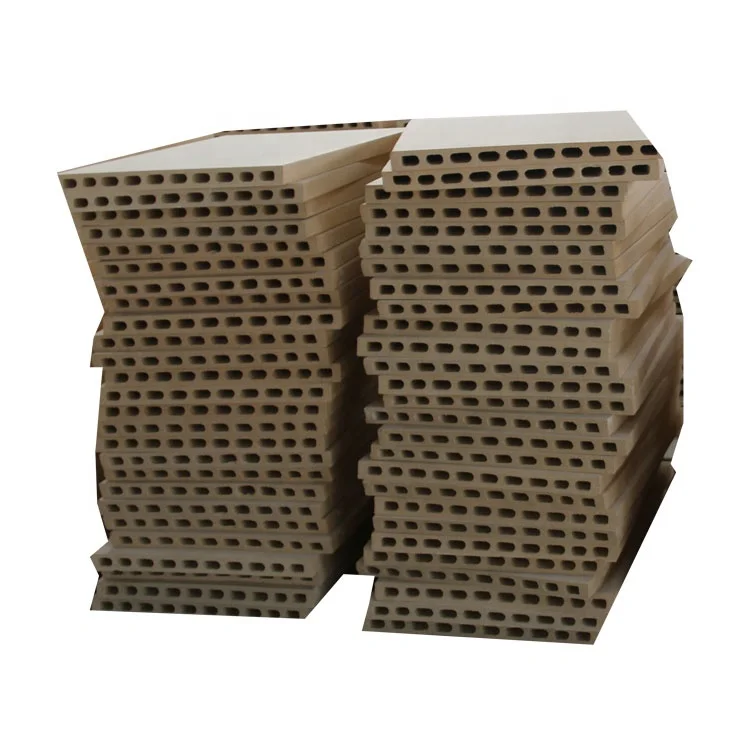

Refractory kiln furniture cordierite mullite extruded batts for ceramic tunnel kiln of sanitary ware
Details:
1.Cordierite-Mullite kiln furniture is composed of cordierite, mullite and glass phase.
2.Due to the high temperature resistance of mullite and the low expansion of cordierite, Cordierite-Mullite kiln furniture has excellent thermal shock resistance,long service time,can be safety used at temperature below 1350℃.
Technical Parameters
Classification | C-Category | R-Category | E-Category | A-Category | T-Category | ||||||||
CUA | CEN | REN | REC | EAY | AUK | TOB | |||||||
Mineralogy | Cordierite mullite | ||||||||||||
Al2O3 % | 40 | 41 | 36 | 39 | 41 | 43 | 46 | ||||||
SiO2 % | 49 | 48 | 52 | 49 | 47 | 46 | 44 | ||||||
MgO % | 6.5 | 7.0 | 7.0 | 8.0 | 7.0 | 7.0 | 6.0 | ||||||
Bulk Desity g/cm3 | 1.95 | 1.90 | 1.85 | 1.82 | 1.95 | 1.82 | 2.00 | ||||||
Apparent porosity % | 26 | 28 | 28 | 29 | 26 | 33 | 25 | ||||||
M.O.R.at 20℃ MPa | 14 | 13 | 16 | 10 | 13 | 15 | 18 | ||||||
M.O.R.at 250℃ MPa | 14 | 13 | 10 | 11 | 15 | 15 | 17 | ||||||
C.T.E.at 20℃-1000℃ 10-6K-1 | 2.3 | 2.3 | 2.6 | 2.2 | 2.2 | 2.5 | 3.1 | ||||||
Specificheat at 20℃ KJ/KG·K | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.1 | ||||||
Max working temperature ℃ | 1300 | 1250 | 1300 | 1320 | 1280 | 1280 | 1350 | ||||||
Remark: | (1)M.O.R.=Modulus of rupture. (2)C.T.E.=Coefficient of thermal expansion | ||||||||||||
Classification | C-Category | R-Category | E-Category | A-Category | T-Category |
Feature 1: Thermal expansion | Low | Medium | Extremely low | Low | Higher |
Feature 2:Resistance to deformation | Strong | Stronger | Medium | Stronger | Very good |
Feature 3: Thermal shock resistance | Good | Good | Excellent | Good | Good |
Long time working temperature up to | 1250℃ | 1280℃ | 1200℃ | 1220℃ | 1300℃ |
Suitable products | Slab,batts,support pillar | Not suitable for big size product (Above 1000mm) | Suitable for thicker batts | Complicated shape | Not ideal for fast-firing processes |
Application: Cordierite Mullite kiln furniture is mainly used in ceramic shuttle kiln, tunnel kiln,roller kiln for firing sanitary ware,electrical ceramics ,crystallized glass panesl,hard ferrites,powder metallurgy,stoneware,earthenware,redware,porcelain,bone china,pottery pot,dolomitic pottery,heavy clays. | ||
Company Information
Cooperate:Russia,Vietnam,Malaysia,Thailand,Kazakhstan,Greece,NewZealand,Jordan,Saudi Arabia.
Why Choose Us
1.Based on rich refractory raw materials and experienced refractory manufacture factories,can provide complete refractory in Specification and Category with good quality and competitive price.
2.Larger production capacity(3000tons per month) ensure the fast production cycle after confirmed the order.
3.ISO9001 Certificate,100% QC inspection Before Shippment,and 1 year Quality Assurance.
4.Professional packing avoid damage;Competitive Price make the products competitive in customers' market.

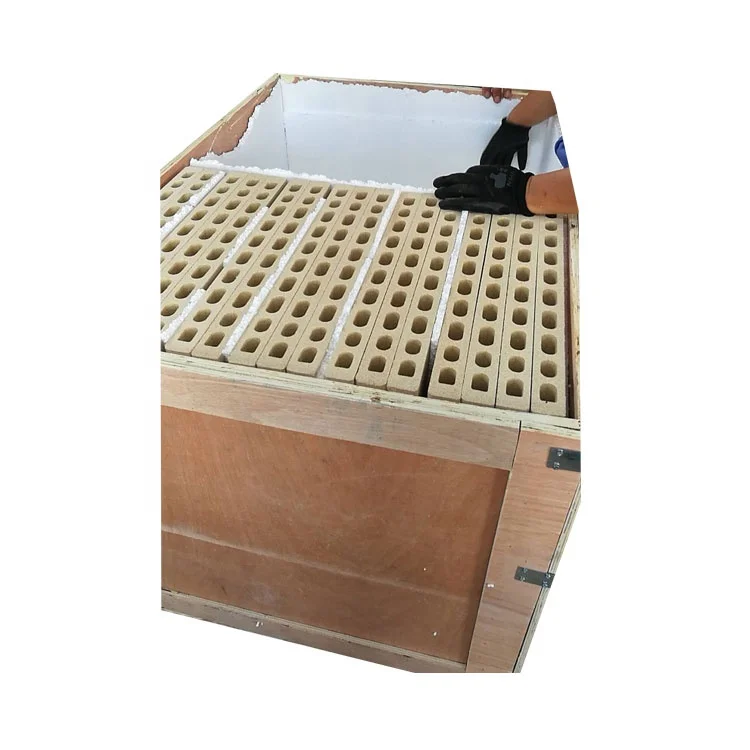

Packing & Delivery
1.Pallet+Paper or Steel angle bead+Paper board +Plastic or Steel belt +Plastic film
2.Can make the packing according to customer's requirements.
FAQ
Q1.What are the payment terms?
A:Usually T/T,but L/C,Western Union etc are available for us.
Q2. How long is delivery time?
A:The delivery time will be determined according to the quantity of the order.
Q3.How are your products' quality?
A:The products will be strictly inspected before shipment, so the quality could be guaranteed.
Q4.How to slove the quality problems?
A:If the products are not confirmed to customer samples or have quality problems,our compay will be responsible to make compensation for it.
Q5.How about your company's certification?
A:ISO9001 and Test Report,also we could apply other necessary certification.
